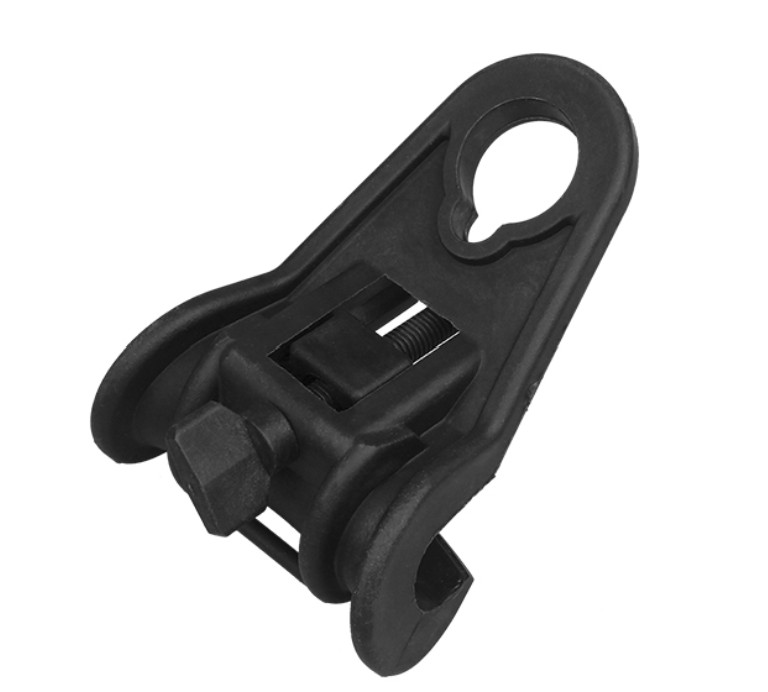

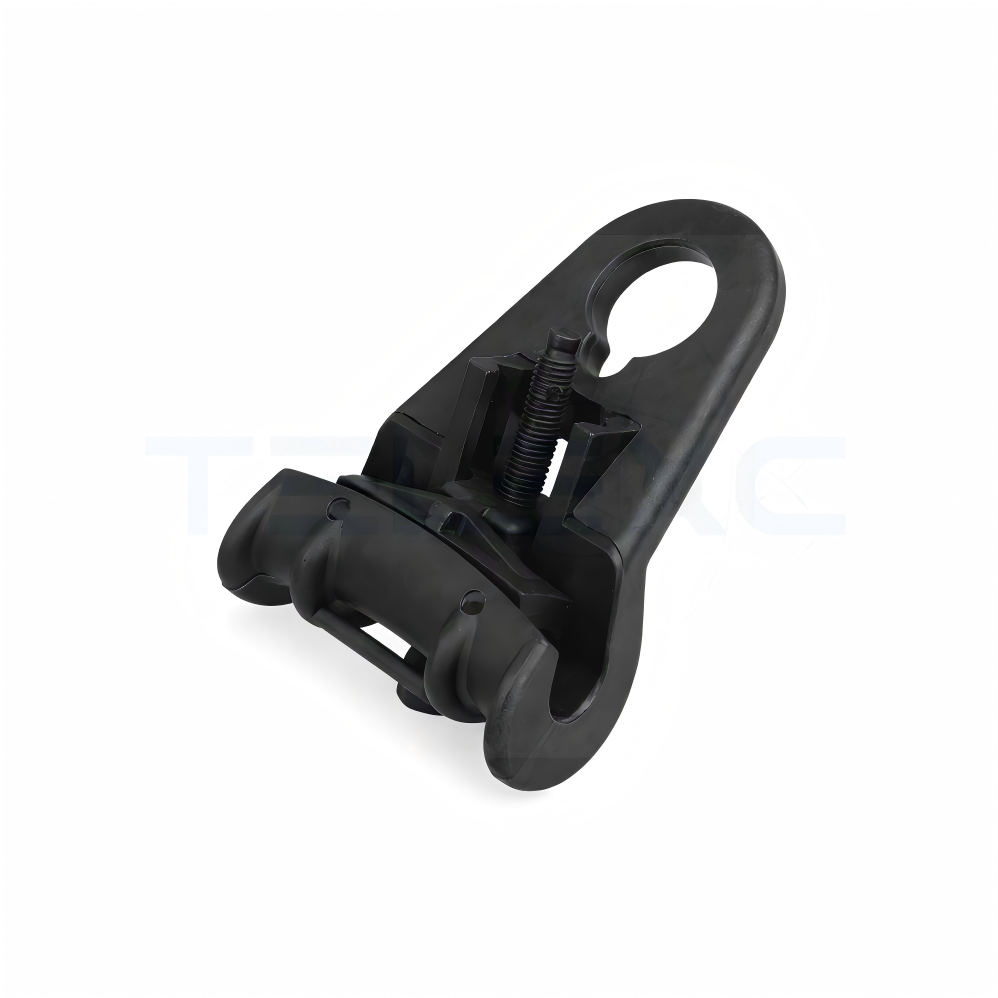

The 1.1A Suspension Clamp is designed for 16–95 mm² low-voltage ABC (Aerial Bundled Cable) systems, providing secure suspension and gripping of the insulated neutral messenger without causing damage.
Constructed from UV- and weather-resistant engineering plastic with a high-strength aluminum alloy bracket, the clamp allows longitudinal and transversal movement, making it easy to install in congested areas and enabling safe live-line work.
This clamp can be supplied pre-assembled with a bracket or separately and is compatible with eye bolts, pigtail hooks, and insulation-piercing taps for flexible mounting.
Ideal for residential, commercial, and light-industrial ABC installations, it ensures reliable performance in extreme environmental conditions.
International Standard Compliance
-
NFC 33-040 (French standard for ABC accessories)
-
Compliant with the LV ABC line international standards
Construction & Materials
-
Clamp & Movable Link: UV- and weather-resistant engineering plastic
-
Bracket: Corrosion-resistant aluminum alloy
-
Provides additional insulation between the cable and the pole
-
Designed for long-lasting outdoor durability and live-line working
Installation Guide
-
Cable Measurement: Measure and mark the cable at the suspension point.
-
Clamp Positioning: Place the clamp at the marked point.
-
Cable Securing: Use the adjustable mechanism to grip the cable firmly.
-
Verification: Ensure the clamp is secure and the cable does not slip.
-
Optional Accessories: Can be mounted using eye bolts, pigtail hooks, or insulation piercing taps.
Required Tools:
-
None for tool-free installation (optional wrench for bracket if separate)
