Optical Distribution Frame (ODF)

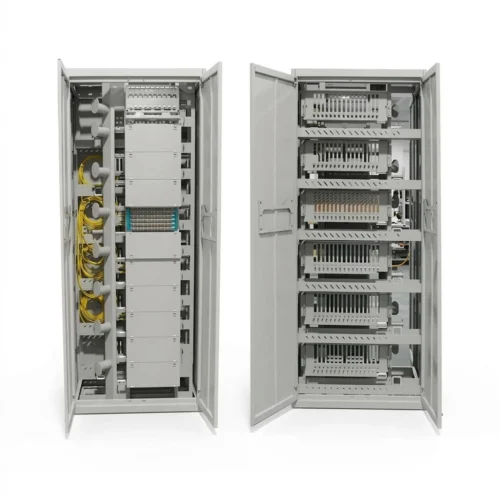

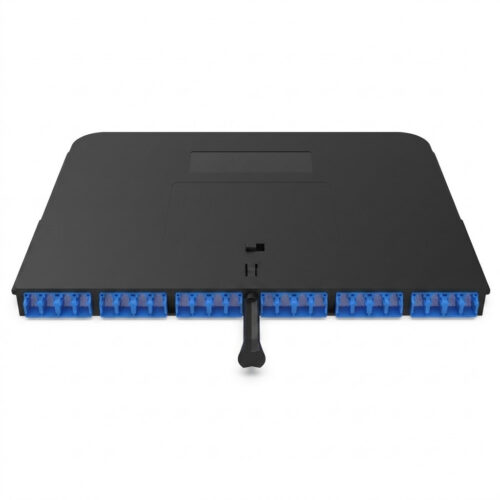

An ODF typically consists of a metal frame, mounting panels, fiber adapter panels, splice trays, cable management components, and fiber storage areas. These components provide an organized way to manage fiber connections while maintaining proper fiber routing and bend-radius control.

In a fiber optic network, the ODF serves as a centralized point for fiber termination, splicing, and patching. Incoming cables can be securely fixed and terminated, while individual fibers can be connected to patch cords through fiber optic adapters. This allows network operators and technicians to establish, change, test, and maintain fiber links without directly disturbing the main fiber cables.

What Does an ODF Do?

The main functions of an Optical Distribution Frame include:

• Fiber termination: Provides a structured termination point for incoming and outgoing optical fibers.
• Fiber splicing: Accommodates fusion or mechanical splicing between feeder cables, distribution cables, and pigtails.
• Fiber patching: Enables flexible connections between terminated fibers and optical equipment or other distribution points.
• Fiber management: Organizes fiber routes, patch cords, and slack fiber to reduce cable congestion and simplify maintenance.
• Fiber protection: Protects spliced and terminated fibers from mechanical damage and helps maintain the required bend radius.
• Fiber distribution: Provides a centralized interface for distributing optical connections throughout a network.

How Is an ODF Used in a Fiber Optic Network?

An ODF is commonly installed in central offices, data centers, telecom equipment rooms, headends, and network distribution facilities. Depending on the network architecture, it can connect backbone or feeder cables to distribution fibers, patch cords, or active optical equipment.

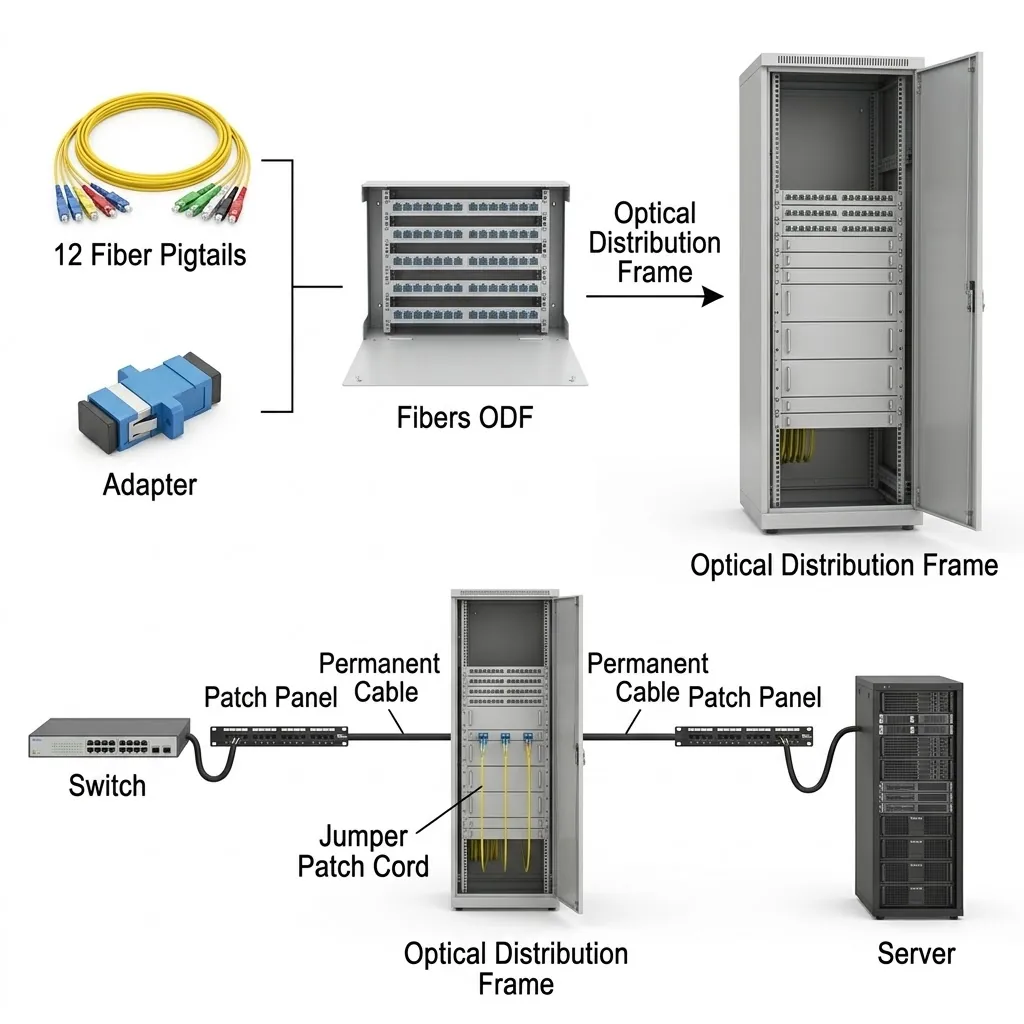

A typical connection may follow this path:

Backbone / Feeder Cable → ODF → Patch Cord → Optical Equipment

The ODF separates permanent cable termination from flexible patching. This makes network connections easier to identify, test, rearrange, and maintain.

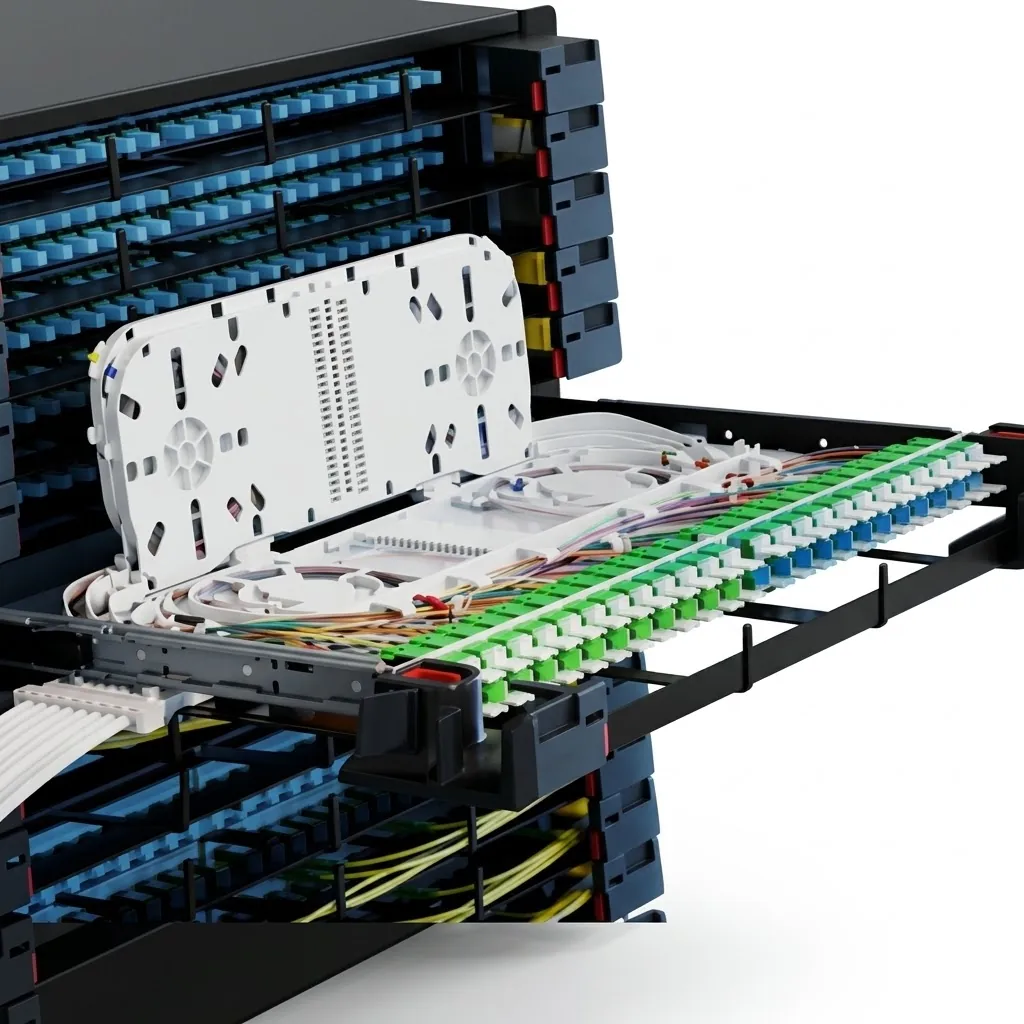

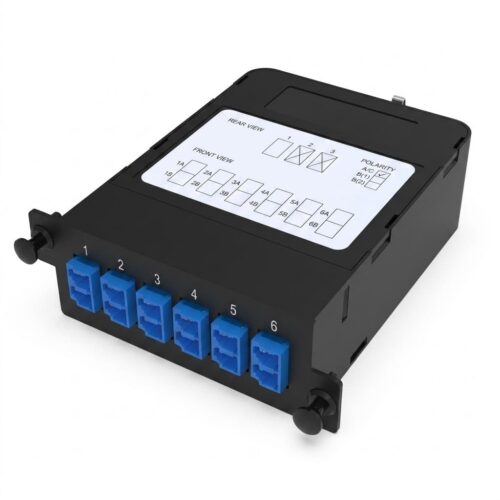

For example, fibers from an incoming backbone cable can be spliced to pigtails inside the ODF. The pigtails are then terminated in adapter panels, where patch cords can be connected to equipment or another fiber distribution point.

ODF Frame vs. Fiber Optic Patch Panel

The terms ODF and fiber optic patch panel are sometimes used interchangeably, but they can describe equipment with different capacities and applications.

A fiber optic patch panel is generally a compact fiber termination and patching unit, often designed for rack or wall mounting. An ODF is typically a more comprehensive fiber management system that can provide higher fiber capacity and dedicated areas for splicing, termination, patching, and cable storage.

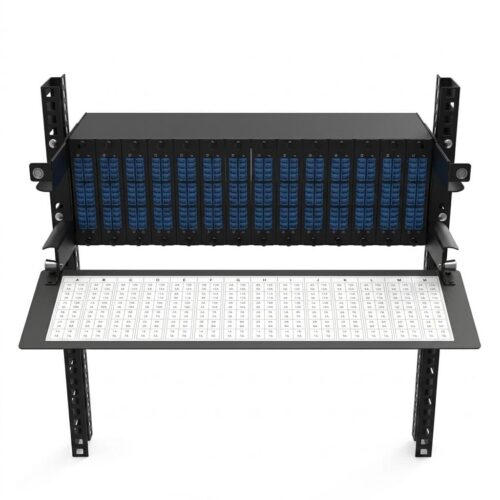

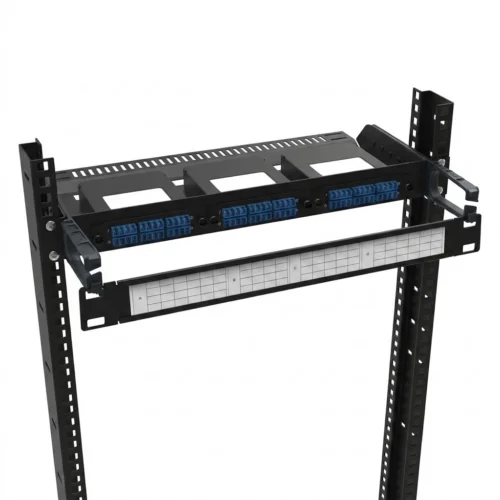

For smaller installations, a rack-mounted fiber patch panel may be sufficient. For high-density telecommunications networks, a modular ODF can provide greater capacity and more structured fiber management.

Why Is an ODF Important?

As fiber networks grow, large numbers of optical fibers must be terminated and managed in a controlled environment. Without a structured fiber distribution system, patch cords and splice points can become difficult to identify and maintain.

An ODF provides a centralized and organized solution that helps:

• simplify fiber identification and tracing;
• improve cable routing and fiber management;
• protect splices and terminated fibers;
• support network expansion and reconfiguration;
• reduce maintenance time;
• improve the overall reliability of fiber optic connections.

For high-density fiber optic networks, an appropriately configured ODF is an important part of the passive optical infrastructure.

Typical ODF Applications

Optical Distribution Frames are widely used in:

• Telecommunications central offices
• Fiber optic network distribution centers
• Data centers
• ISP and broadband networks
• FTTH and FTTx networks
• Cable television (CATV) networks
• Enterprise fiber networks
• Fiber backbone networks

Depending on the installation environment and fiber capacity, ODF systems are available in different configurations, including rack-mounted, cabinet-mounted, and modular designs.

Conclusion

An Optical Distribution Frame (ODF) is a centralized fiber management system designed to provide secure and organized fiber termination, splicing, patching, distribution, and protection.

By separating permanent cable termination from flexible patching, an ODF makes fiber optic networks easier to manage, maintain, test, and expand. It is therefore an important passive component in telecommunications, data center, FTTH, FTTx, and other high-density fiber optic networks.
