Universal Fiber Splicing Module

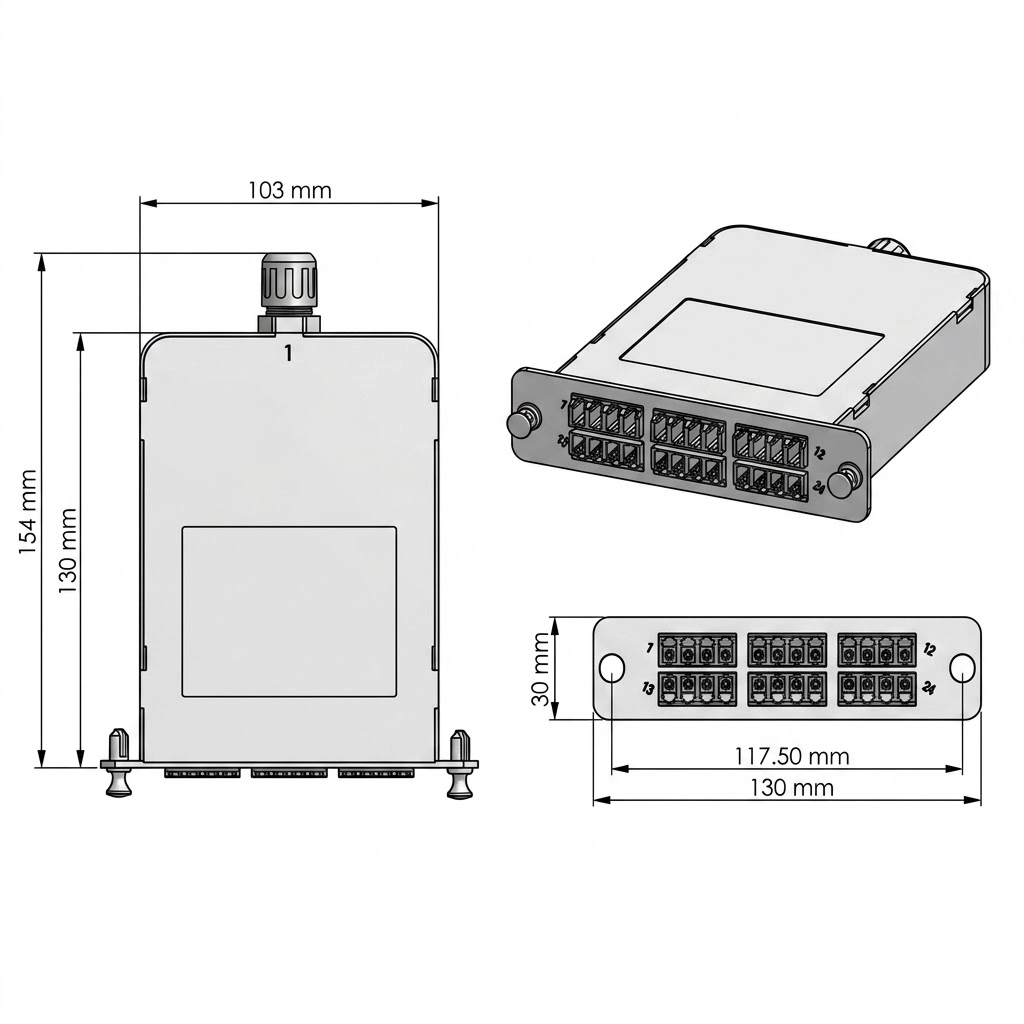

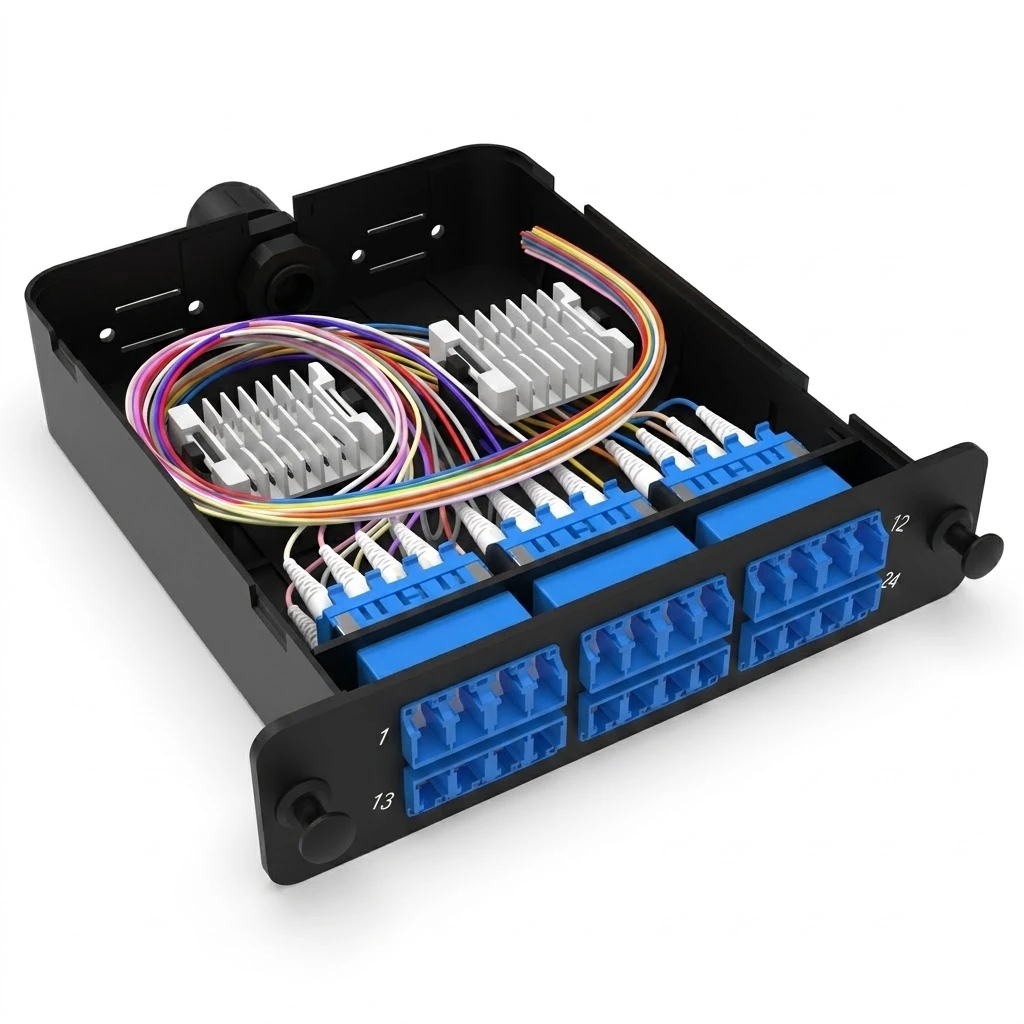

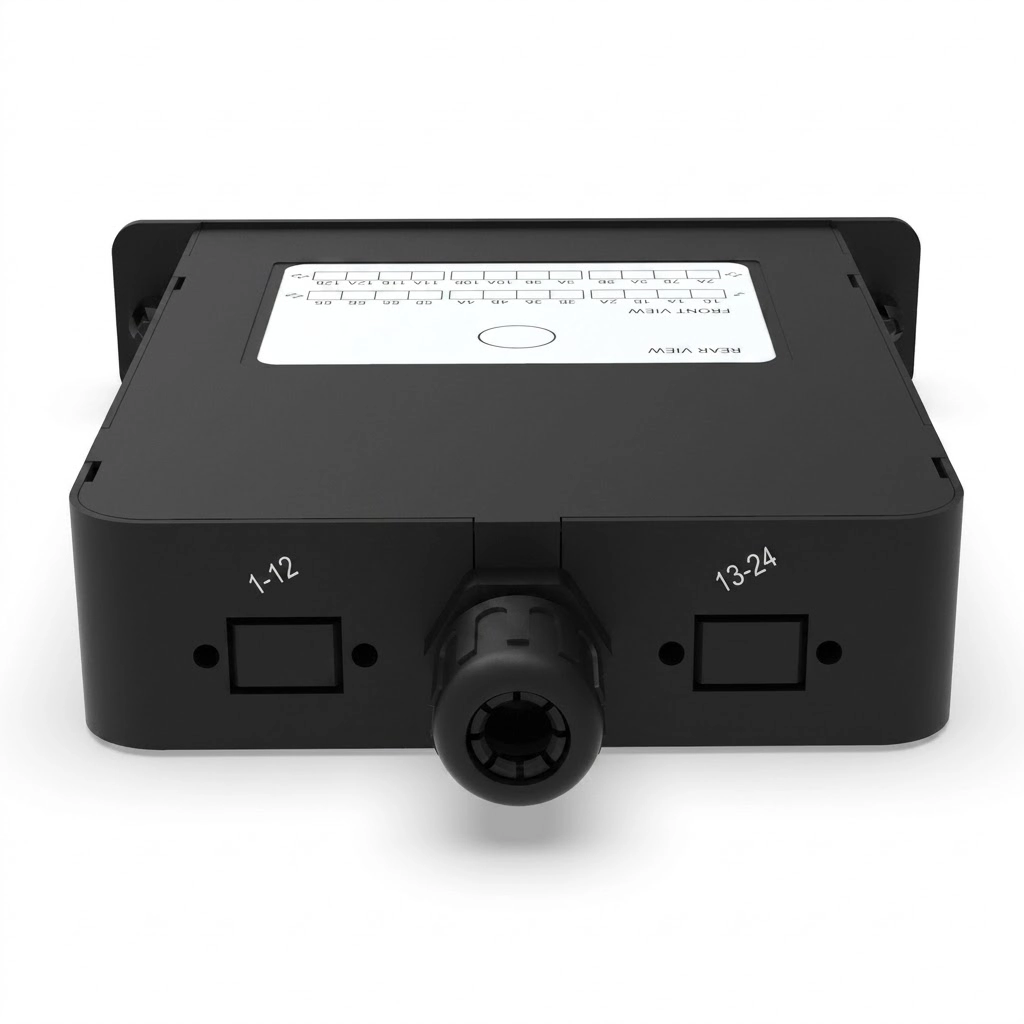

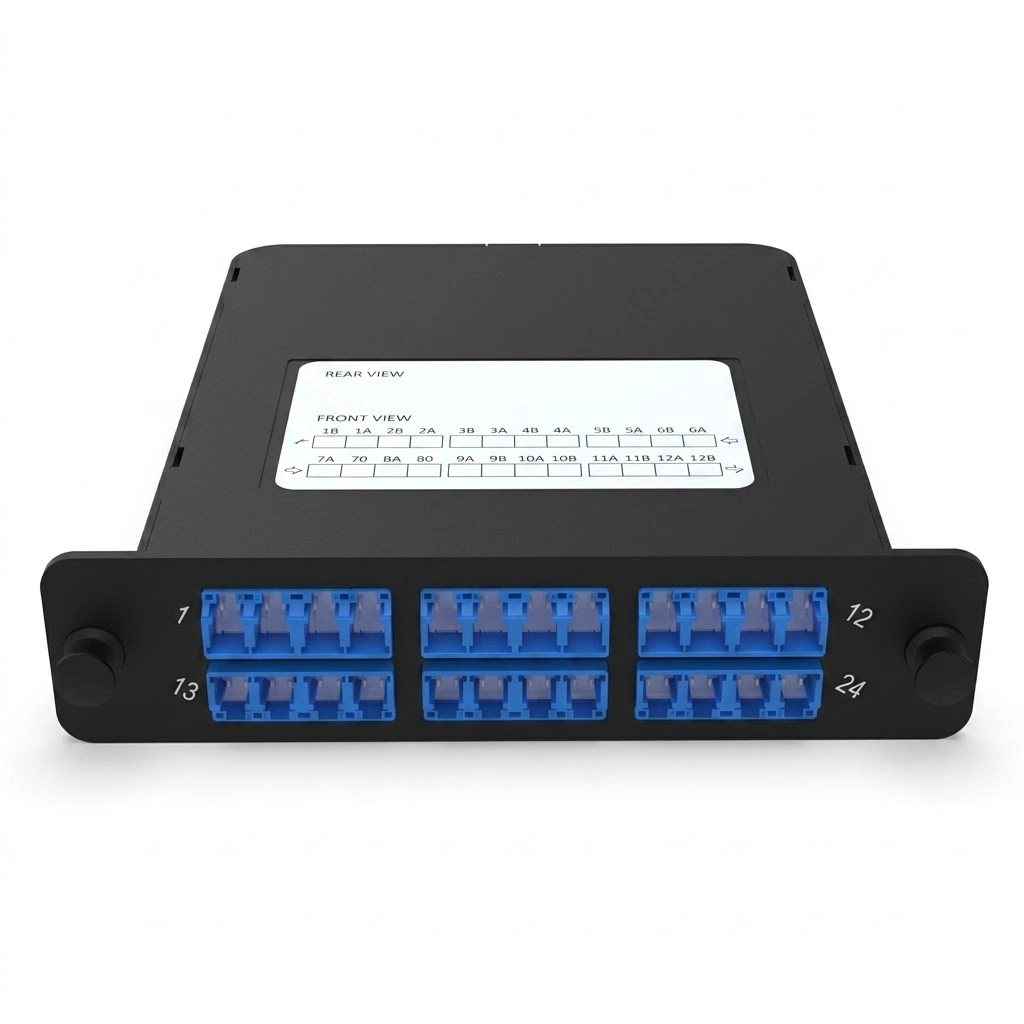

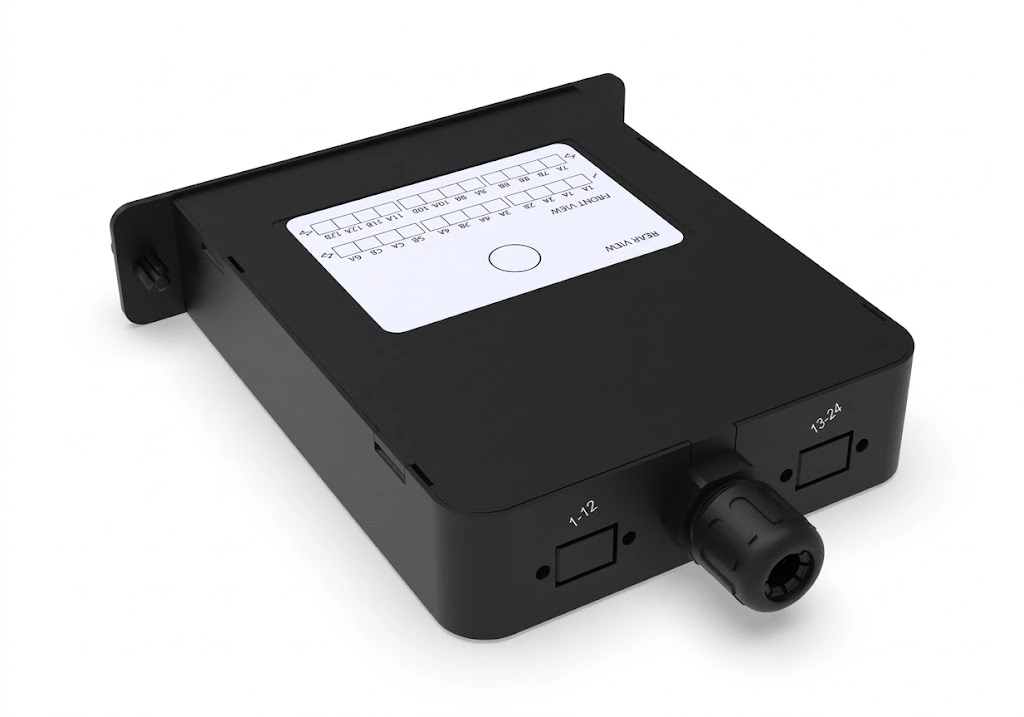

The universal fiber splicing module provides a high-density, modular solution for terminating and managing fiber optic networks. Designed for standard LGX footprints, this unit enables technicians to fusion splice micro cables, loose-tube cables, or ribbon cables directly to factory-assembled pigtails. It supports up to 24 splices using LC configurations or up to 12 splices using SC configurations, making it a reliable building block for high-capacity structured cabling deployments in data centers and telecommunication facilities.
Key Features
-

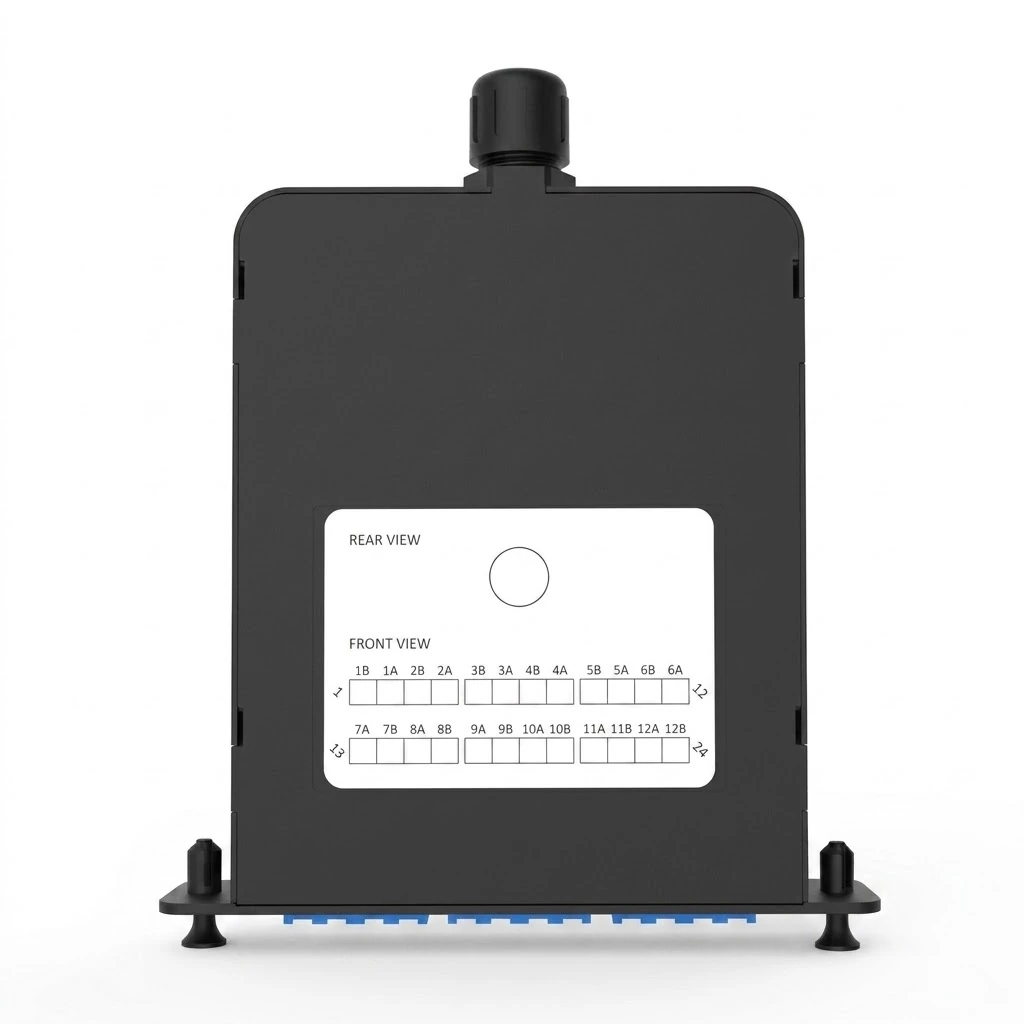

LGX Compatibility: Engineered to fit standard LGX panels, chassis, and wall boxes for seamless integration into existing infrastructure frames.
-

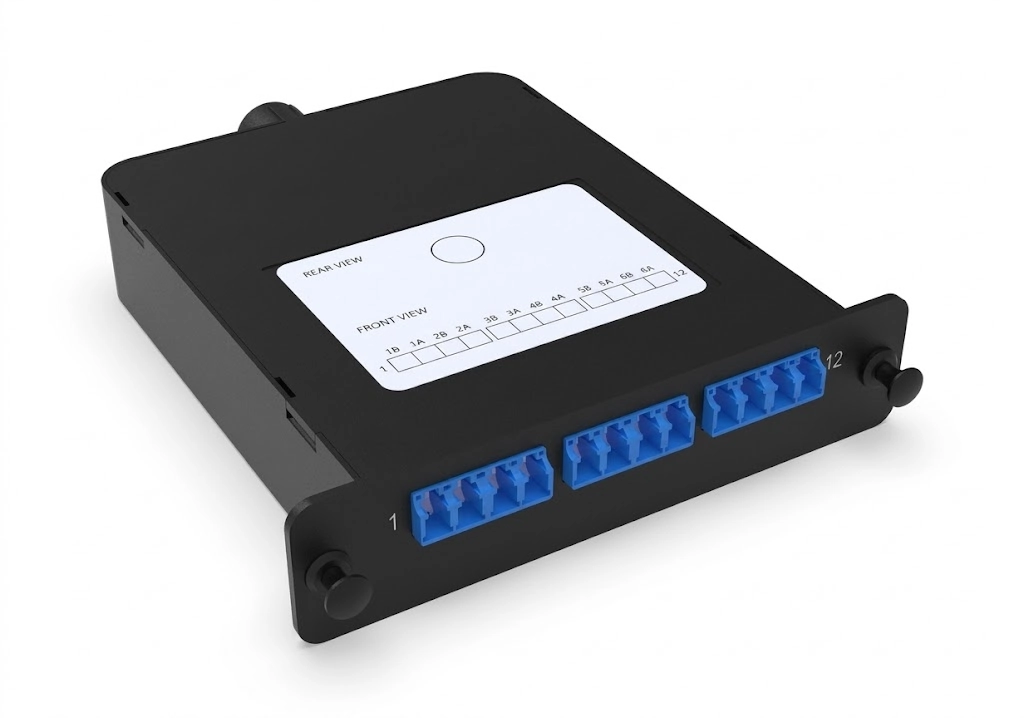

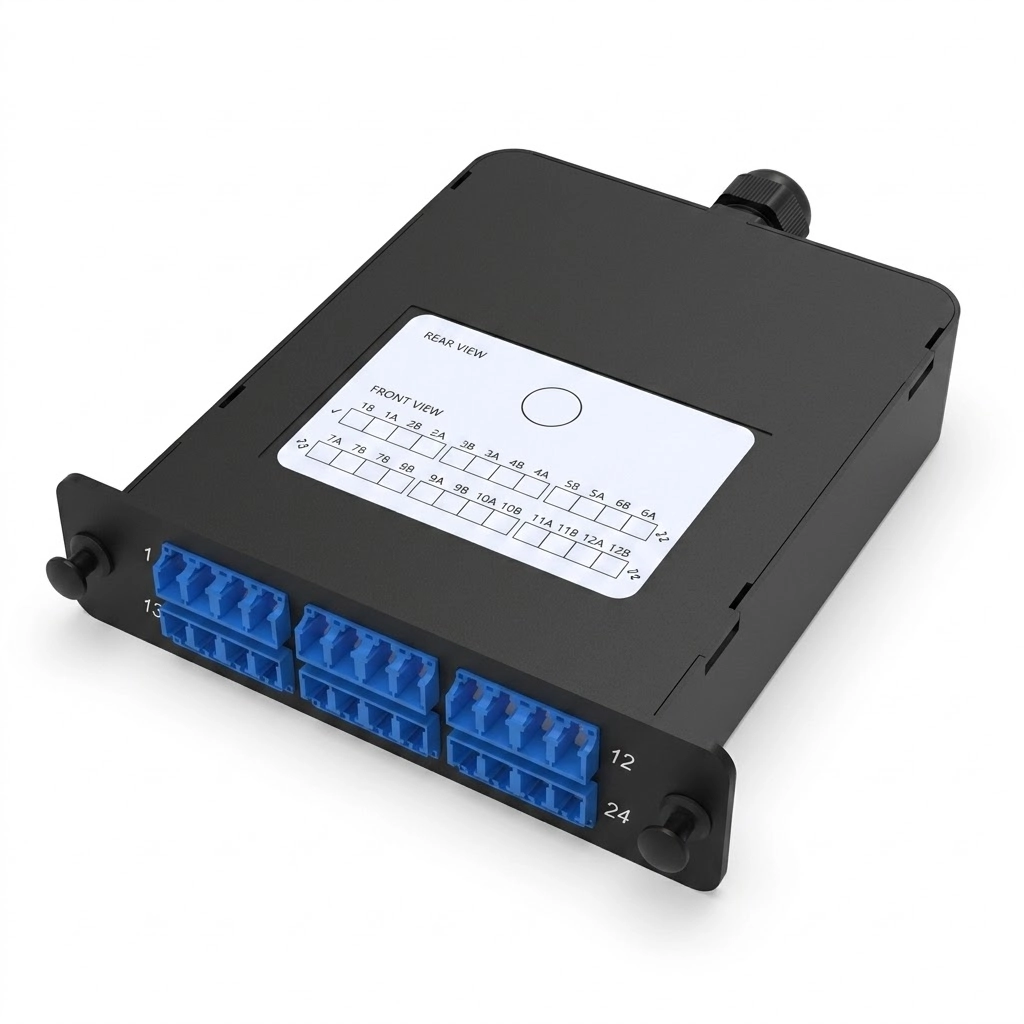

Flexible Splice Capacity: Accommodates up to 12FO or 24FO in LC configurations, and up to 12FO in SC configurations, supporting both single fiber and ribbon fiber splicing requirements.
-
Interchangeable Splice Clips: Features interchangeable splice holders that integrate various splice protector types, including 40mm heat shrink sleeves, crimp style, or ribbon protectors.
-

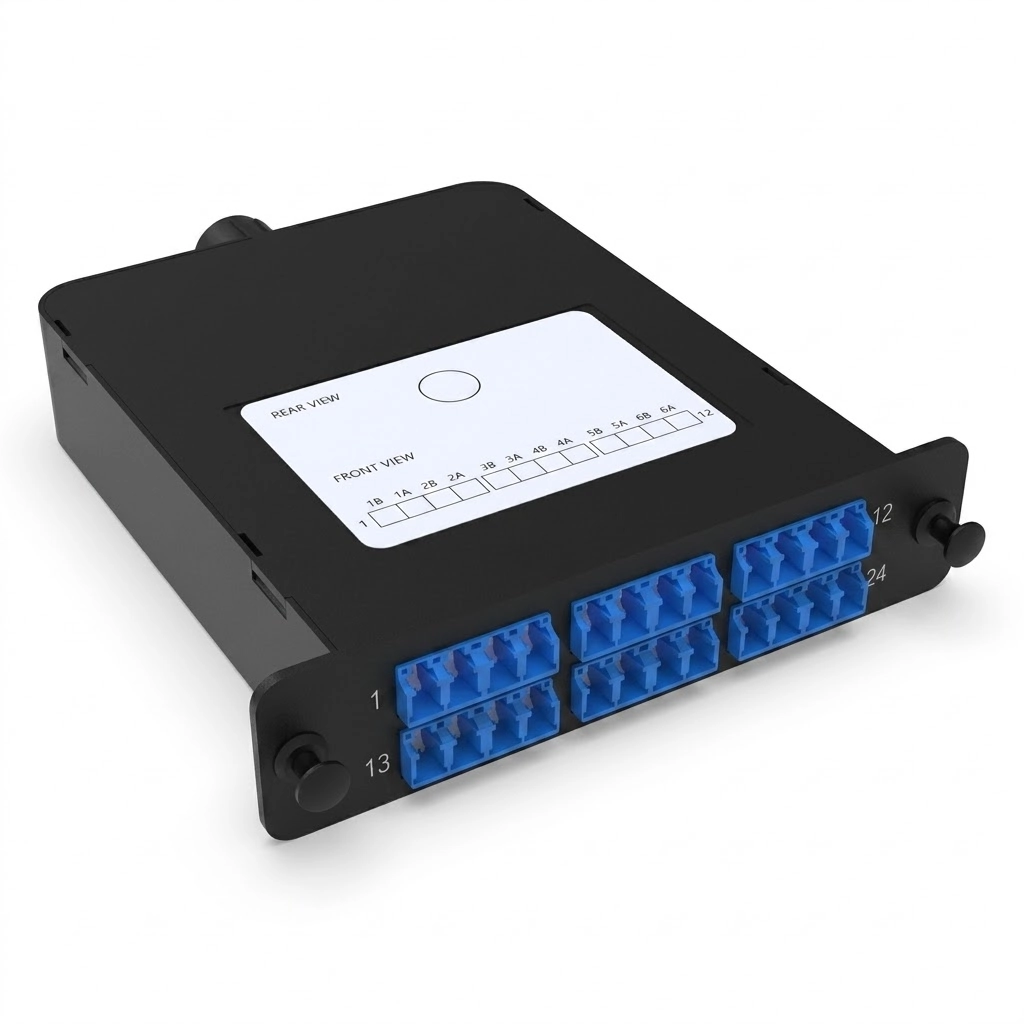

Adapter Protection: Equipped with shuttered dustproof adapters to maintain optical integrity and prevent contamination in high-density environments.
-

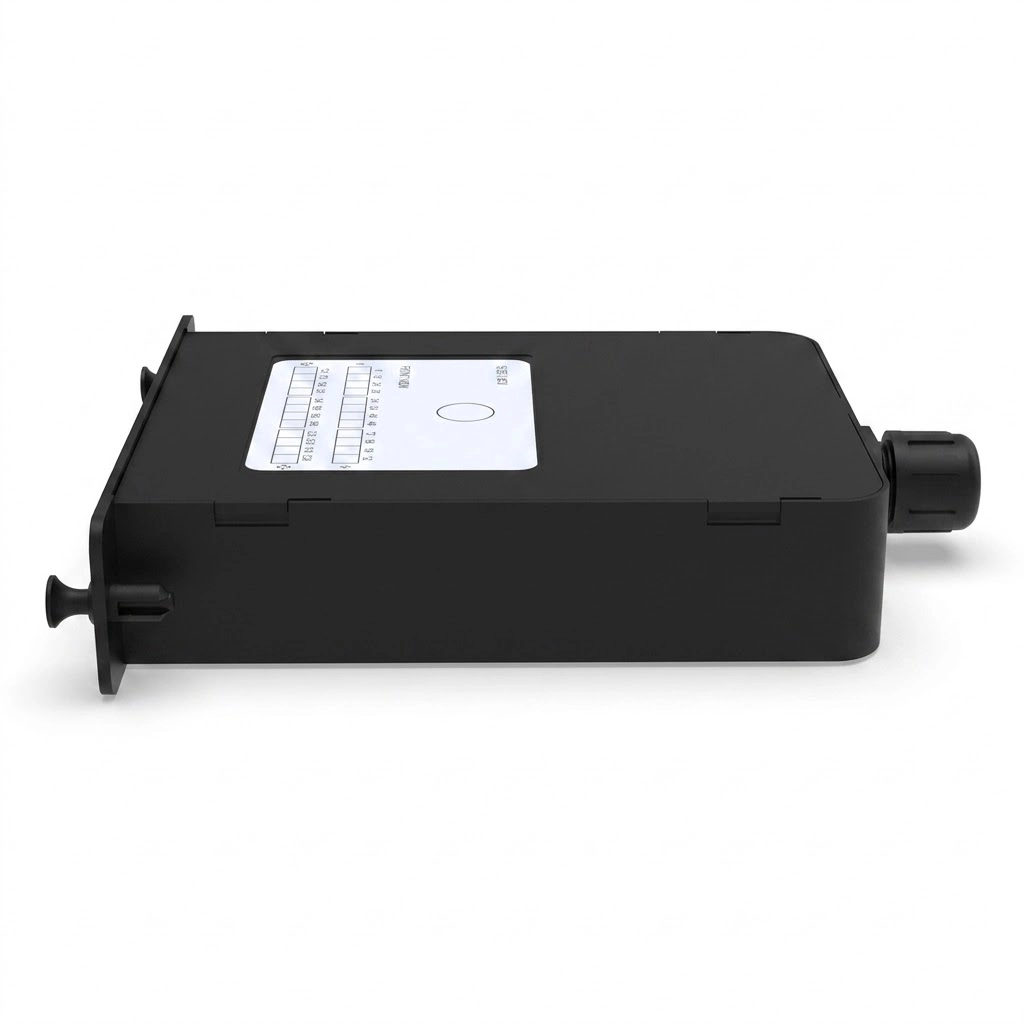

Durable Construction: Manufactured from PC+ABS material in a standard black housing color, balancing structural rigidity with lightweight manageability.
Technical Specifications
-
Standard Insertion Loss (Single mode LC/SC): Avg <= 0.20 / Max <= 0.30 dB
-
Standard Insertion Loss (Multimode LC/SC): Avg <= 0.18 / Max <= 0.30 dB
-
Return Loss (Single mode): PC >= 60 / APC >= 65 dB
-
Return Loss (PC/APC – Multimode): NA
-
Premium Insertion Loss (Single mode LC/SC): Avg <= 0.12 / Max <= 0.15 dB
-
Premium Insertion Loss (Multimode LC/SC): Avg <= 0.12 / Max <= 0.15 dB
Applications
-
Telecommunication networks
-
Data centers and co-location data centers
-
Local area networks and campus-wide networks
-
Broadband access networks
FAQ
What is the maximum fiber capacity of the module?
The module supports up to 24 fibers in an LC configuration or 12 fibers in an SC configuration.
What splice protector types are supported?
The interchangeable splice holders support 40mm heat shrink sleeves, crimp-style protectors, and ribbon fiber protectors.
What enclosures are compatible with this module?
The module is built to standard LGX dimensions and fits standard LGX panels, chassis, and wall boxes.
What is the physical weight of the unit?
The module weighs 0.25 kg.
Conclusion
The universal fiber splicing module delivers secure fusion splicing and reliable optical performance for high-density environments. By combining interchangeable splice holders, flexible single mode and multimode configurations, and a standardized LGX footprint, this module streamlines installation across telecommunication rooms and data centers. Implement the universal fiber splicing module to maintain structured, scalable fiber management in modern networks.
