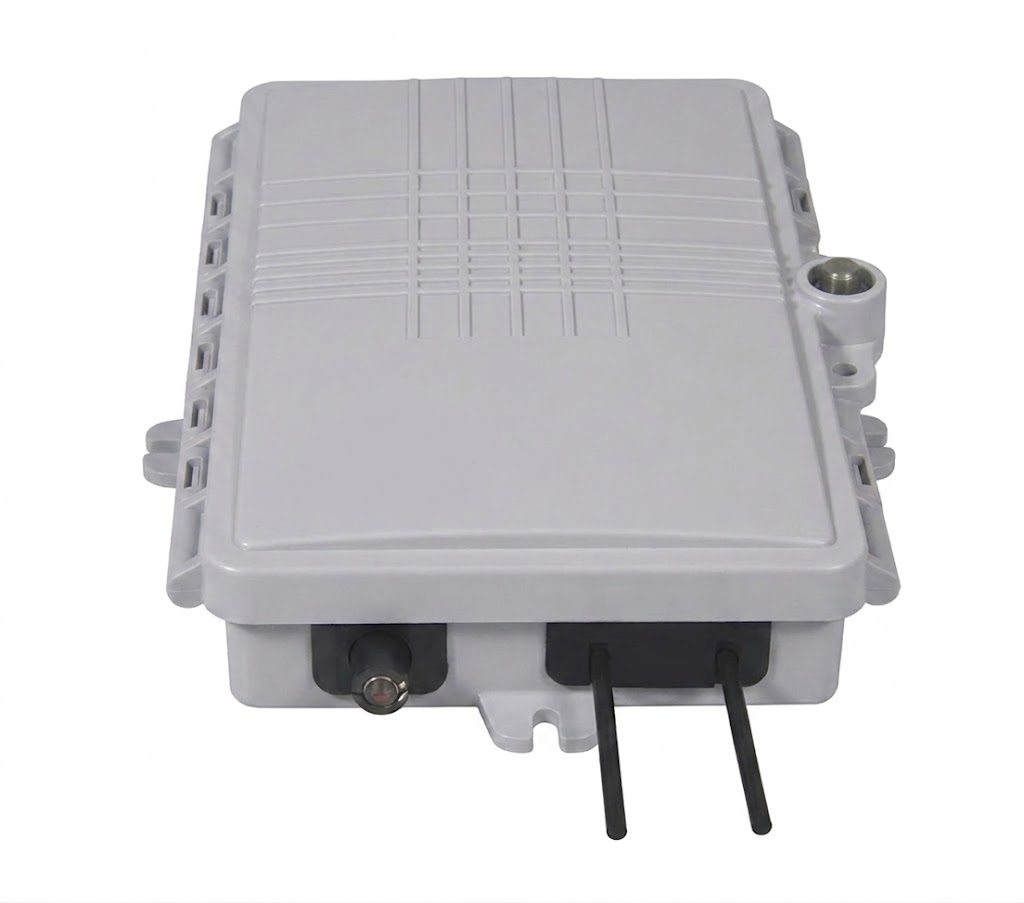

2 Ports Fiber Optic Terminal Box

Max Capacity of Splice: 2 ~ 4 (single fiber)
Cable Ports: 1 inlet ports, 2 outlet ports
Cable Diameter(mm): Ø 7 – 10 mm (0.28″ – 0.39″)
Adapter: 2 x SC simplex adapters, 2 pcs of LC duplex adapters
Color: white
Material: PC+ABS
Operation Temperature: -20°C to +50°C (-4°F to 122°F)
Dimension(L*W*H): 150mm*120mm*37mm (5.91″ x 4.72″ x 1.46″)
Protection Class: IP55

The Fiber Optic Terminal Box is a compact, high-impact distribution enclosure engineered for FTTH / FTTx access networks. It serves as an optical demarcation and termination point, connecting external feeder cables to customer premises drop lines with clean, protected fiber routing.

Molded from flame-retardant, UV-stabilized PC+ABS alloy, the Fiber Optic Terminal Box delivers mechanical durability for both indoor wall-mount and outdoor pole-mount deployments. The internal layout supports direct fusion splicing or micro-tube PLC splitting, ensuring low insertion loss and reliable optical performance in telecom environments.

Max Capacity of Splice: 2 ~ 4 (single fiber)
Cable Ports: 1 inlet ports, 2 outlet ports
Cable Diameter(mm): Ø 7 mm – Ø 10 mm(0.28″ – 0.39″)
Adaptor: 2 x SC simplex adapter, 2 pcs of LC duplex adapter
Color: white
Material: PC+ABS
Operation Temperature: -20°C to + 50°C
Dimension(L*W*H): 150mm * 120mm * 37mm (5.91″ x 4.72″ x 1.46″)
Protection Class: IP55

FTTH / GPON / EPON Networks: Last-mile drop cable termination for residential and commercial multi-dwelling units (MDUs).
Demarcation Points: Transition hub between external distribution lines and indoor customer premises cabling.
CATV & Video Distribution: Optical signal routing to localized optical receivers in residential broadband networks.
Enterprise & Industrial LAN: Secure optical termination for factory automation, campus networks, and control rooms.

Rugged PC+ABS Housing: High impact resistance with UV protection and flame-retardant properties for long service life.
Optimized Port Design: Configured with 1 cable inlet and 2 outlets for seamless drop cable routing.

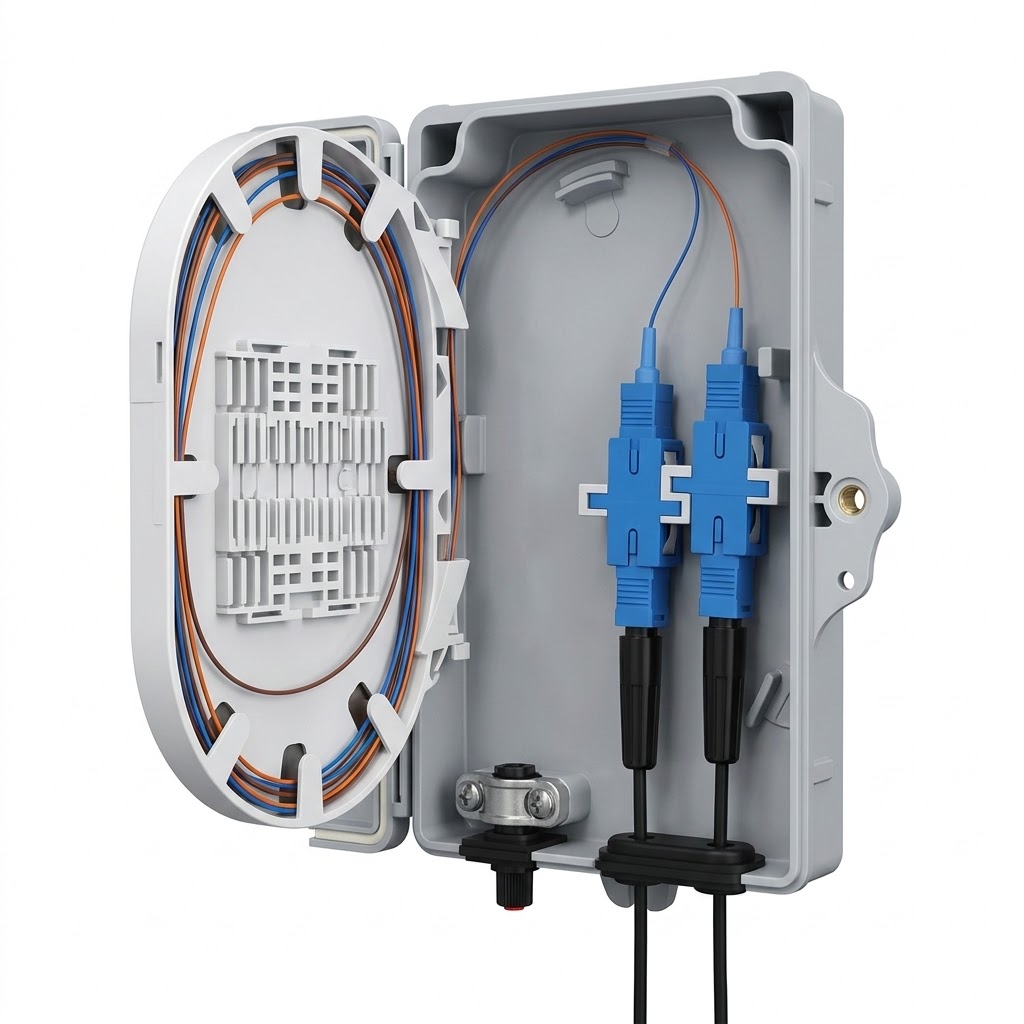

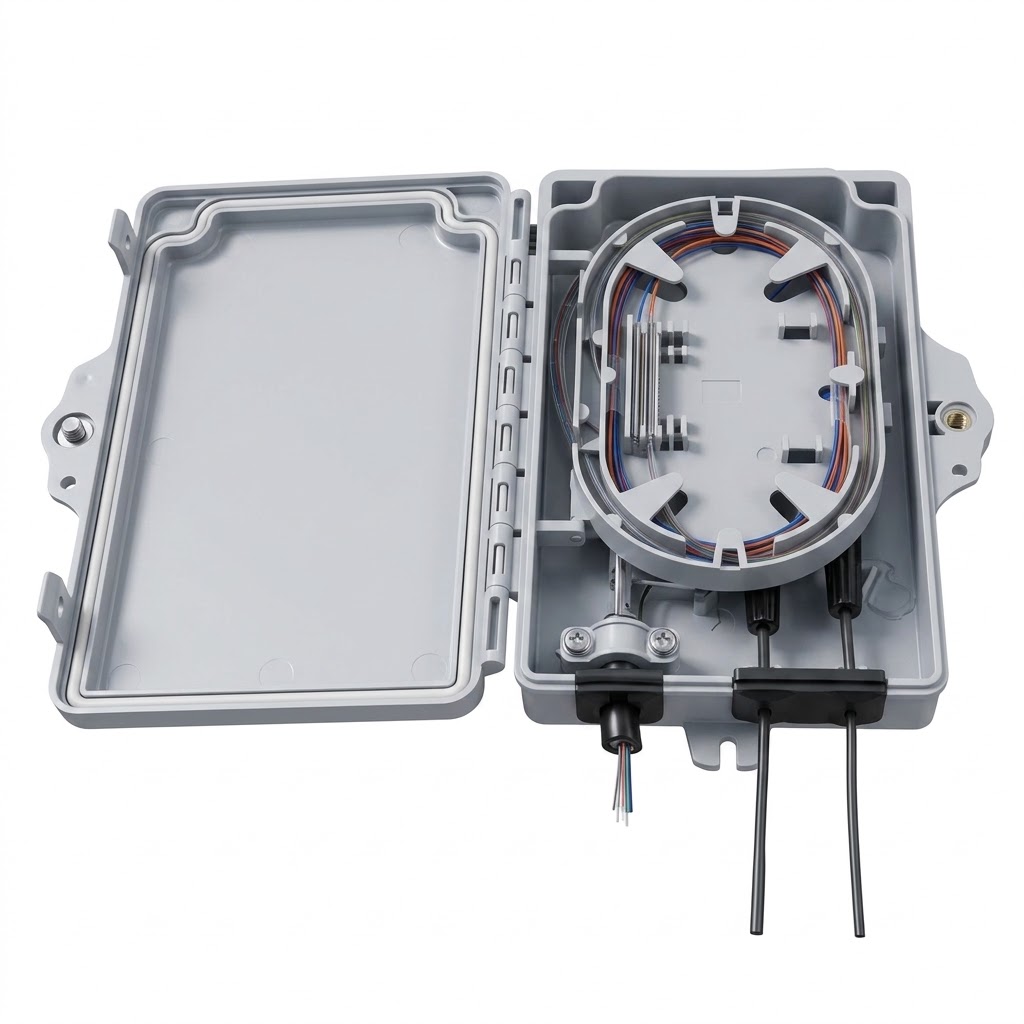

Flexible Splicing & Splitting: Accommodates 1:2 PLC splitters or single fusion splices with integrated splice retention.
Bend Radius Protection: Internal routing channels maintain a >30 mm bend radius to prevent macrobending signal loss.
Universal Adapter Compatibility: Supports standard SC simplex and LC duplex adapter interfaces (UPC/APC).
Dual-Mount Installation: Ready for fast surface wall-mounting or external pole-clamping.
