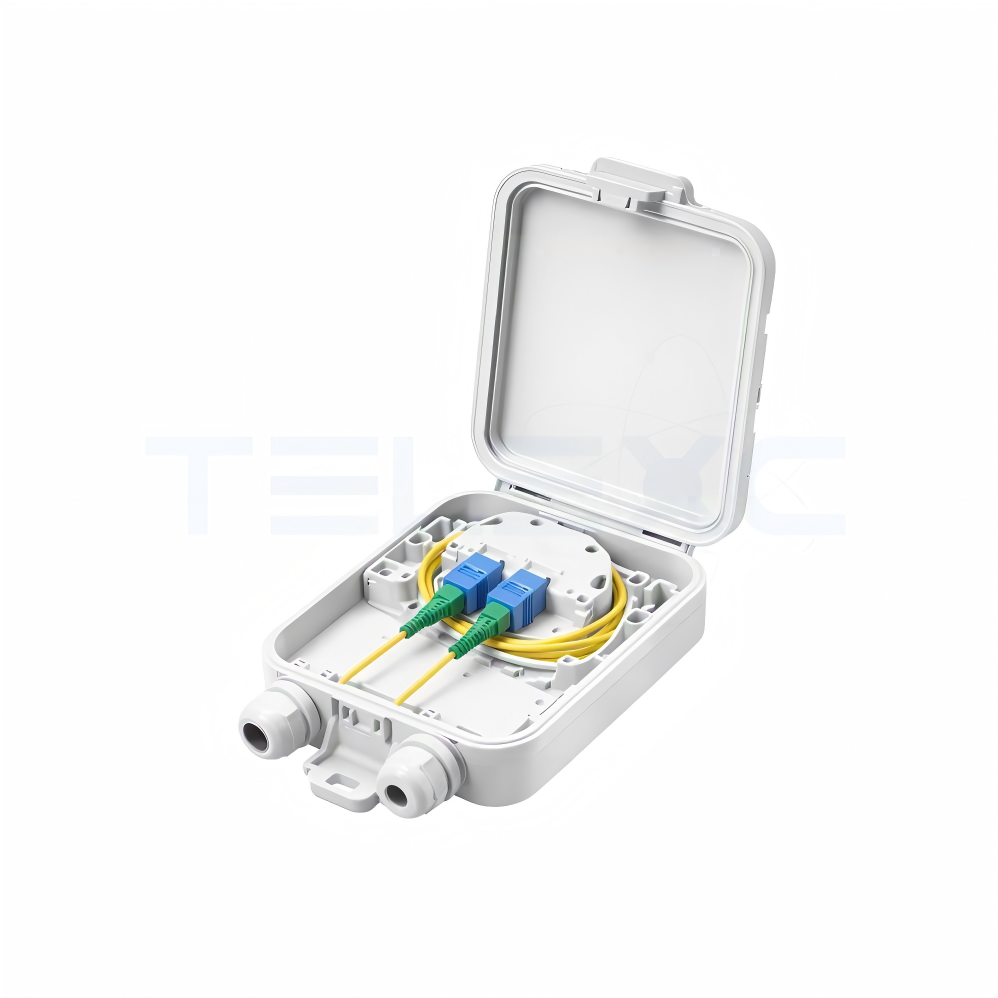

2 Core Fiber Optic Distribution Box FDB Series – Outdoor/Indoor FTTH Termination

2 Core Fiber Optic Distribution Box FDB Series – Outdoor/Indoor FTTH Termination

Key Features:

  • Supports 2 fiber cores for small-scale networks

  • Weatherproof and dust-resistant (IP55)

  • Wall or pole mounting options

  • Compatible with SC simplex or LC duplex adapters

  • Internal cable routing and splice tray

  • Lockable cover for secure installations

  • UV-resistant and durable construction

Category: Tags: , , , , , , , , , ,

The 2 Core Fiber Optic Distribution Box by Telexc is a compact, high-quality enclosure designed for efficient fiber management in FTTH and FTTX networks. It acts as a secure termination point where feeder cables connect to drop cables. The box supports fiber splicing, splitting, and distribution, ensuring organized fiber routing while protecting your network infrastructure from dust, moisture, and mechanical damage.

This distribution box is suitable for indoor and outdoor installations, small-scale residential networks, commercial buildings, and telecommunication setups.

Model Number

TX-FDB-02

International Standard Compliance:

  • IEC 60529 (IP55 rating for dust and water resistance)

  • RoHS Compliant

  • ITU-T G.652 / G.657 compatibility

Construction & Materials:

  • Body: Flame-retardant ABS or PC plastic for strength and UV resistance

  • Splice tray: ABS, large working space for fiber welding

  • Lockable cover for security

  • Rubber-sealed ports for cable protection

  • Built-in strain relief and grounding options

Installation Guide:

  1. Mount the box on a wall or pole using the supplied brackets.

  2. Open the lockable cover and position the fiber feeder cable.

  3. Route drop cables through rubber-sealed ports.

  4. Place fibers in the internal splice tray for splicing or patching.

  5. Connect adapters (SC / LC) as needed.

  6. Close the cover and lock for protection.

This Durable 2 Core Fiber Optic Distribution Box for FTTH & FTTX networks is weatherproof, secure, and easy to install for fiber termination & splicing.

Technical Parameters

Parameter Specification
Model No. TX-FDB-02
Capacity 2 cores
Adapter Types SC Simplex / LC Duplex
Material High-strength ABS / PC (flame-retardant, UV-resistant)
Cable Ports 1 inlet, 2 outlets (rubber-sealed)
Dimensions (mm) 150 (L) × 110 (W) × 40 (H)
Operating Temperature -40°C to +85°C
Mounting Wall or pole mountable
Protection Level IP55 (dust & splash resistant)
Color Light Grey / Black

Applications:

  • FTTH (Fiber to the Home) networks

  • FTTX access networks

  • Local area networks (LAN)

  • CATV distribution networks

  • Fiber repair, termination, and splice points

Product Advantages:

  • Compact and durable design for outdoor and indoor use

  • Easy installation and maintenance

  • High-quality plastic ensures longevity and weather resistance

  • Allows for capacity expansion with internal splitters

  • Organized fiber management reduces network downtime

FAQs:

Q1: How many fibers can this box accommodate?
A: The TX-FDB-02 supports up to 2 fiber cores with SC or LC adapters.

Q2: Can it be mounted outdoors?
A: Yes, it is IP55-rated for outdoor use and can withstand temperatures from -40°C to +85°C.

Q3: Is it suitable for both FTTH and FTTX networks?
A: Yes, it is designed for residential, commercial, and small-scale fiber networks.

Q4: Can I install a splitter inside this box?
A: Yes, the internal design allows for tube-type splitters.

Q5: Does it protect fibers from environmental damage?
A: Yes, the lockable, weatherproof enclosure protects fibers from dust, moisture, and physical impact.

Why Choose Telexc

  1. High-Quality Products: Telexc uses premium ABS/PC materials and advanced manufacturing to ensure durable, UV-resistant, and flame-retardant fiber optic enclosures.

  2. Reliable Performance: Our fiber management solutions are engineered for FTTH and FTTX networks, providing secure, organized, and long-lasting fiber termination.

  3. Global Standards Compliance: All products meet international standards such as IEC 60529 (IP rating), RoHS, and ITU-T G.652/G.657, ensuring quality and safety.

  4. Versatile Solutions: Telexc offers a full range of distribution boxes and fiber management products suitable for indoor, outdoor, residential, and commercial networks.

  5. Easy Installation & Maintenance: Thoughtful design with splice trays, cable routing paths, lockable covers, and strain relief makes setup and maintenance hassle-free.

  6. Customizable Options: Telexc can provide custom configurations and adapters to meet specific network requirements.

  7. Trusted Expertise: With years of experience in fiber optic solutions, Telexc delivers dependable products and support for network professionals worldwide.

  8. Cost-Effective & Scalable: High-quality enclosures with expandable capacity allow network growth while reducing downtime and maintenance costs.
