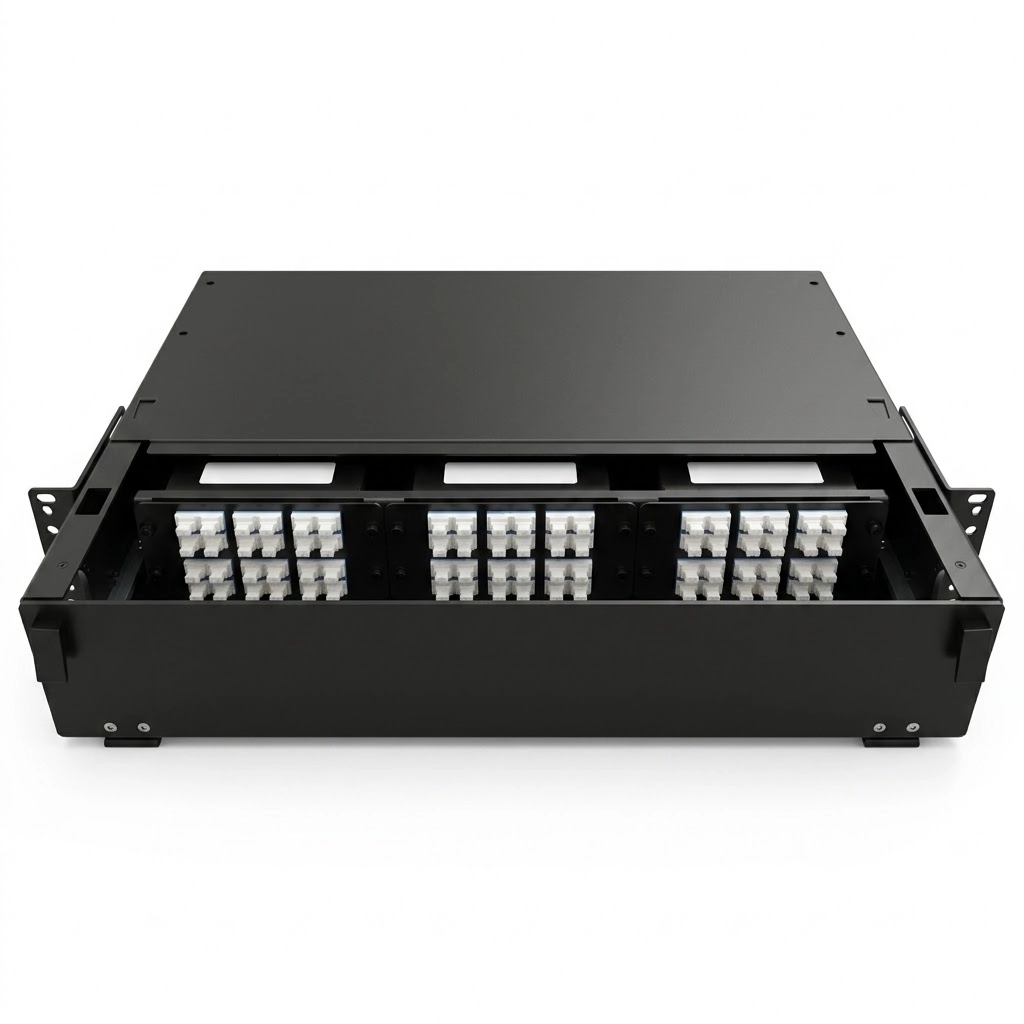

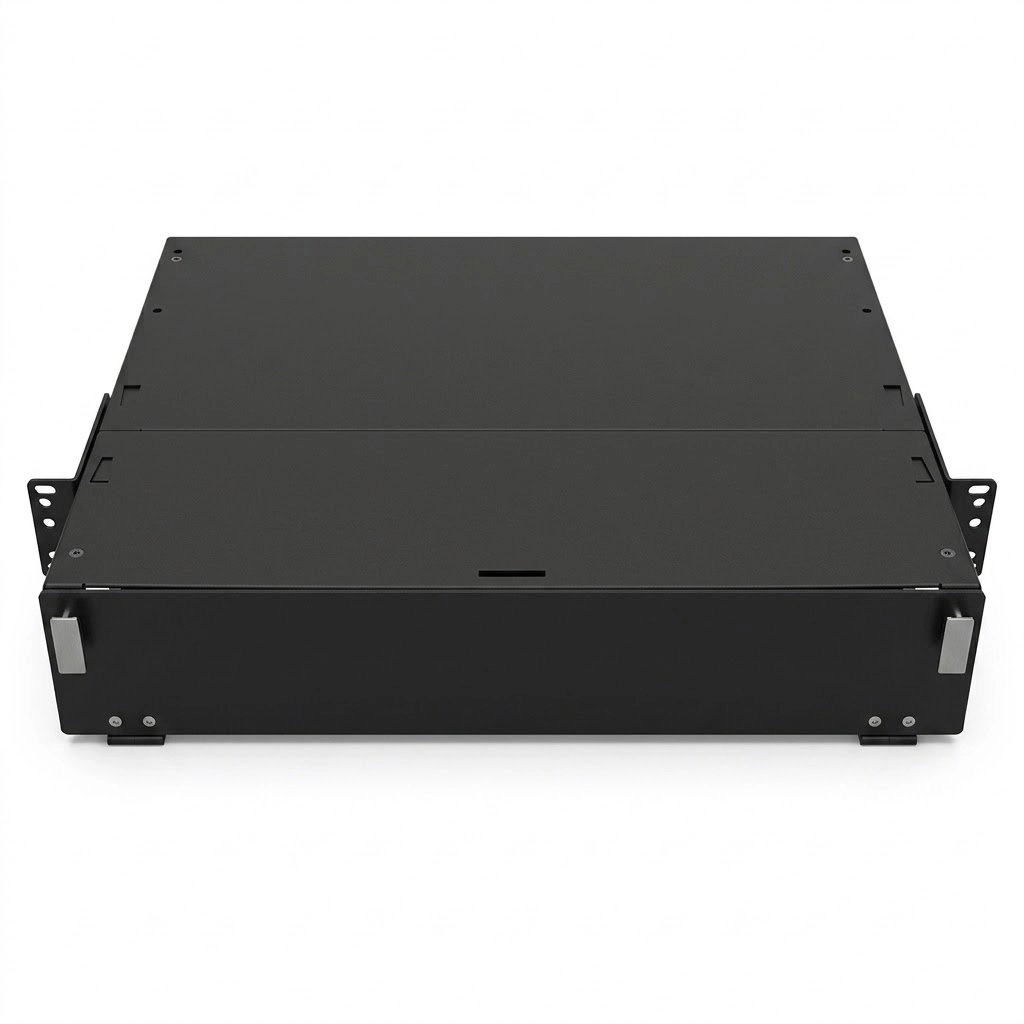

2U Rack Mount Enclosure 6 Slots Modular Fixed Frame
The 2U rack mount enclosure 6-Slots Modular Fixed Frame is a high-density, fixed-frame enclosure engineered for indoor optical distribution. Installed in standard 19-inch racks, the unit houses connections linking incoming rear trunks or pre-terminated assemblies directly to front-facing patch cords.
Open architecture makes installation quicker and easier, while the modular 3-slot layout accommodates up to 144 fibers using LC adapters or 72 fibers with SC configurations. Built from cold-rolled steel and flame-retardant PC+ABS polymers, this panel supports pre-terminated cable breakouts, splicing, and trunk transitions across structured enterprise networks.
Key Features
-
2U Chassis Density: Houses up to 6 modular slots within a standard 1U rack-mount profile, conserving vertical equipment space.
-
Dual Connector Capacity: Supports up to 144 fibers using LC interfaces or 72 fibers using SC configurations.
-

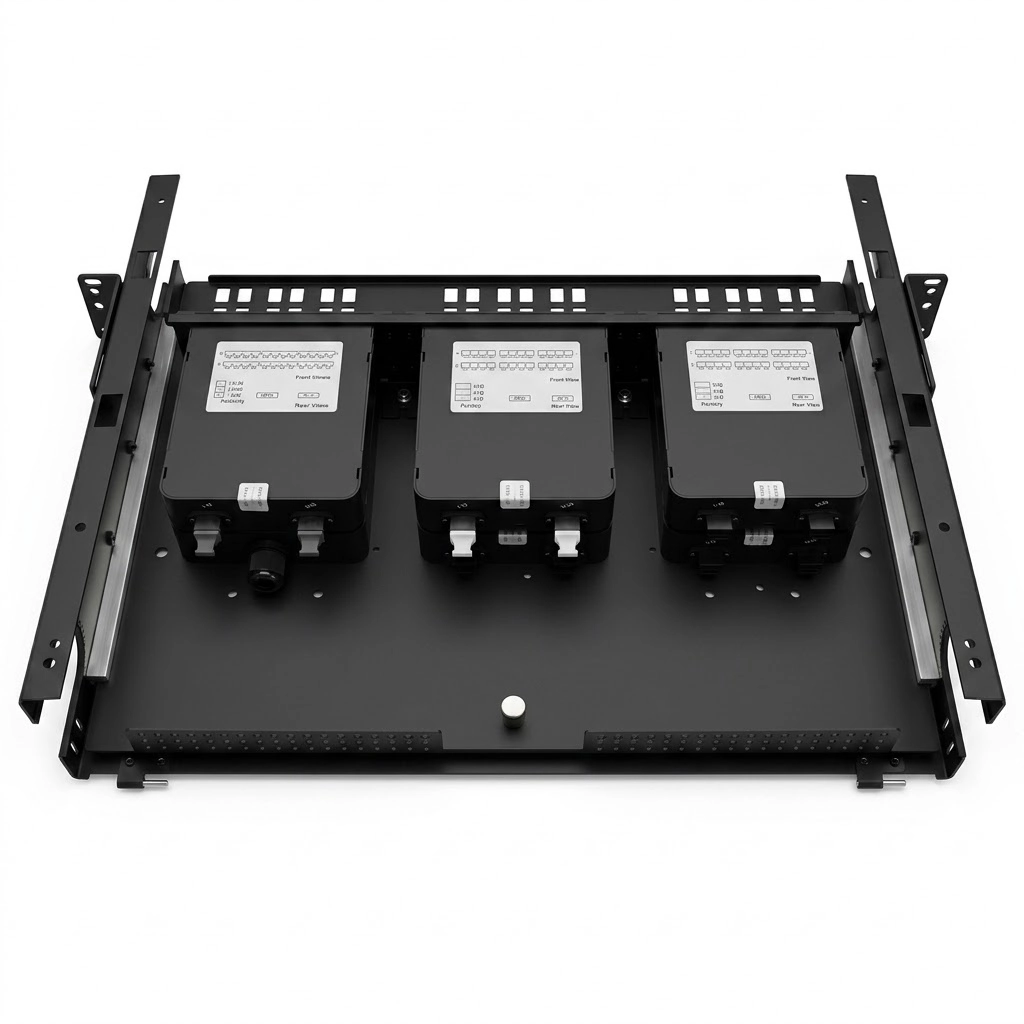

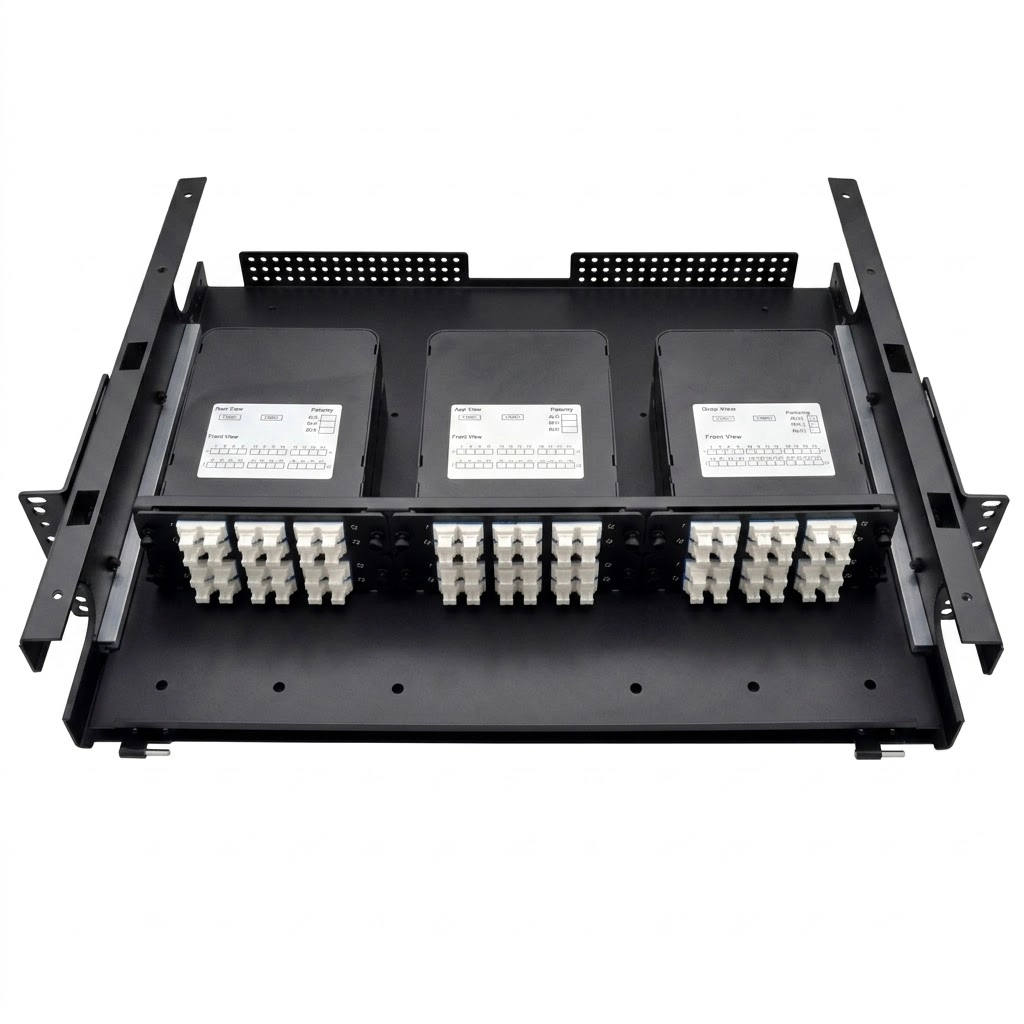

Modular Interface Flexibility: Supports standard pass-through adapter panels, MPO cassettes, or dedicated splice cassettes
-
Integrated Patch Routing: Built-in channel routes front patch cords directly to the rear of the rack within the same 2U envelope.
-

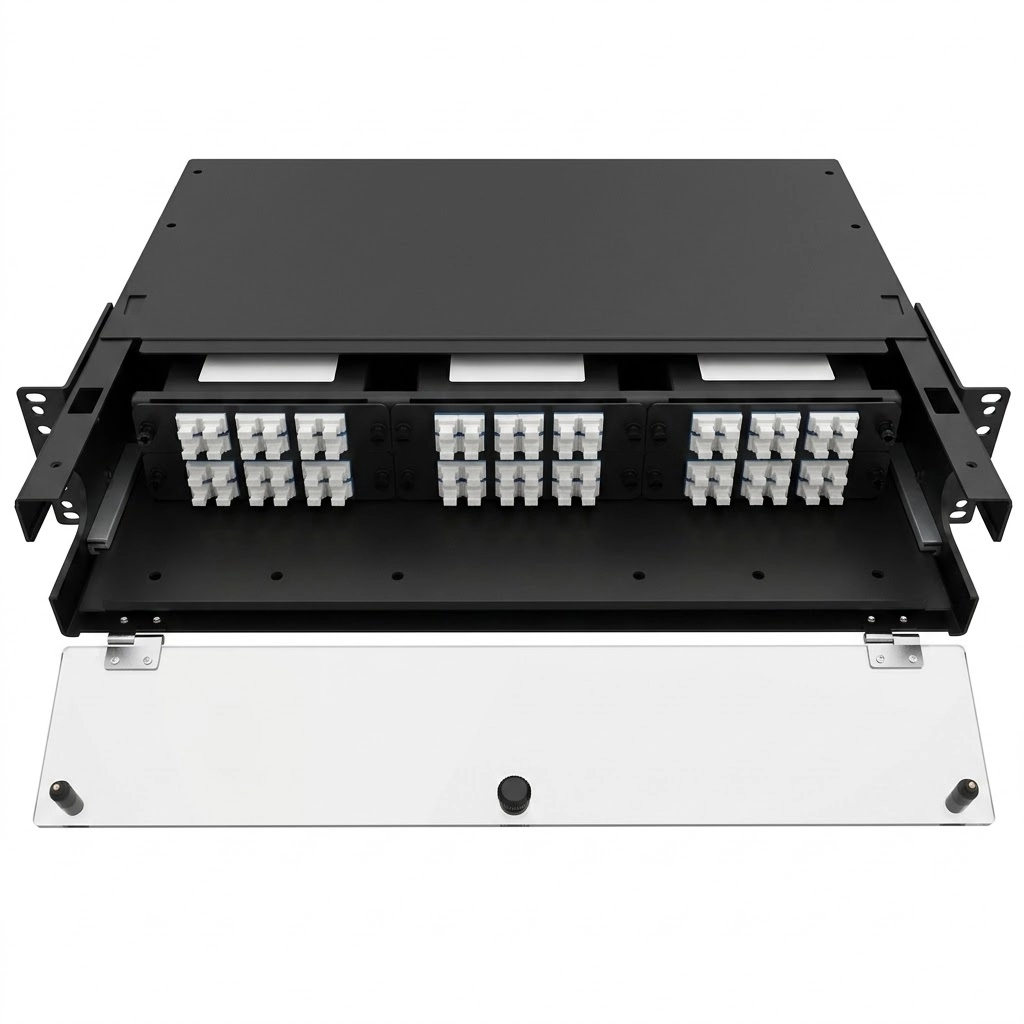

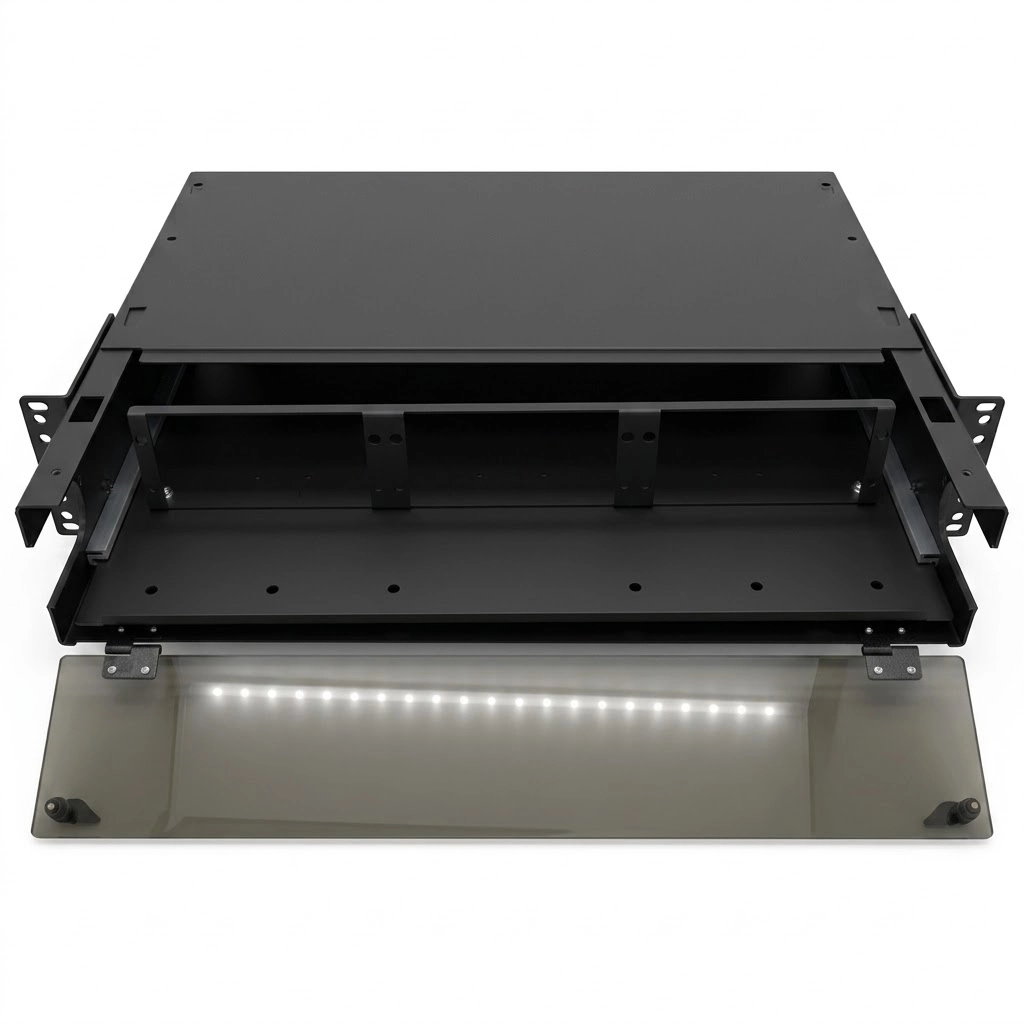

Front Access Management: Features a removable drop-down door on the front face for unhindered maintenance.
-

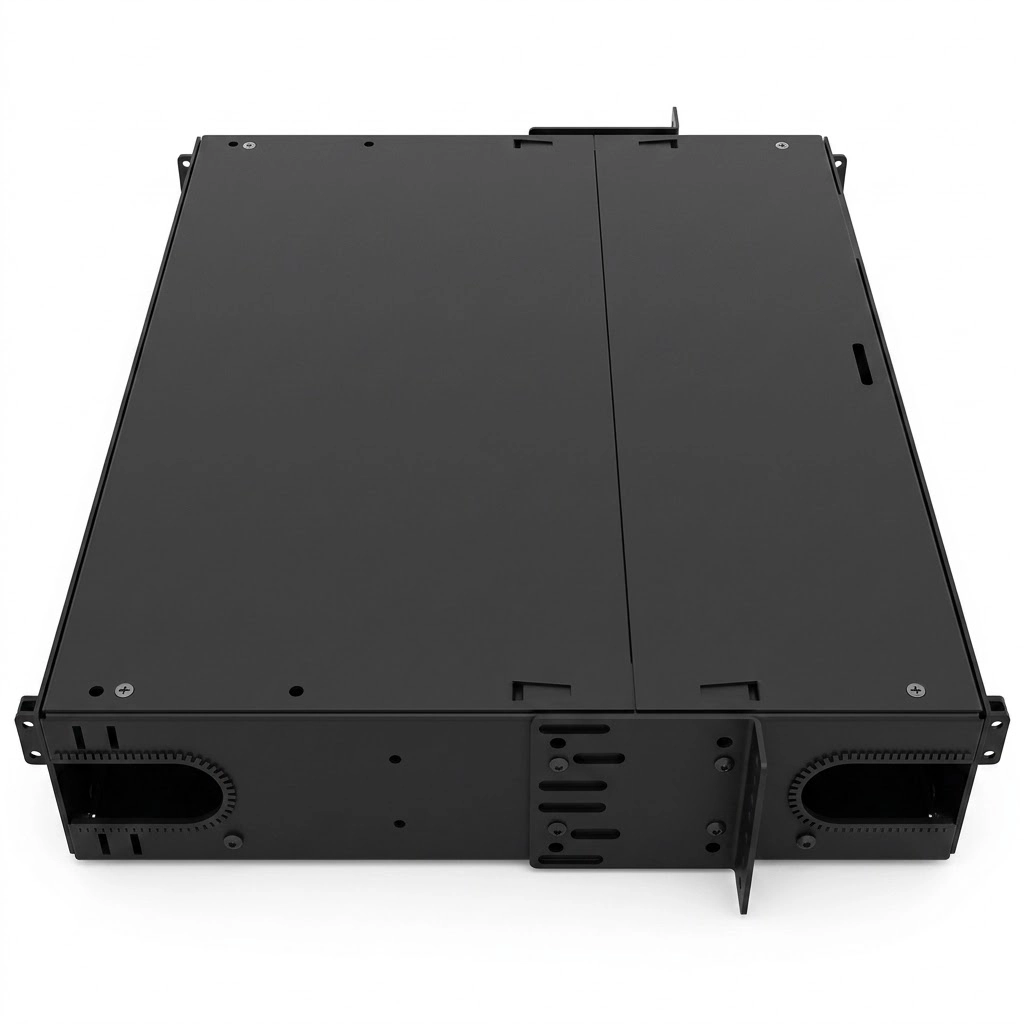

Rear Cable Strain Relief: Equipped with a rear support bar to secure incoming trunks and maintain structural stability.
-
Fixed Open Frame: Rigid cold-rolled steel body allows unrestricted hands-on tool access during initial field deployment.
Product Configuration
-

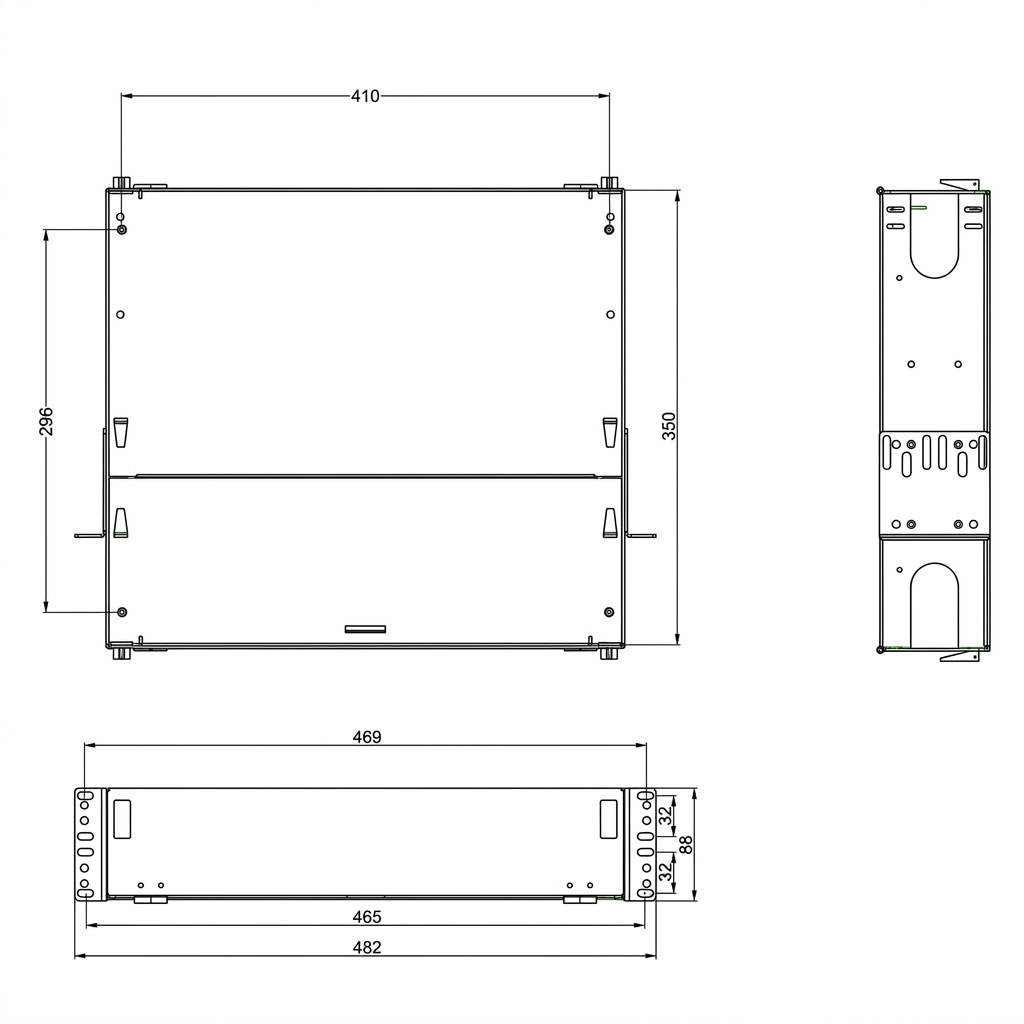

Chassis Form Factor: 2U, 19-inch rack-mount frame.
-
Frame Style: Fixed chassis, open-frame build.
-
Slot Configuration: 6 horizontal slots compatible with standard modules and adapter plates.
-
Supply Condition: Supplied fully unloaded; internal cassettes, adapters, and plates are provided separately.
Applications
-
Data Center Interconnects: High-density equipment distribution racks and main cross-connect frames.
-
Enterprise Local Area Networks: Backbone riser terminations and horizontal optical distribution.
-
Indoor Fiber Systems: Termination points for incoming indoor/outdoor pre-terminated cable assemblies, trunk feeds, and field-spliced fibers.
Frequently Asked Questions
What is the maximum optical capacity of this enclosure?
The chassis supports a maximum termination density of 144 fibers when loaded with LC adapters, or 72 fibers when equipped with SC adapters across its 6 slots.
Does this unit include internal adapter plates or cassettes?
No. The chassis ships unloaded. Modular pass-through adapter plates, MPO conversion cassettes, and splice cassettes must be ordered separately based on link design.
What cables can enter this frame?
The unit accepts incoming rear-entry indoor and outdoor pre-terminated cables, MPO/MTP trunk cables, and standard loose-tube cables intended for cassette-based splicing.
Is this enclosure suited for harsh outdoor environments?
No. The chassis carries an IP20 ingress protection rating, restricting deployment to indoor data rooms, controlled enterprise closets, or sealed secondary cabinets.
Deploying a 2U rack mount enclosure 6-Slots Modular Fixed Frame delivers a structured, modular foundation for high-density indoor distribution. By combining a 144-fiber LC capacity, integrated front-to-rear routing, and cold-rolled steel construction, this enclosure balances long-term structural integrity with rapid network reconfigurations.
