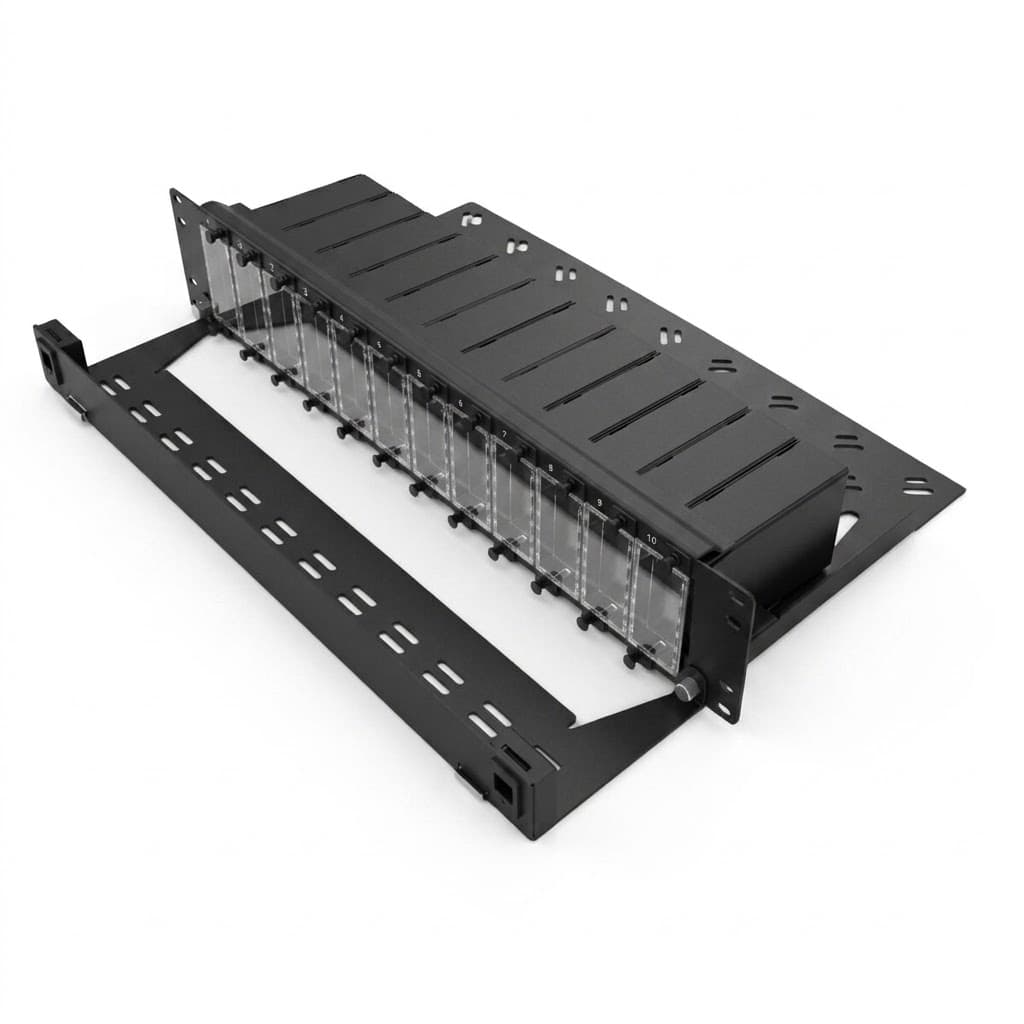

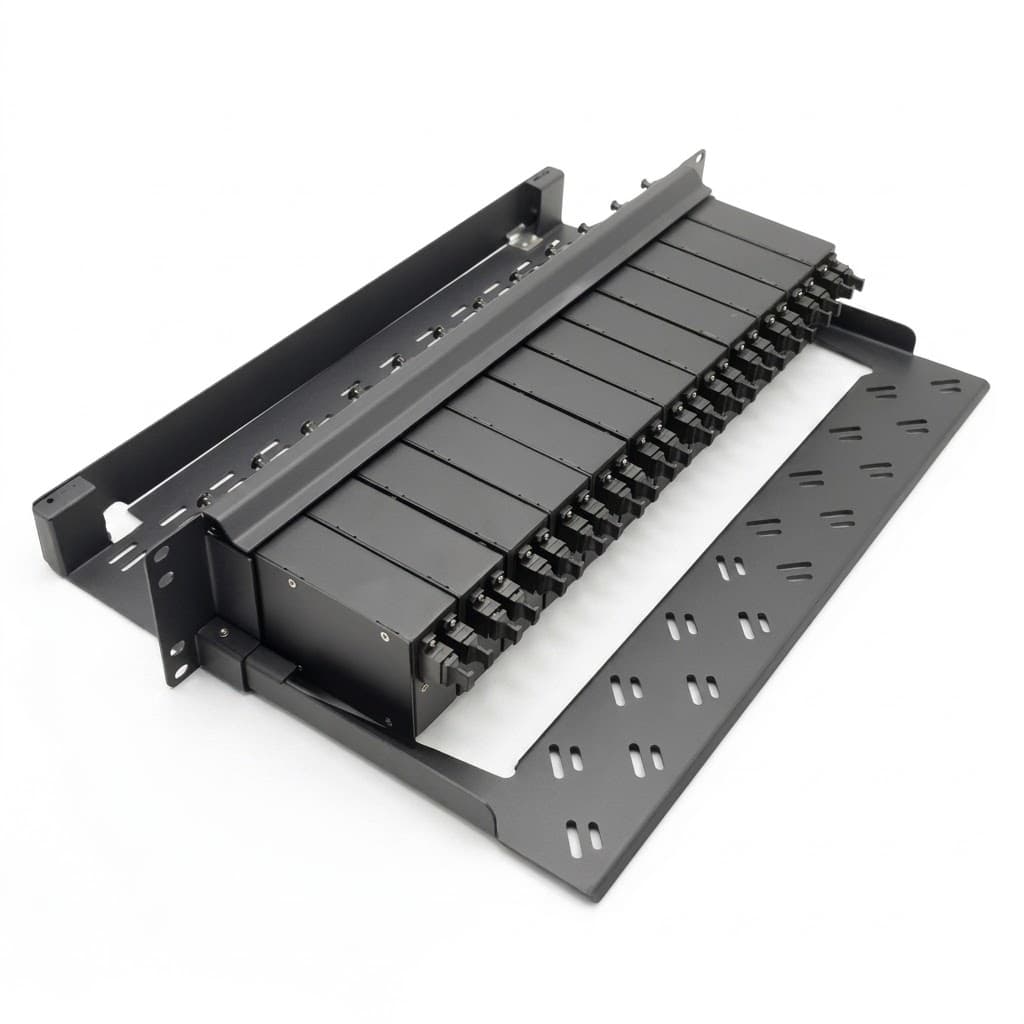

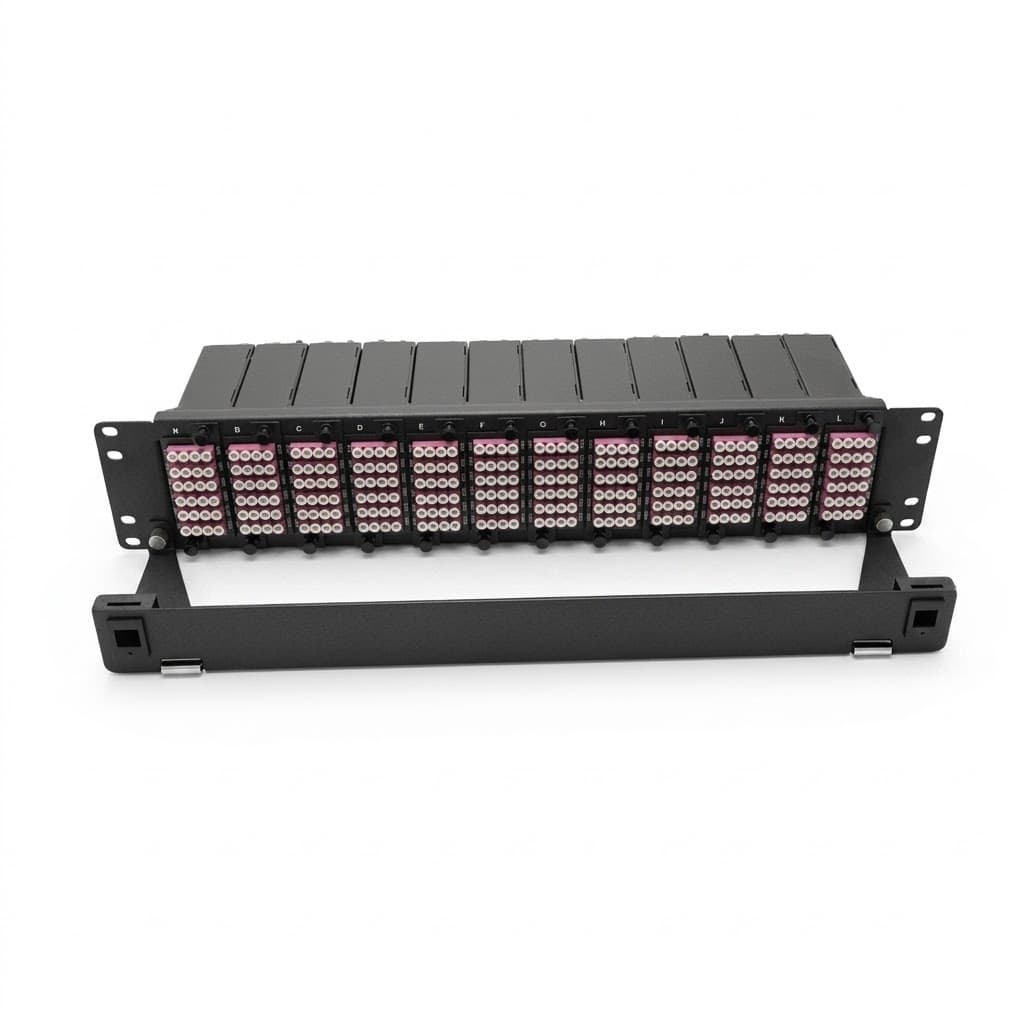

The 2U 288 fiber MPO patch panel provides high-density optical connectivity within a standardized 2U rack space for high-speed network environments. Built with an integrated one-piece enclosure, this panel supports up to 288 fiber terminations using front-facing LC interfaces and rear-facing MPO backbone connections. Front and rear cable management trays route trunk cables and patch cords to reduce mechanical stress on optical assemblies during operation.
High-Density 2U 288 Fiber MPO Patch Panel Features
-
Rack Space Density: Supports up to 288 LC fiber terminations within a 2U rack footprint to maximize rack space efficiency.
-

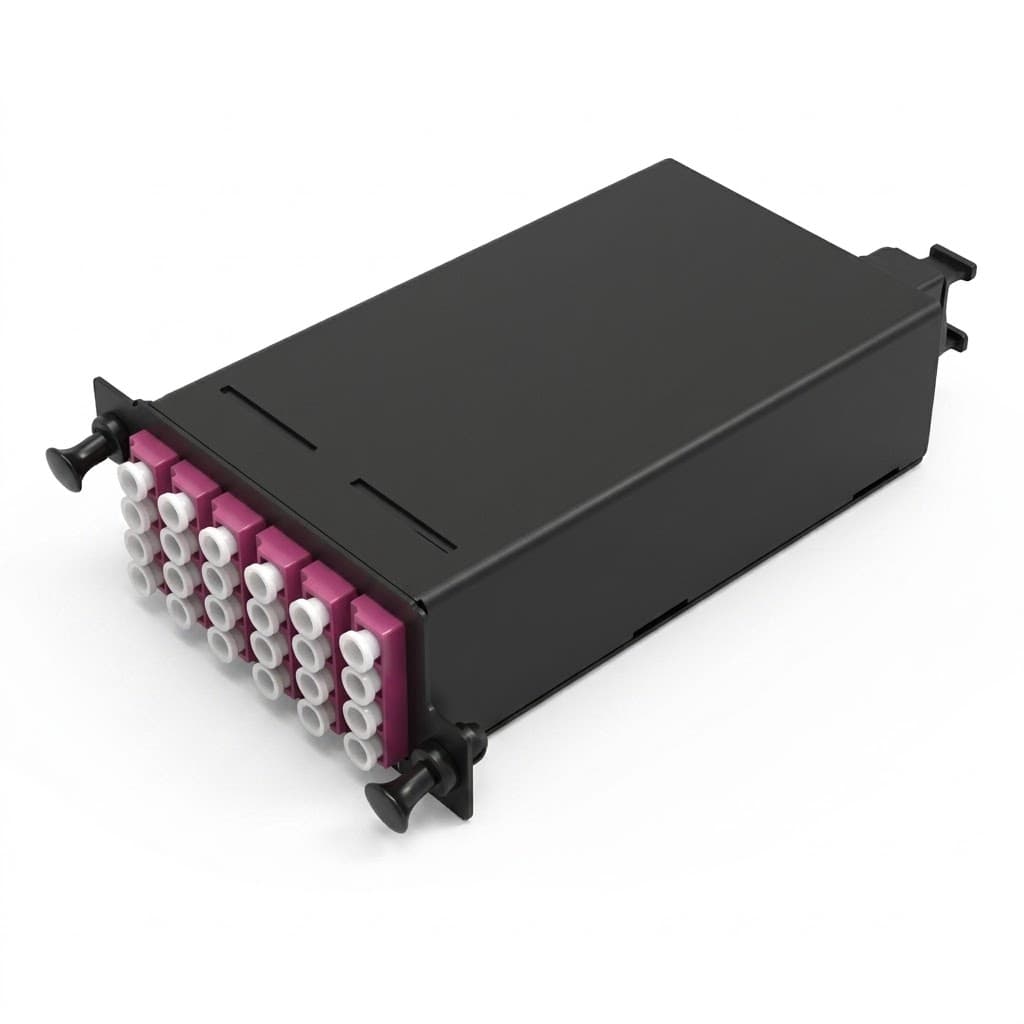

Cassette Capacity: Accommodates up to 12 pieces of 24F MPO-to-LC cassettes for modular LC breakout.
-
Backbone Connectivity: Provides 12 rear MPO ports to connect multi-fiber trunk cables directly to cassette slots.
-
Integrated Routing Trays: Incorporates dedicated front and rear cable management trays to minimize mechanical tension on patch cords and trunk assemblies.
-
Structural Design: Uses a one-piece chassis structure to simplify deployment in equipment racks.
-
Dual-Sided Access: Offers front and rear access points to assist technicians during initial cabling and operational moves, adds, and changes.
-
High-Speed Protocol Support: Connects 100G and 400G parallel optics networks requiring low-latency optical links.
Product Configuration
-
Chassis Height: 2U.
-
Maximum Port Capacity: 288 front LC ports.
-
Rear Trunk Interface: 12 MPO ports.
-
Cassette Support: Up to 12 slots for 24F MPO to LC modules.
-
Chassis Construction: One-piece enclosure.
-
Cable Routing: Front and rear management trays.
Applications
-
Enterprise and cloud data centers requiring high-density structured cabling.
-
Artificial intelligence (AI) compute clusters with parallel optics architectures.
-
High-performance computing (HPC) server and switch interconnects.
-
100G and 400G backbone distribution frames.
Selection Considerations
-
Cassette Loading: Confirm the required number of 24F MPO-to-LC modules (up to 12) based on active port requirements.
-
Trunk Polarity and Gender: Verify MPO trunk cable polarity methods and connector pin configurations prior to deployment.
-
Rack Depth Requirements: Allow adequate cabinet depth to clear front and rear cable management trays when doors are closed.
Frequently Asked Questions
-
How many fiber terminations does this panel support in 2U?
The chassis supports up to 288 LC fiber terminations across 12 modular 24F MPO-to-LC cassettes.
-
Does this unit support 400G network deployments?
Yes, the panel is engineered to support 100G and 400G parallel optical links across multi-fiber backbones.
-
What helps reduce stress on connected patch cords?
Built-in front and rear cable management trays support cable weight and maintain proper routing paths.
Conclusion
Deploying the 2U 288 fiber MPO patch panel delivers structured, low-latency cross-connect capability for 100G and 400G optical infrastructure while protecting critical patch assemblies.
