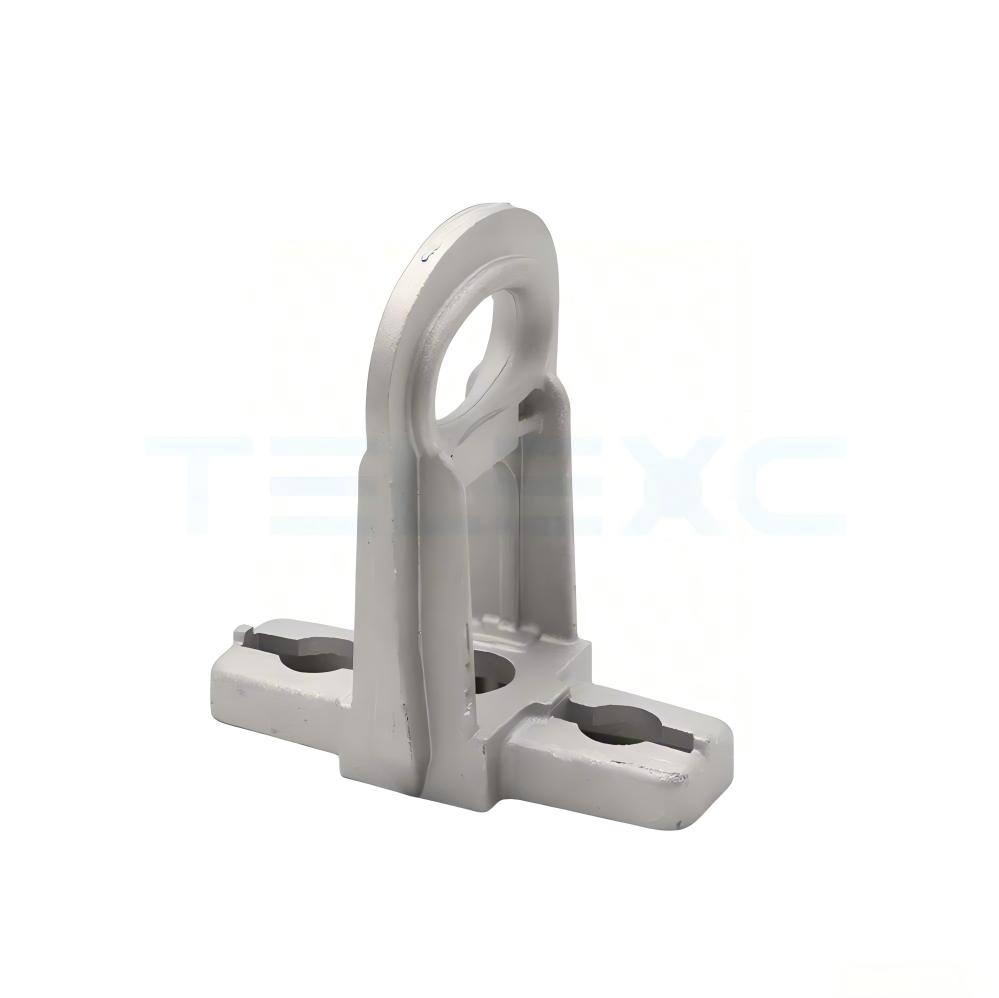

Aluminum Alloy Wall Mount Anchor Bracket for LV ABC Cable
Aluminum Alloy Wall Mount Anchor Bracket for LV ABC Cable - Image 2

Aluminum Alloy Wall Mount Anchor Bracket for LV ABC Cable

Key Features:

  • Material: High-strength cast aluminum alloy with tin coating for corrosion resistance.

  • Durability: Withstands extreme weather and industrial pollution.

  • Versatility: Compatible with various clamp types (CA1500, CA2000, etc.).

  • Ease of Installation: Can be mounted by bolts or stainless steel straps.

  • Corrosion & UV Resistant: Ideal for outdoor and coastal use.

  • Certified Quality: CE, RoHS, ISO 9001 compliance.

  • Lightweight Design: Easy handling and transport (approx. 215g).

Category: Tags: , , ,

The Aluminum Alloy Wall Mount Anchor Bracket (CA Series) is a high-strength support fitting designed for the installation of Low Voltage Aerial Bundled Cable (LV-ABC) systems. It is used to securely fix strain or suspension clamps on utility poles or building walls, providing reliable anchoring and long-term mechanical stability.

Manufactured from high-quality cast aluminum alloy, the CA Series bracket offers excellent tensile strength, corrosion resistance, and durability, making it suitable for urban, rural, industrial, and coastal environments. Its universal mounting design allows fast installation using either bolts or stainless-steel bands, reducing installation time and overall project cost.

Compliance Standards

The CA Series Anchor Bracket is designed and manufactured in accordance with international and utility-approved standards:

  • NFC 33-040

  • NFC 33-041

  • EN 50483

  • ISO 9001 – Quality Management System

Type testing can be provided upon request.

Material & Construction

  • Main Material:

    • High-strength cast aluminum alloy

  • Surface Treatment:

    • Tin-coated aluminum for enhanced corrosion resistance

  • Manufacturing Process:

    • Precision aluminum casting for consistent dimensions and strength

  • Structural Design:

    • Reinforced body for high tensile and mechanical loads

    • Anti-slip stops to prevent stainless-steel band movement

    • Grooved edges to avoid strap overlapping and ensure uniform tension

Design & Function:

The CA Series Aluminum Alloy Bracket is engineered to support one or two strain or suspension clamps (CA1500 / CA2000).

  • Designed with anti-slip stops to prevent metal tape displacement during installation.

  • Includes grooved edges that prevent overlapping of stainless steel straps, ensuring precise and secure fixing.

  • The cast aluminum structure provides exceptional tensile strength, stability, and corrosion resistance.

  • The bracket allows universal mounting—either by M14/M16 bolts or two stainless steel bands (20mm width).

Installation Guide

The CA Series bracket supports two installation methods, providing maximum flexibility in the field.

Option 1: Bolt Installation

  1. Position the bracket on the pole or wall.

  2. Fix using M14 or M16 bolts with suitable anchors.

  3. Tighten securely to ensure stable mounting.

Option 2: Stainless-Steel Strap Installation

  1. Place the bracket at the desired position.

  2. Secure using two stainless-steel straps (20 mm × 0.7 mm).

  3. Ensure the anti-slip stops are properly engaged to prevent movement.

Clamp Installation

  • Attach one or two strain or suspension clamps (CA1500, CA2000, etc.).

  • Verify correct cable alignment and tension before final tightening.

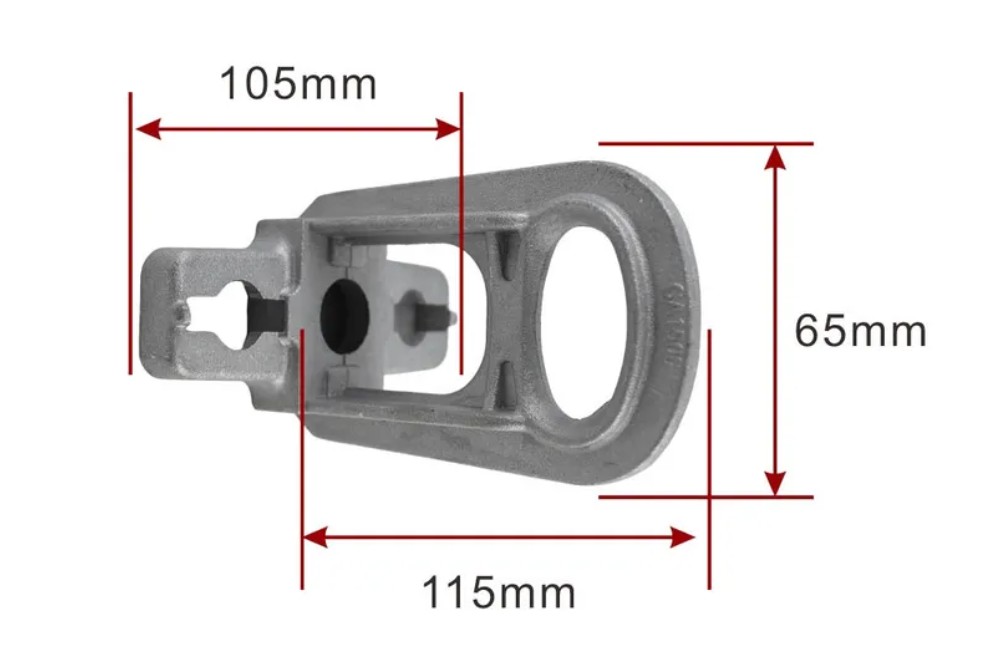

Technical Parameters

Parameter Specification
Product Name Aluminum Alloy Anchor Bracket / Wall Mount Bracket
Model Series CA1500 / CA2000 / ES1400 / ES1500
Material High-strength Cast Aluminum Alloy (Tin-coated)
Plastic Component PA66 (UV-resistant, glass fiber reinforced)
Weight Approx. 215g
Mounting Options M14/M16 Bolts or 2 Stainless Steel Straps (20×0.7mm)
Surface Finish Anti-corrosive coating / Polished Aluminum
Tensile Strength High – Suitable for LV ABC systems
Corrosion Resistance Excellent (Industrial & Saline Environments)
Applications Anchoring or Suspension of LV ABC Cables
Certifications ISO 9001

Applications

  • Used for anchoring or suspending LV ABC lines on poles (wooden, steel, or concrete) or building walls.

  • Suitable for dead-end and intermediate support of service cables.

  • Widely applied in urban distribution networks, rural electrification, and industrial installations.

  • Ideal for use in corrosive or coastal regions due to high anti-corrosion performance.

Product Advantages

  • Long Service Life in corrosive and harsh environments

  • Fast Installation with minimal tools and labor

  • High Mechanical Reliability under tension and vibration

  • Reduced Maintenance Costs due to durable materials

  • Wide Compatibility with standard LV-ABC clamps

  • Lightweight Yet Strong for efficient logistics and handling

FAQs

Q1: How many clamps can the CA Series bracket support?
It can support one or two strain or suspension clamps, depending on the model.

Q2: Can it be installed on building walls?
Yes. It is suitable for concrete and masonry walls using appropriate anchor bolts.

Q3: Is it suitable for coastal or high-corrosion environments?
Yes. The aluminum alloy with tin coating provides excellent corrosion resistance.

Q4: What installation methods are supported?
Installation can be done using M14/M16 bolts or two stainless-steel straps (20 mm width).

Q5: Is customization available?
Yes. OEM and ODM customization is available for dimensions, surface treatment, and branding.

Our Services

  1. Rich experience in ODM & OEM production
  2. Excellent one-stop solution for telecom and power hardware
  3. High-quality precision casting and forging capabilities
  4. Factory-direct pricing with fast delivery
  5. Strict quality control and inspection at every stage
  6. Warm welcome to visit our factory for cooperation opportunities

About Us

Telexc is a high-tech enterprise specializing in the manufacturing of hardware equipment for the telecommunications and electric power sectors. With production and sales centers in Tianjin and Hebei, China, our products are successfully operating in over 30 countries and have been trusted in power systems for more than 20 years. We are an approved and certified supplier to major telecom companies worldwide and have earned excellent references from numerous utility departments. Our facilities are equipped with modern machinery, advanced testing equipment, and a skilled engineering team.
TTF TELE is certified under:

  • ISO 9001(Quality Management)
  • ISO 14001(Environmental Management)
  • ISO 45001(Occupational Health & Safety)

With innovation, reliability, and customer satisfaction at our core, Telexc continues to lead the way in transmission and telecommunication line hardware manufacturing.

Why Choose Telexc

  • Over 20 years of experience in power and telecom line hardware

  • Trusted supplier to major global utilities and telecom operators

  • Strong ODM & OEM production capabilities

  • Advanced precision casting and forging technology

  • Strict quality inspection at every manufacturing stage

  • Factory-direct pricing with fast and reliable delivery

  • Products successfully deployed in 30+ countries worldwide

Telexc delivers reliable, standards-compliant anchoring solutions engineered for safe and long-term operation of modern LV-ABC power distribution networks.
