EPDM Silicone Cold Shrink Tube – High Voltage Cable Protection

Key Features

  1. Simple Installation – No tools, heat, or torches required.
  2. Excellent Heat Resistance – Maintains shape under elevated temperatures.
  3. Durable Seal – Retains resiliency and compression after years of exposure.
  4. Waterproof & Chemical Resistant – Protects against moisture, acids, alkalies, and fluid splashes.
  5. Wide Cable Compatibility – Available in multiple diameters to suit a broad range of cables.
Categories: , Tags: , , , , , , , , , , ,

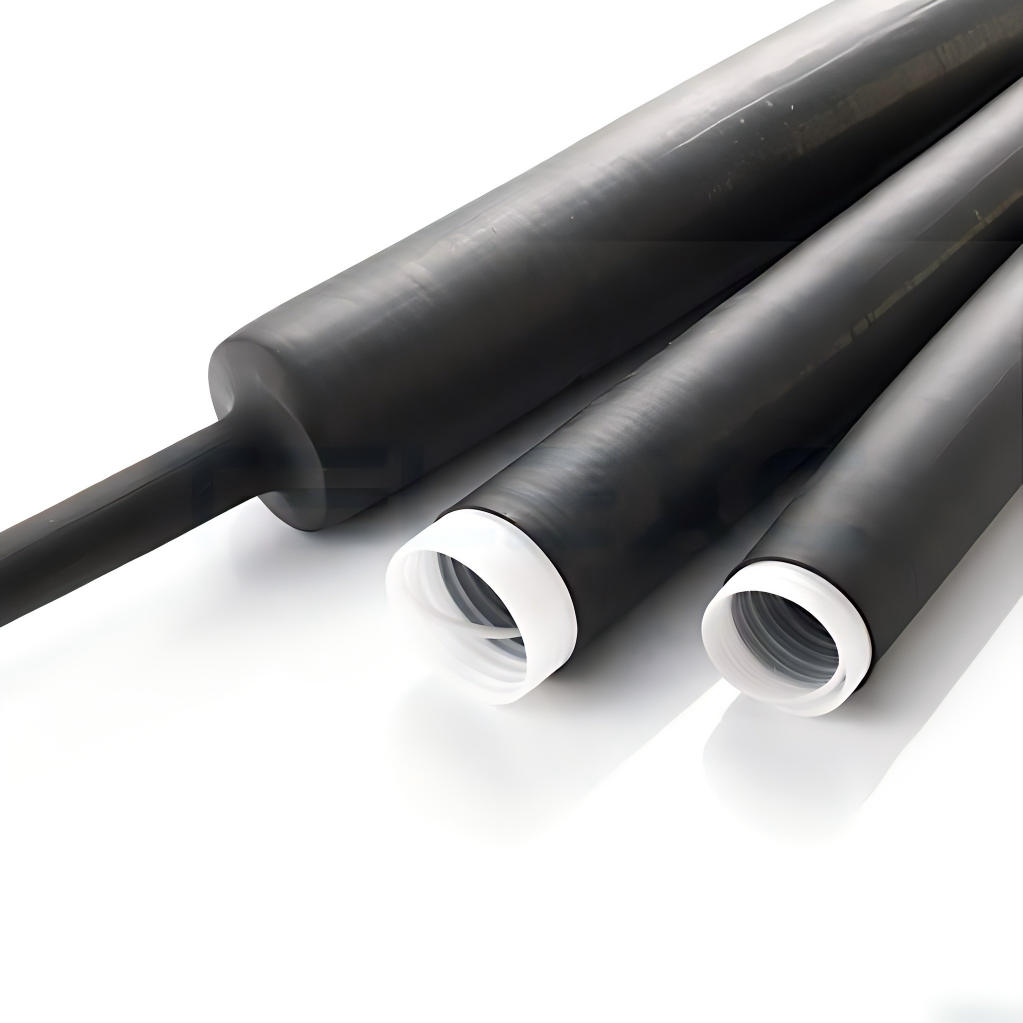

The EPDM Silicone Cold Shrink Tube offers a reliable and fast solution for insulating and protecting cable connections. Its pre-expanded tubing shrinks around the cable when the rip cord is pulled, forming a tight, durable, and moisture-resistant seal without the need for heat, torches, or tools.

Designed for high-voltage applications, this cold shrink tube maintains its resiliency and sealing performance even after prolonged exposure to UV light, ozone, acids, alkalies, and extreme weather conditions. The advanced silicone/EPDM compound ensures excellent electrical insulation, waterproofing, and mechanical flexibility, making it ideal for outdoor telecom, utility, and industrial cable installations.

Available in multiple diameters and lengths, the  EPDM Silicone Cold Shrink TX-CST series accommodates a wide range of cable sizes, ensuring compatibility with most standard high-voltage cables. Its robust construction guarantees long-term performance, chemical resistance, and safe operation in harsh environments.

International Standard Compliance

  1. ISO 9001 Certified – Quality management and consistent performance.
  2. RoHS Compliant – Environmentally safe materials.
  3. IEC 60811 & IEC 60216 – Meets cable insulation and durability standards.
  4. UV & Ozone Resistance Testing – Long-term outdoor reliability.
  5. High Voltage Rated – Rated for 1 kV applications.

Material & Construction:

  • EPDM and Silicone rubber for heat resistance, flexibility, and long-term durability
  • Waterproof, chemical-resistant, and fungus-resistant
  • Rated for high-voltage applications up to 1 kV
  • Black standard color, customizable options available

Installation Guide

  1. Slide the pre-expanded tube over the cable connection.
  2. Align properly to cover the splice or termination completely.
  3. Pull the rip cord to shrink the tube around the cable.
  4. Check for full compression and sealing along the connection.
  5. Trim excess if needed or remove during maintenance.

Technical Parameters

Catalog Number Tube Dia (mm) Tube Length (mm) Cable Range (mm)
TX-CST-20-6 20 152 7.8–14.3
TX-CST-25-8 25 203 10.1–20.9
TX-CST-32-9 32 229 13.0–25.4
TX-CST-32-11 32 279 13.0–25.4
TX-CST-35-9 35 229 13.9–30.1
TX-CST-35-11 35 279 13.9–30.1
TX-CST-40-6 40 152 17.5–35.1
TX-CST-40-12 40 305 17.5–35.1
TX-CST-40-16 40 406 17.5–35.1
TX-CST-53-6 53 152 24.1–49.2
TX-CST-53-12 53 305 24.1–49.2
TX-CST-53-18 53 457 24.1–49.2
TX-CST-70-6 70 152 32.2–67.8
TX-CST-70-9 70 229 32.2–67.8
TX-CST-70-12 70 305 32.2–67.8
TX-CST-70-15 70 381 32.2–67.8
TX-CST-70-18 70 457 32.2–67.8
TX-CST-104-9 104 229 42.6–93.7
TX-CST-104-18 104 457 42.6–93.7

Applications

  1. High Voltage Cable Insulation – Protects medium- and high-voltage cable terminations.
  2. Telecom & Wireless Installations – Ideal for outdoor antennas and communication lines.
  3. Industrial Wiring Protection – Guards connections in factories and harsh environments.
  4. Moisture and UV Sensitive Areas – Outdoor deployment where water, sunlight, and ozone are present.
  5. Temporary or Permanent Installations – Easy to remove for maintenance without damage.

Product Advantages

  1. Better Shrink Ratio – Ensures a snug fit for various cable sizes.
  2. Wide Cable Accommodation – Covers a broader range than standard cold shrink tubes.
  3. Advanced Rubber/Silicone Compound – Withstands tough environmental conditions.
  4. Breathable Design – Reduces moisture entrapment and allows cable longevity.
  5. Extended Storage Life – Maintains elasticity and performance over years.

FAQs

Q1: What cable sizes are supported?
A1: Ranges from 7.8 mm to 93.7 mm depending on the TX-CST model.

Q2: Is heat required for installation?
A2: No, the pre-expanded tube shrinks manually via the rip cord.

Q3: Can it be used outdoors?
A3: Yes, fully waterproof and resistant to UV, ozone, and chemicals.

Q4: How long does the tube maintain resiliency?
A4: It maintains compression and elasticity for years under outdoor conditions.

Q5: Is it reusable?
A5: Can be removed carefully for maintenance, but is primarily designed for permanent sealing.

Q6: Is it flame-resistant?
A6: The silicone/EPDM compound resists fire and high temperatures.

Q7: Can the tube accommodate multiple cable types?
A7: Yes, compatible with medium- and high-voltage cables, telecom, and industrial wires.

Q8: Are custom sizes available?
A8: Yes, black standard and custom sizes available upon request.

Why Choose Telexc

  1. Direct Factory Products – Guaranteed authentic and high-quality materials.
  2. ISO-Compliant Manufacturing – Quality-controlled production process.
  3. Reliable Performance – Designed for long-term outdoor and high-voltage use.
  4. Expert Technical Support – Assistance with product selection and installation.
  5. Wide Product Range – Multiple sizes to suit all common cable diameters.
