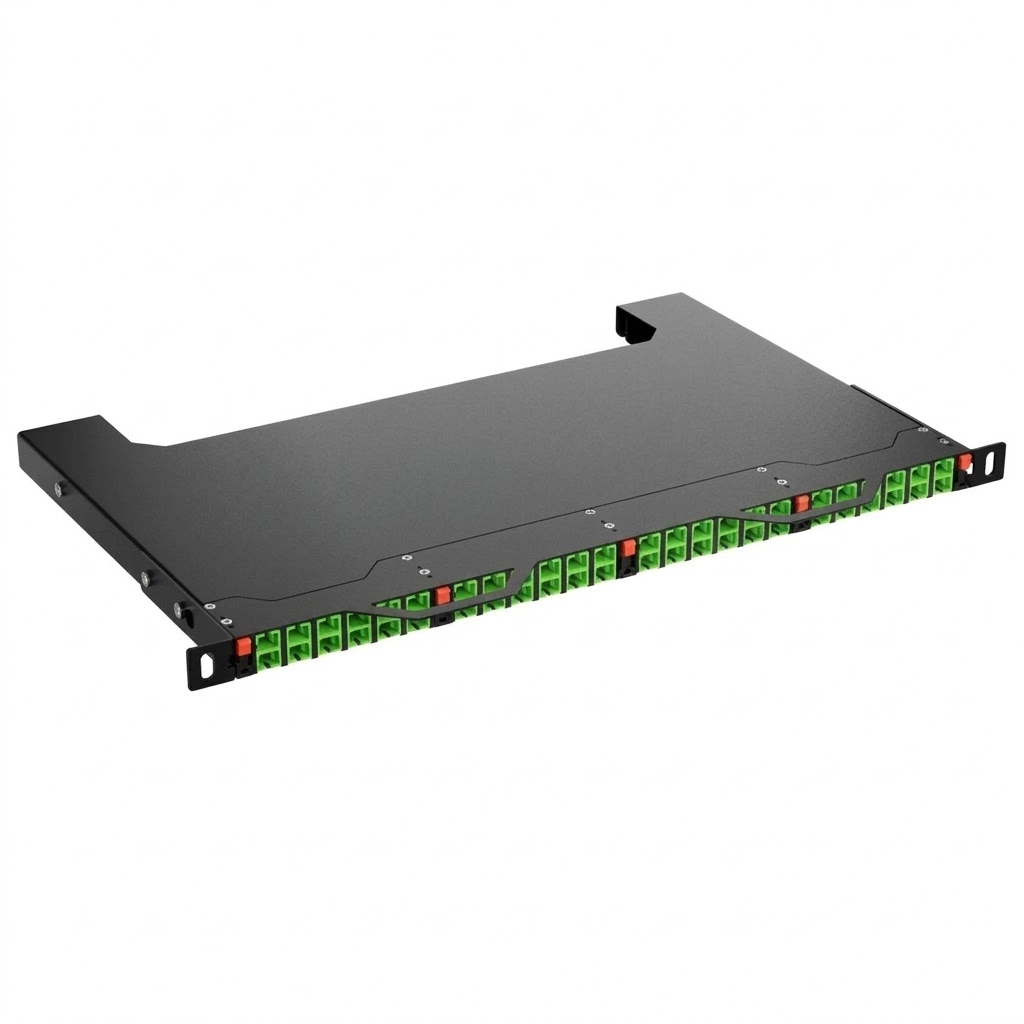

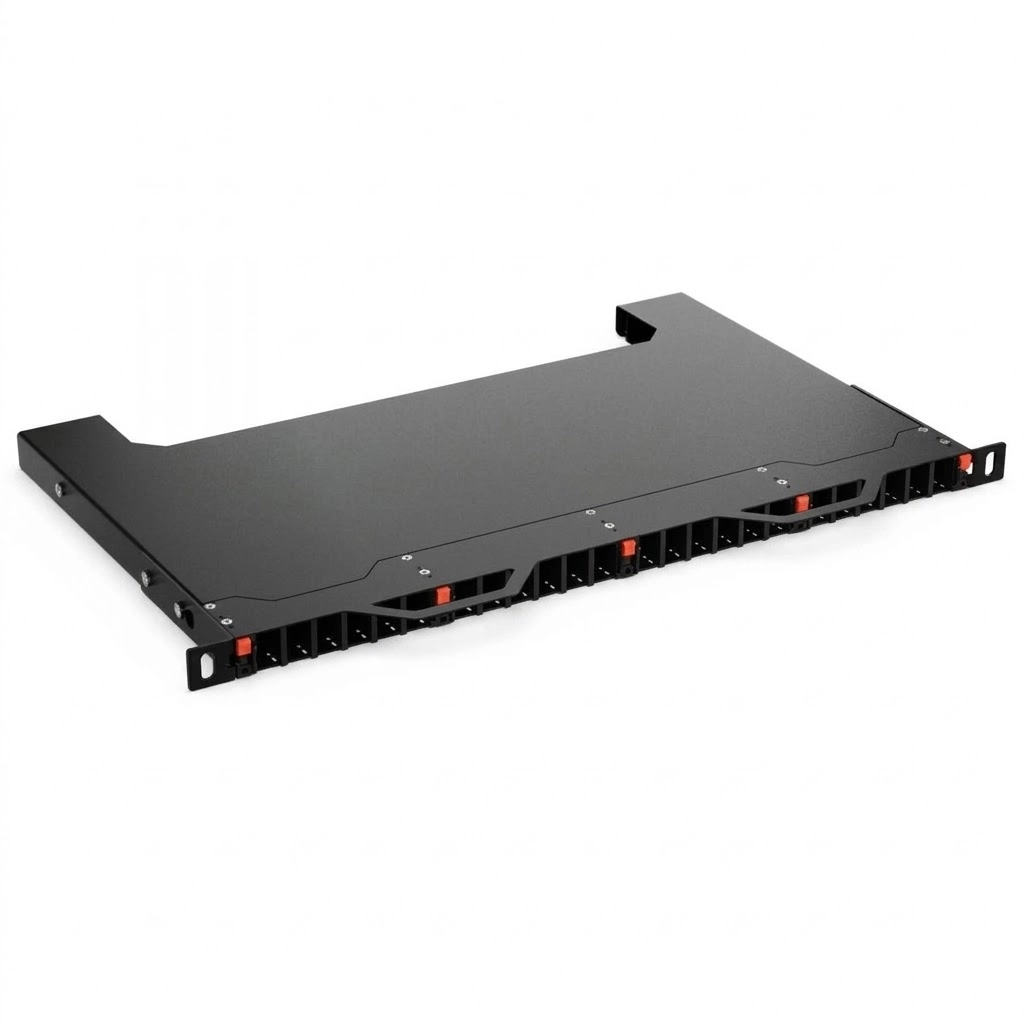

0.5U Extendable Fiber Optic Patch Panel
This 0.5U extendable fiber optic patch panel provides compact optical distribution for high-density telecommunications networks and data center environments. Built to fit standard 19-inch equipment racks, the slim 0.5U form factor allows network operators to maximize vertical rack space. It accommodates up to 48 splices and 48 adapter ports in a single, space-saving footprint, supporting both single-mode (SM) and multi-mode (MM) fiber deployments without requiring full-rack-unit allocations.
Key Features of the 0.5U High-Density Fiber Optic Patch Panel
-
Space-Saving 0.5U Profile: Occupies a half rack unit (0.5U) height while supporting up to 48 fiber splices and 48 adapter ports. Helps operators increase port density in crowded 19-inch racks.
-

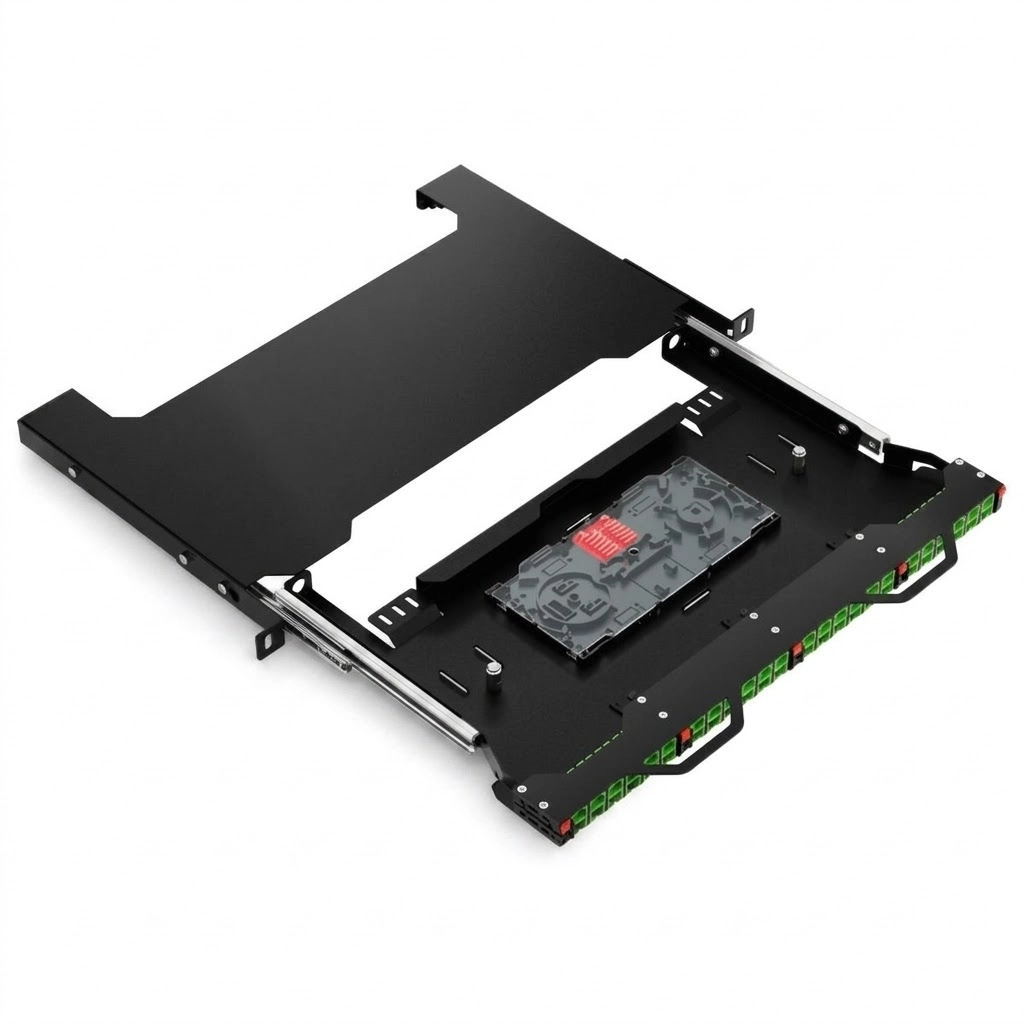

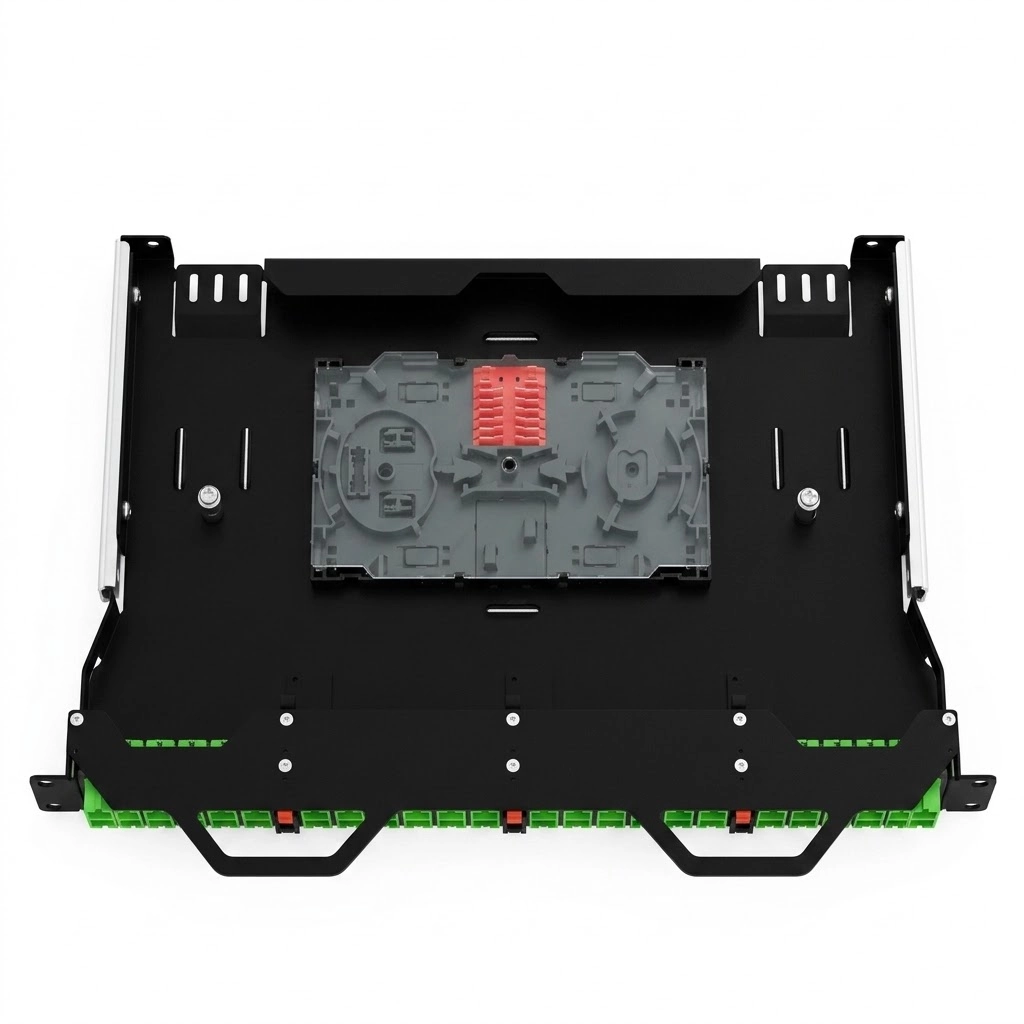

Full-Extension Telescopic Rails: Integrated drawer design glides on full-extension rails with ergonomic front-panel handles. Provides clear interior access for technician maintenance, testing, and fiber routing.
-
Versatile Optical Connectivity: Houses four adapter holders that accept LC Duplex (LC DX), SC Simplex (SC SX), and E2000 connector footprints across single-mode and multi-mode optical paths.
-
Powder-Coated Steel Chassis: Fabricated from powder-painted steel. Delivers physical protection for interior splices and consistent service life in indoor equipment rooms.
Applications
-
Data Centers: High-density distribution frames where conserving vertical rack unit (RU) space is critical.
-
Central Offices and Headends: Optical patch bays that require high-density patching for enterprise or broadband services.
-
Telecommunications Equipment Rooms: Secondary distribution points requiring clean consolidation of single-mode or multi-mode fiber runs.
-
Structured Cabling Enclosures: 19-inch communication cabinets handling dense fiber links with limited height availability.
Selection Considerations
-
Connector Footprint: Verify the site connector requirement (SC Simplex, LC Duplex, or E2000) to ensure the proper internal adapter plates are populated.
-
Cabinet Depth Requirements: Confirm the equipment cabinet accommodates the 284 mm panel depth along with adequate rear clearance for trunk cable bend relief.
-
Vertical Space Availability: Ensure standard half-unit mounting positions or paired allocations are supported in the target 19-inch rack.
Frequently Asked Questions
-
What adapter types fit this panel?
The panel accepts SC Simplex (SC SX), LC Duplex (LC DX), and E2000 adapters using 4 modular adapter holders.
-
Can this patch panel handle both single-mode and multi-mode fibers?
Yes. The panel and adapter mounting system accommodate both single-mode (SM) and multi-mode (MM) optical links.
-
How do technicians access the interior for maintenance?
The chassis features full-extension telescopic sliding rails and front-panel handles, allowing the internal tray to pull forward completely from the rack.
-
What is the maximum splice capacity?
The unit accommodates up to 48 fusion splices alongside its 48-port adapter capacity.
This 0.5U high-density fiber optic patch panel delivers dependable, space-efficient fiber management for demanding 19-inch rack environments.
