48 Core Fiber Distribution Box
The 48 Core Fiber Distribution Box is designed for high-density fiber termination and distribution in FTTH and FTTx networks. It supports up to 48 SC ports for fiber connection, distribution, and cross-connection.

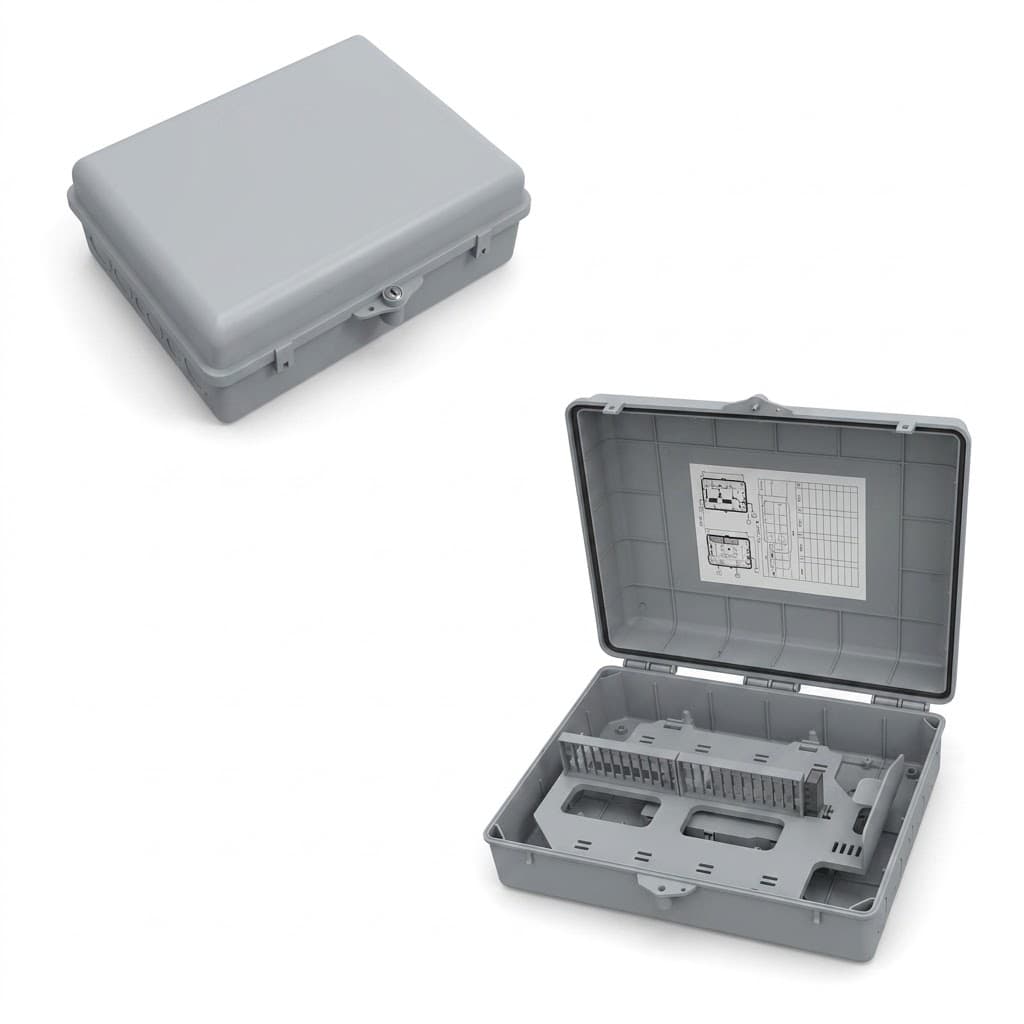

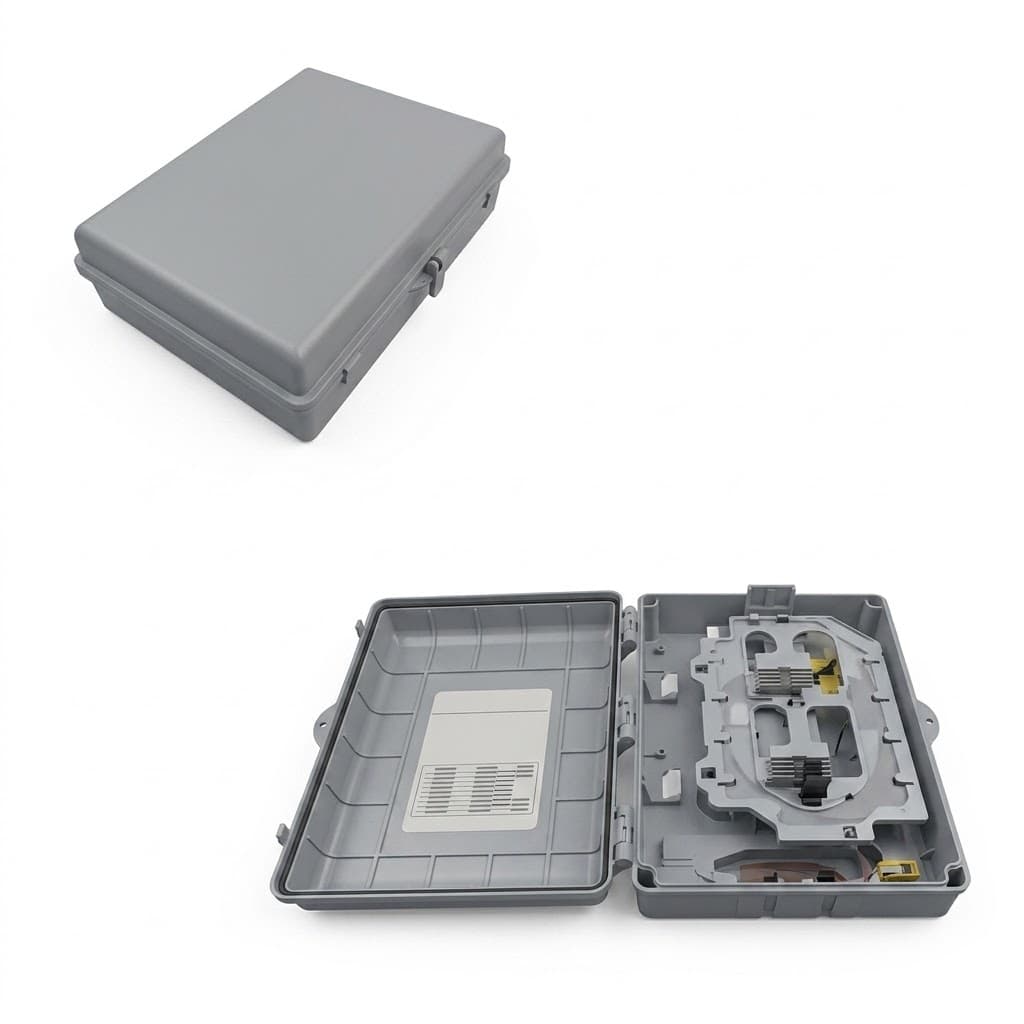

This fiber distribution box uses a practical two-layer design. The rear area manages incoming cables, fiber slack, and splicing. The front area provides easy access to SC adapters and patch cords. Therefore, technicians can install and maintain the fiber network more efficiently.
The enclosure uses high-strength, impact-resistant plastic. It provides good resistance to heat, corrosion, and aging. In addition, the sealed housing and weatherproof gasket help protect the internal fibers from dust and water.
The 48 Core Fiber Distribution Box supports both indoor and outdoor FTTx applications. It can be wall mounted or pole mounted, making it suitable for building entrances, telecom rooms, outdoor distribution points, and other fiber access locations.
48 Core Fiber Distribution Box Features
48 SC Fiber Ports

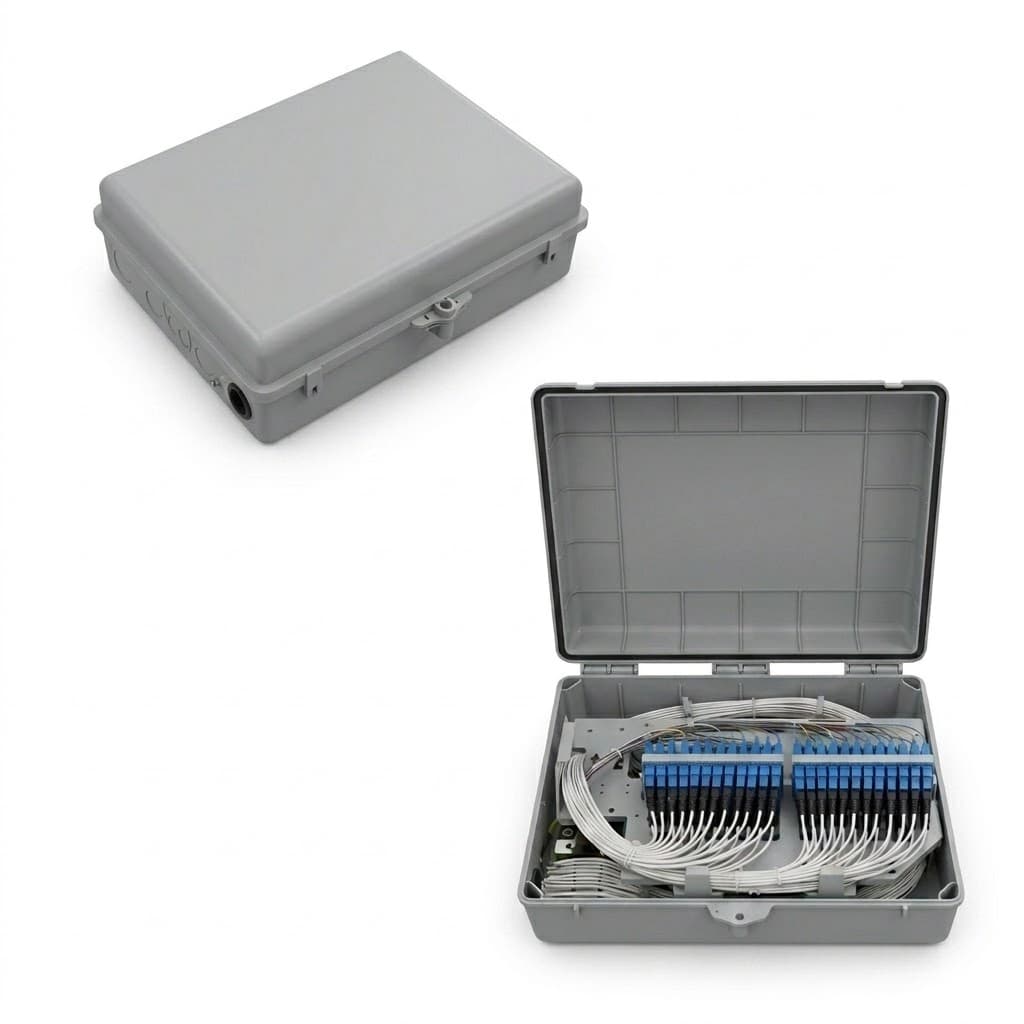

The box supports up to 48 SC adapter ports. This high-density configuration helps network operators connect multiple subscribers in a compact enclosure.
Two-Layer Fiber Management

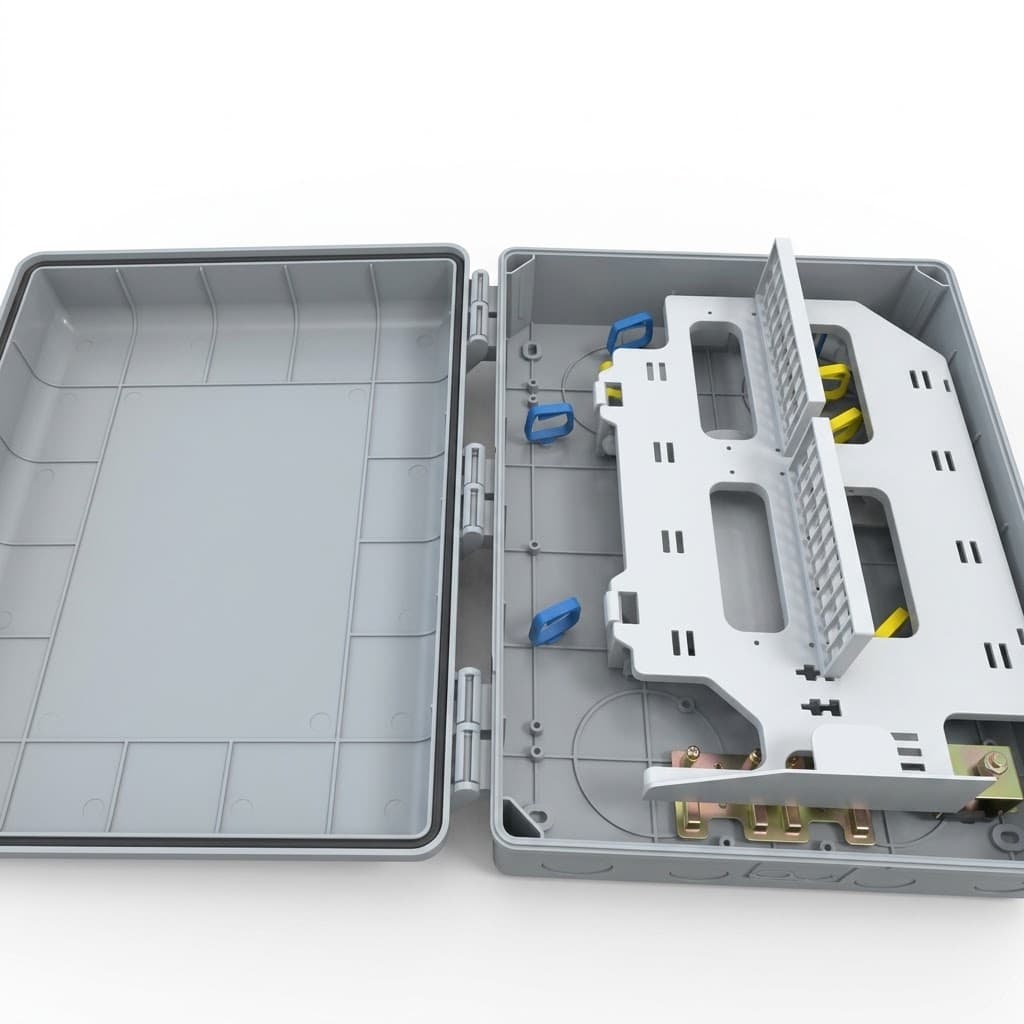

The rear section provides space for cable routing, fiber splicing, and slack storage. Meanwhile, the front section manages adapters and patch cords. This layout keeps the optical paths organized and easy to access.
Indoor and Outdoor Protection
The enclosure is rated IP55 for indoor and outdoor applications. The weatherproof gasket and sealed cable entry points help protect the fiber components against dust, rain, and moisture.
Wall or Pole Mounting
The compact housing supports both wall-mounted and pole-mounted installation. As a result, installers can use the same fiber distribution box in different FTTx deployment environments.
Flexible Cable Entry
Cable entry and exit ports are positioned at the top and bottom of the enclosure. PG gland ports help secure incoming and outgoing cables while maintaining reliable sealing.
Easy Fiber Splicing
Stackable splice trays provide organized fiber splicing and storage. The internal fiber routing system also helps maintain the required bend radius and prevents excessive fiber bending.
Easy Maintenance
The swing-tray structure provides convenient access to adapters, splice trays, and fiber management areas. Technicians can therefore complete installation and maintenance without removing the entire assembly.
Durable Enclosure
The impact-resistant plastic housing provides reliable mechanical protection. The material also offers good resistance to heat, corrosion, and environmental aging.
Ribbon and Non-Ribbon Cable Support
The fiber management structure can accommodate both ribbon and conventional non-ribbon fiber optic cables, depending on the selected configuration.
Applications
The 48 Core Fiber Distribution Box is suitable for a wide range of fiber access applications, including:
- FTTH and FTTx networks
- ODN fiber distribution
- Building entrance fiber termination
- Telecommunications rooms
- Outdoor fiber distribution points
- ISP access networks
- Campus fiber networks
- Fiber splicing and cross-connection
- Multi-subscriber fiber distribution
Related FTTH Products
For a complete FTTx deployment, this 48 Core Fiber Distribution Box can be used with fiber optic cables, PLC splitters, fiber adapters, patch cords, pigtails, and fiber splice closures.
You can also connect this product with other FTTH Infrastructure products to build a complete ODN solution for access networks.
Why Choose Our Fiber Distribution Box?
Our fiber distribution boxes combine high-density fiber management with a compact and durable enclosure. The 48-port configuration provides sufficient capacity for multi-subscriber networks while keeping installation and maintenance simple.
For indoor telecom rooms or outdoor FTTx distribution points, this 48 Core Fiber Distribution Box provides a reliable solution for fiber termination, splicing, and distribution.
