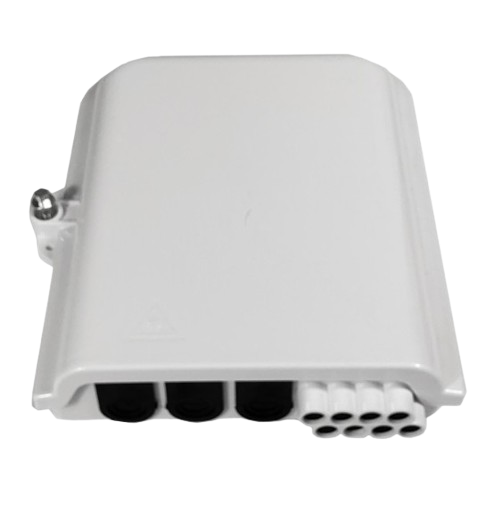

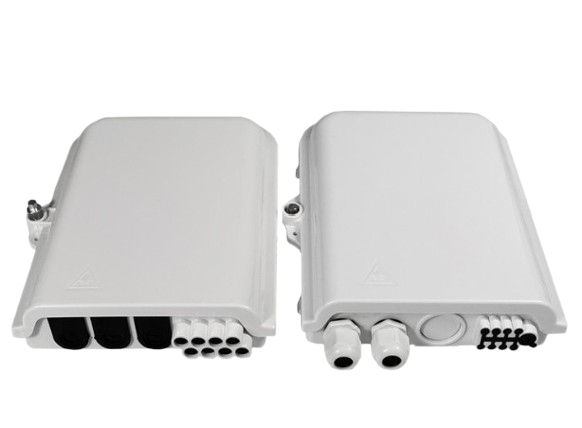

8 Core Fiber Distribution Box – FDB Series

Key Features

  • All-in-one design for splicing, splitting, and distribution

  • IP65 protection for harsh outdoor environments

  • Supports SC adapters and PLC splitters

  • High-strength ABS/PC enclosure

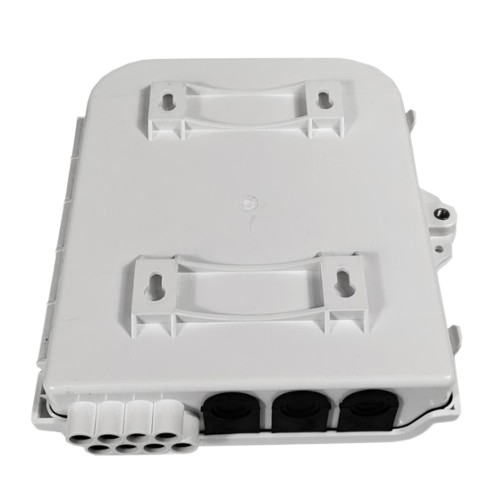

  • Easy wall or pole mounting

  • Organized fiber routing and storage

Category: Tags: , , , , ,

Fiber Distribution Box 8 Core by Telexc is engineered for reliable fiber termination, splicing, and distribution in FTTH and FTTX access networks. The enclosure integrates feeder cable clamping, fiber splicing, splitter installation, and drop cable routing within a compact and durable housing. Manufactured from high-quality ABS or PC material, the box offers strong resistance to pressure, corrosion, and outdoor environmental conditions. With IP65 protection, it ensures stable performance in both indoor and outdoor deployments. Supporting SC adapters and 1×8 PLC splitters, this distribution box is ideal for residential, commercial, and telecom access networks requiring secure fiber management and easy maintenance.

Model Number

  • TX-FDB-08

International Standard Compliance

  • IEC 61754

  • IEC 60794

  • IEC 60529 (IP Rating)

  • ISO 9001

  • RoHS Compliant

Construction & Materials

  • Enclosure Material: ABS or PC (customer selectable)

  • Surface Finish: UV-resistant plastic

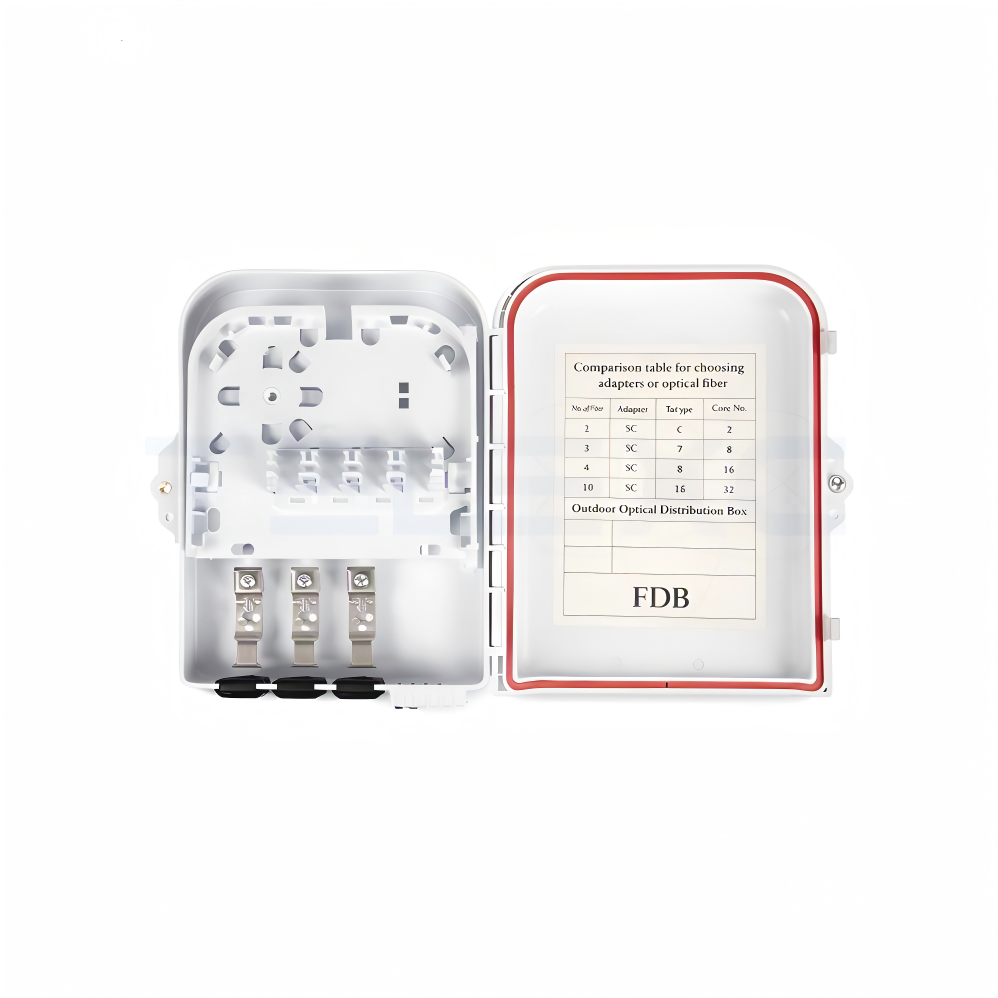

  • Internal Structure: Integrated splice tray and routing paths

  • Splitter Support: Mini PLC or card-type splitter

  • Protection Level: IP65

Installation Guide

  1. Mount the box on the wall or pole using mounting accessories

  2. Secure feeder and drop cables using internal clamps

  3. Perform fiber splicing on the splice tray

  4. Install SC adapters and optical splitters if required

  5. Route drop cables and close the lockable cover

Technical Parameters

Parameter Specification
Fiber Capacity 8 Core
Adapter Type SC Simplex
Splitter Capacity 1×8 Mini PLC / Card Type
Ingress Protection IP65
Material ABS / PC
Color Options White, Black, Light Gray
Dimensions (mm) 210 × 126 × 50
Mounting Type Wall / Pole Mounted
Drop Cable Ports Multiple outlets
Application Type Indoor / Outdoor

Applications

FTTH / FTTX Access Networks

Used as a fiber termination and distribution point for last-mile networks.

Telecommunication Networks

Ensures clean fiber management in access and distribution layers.

CATV Networks

Supports optical signal distribution in cable television systems.

Local Area Networks

Suitable for fiber termination in buildings and campuses.

Product Advantages

Integrated Fiber Management

Combines splicing, splitting, and distribution in one enclosure.

Outdoor-Ready Design

IP65 protection ensures long service life.

Easy Expansion

Supports PLC splitter installation for future growth.

Low Maintenance

Internal turnover structure simplifies servicing.

FAQs

Q1: Can this box be installed outdoors?
Yes, it is IP65 rated and suitable for outdoor use.

Q2: Which splitter types are supported?
It supports 1×8 mini PLC or card-type splitters.

Q3: What adapters can be used?
SC simplex adapters are supported.

Q4: Is pole mounting available?
Yes, both wall and pole mounting are supported.

Q5: Can ABS and PC both be selected?
Yes, material selection depends on project requirements.

Why Choose Telexc

Purpose-Built for FTTH

Designed specifically for access to network applications.

Durable Materials

ABS/PC housing resists UV, moisture, and corrosion.

Installation Friendly

Simple internal layout reduces installation time.

Reliable Performance

Stable fiber protection for long-term operation.
