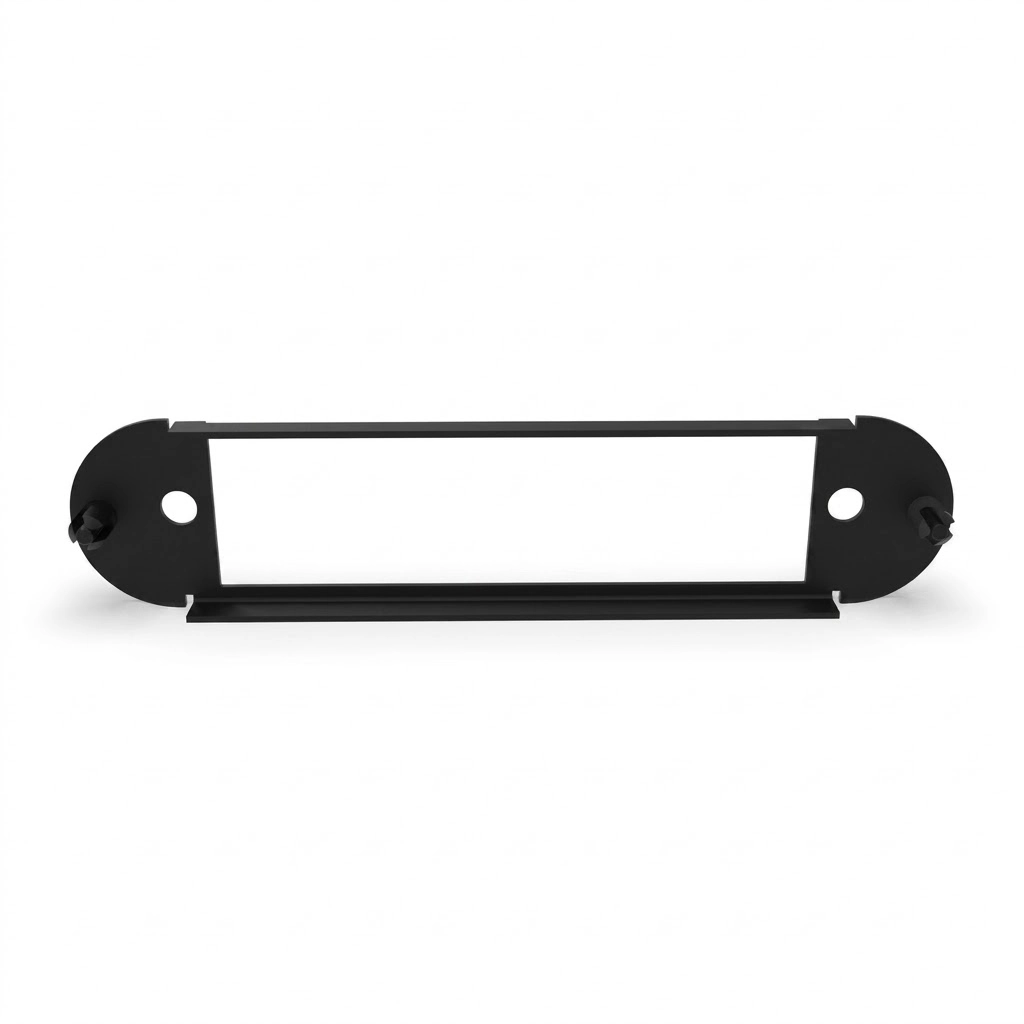

Patch Panel Bracket for Rack Retrofits

Upgrading legacy optical distribution hardware often forces network operators to replace entire rack enclosures. A dedicated patch panel bracket solves this challenge directly. It adapts modern modular cassettes into legacy frames without field modifications. Technicians use this adapter to mount standard LGX footprint adapter plates and optical cassettes directly into existing connector housing series racks and wall-mount enclosures.

By deploying a patch panel versatile bracket, teams upgrade their installed Fiber Distribution Unit (FDU) base while maintaining low insertion loss across all connections. This mechanical adapter eliminates enclosure replacement downtime in dense telecommunications rooms.

Engineering Design and Mechanical Architecture

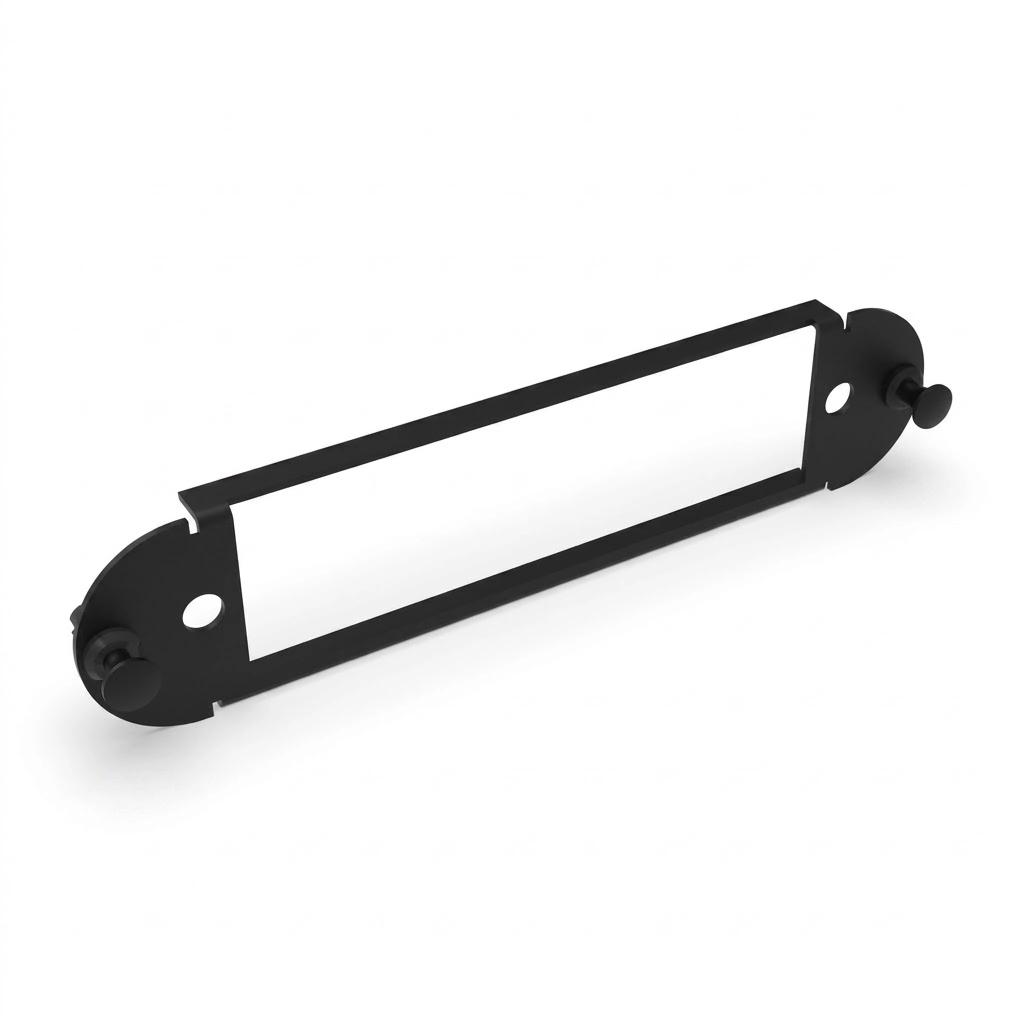

High-density patch panels demand stable physical alignment. Thermal drift or mechanical sag can introduce microbending losses at the mating sleeves. This bracket uses durable sheet metal to hold optical modules steady under heavy jumper cable tension.

• Cold Rolled Steel Body: Fabricated from 1.2 mm cold rolled steel sheet with a black powder-coat finish. It resists torsional stress, prevents corrosion, and withstands continuous patch cord routing forces inside commercial equipment rooms.

• Compact Physical Dimensions: Measures 35 mm wide by 155 mm high with a net mass of 0.15 kg. The narrow profile mounts inside standard 19-inch rack frames, vertical cable organizers, and compact wall-mount distribution boxes.

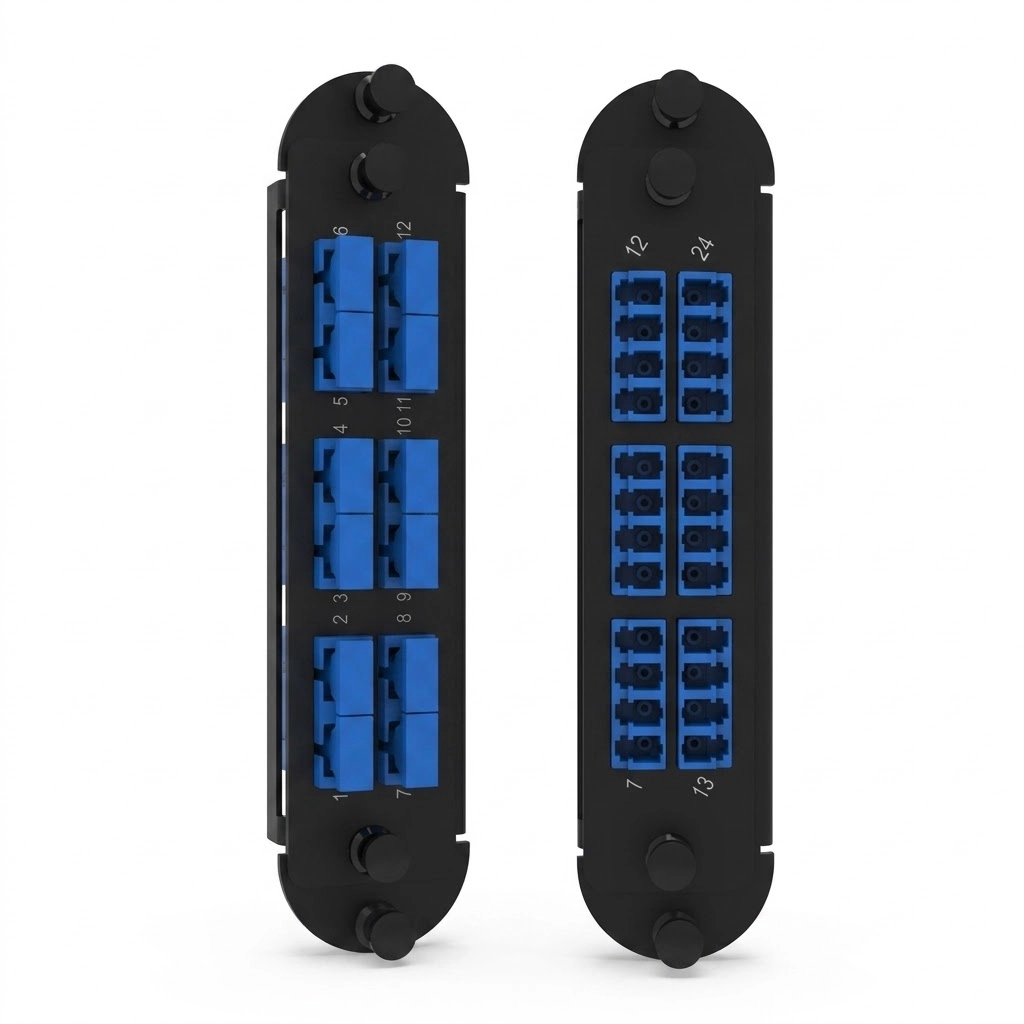

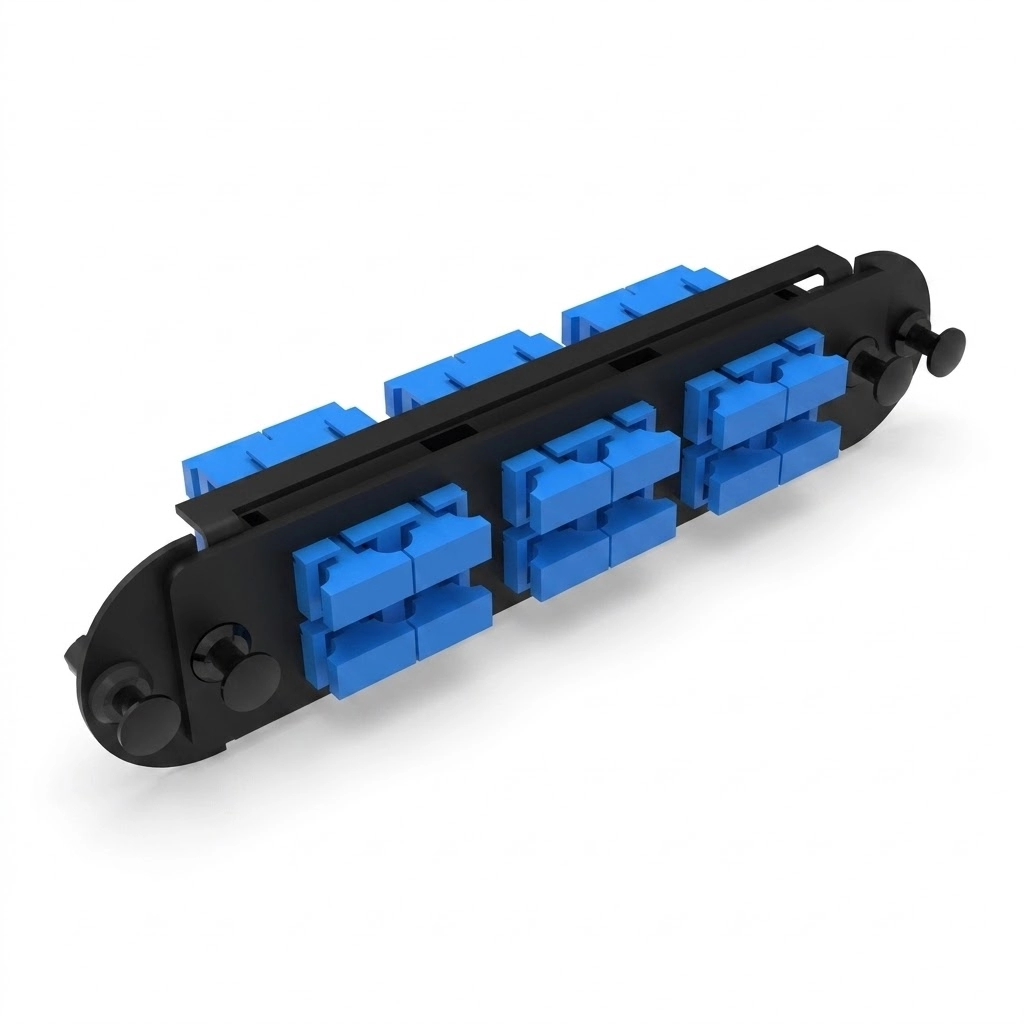

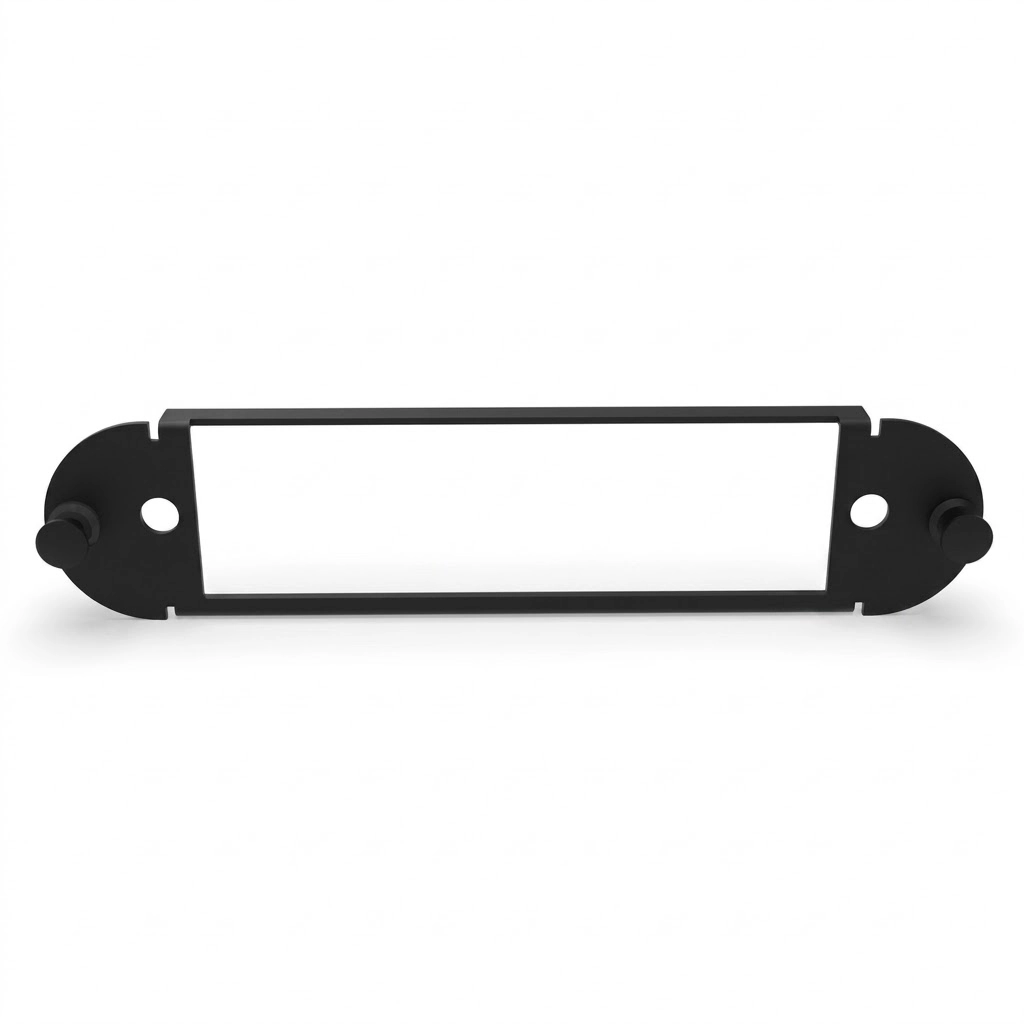

• Standard LGX Footprint: Features precision mounting cutouts spaced to accept standard 130 mm (5.125 inch) centerline push-pin latches. It secures all standard LGX modular cassettes, pass-through adapter plates, and pre-terminated breakout modules.

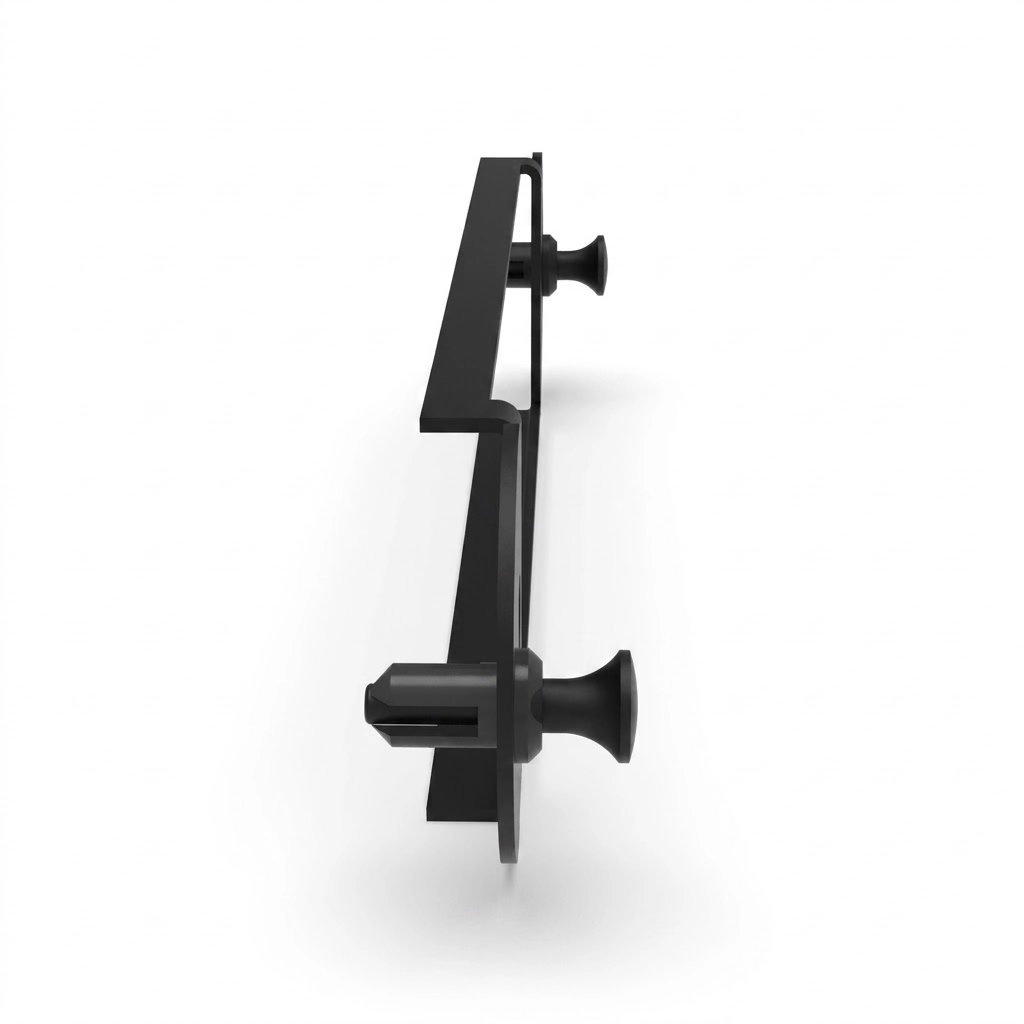

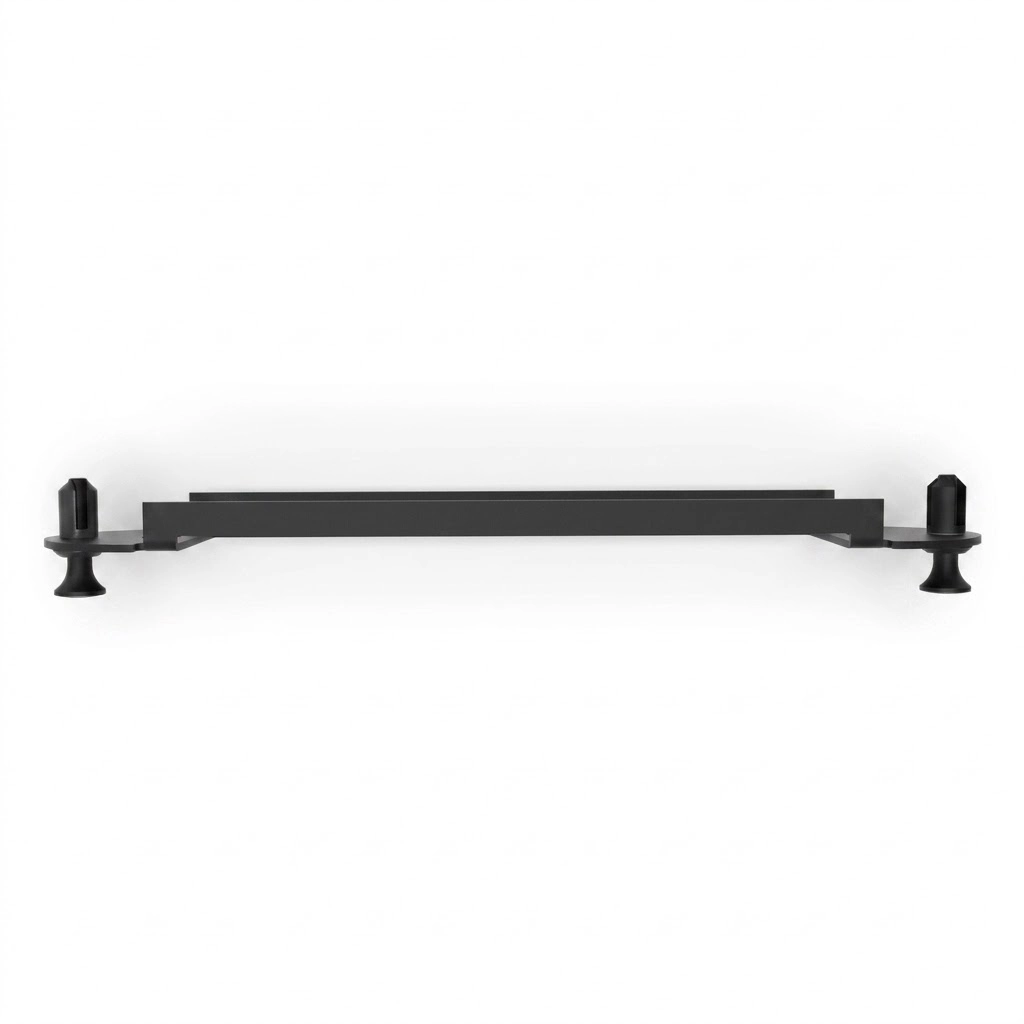

• LGX Plastic Plunger Latches: Uses standard spring-loaded plastic plungers and grommets. Field technicians insert and lock plates with a single push, eliminating small screws that drop into active equipment.

Network Applications and Deployment Scenarios

Modular fiber cross-connect hardware serves diverse environments where technicians must upgrade capacity without tearing out passive infrastructure.

• Enterprise Network Equipment Rooms: Mounts within building entrance facilities and main cross-connect (MC) cabinets. It allows rapid migration from legacy ST or SC connectors to dense LC and MPO interfaces.

• Hyperscale and Colocation Data Centers: Fits into high-density rack housings above server rows. It isolates trunk cables from direct patch cord cross-connects, keeping cable pathways clean and serviceable.

• Optical Distribution Networks (ODN): Installs inside indoor wall-mount distribution units and fiber demarcation boxes. It provides modular breakout points for horizontal distribution runs across commercial office floors.

• Carrier Central Offices and Headends: Mounts into fiber management frames to adapt pre-terminated splitters, CWDM/DWDM mux modules, and test access points into active equipment racks.

Mechanical Specifications

• Product Type: Retrofit Adapter Frame

• Primary Function: LGX Plate and Cassette Conversion

• Mounting Interface: Standard LGX Plastic Push Latches

• Housing Material: Heavy-Gauge Cold Rolled Steel (SPCC)

• Surface Finish: Matte Black Electrostatic Powder Coating

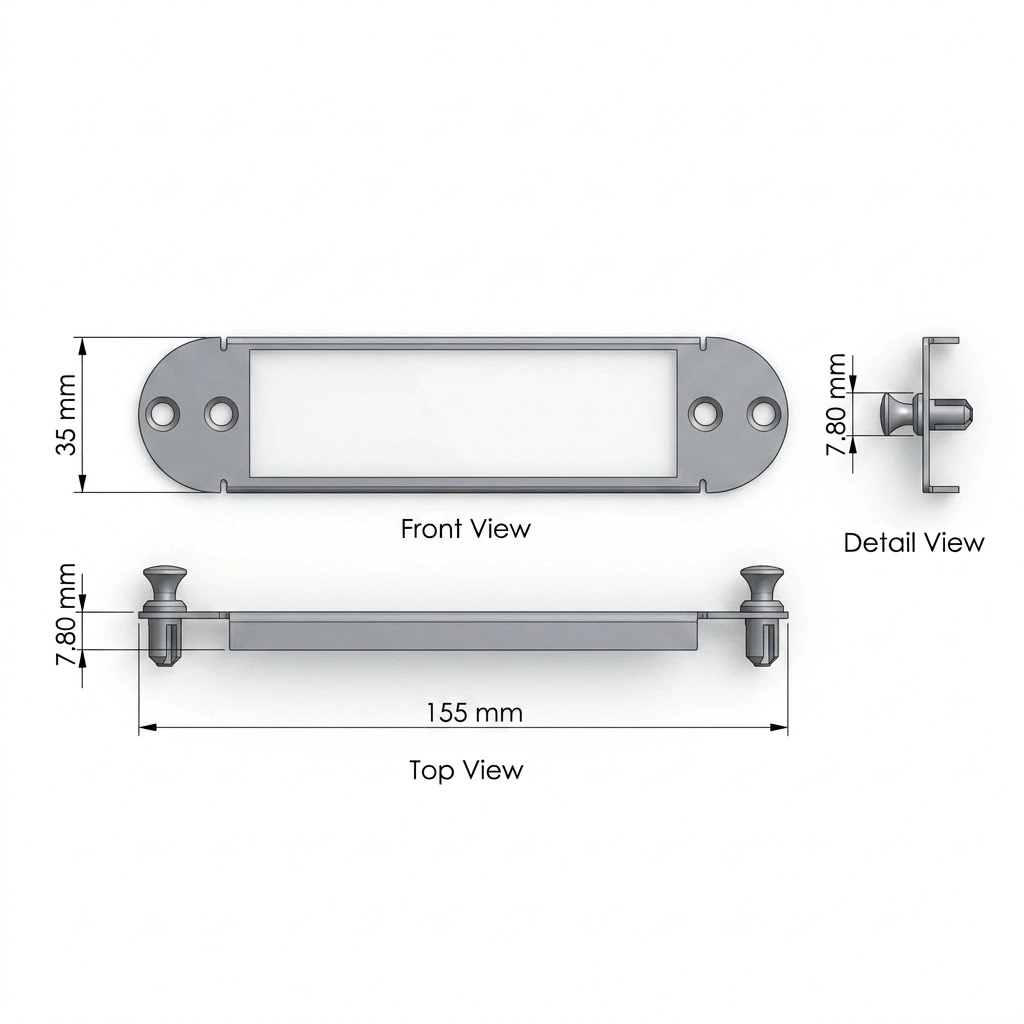

• Outer Dimensions: 35 mm (W) x 155 mm (H)

• Net Unit Weight: 0.15 kg

• Environmental Rating: Indoor Plant (ISP) Installation

Using an engineered patch panel bracket preserves existing physical cabinet investments while supporting clean high-speed fiber expansions.
