Pivot Fiber Optic Patch Panel

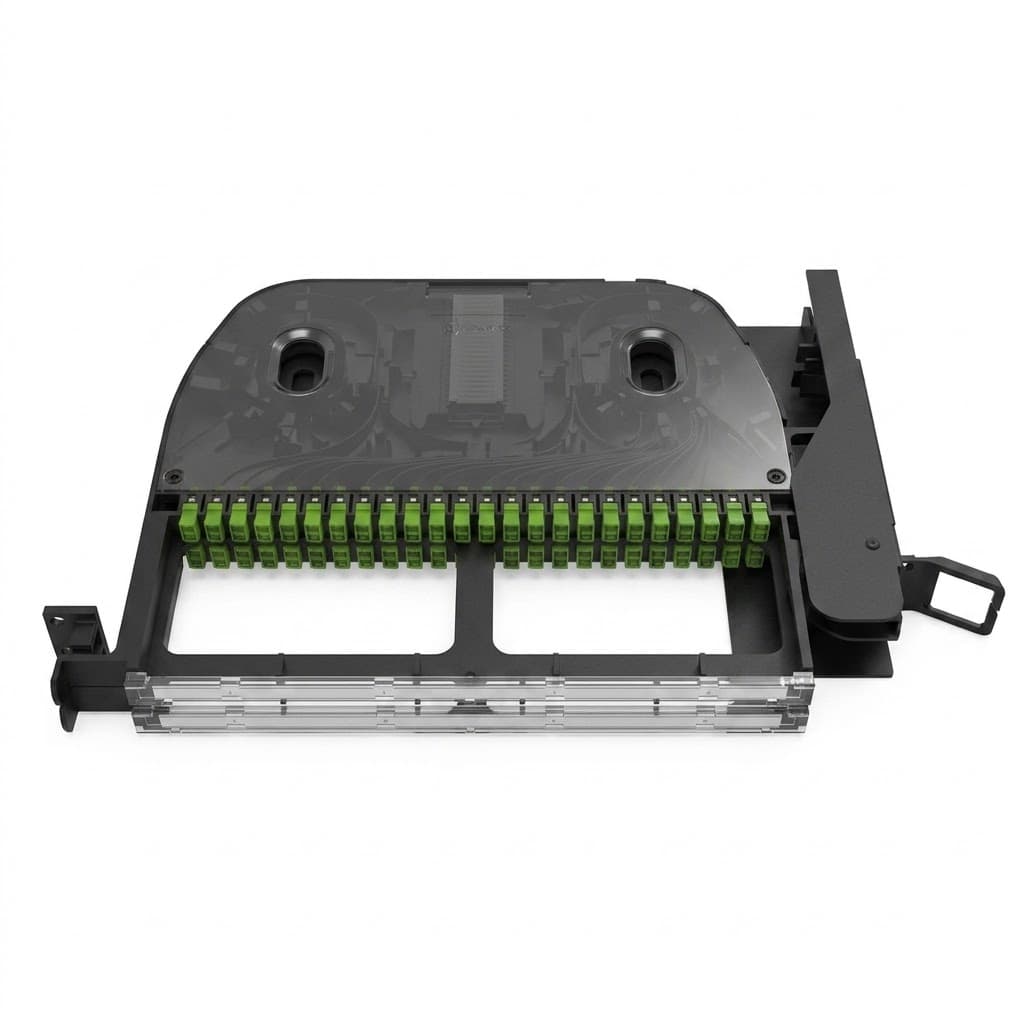

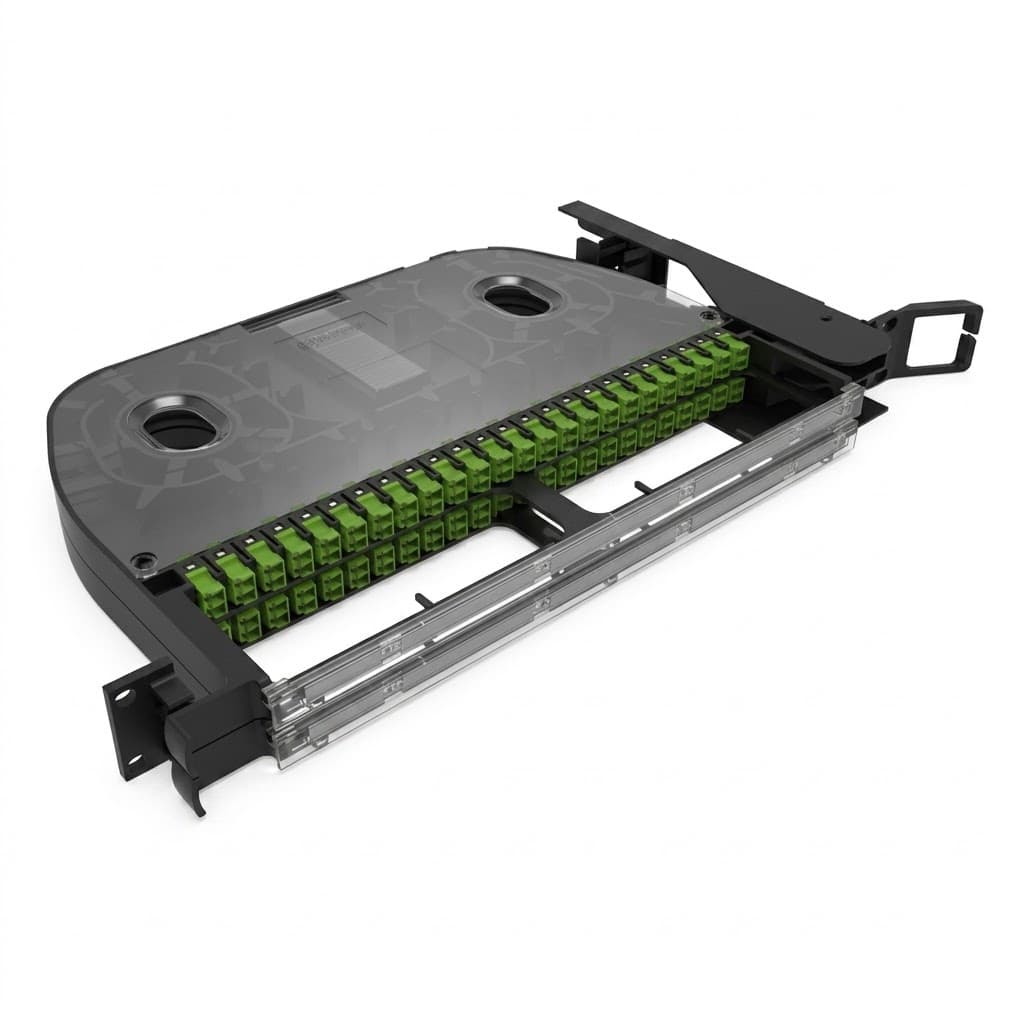

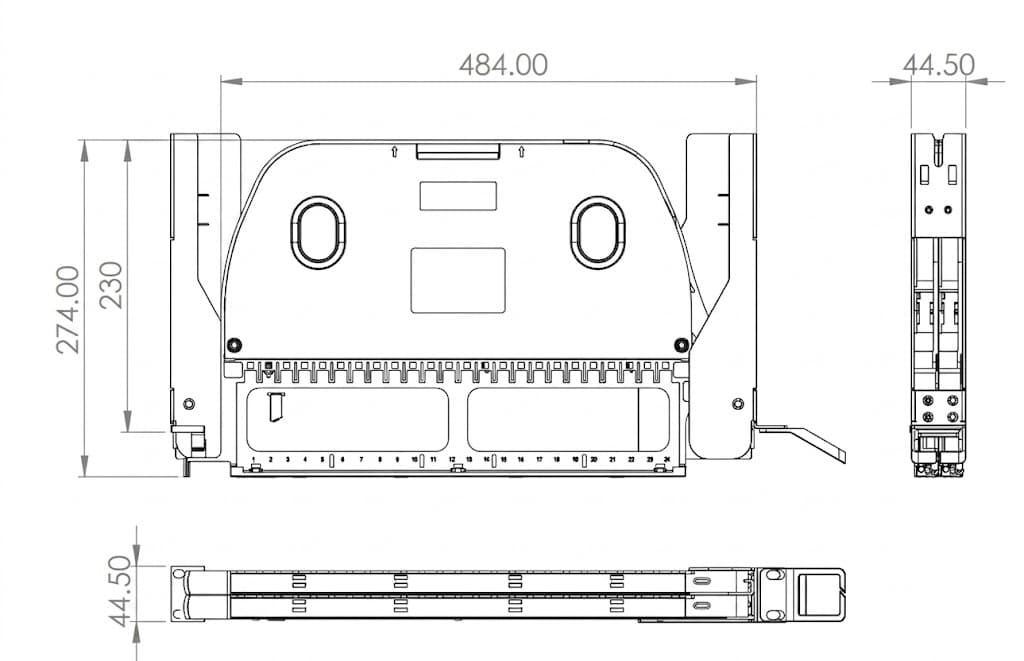

The pivot fiber optic patch panel is a 1RU rack-mounted enclosure that terminates, routes, and organizes 24 to 48 standard optical fibers. It fits standard 19-inch equipment racks and provides a direct alternative to static termination frames. Because the tray rotates outward up to 120 degrees, technicians gain full access to splice trays, optical pigtails, and adapter interfaces without moving existing cable runs or adjacent active fibers.

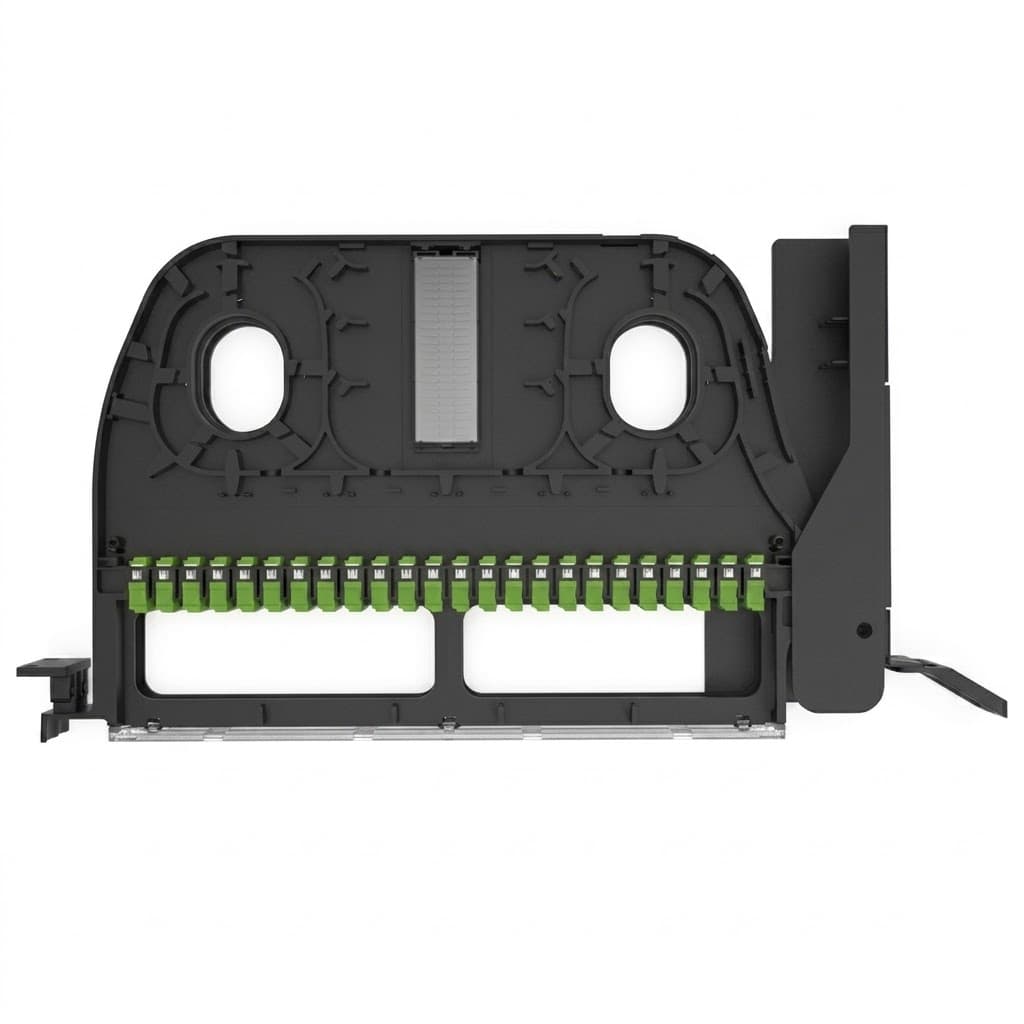

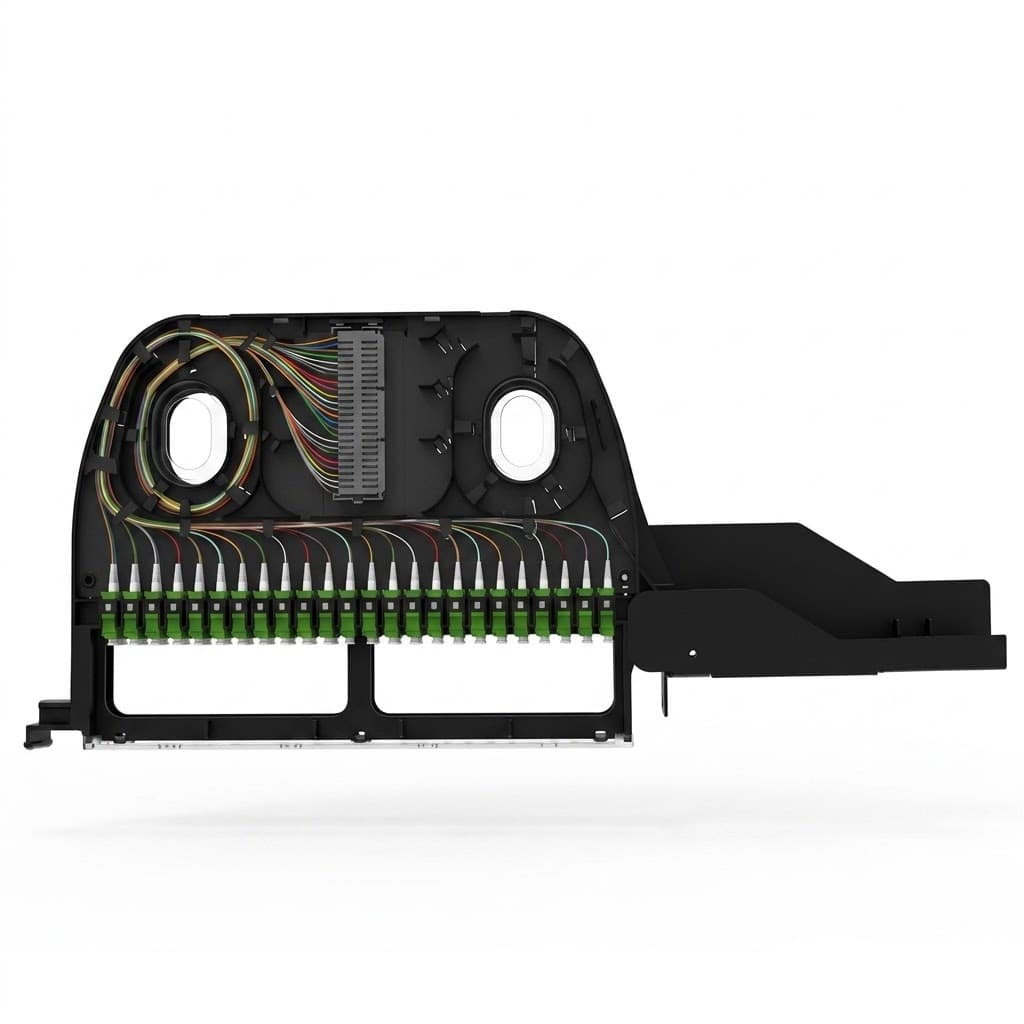

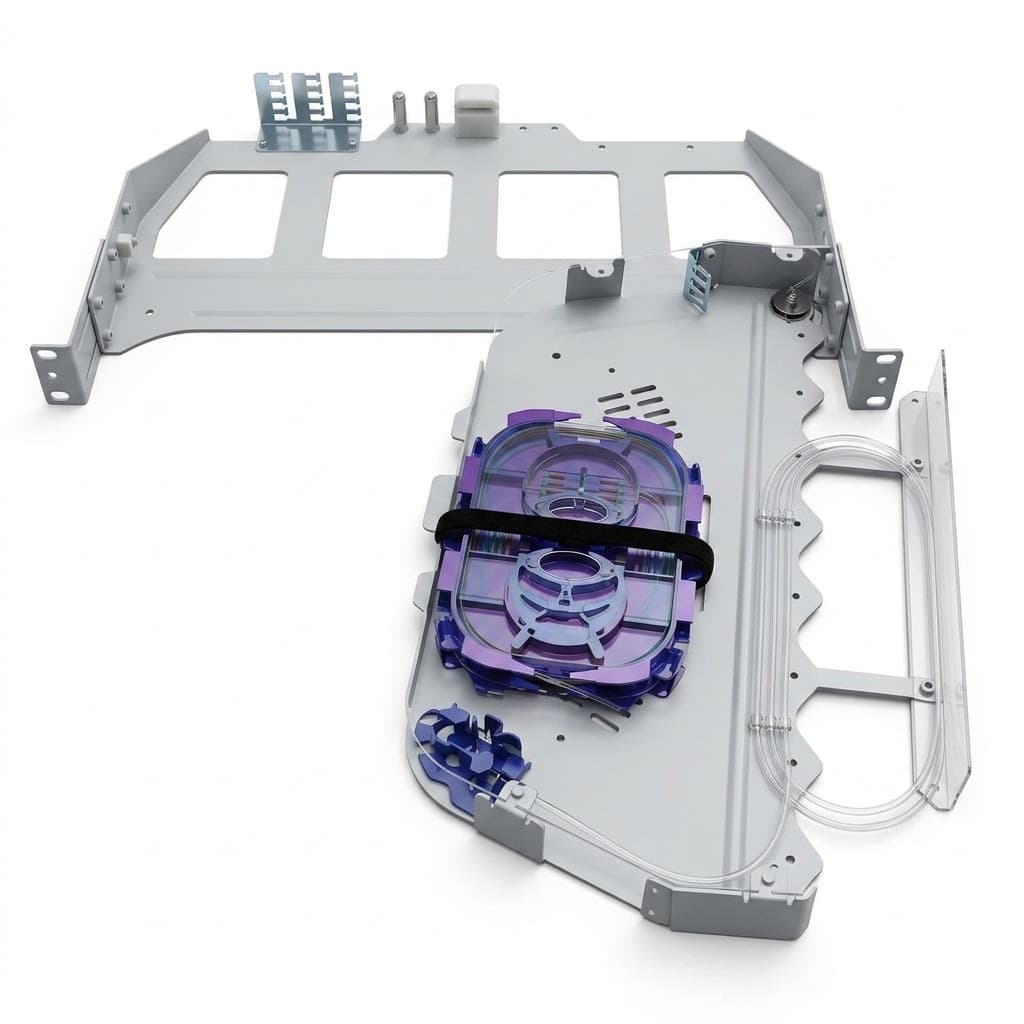

This pivot fiber optic patch panel supports loose tube, distribution, and pre-terminated optical cables in high-density fiber patching setups. The lower section swings out smoothly to expose the internal splicing and fiber routing area. At the same time, integrated routing guides maintain a minimum bend radius across all optical lines. Therefore, the enclosure operates reliably in data centers, telecommunication networks, enterprise local area networks, and indoor data facilities.

Key Features

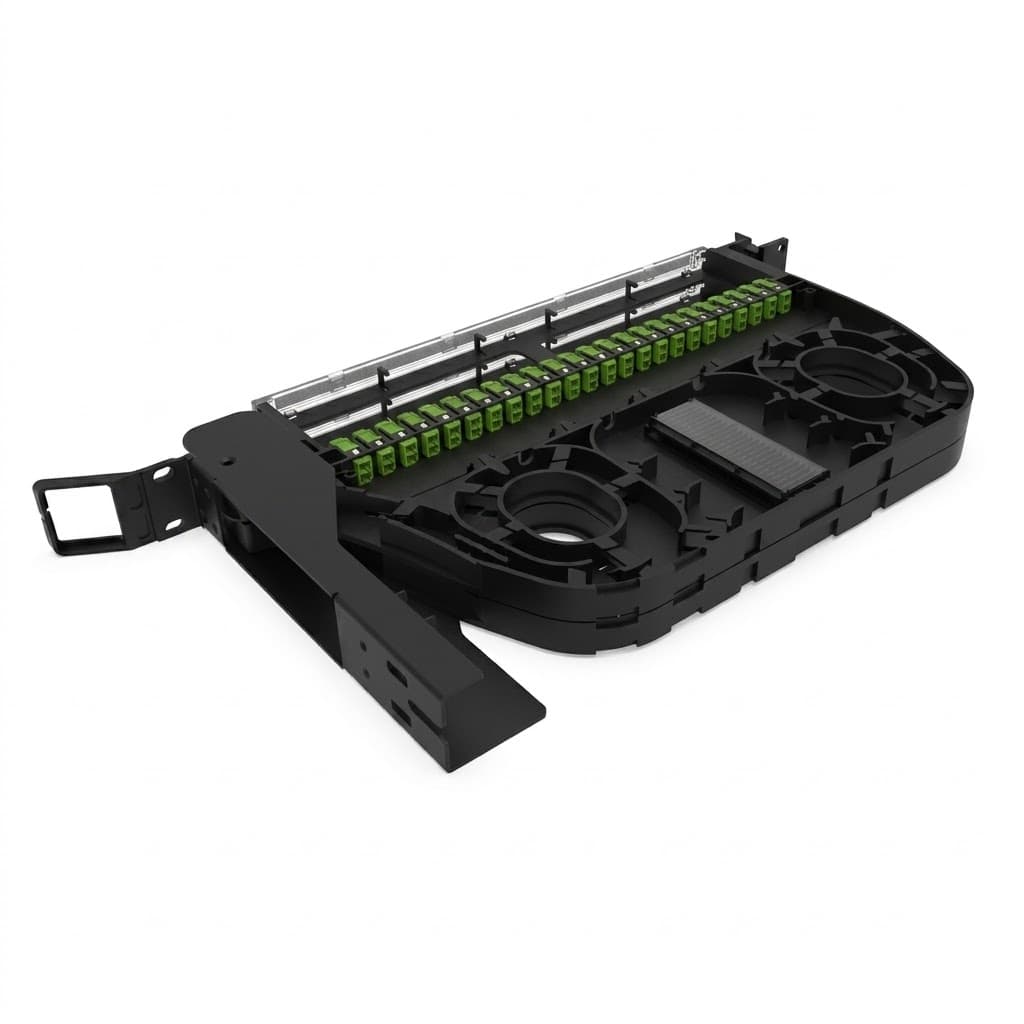

• Pivoting Tray Design: Each tray swings out up to 120 degrees, so technicians can complete initial installations, routine testing, and maintenance without disturbing active fibers or adjacent cable paths.

• Bend Radius Protection: Internal routing channels and spools positively maintain a minimum 37.5mm bend radius to prevent macrobending losses.

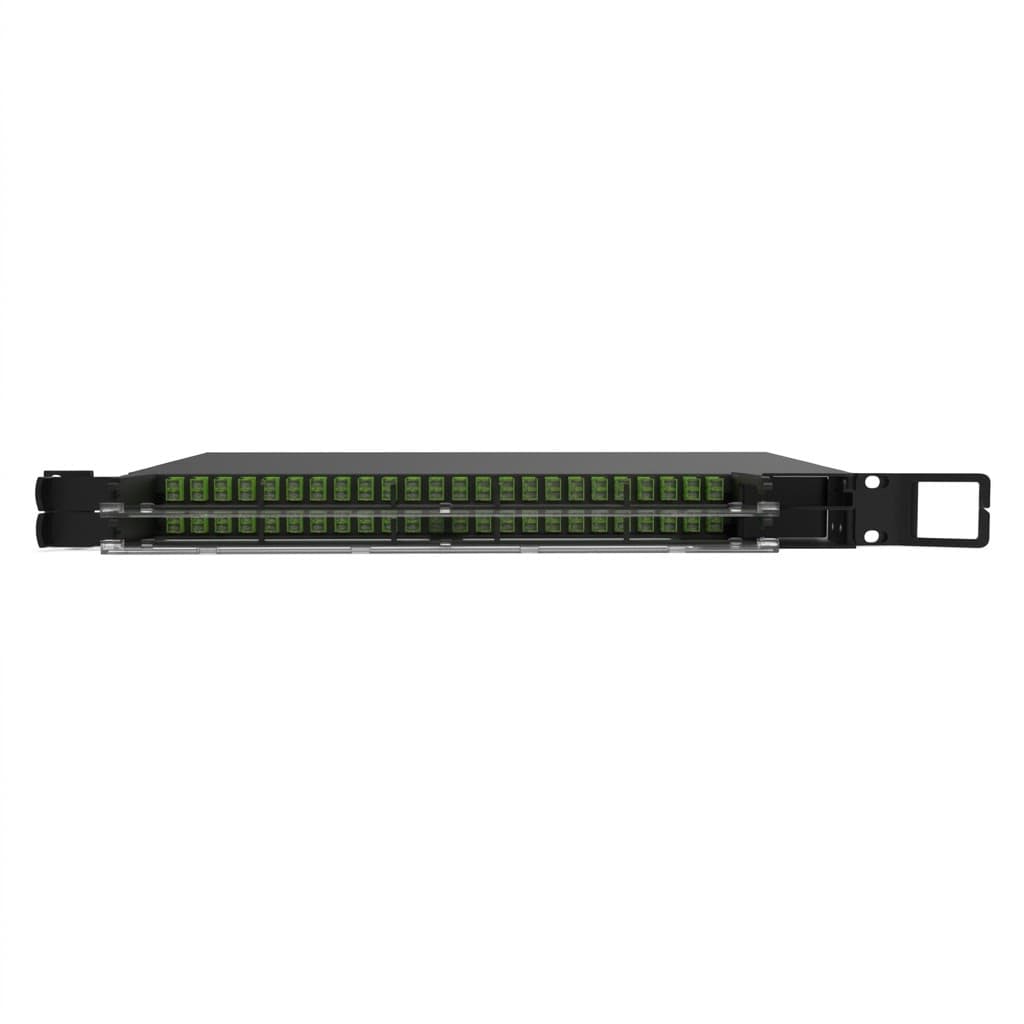

• Universal Adapter Compatibility: Front plates hold flangeless LC duplex, LC quad, SC simplex, FC, and ST adapter types, which gives operators up to 24 LC Duplex or single-fiber ports within 1RU.

• Reversible Tray Configuration: The factory ships the chassis in a right-hand swing setup, but installers can convert the tray to left-hand swing using the supplied guidelines.

• Adjustable Rack Mounting: The 19-inch mounting brackets offer a 50mm adjustment range, so operators can mount the unit in forward or recessed rack positions.

• Integrated Ventilation: Chassis air vents maintain airflow around active networking equipment in the same cabinet.

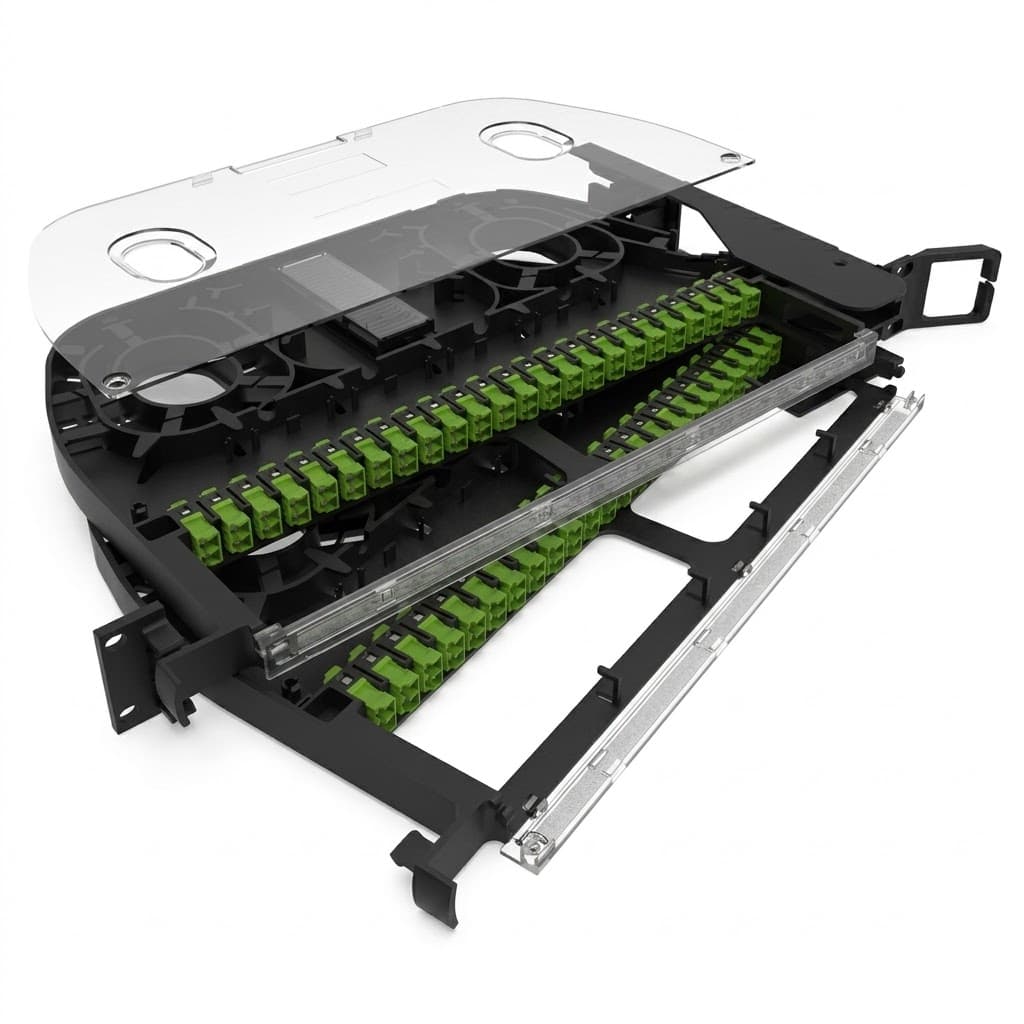

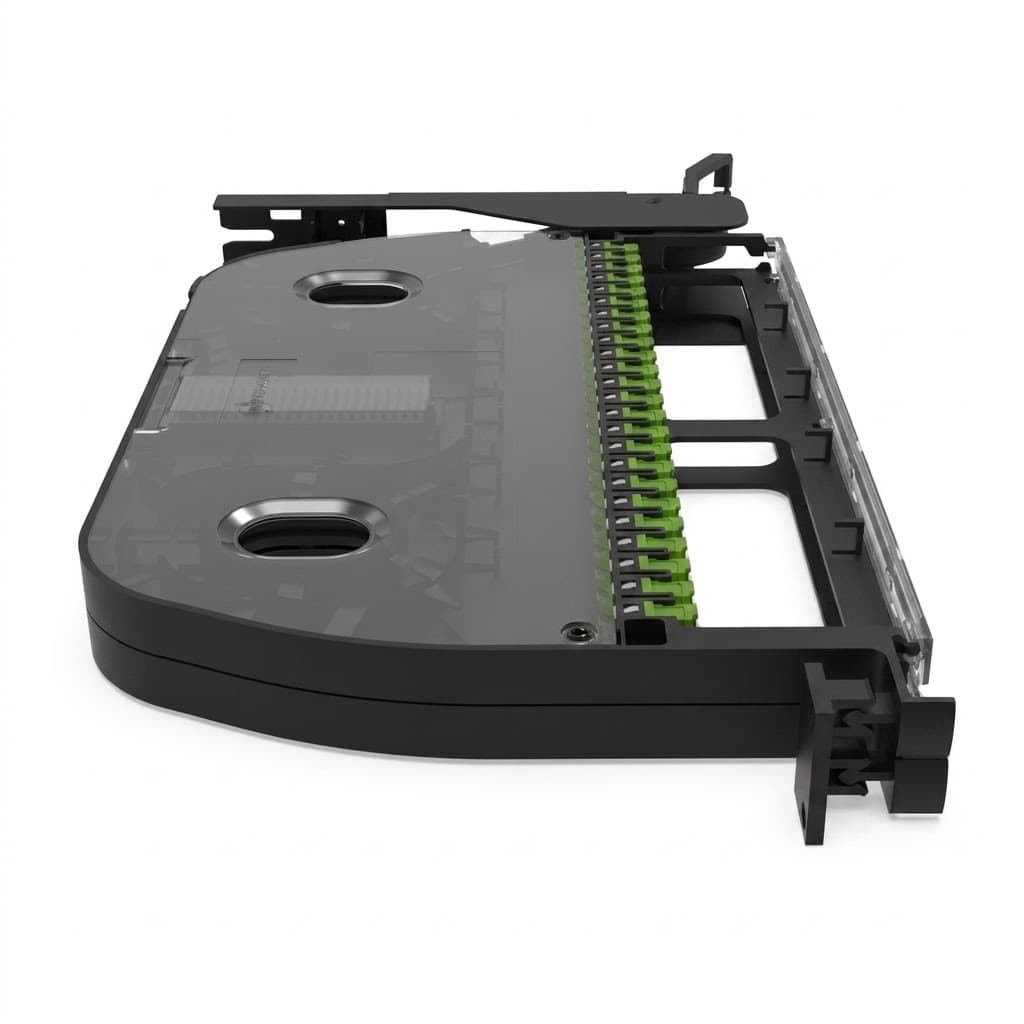

• Transparent Access Covers: A detachable clear top lid and a hinged drop-down front door allow visual inspection and simplify port labeling routines.

• Pre-Termination Options: The factory can supply the chassis loaded with specified fiber optic adapters and factory-tested pigtails before field shipment.

Product Configuration

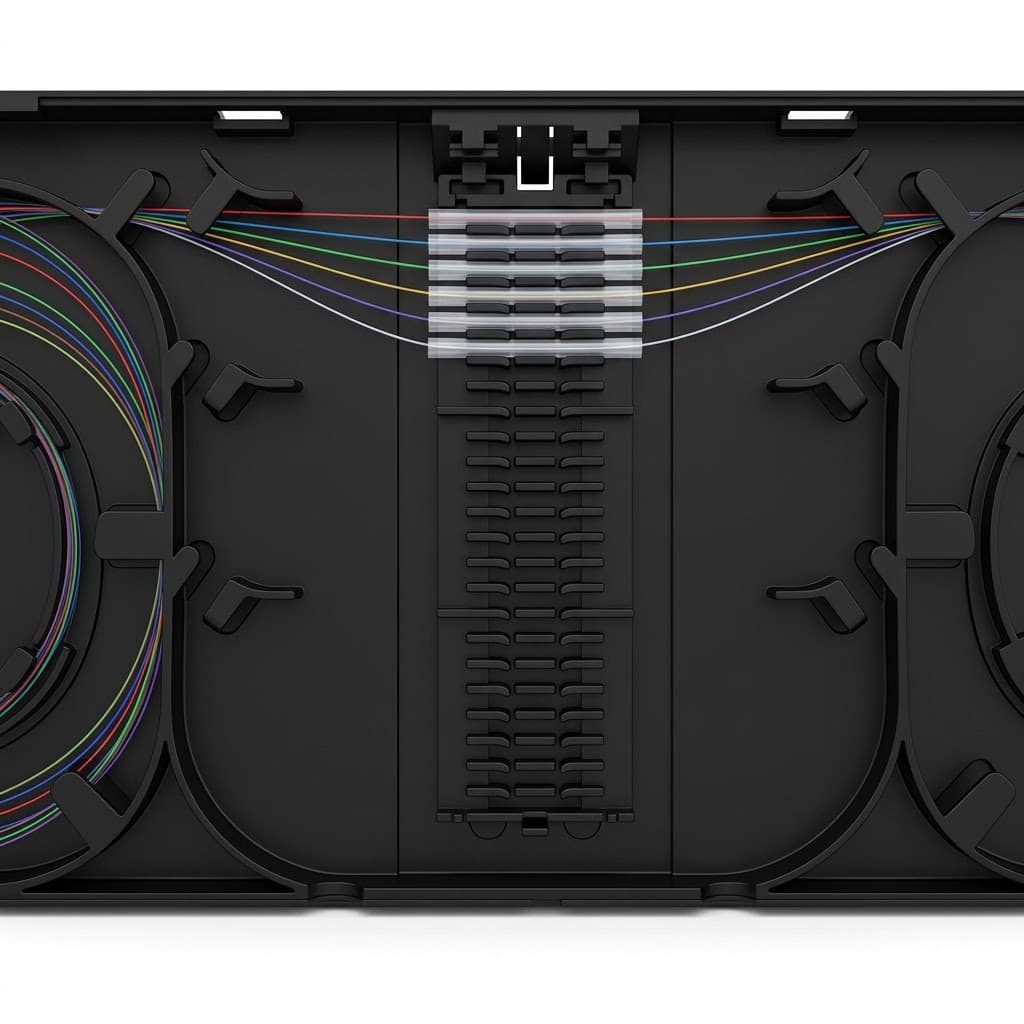

• Splicing Capacity: 2 splice trays that support up to 48 fusion splices. Splice holders accept 2.2mm x 45mm fusion splice protection sleeves.

• Adapter Formats: Interchangeable front plates hold up to 24 adapter positions, supporting flangeless LC Duplex, LC Quad, SC Simplex, FC, and ST formats.

• Supplied Accessory Kit:

  • 2 x Splice holders

  • 1 x Cable anchor base, 1 x manifold, and 1 x manifold cover

  • 2 x M4 8mm screws and 2 x 5mm x 12mm washers

  • 1 x Splice tray cover

  • 2 x Tight buffer fiber holders and 1 x insertion tool

  • 1 x Front plate label

  • 1 x Bend limiting tube (435mm)

  • 1 x Cabinet fixing kit

Optical Adapter Specifications

• Housing Material: Polymer.

• Alignment Sleeve: Zirconia Ceramic.

• Durability: >= 1000 mating cycles.

• Operating Temperature: -40 deg C to +75 deg C (-40 deg F to +167 deg F).

Applications

• Central offices and telecommunication network distribution hubs.

• Enterprise data center structured cabling systems.

• Indoor local area networks (LAN) and premise fiber backbones.

• Optical distribution networks (ODN) that require front-access patching.

Selection Considerations

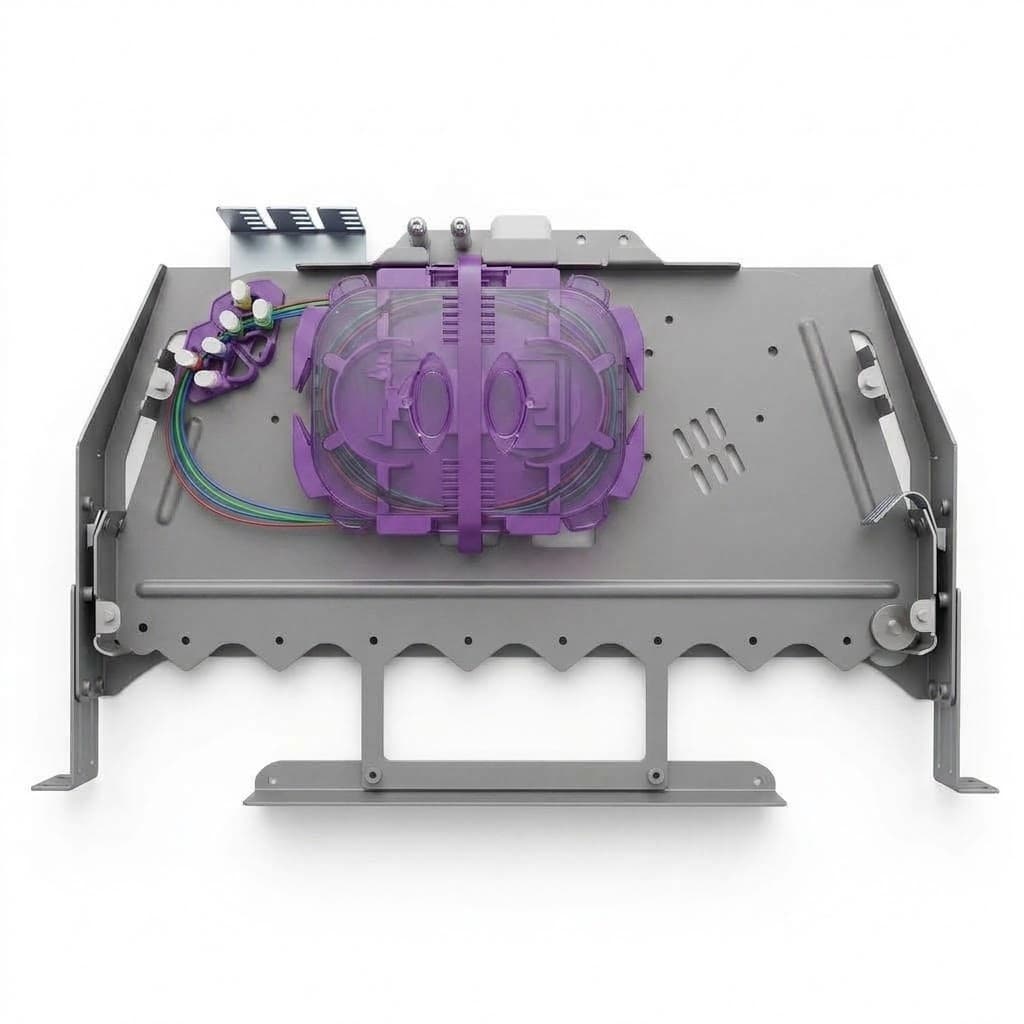

• Enclosure Material & Weight: First, verify whether the project requires the high-impact polystyrene UL94 V-0 polymer variant (1.1kg chassis) or the powder-coated cold-rolled steel model (2.5kg net weight).

• Adapter Format & Density: Next, select port counts up to 48 fibers, choosing between LC duplex, LC quad, SC simplex, FC, or ST flangeless adapter plates.

• Swing Clearance & Handedness: Then, check rack depth and side swing clearance for the 120-degree pivot arc. Determine whether left-hand or right-hand swing fits the cabinet before securing incoming cables.

• Splice Sleeve Sizing: Finally, confirm that fusion splice protector dimensions match the 2.2mm x 45mm splice holder slots.

Frequently Asked Questions (FAQ)

Q: Can technicians service this enclosure without interrupting active fiber lines?

A: Yes. Because the tray pivots outward up to 120 degrees while anchoring incoming cables and preserving bend radius limits, technicians access splices and adapters without disturbing active circuits.

Q: What fiber optic cable types work with this unit?

A: The included cable anchor base and manifold secure loose tube, distribution, and pre-terminated fiber optic cables.

Q: Can installers change the swing direction of the pivot tray on site?

A: Yes. The factory assembles the unit for right-handed pivoting by default, but installers can switch the mechanism to left-handed opening with the included hardware.

Q: Does the bare chassis include adapters and pigtails?

A: Buyers can order the unit pre-loaded with adapters and pigtails, or purchase the bare chassis with separate adapter plates.

Conclusion

The pivot fiber optic patch panel delivers high-density cable termination, splice organization, and connector patching in a compact 1RU frame. Because it combines a 120-degree swing-out tray, controlled bend radius paths, and flexible adapter choices, this panel simplifies installation and maintenance workflows in optical distribution networks.
