High Insulation UV Black Thermoplastic LV Insulation Piercing Connector

Key Features

Conductor Range: Main 35–70 mm² / Branch 6–35 mm²
Tightening Torque: 8 ± 1 Nm
Voltage Rating: 0.6–1 kV
Waterproof and UV-resistant black thermoplastic body
Captive flexible end caps prevent moisture ingress
Shear-head bolt ensures reliable torque
Operating Temperature: -55°C to +55°C
Installation Temperature: -20°C to +55°C
Compatible with XLPE, PE, or PVC insulated cables
Can be installed on an energized main if not under load

The LV Insulation Piercing Connector (35–70 / 6–35 mm²) is designed for 35–70 mm² main and 6–35 mm² branch ABC cables. Constructed from anti-UV thermoplastic fiberglass-reinforced nylon, it offers superior insulation, durability, and environmental resistance. The connector provides reliable and maintenance-free connections for both aluminium and copper conductors.

Installation is quick and safe, requiring no stripping of cable insulation, which minimizes installation time and reduces the risk of conductor damage. The single shear-head bolt ensures proper torque and a secure, watertight connection. This connector is suitable for residential, commercial, street lighting, and low-voltage distribution networks, performing reliably in harsh outdoor conditions, including UV exposure, humidity, and temperature fluctuations.

Standard Compliance: NFC 33-020, ANSI C119.5, EN 50483-4

Construction & Materials

Blades: Tin-plated copper or aluminium alloy
Body: Anti-UV thermoplastic fibreglass reinforced nylon
Sealing: Flexible waterproof end caps

Performance & Reliability

Tested to EN 50483-4, NFC 33-020, ANSI C119.5
Voltage withstand: 6 kV in a water bath and metallic balls
Stable contact resistance after overload and load cycling
Corrosion-resistant in salt fog and SO₂ chambers
Resistant to UV, humidity, and temperature cycling

Installation Guide

Install using a dielectric torque wrench. The shear-head nut ensures correct torque and watertight sealing. No insulation stripping is required, reducing installation time and protecting conductors.

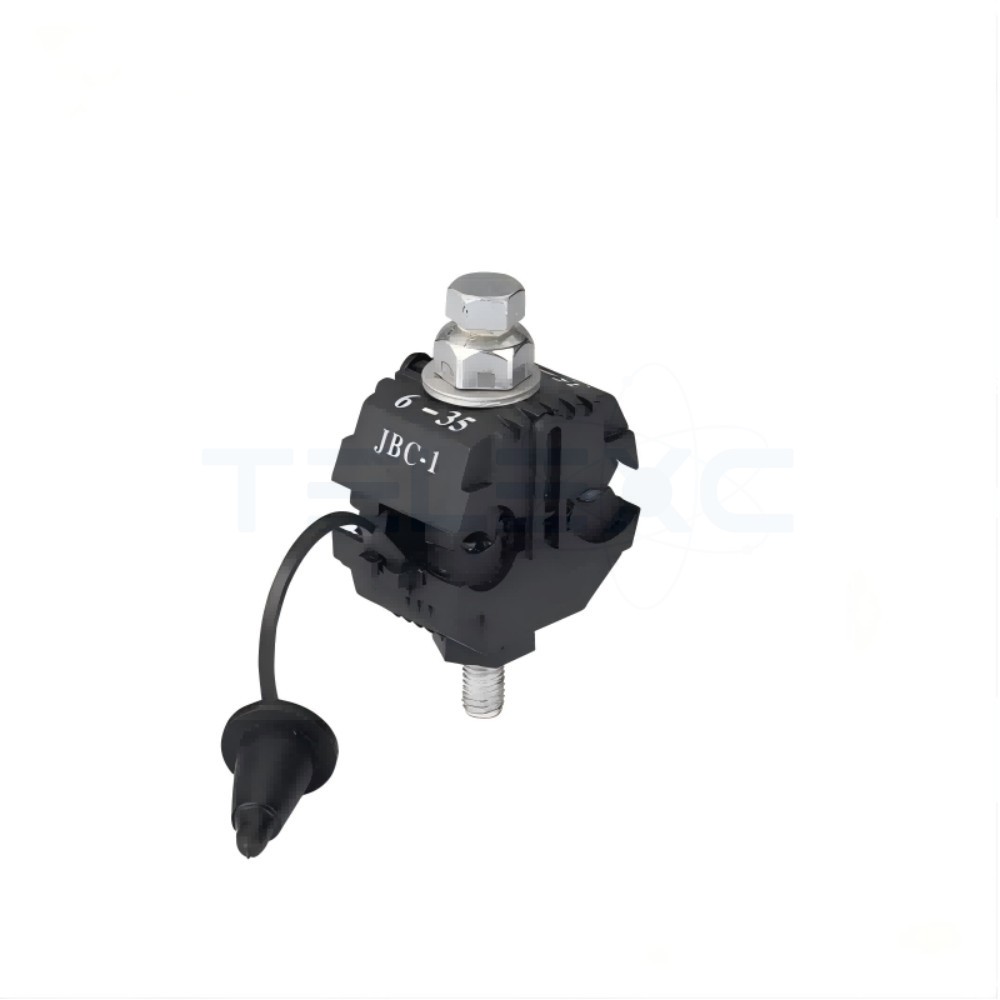

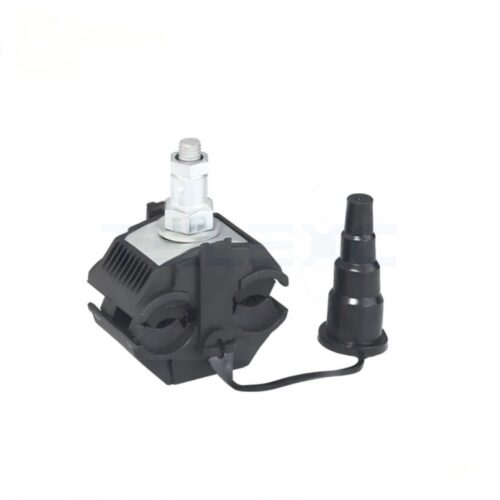

Thermoplastic Insulation Piercing Connector for LV cable

Technical Parameters

Model	Main Line (mm²)	Branch Line (mm²)	No. of Bolts	Size (mm)	Weight (g)	Piercing Depth (mm)
TX-IPC-08	35–70	6–35	1	50×61×100	200	1.5–2

Applications

Overhead ABC cable service connections
Street lighting and public lighting connections
LV distribution box tapping
Residential and commercial LV network connections
Outdoor electrical installations in harsh environments

Product Advantages of the LV Insulation Piercing Connector (35–70 / 6–35 mm²)

Durable and Environmentally Resistant
Made from anti-UV thermoplastic fiberglass-reinforced nylon, the connector ensures superior insulation, long-lasting durability, and resistance to harsh environmental conditions like UV exposure, humidity, and temperature fluctuations.
Maintenance-Free and Reliable
Designed for both copper and aluminum conductors, this connector guarantees a secure, maintenance-free, and reliable connection. It provides consistent performance even in challenging outdoor conditions.
Quick and Safe Installation
The design allows for quick installation without the need to strip cable insulation, reducing installation time and minimizing the risk of damaging the conductors. It also helps reduce labor costs.
Watertight and Secure
The single shear-head bolt ensures proper torque, creating a secure, watertight connection that prevents any water ingress, which is vital for outdoor installations.
Compliance with International Standards
The product meets key standards, including NFC 33-020, ANSI C119.5, and EN 50483-4, ensuring reliable and safe operation in line with industry regulations.
Versatile Applications
The connector is suitable for various applications, including overhead ABC cable service connections, street lighting, public lighting, LV distribution box tapping, and residential/commercial low-voltage network connections.
Corrosion and Overload Resistant
It is tested to withstand corrosion in salt fog and sulfur dioxide chambers, as well as performance under overload and load cycling conditions, ensuring a long service life in tough environments.

FAQs (Frequently Asked Questions)

1. What type of cables are compatible with this connector?
This connector is designed for 35–70 mm² main and 6–35 mm² branch cables, both aluminum and copper, in low-voltage distribution networks.

2. Do I need to strip the cable insulation before installation?
No, the connector features an insulation piercing design, which means there is no need to strip the cable insulation. This reduces installation time and protects the conductors.

3. What materials are used in the construction of this connector?
The blades are made of tin-plated copper or aluminum alloy, while the body is constructed from anti-UV thermoplastic fiberglass-reinforced nylon. The sealing is done with flexible waterproof end caps.

4. Is this connector suitable for outdoor use?
Yes, the LV Insulation Piercing Connector is designed to withstand harsh outdoor conditions, including UV exposure, high humidity, and extreme temperature variations.

5. What are the installation requirements for this connector?
The installation requires the use of a dielectric torque wrench. The shear-head nut ensures correct torque and provides a watertight seal. No insulation stripping is necessary, making the installation process faster and safer.

6. Can this connector be used in street lighting installations?
Yes, this connector is suitable for street lighting and public lighting applications, as well as overhead ABC cable service connections and LV distribution network tapping.

7. Is the connector corrosion-resistant?
Yes, the connector has been tested for corrosion resistance in salt fog and sulfur dioxide chambers, ensuring it can handle harsh, corrosive environments.

8. How does the connector perform in terms of voltage withstand?
The connector is tested to withstand up to 6 kV in a water bath with metallic balls, ensuring its reliability under high-voltage conditions.
