LC Fiber Optic Adapter

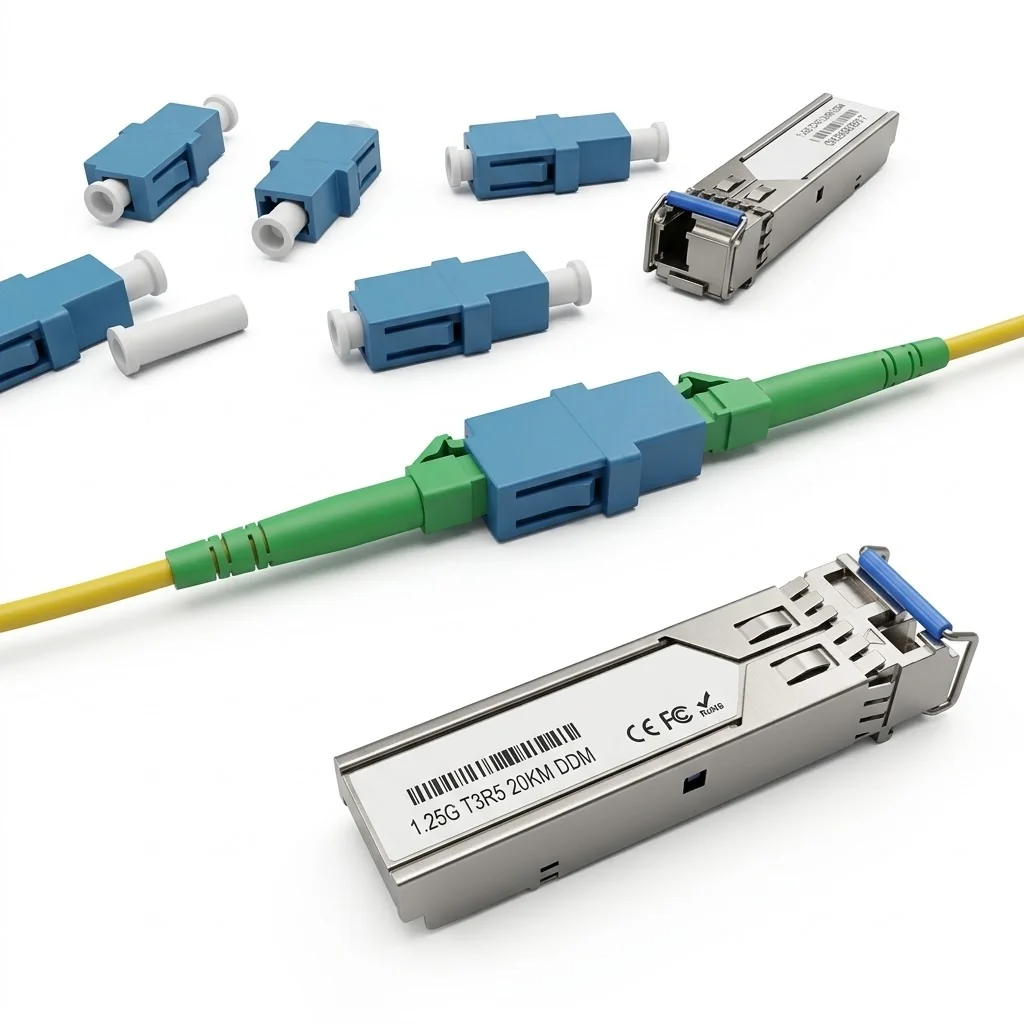

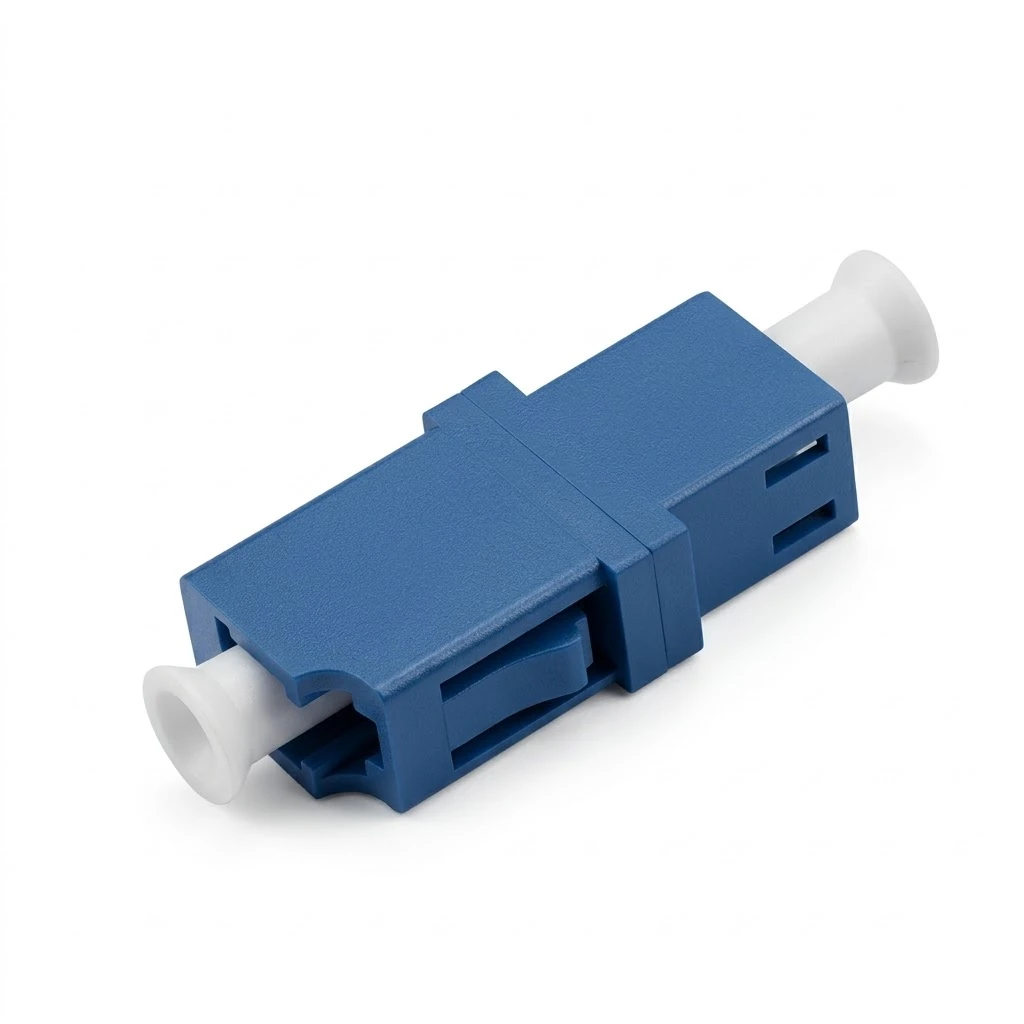

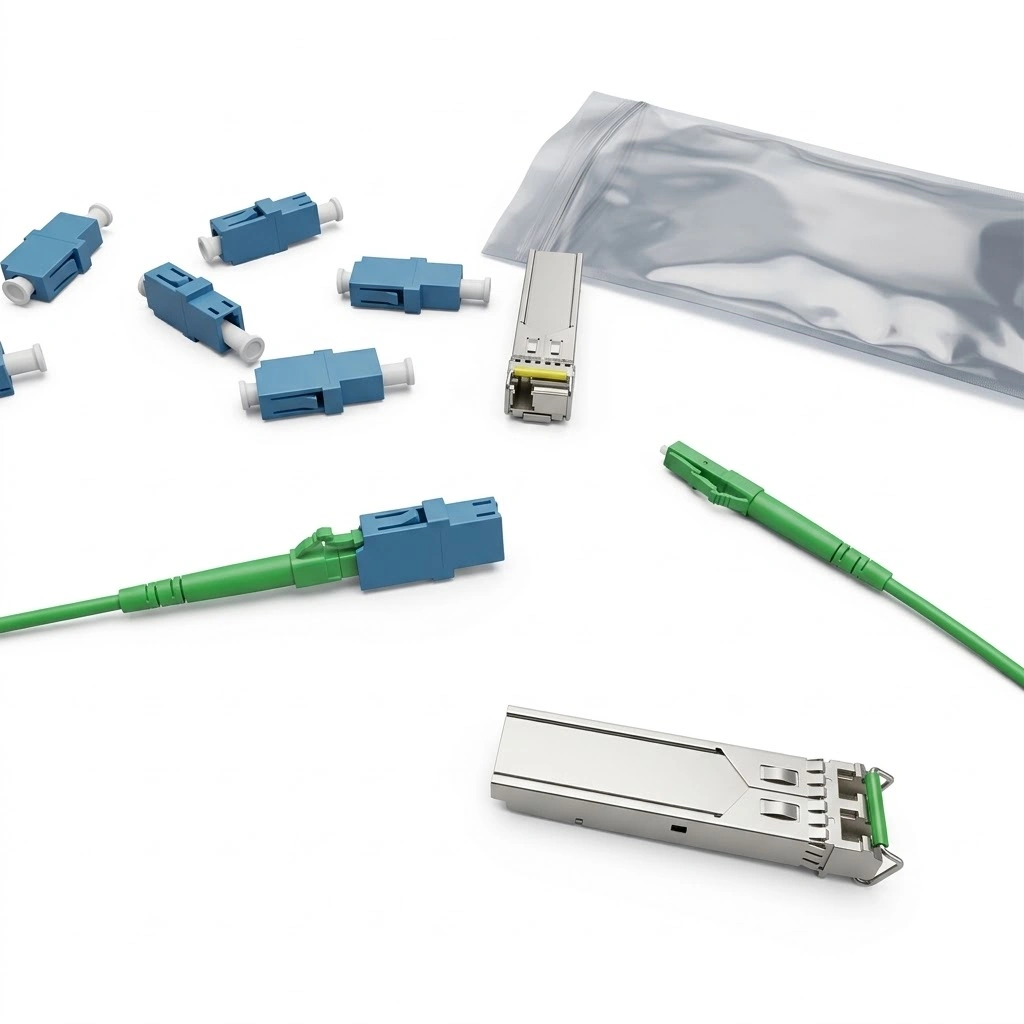

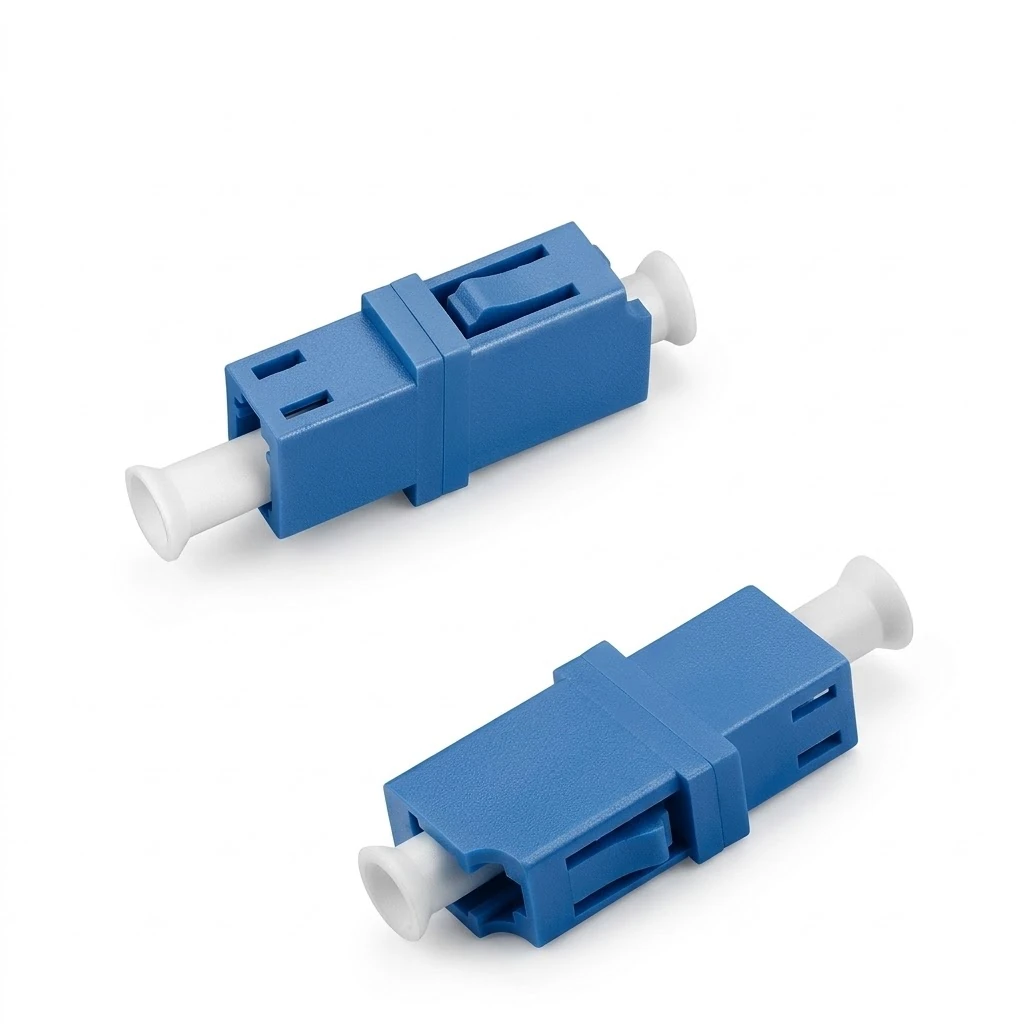

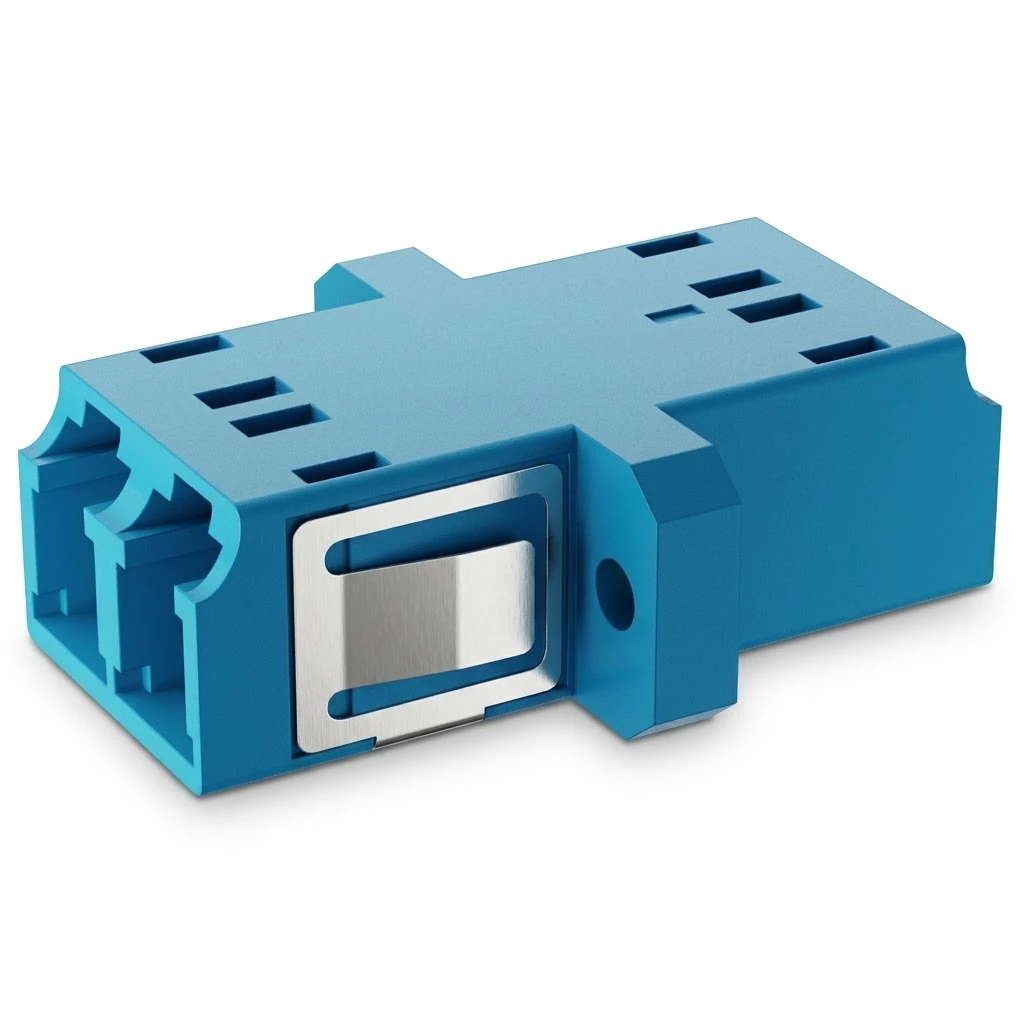

The LC fiber optic adapter provides precision physical alignment for mating optical patch cords and cable assemblies terminated with standard 1.25 mm form factor LC connectors. Available in both simplex (1-port) and duplex (2-port) configurations, this plastic-body component joins two fiber ends across network distribution points, patch panels, and equipment interfaces.
Depending on the transmission requirement, the adapter incorporates either phosphor bronze or zirconia ceramic alignment sleeves to secure accurate core-to-core positioning. The lightweight plastic housing features an integrated metal mounting clip designed for snap-in panel installation in standard rectangular cutouts without screws, while also supporting flanged screw-mount options for high-density environments.
Applications
-
Data Centers: High-density trunk patching and active switch interconnects using low-profile duplex LC ports.
-
Telecom Networks: Central office optical distribution frames (ODF), fiber termination boxes, and FTTH distribution cabinets.
-
Industrial Automation: Optical field termination and panel-mount interfaces requiring one-piece side-load strength.
-
Medical Imaging and Diagnostic Equipment: Clean optical signal pathways using non-conductive plastic coupler bodies.
-
Military and Aerospace Ground Links: Ruggedized rack patching relying on ceramic sleeve core alignment.
Selection Considerations
-
Simplex vs. Duplex Porting: Choose simplex units for single-fiber bidirectional links, video drops, or space-constrained terminal boxes. Select duplex units for standard transmit/receive (Tx/Rx) patch cabling in switches and patch bays.
-
Sleeve Material: Specify ceramic sleeves for all single-mode circuits to prevent micro-misalignment losses. Ceramic sleeves also serve precision OM3/OM4 links. Phosphor bronze sleeves provide a cost-effective alternative for standard multimode networks.
-
Mounting Style: Use flangeless adapters with snap clips in dense high-density patch panels where horizontal spacing is tight. Use full-flanged adapters when mechanical screw fastening is preferred for heavy jumper bundles.
Frequently Asked Questions
What is the difference between simplex and duplex LC fiber optic Coupler?

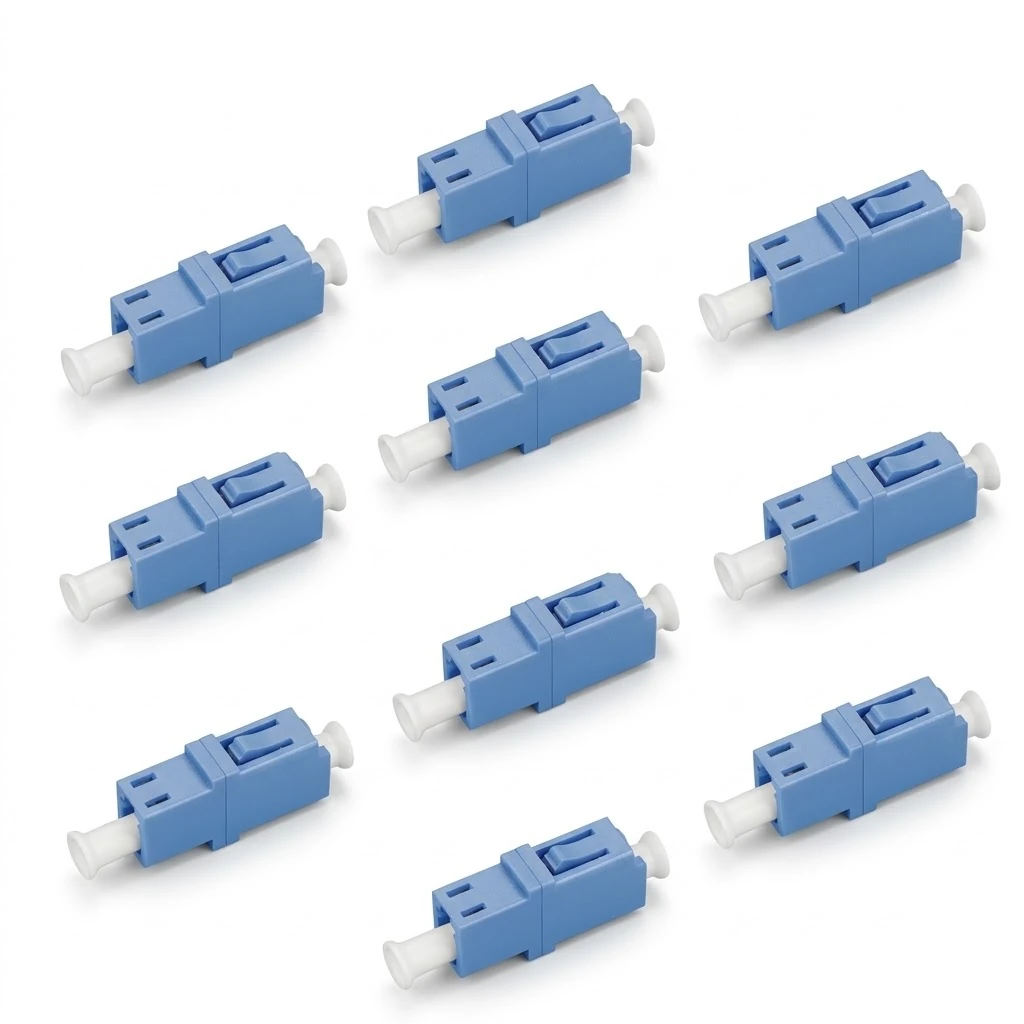

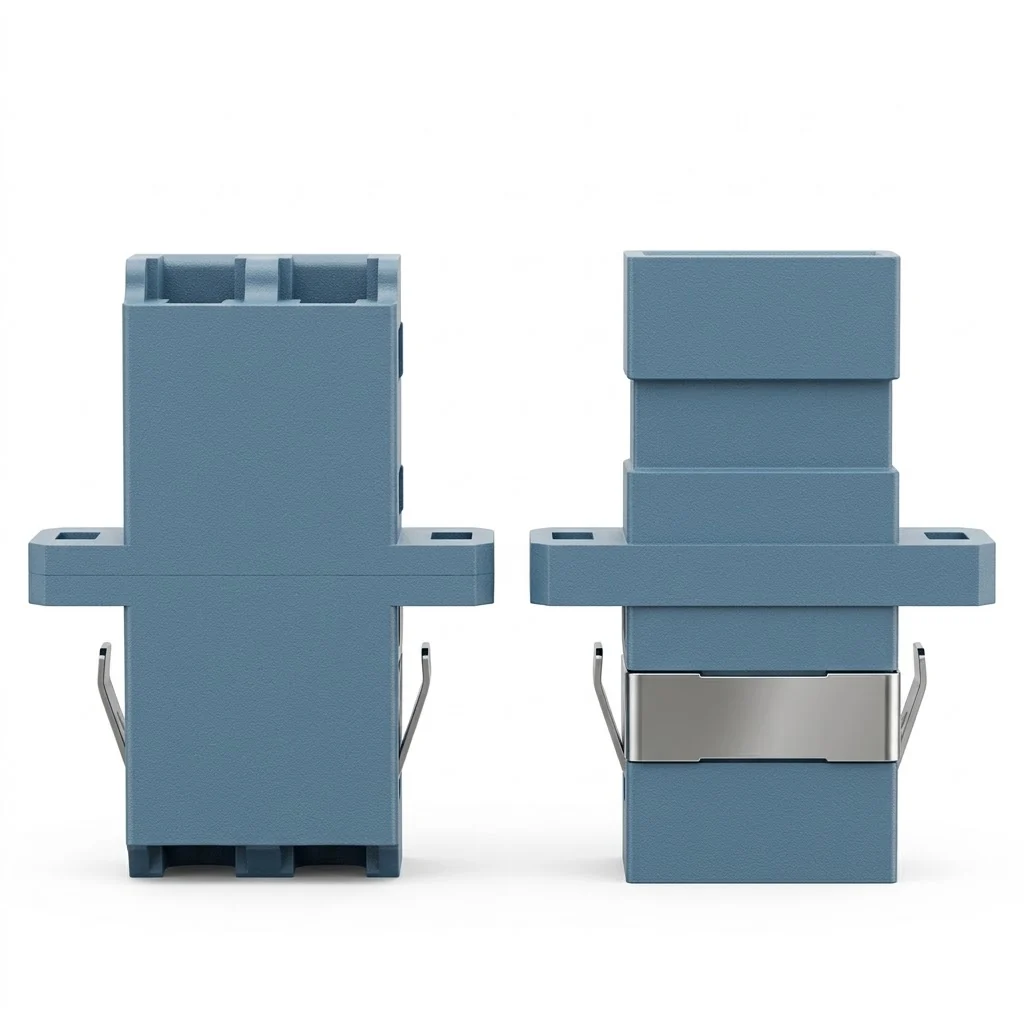

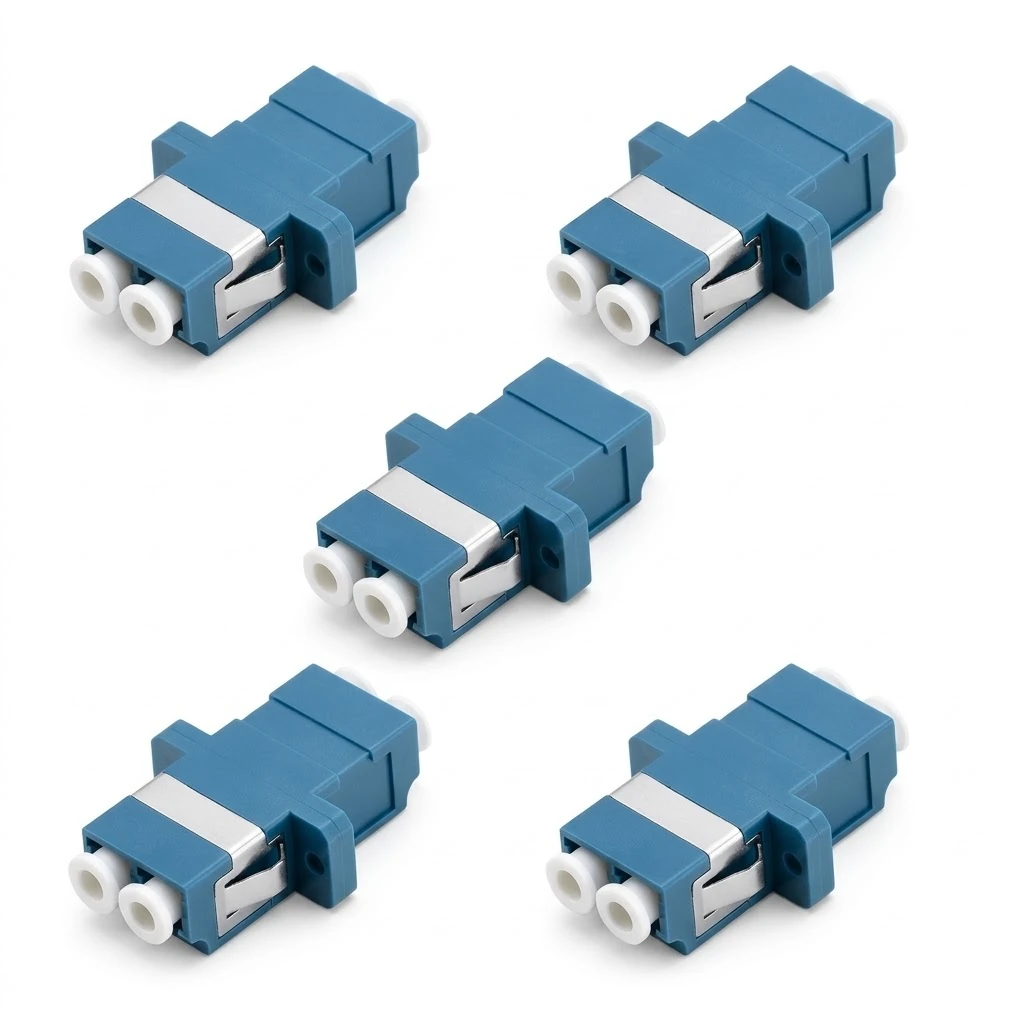

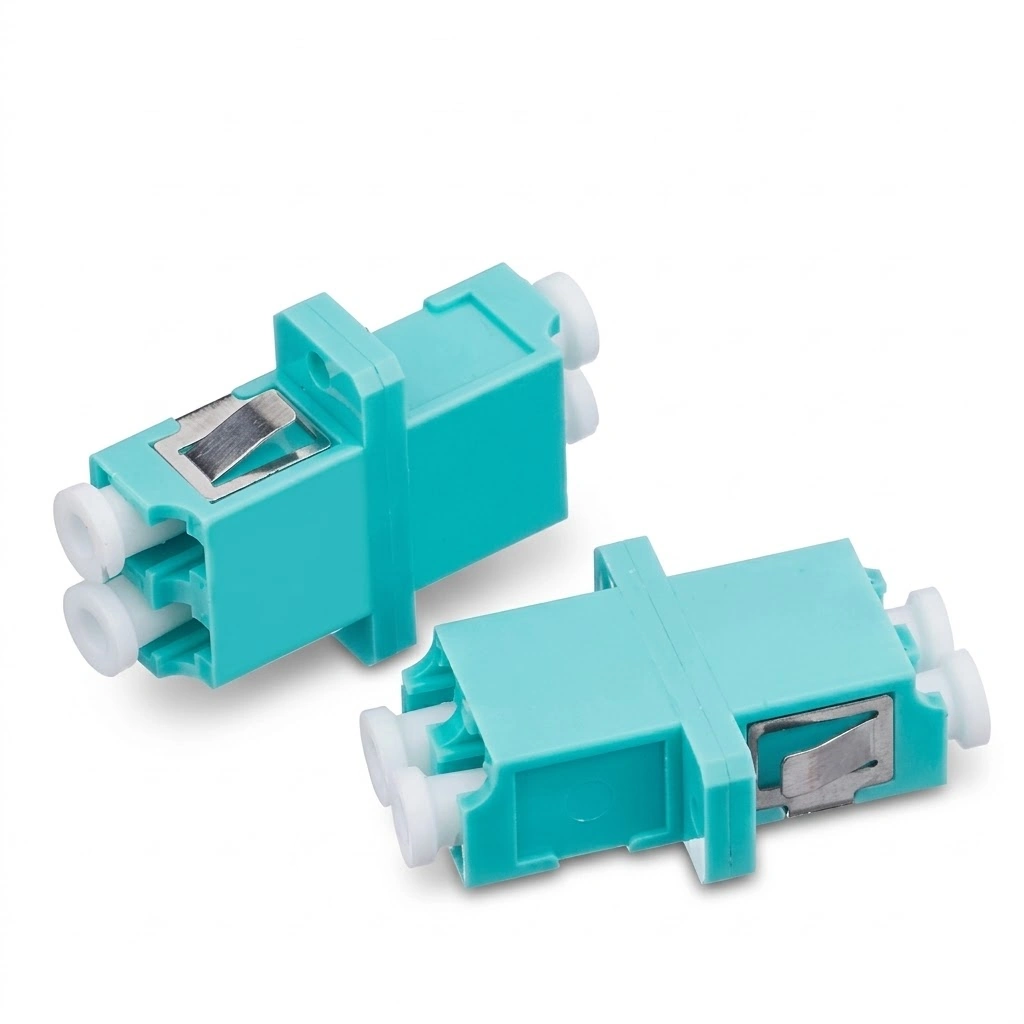

A simplex Coupler houses one optical mating channel to join two single-fiber LC connectors. A duplex Coupler houses two adjacent mating channels within a unified shell to join dual-fiber LC connector pairs (Tx and Rx).
Can a multimode LC Coupler use a ceramic sleeve?

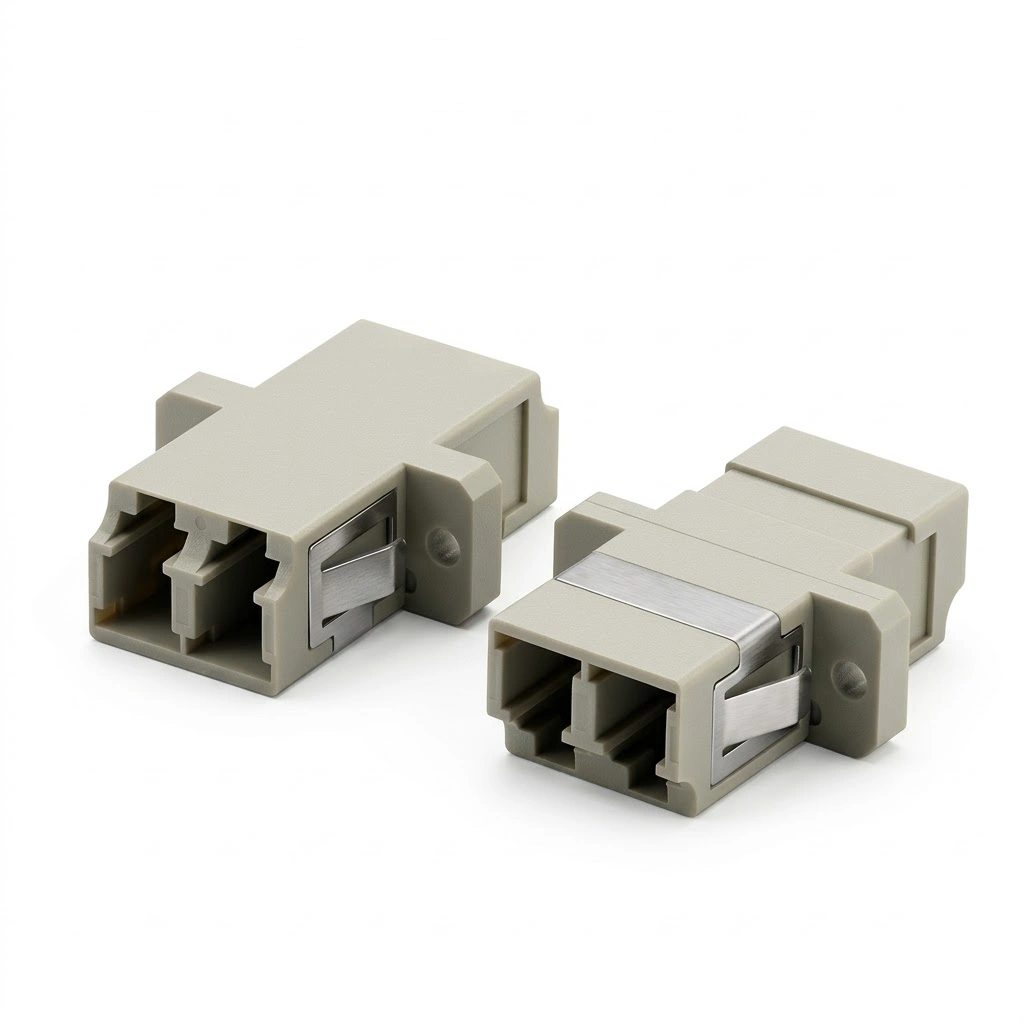

Yes. Ceramic sleeves are standard for single-mode to prevent offset loss, but they are also used in multimode adapters (such as OM3 50/125 um) to ensure low insertion loss (<= 0.20 dB) and higher durability.
How does the one-piece adapter housing improve link stability?

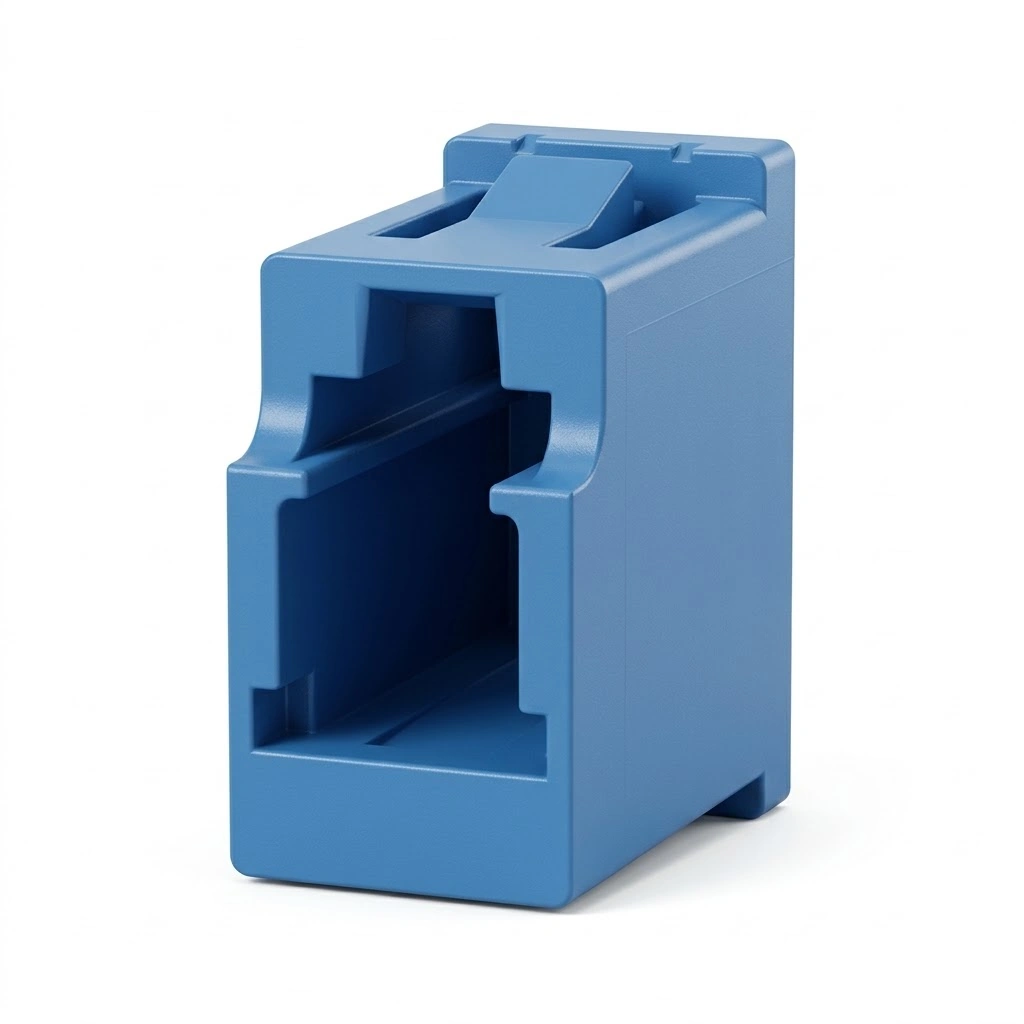

One-piece molding eliminates ultrasonic weld seams along the center body. This structure resists lateral tugging forces (side loading) from heavy patch cords without cracking or shifting the internal alignment sleeve.
What cutouts do these adapters fit?

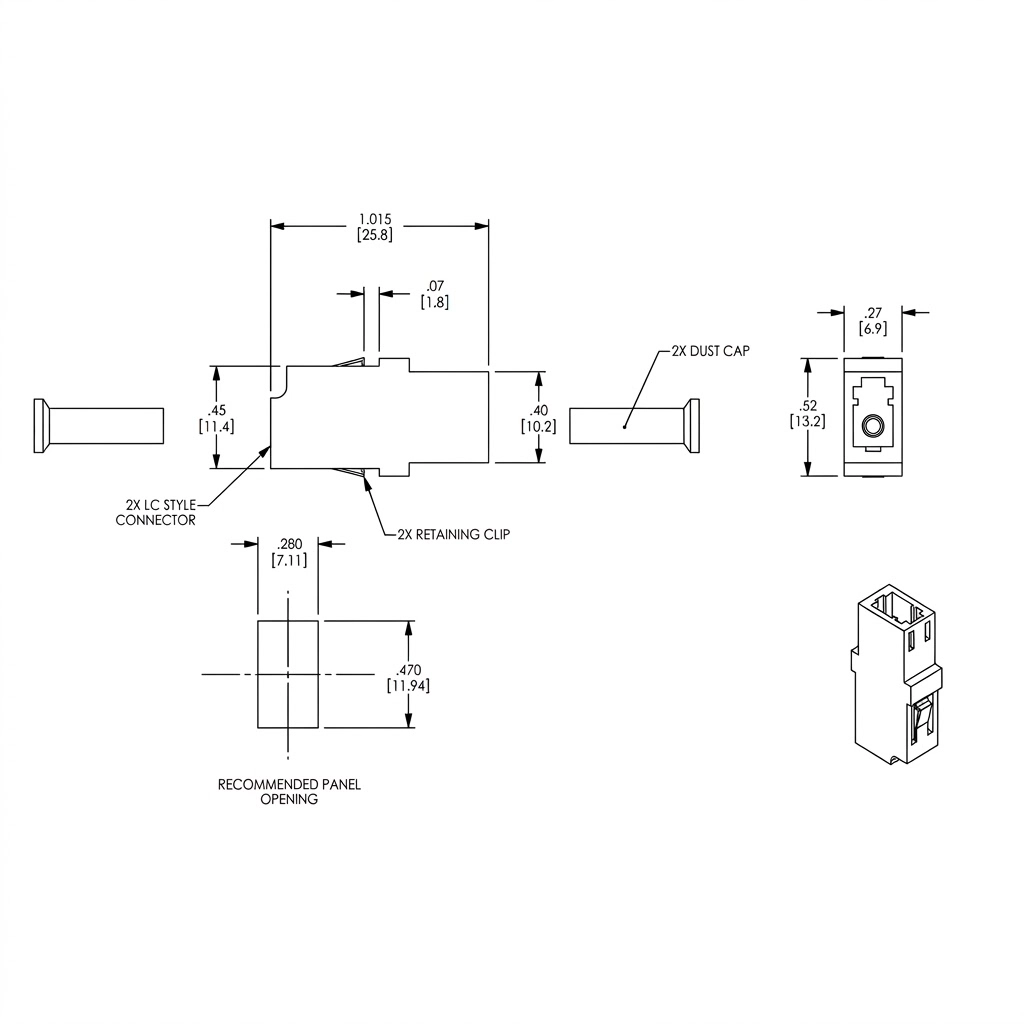

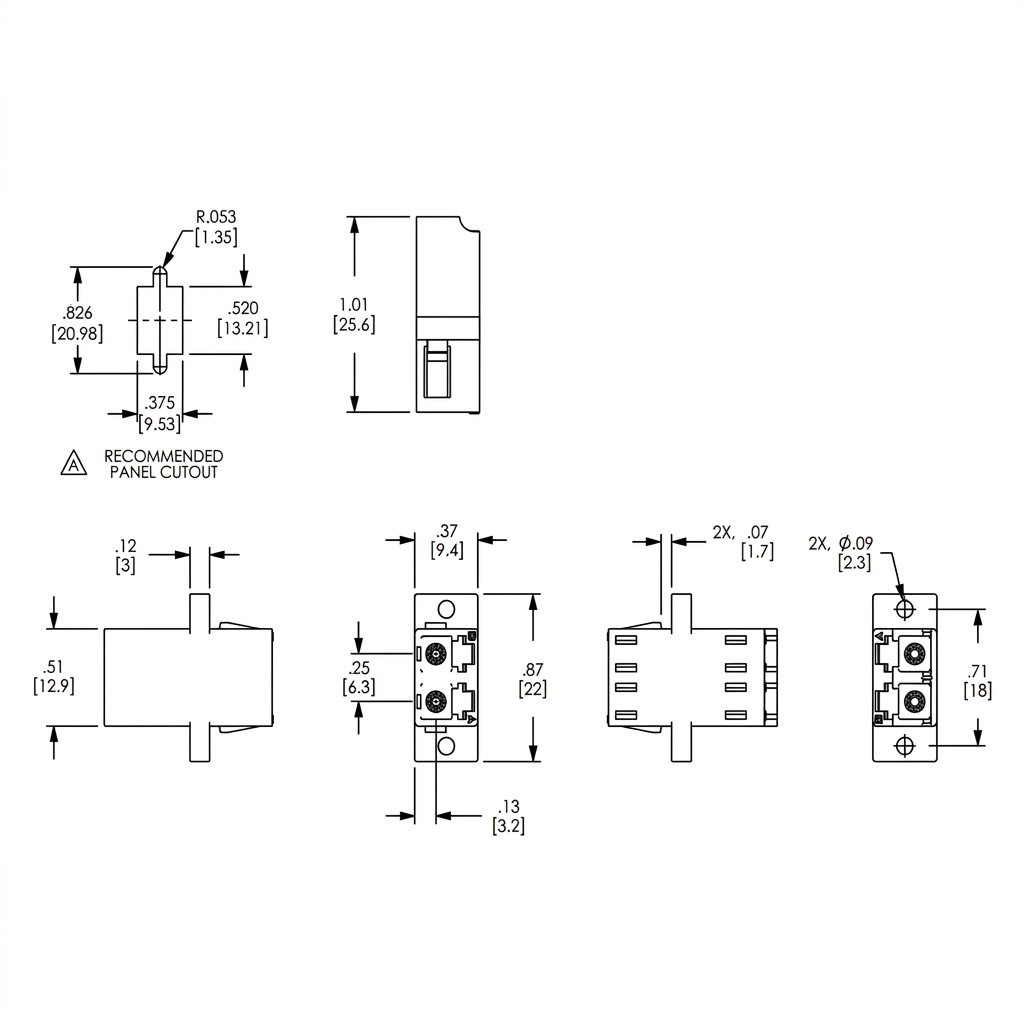

The integrated metal clip latches into standard rectangular panel cutouts without screws, while flanged models allow optional screw mounting for added retention.
The LC fiber optic adapter provides consistent, low-loss mating across both single-fiber simplex and dual-fiber duplex optical runs. With one-piece construction, UL 94V-0 plastic housing, and precision ceramic or bronze sleeves, it delivers reliable mechanical retention for patch panels, ODFs, and data center racks.
