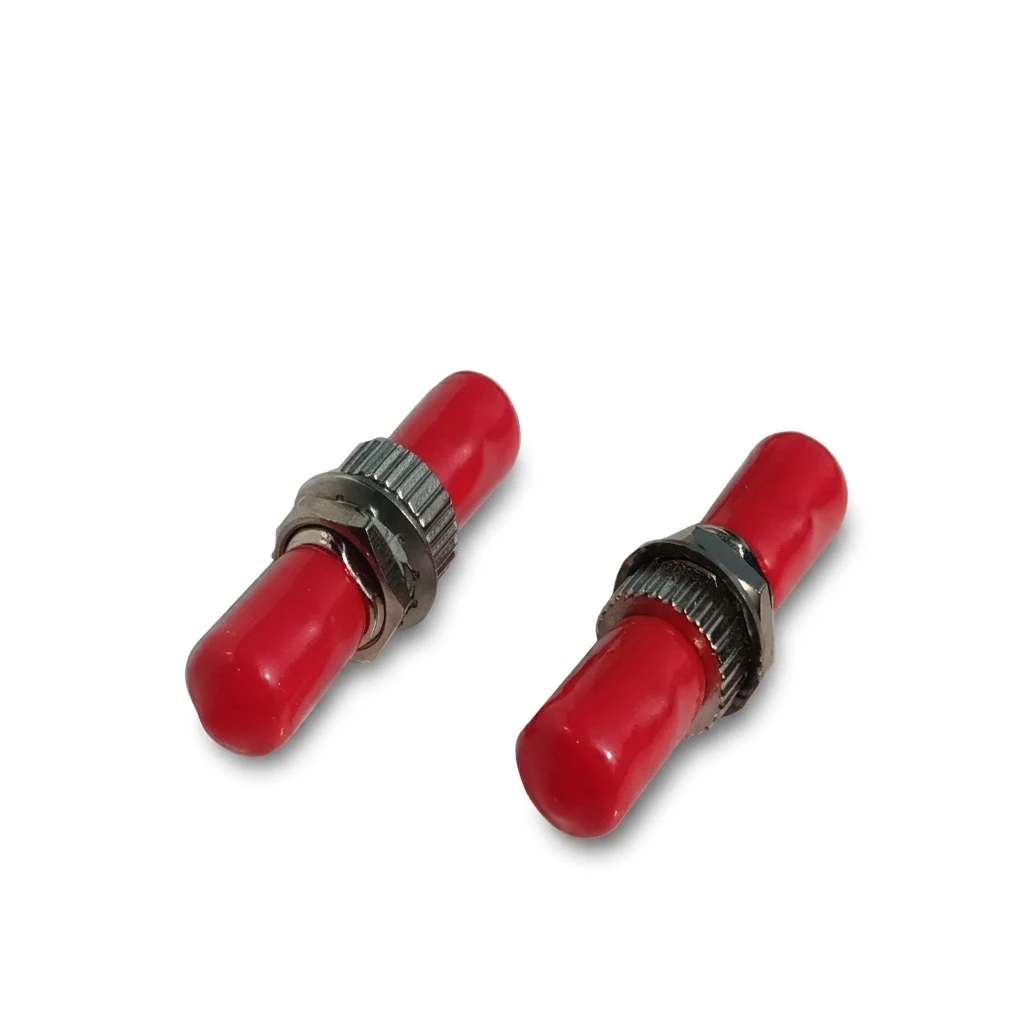

ST Universal Fiber Optic Coupler
This metal ST coupler provides physical alignment for connecting two ST terminated fiber optic cables across patch panels, enclosures, and rack-mount systems. Designed with a metal housing and ceramic or bronze alignment sleeve options, it maintains optical signal continuity with typical insertion loss of <= 0.15 dB (max <= 0.2 dB). The mating adapter accommodates both singlemode and multimode networks using standard PC or UPC connectors.
Product Configuration
-

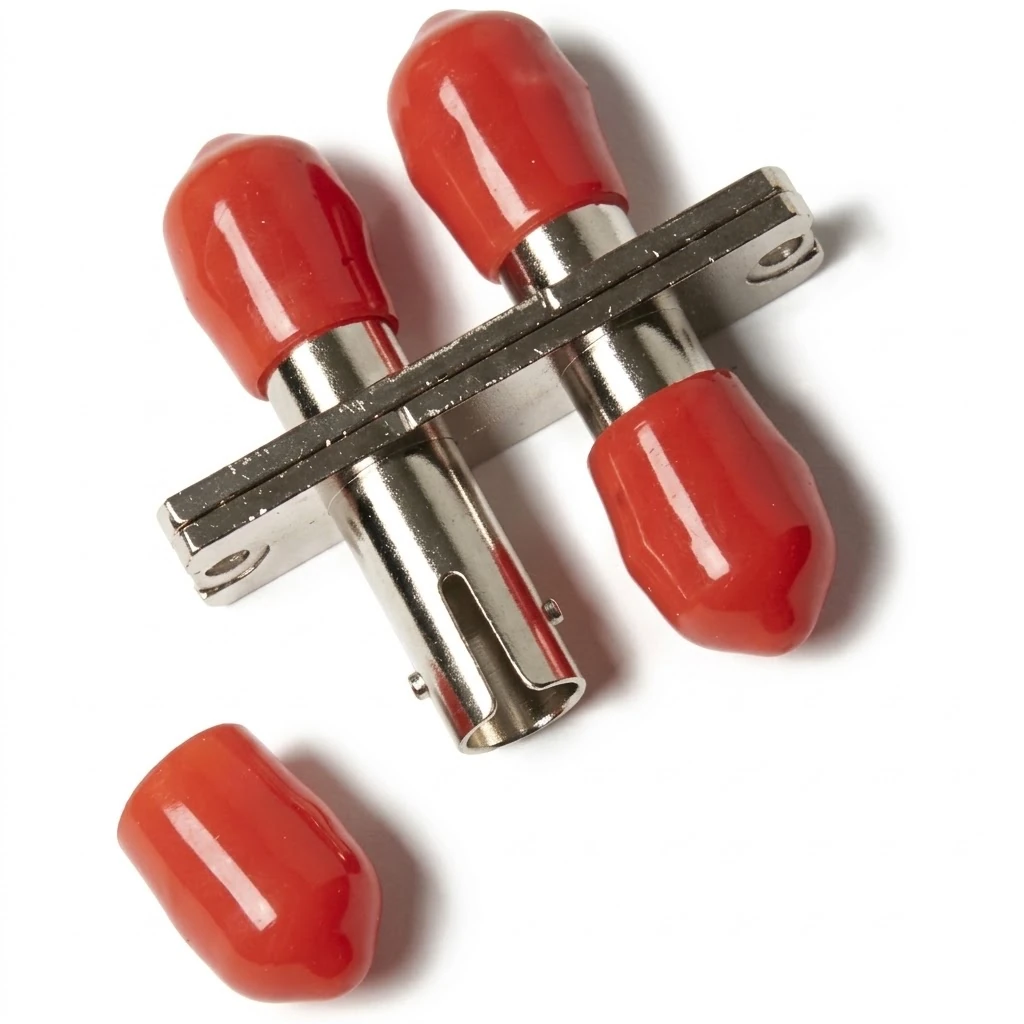

Channel Number: Simplex (also available in duplex configurations per series specifications)
-
Connector Interface: ST to ST
-
Body Type: Simplex
-
Housing Material: Metal (metallic finish)
-
Alignment Sleeve Material: Ceramic (ZrO2) or phosphor bronze (customized sleeve options available)
-
Mounting Style: Flanged mount compatible with 3/8 inch D-hole and standard rectangular panel cutouts
-
Color / Finish: Metallic
Applications
-
FTTx Deployments: Optical distribution frames, fiber distribution hubs, and outdoor terminal boxes requiring secured mechanical joints.
-
Local Area Networks (LAN): Equipment room distribution fields, cross-connect frames, and backbone patching.
-
High EMI/RFI Environments: Industrial manufacturing plants, electric utility control rooms, and substations where metallic shielding is required.
-
Security & Surveillance Systems: Video monitoring networks and perimeter defense infrastructure using bayonet-lock ST cabling.
Selection Considerations for Metal ST Coupler Deployment
-
Sleeve Material Selection: Choose zirconia ceramic (ZrO2) sleeves when mating singlemode fibers to ensure core concentricity and low attenuation. Bronze sleeves offer an alternative for standard multimode connections in vibration-prone installations.
-
Panel Cutout Geometry: Confirm panel cutout dimensions. The coupler supports round 3/8 inch D-shaped knockouts (which prevent body rotation during cable twist-locking) and standard rectangular panel cutouts.
-
Polish Type Matching: Ensure patch cords use PC or UPC polishes. Do not insert angled physical contact (APC) ST connectors into this coupler.
-
Environmental Temperature Range: Verify that operating environments stay within the rated -40 deg C to +75 deg C range, and storage environments within -40 °C to +75 °C (-40 °F to +167 °F)
Frequently Asked Questions
What is the maximum insertion loss for this metal ST coupler?
The coupler is tested to a typical insertion loss of <= 0.15 dB and a maximum loss of <= 0.2 dB across standard test wavelengths (1310 nm and 1550 nm for singlemode; 850 nm and 1300 nm for multimode).
How many mating cycles can this adapter withstand?
The unit is rated for 1000 mating cycles with a maximum loss variation of <= 0.20 dB.
What panel cutouts are compatible with this adapter?
The flanged housing mounts into standard rectangular cutouts as well as 3/8 inch D-hole panel cutouts designed to prevent the connector from twisting.
Does this unit support APC polished ST connectors?
No. The supplied specifications confirm compatibility with PC and UPC polishes. [Needs manual confirmation: angled physical contact (APC) compatibility and specific return loss values].
What temperature extremes can the coupler handle?
The operating temperature range is -40 deg C to +75 deg C, with a storage temperature tolerance of -40 °C to +75 °C (-40 °F to +167 °F)
Conclusion
Engineered for field distribution panels and enterprise cabinets, this metal ST coupler provides dependable ferrule alignment with insertion loss verified at <= 0.15 dB typical and <= 0.2 dB maximum. With its all-metal construction, broad operating temperature profile of -40 °C to +75 °C (-40 °F to +167 °F), and dual mounting cutout styles, it offers a secure, long-lasting interconnection point for singlemode and multimode networks.
