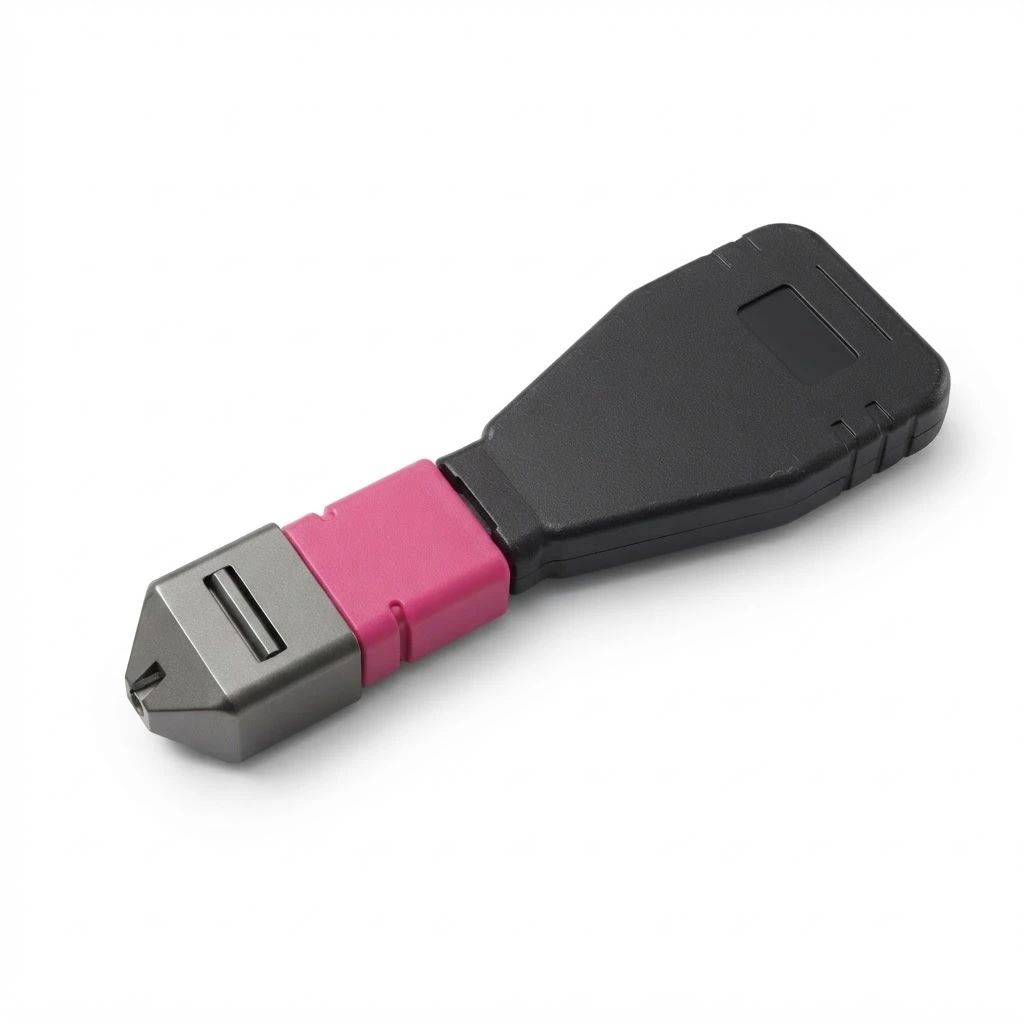

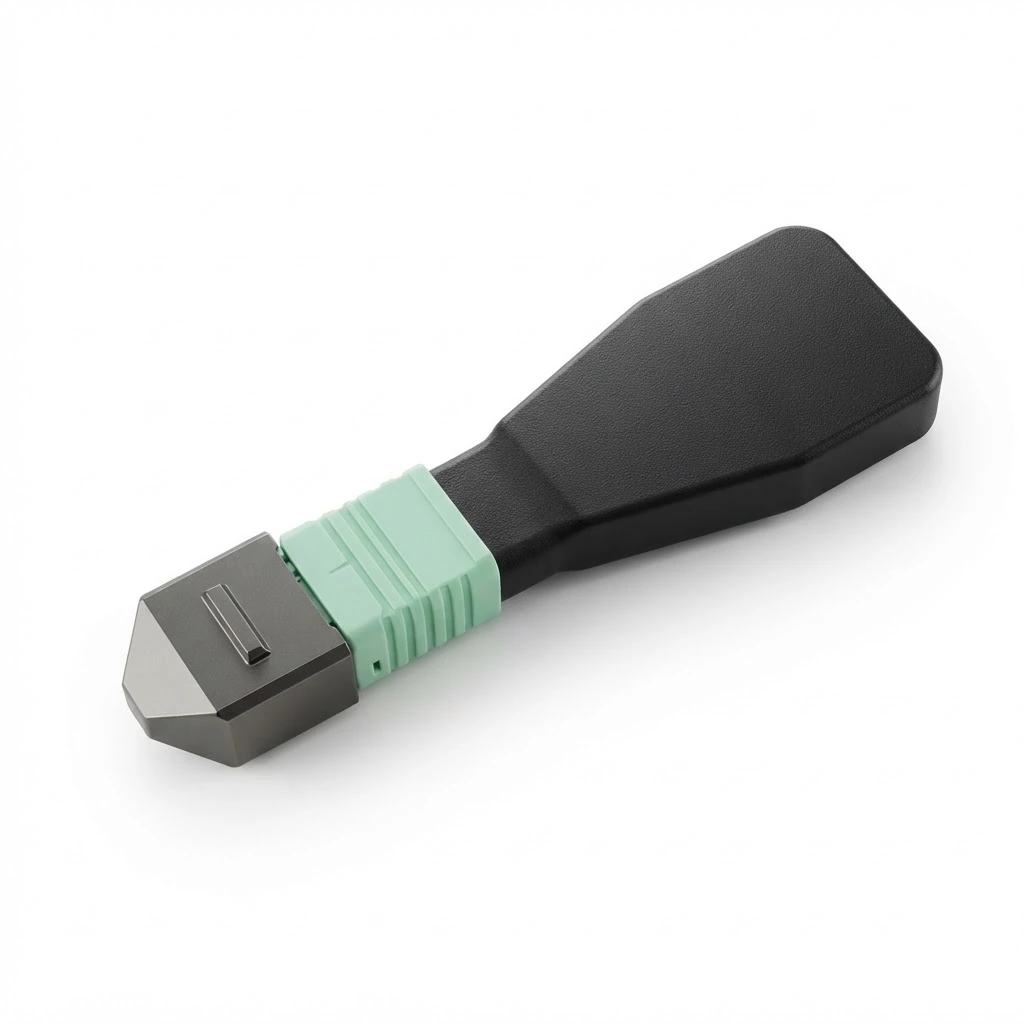

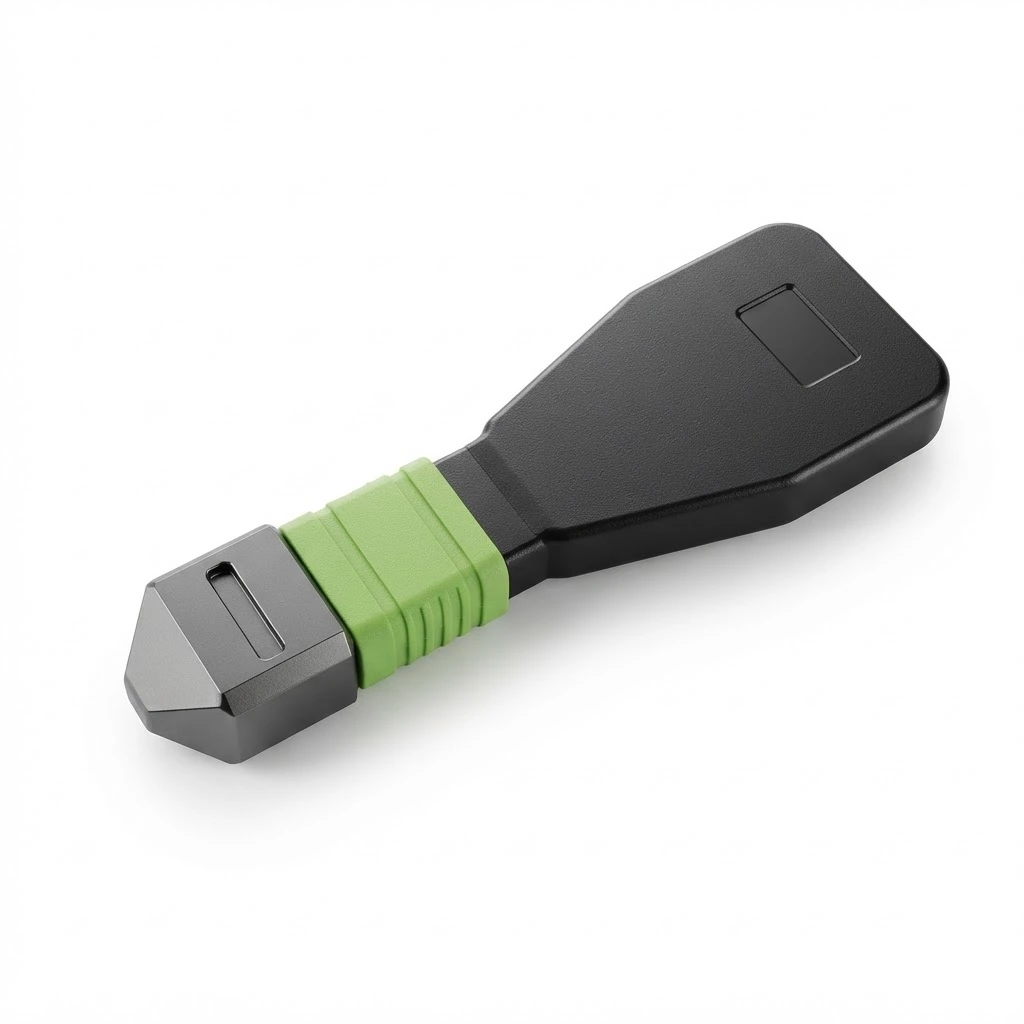

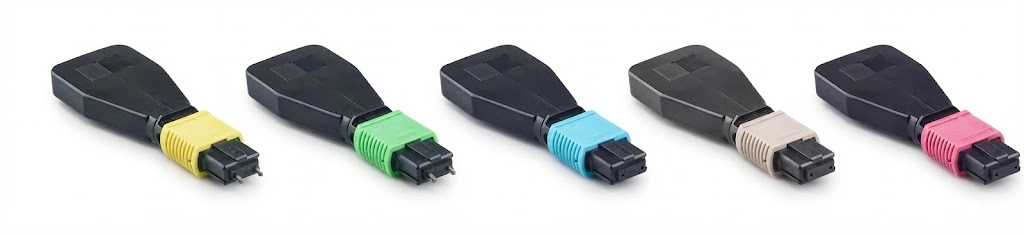

MPO Loopback Attenuator

Compact Design: Space-saving housing allows side-by-side mounting in dense board applications and tight faceplate spaces.

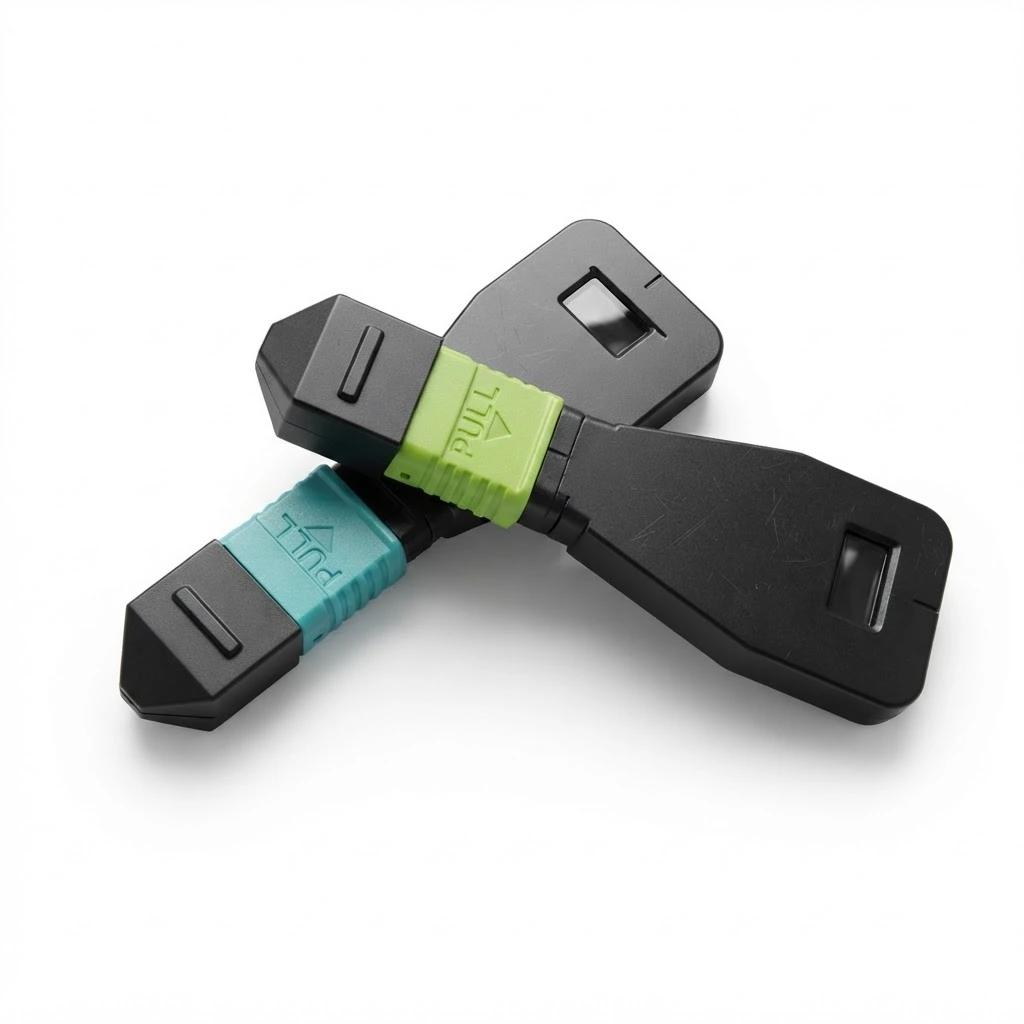

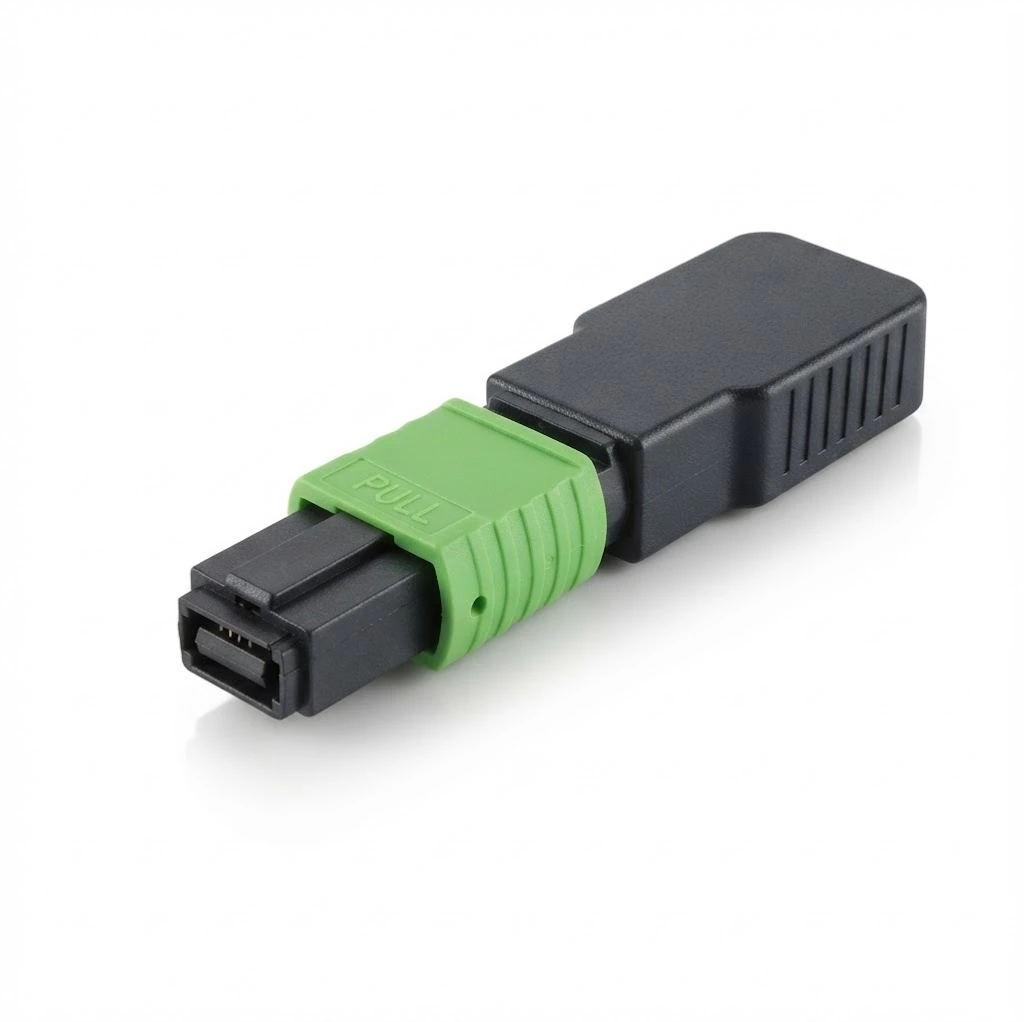

Connector Configuration: Features multi-fiber MPO interface options with male or female gender configurations and configurable polarity alignments (Type A, Type B, or straight through).
Attenuation Options: Available with variable attenuation levels from 1dB to 30dB to simulate longer link distances and test receiver overload thresholds.
High Precision Alignment: Engineered for low insertion loss and high return loss to ensure accurate network performance measurements.

MPO Loopback Attenuator

The MPO Fiber Loopback Attenuator integrates high-precision optical fiber and connector interfaces into a single, space-saving module. Designed for high-density environments, it accommodates parallel optical transceivers and active components such as QSFP, CXP, and MT ferrule-based systems. It supports efficient signal testing across single-mode and multimode network configurations.

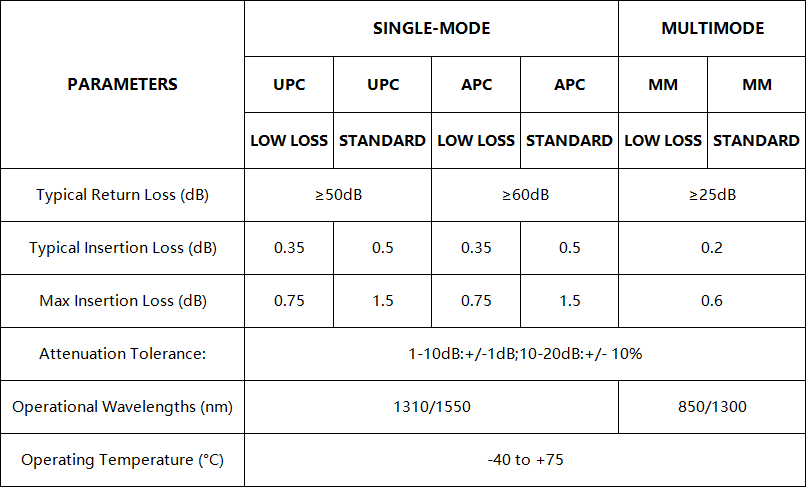

Product Configuration

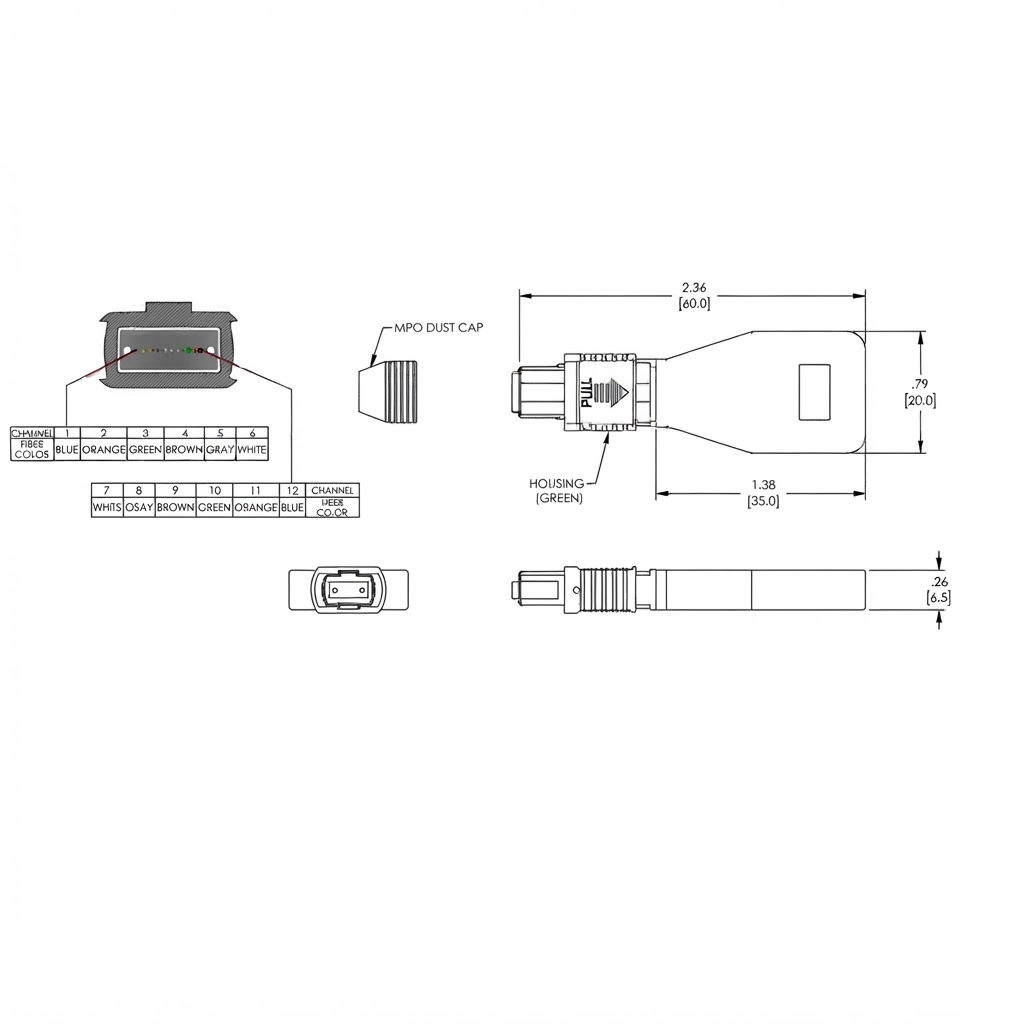

Fiber Counts: 8-fiber, 12-fiber, 16-fiber, and 24-fiber options.

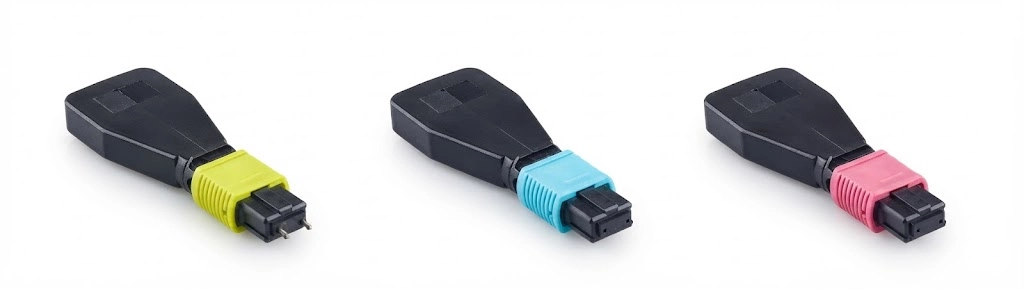

Fiber Types: Single-mode (OS2 9/125um) and multimode (OM3/OM4) available.
End Face Polish: UPC and APC options.

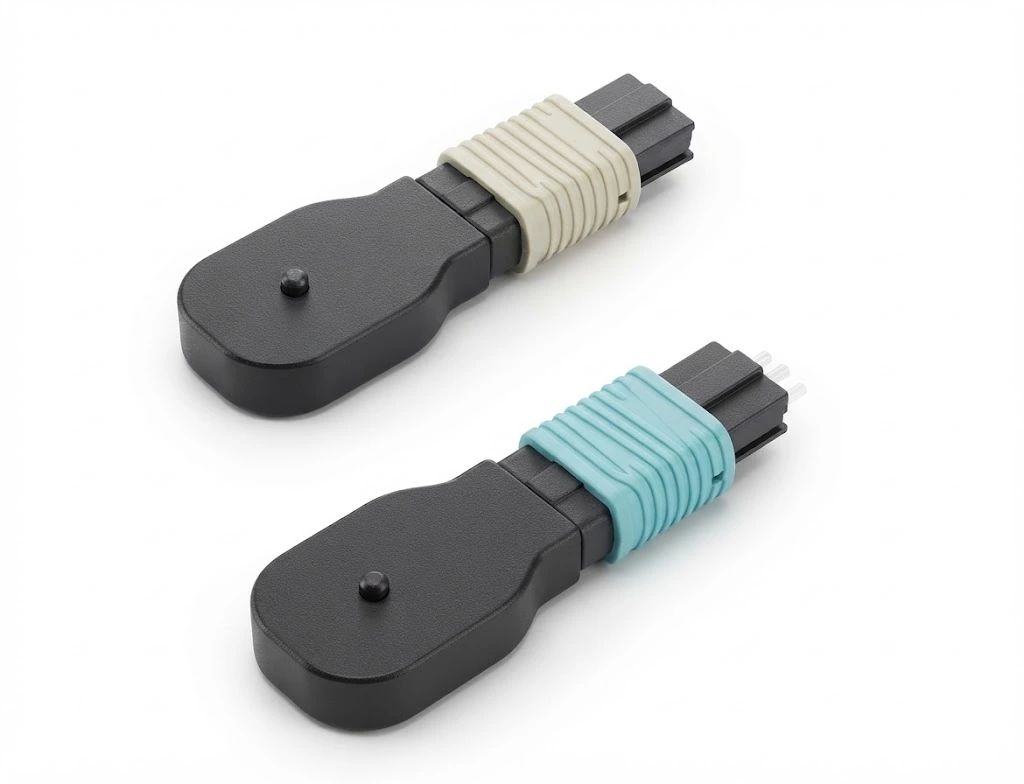

Pin Options: With or without guide pins, straight, crossed, or QSFP pinouts.

Applications

Telecommunication and datacom port provisioning.
Network diagnostics, troubleshooting, and link testing.
Transceiver and active component burn-in testing.
Data center parallel optical architecture validation.

FAQ

What is the primary purpose of an MPO fiber loopback attenuator?

It is used to loop back optical signals from transmitter to receiver ports in parallel optics, enabling testing, troubleshooting, and burn-in of transceivers and active network equipment.

Can attenuation levels be customized?

Yes, attenuation levels are available across a broad range (such as 1dB to 30dB) to suit specific link loss simulation requirements.

What transceiver types are compatible with MPO loopbacks?

They are compatible with parallel optical devices including QSFP and CXP transceivers utilizing MT ferrule interfaces.

Conclusion

The MPO Fiber Loopback Attenuator delivers dependable performance for optical network testing and transceiver verification. By integrating precise attenuation and multi-fiber connectivity into a compact footprint, it streamlines deployment and diagnostics in high-density telecommunication environments.
