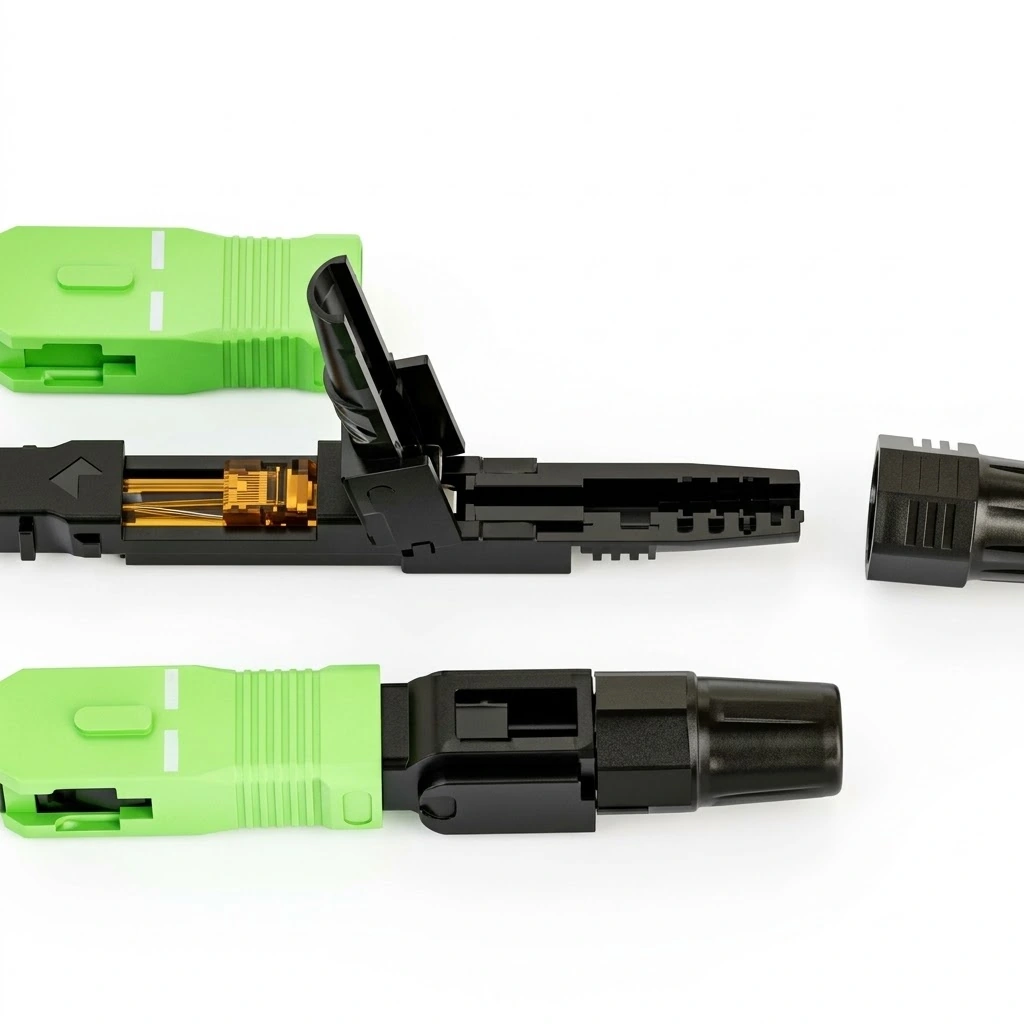

Fiber Fast Connector SC APC Field Assembly Connector
A fiber fast connector SC APC provides quick, field-terminable optical connections for single-mode networks without requiring epoxy or manual polishing. Built with a pre-polished ceramic ferrule and an internal mechanical splice mechanism, it allows technicians to restore broken drop lines, terminate subscriber endpoints, and complete FTTH field installations in approximately 50 seconds.

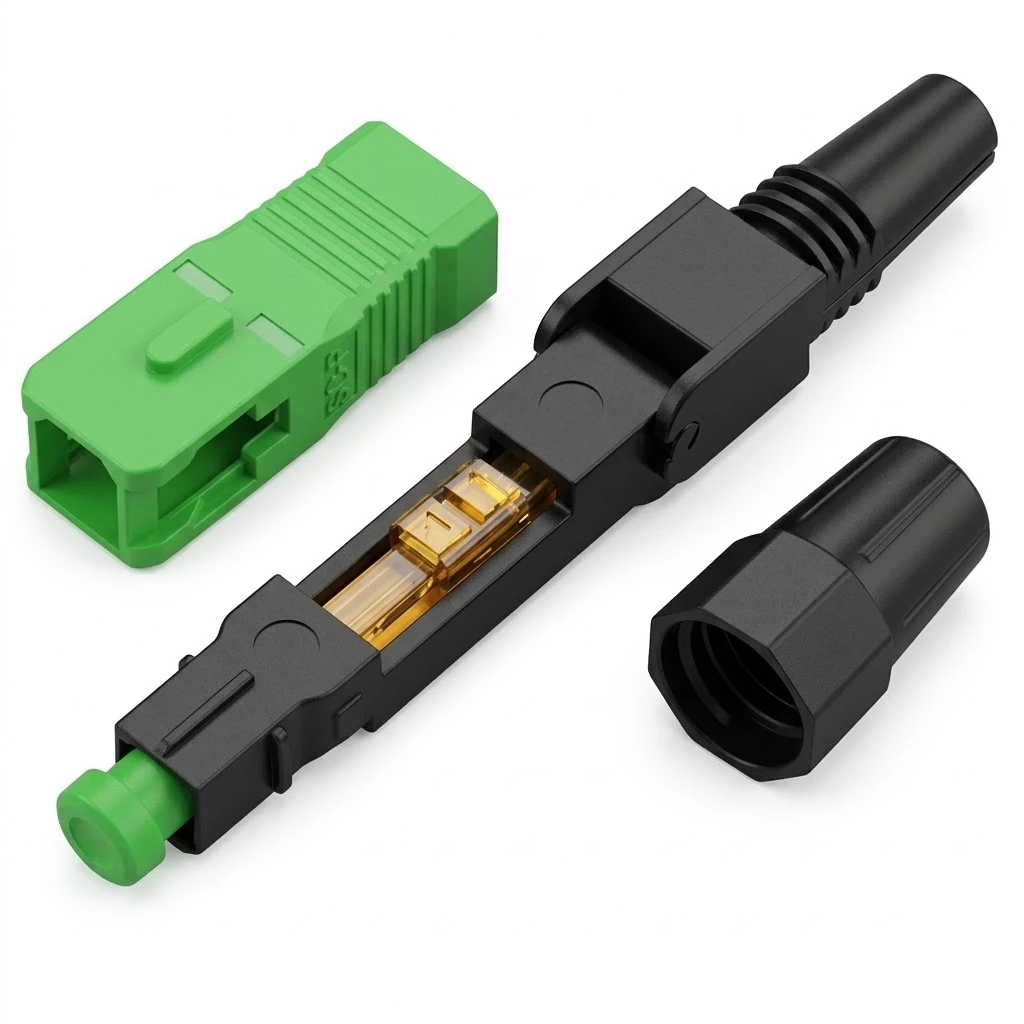

Field termination requires dependable optical return loss alongside fast, repeatable mechanical assembly. The fiber fast connector SC APC incorporates a factory-polished angled physical contact (APC) internal fiber stub. By using mechanical clamping to secure the stripped optical core against the internal stub, it eliminates on-site polishing pucks, heating ovens, and electrical fusion splicers. Installers achieve stable link connections across FTTH subscriber lines, building distribution points, and field repair runs with minimal tooling.
Product Configuration
-
Connector Type: SC
-
Polish Type: APC (Angled Physical Contact)
-
Configuration: Simplex
-
Fiber Mode: Single mode
-
Ferrule Core Material: Ceramic
-

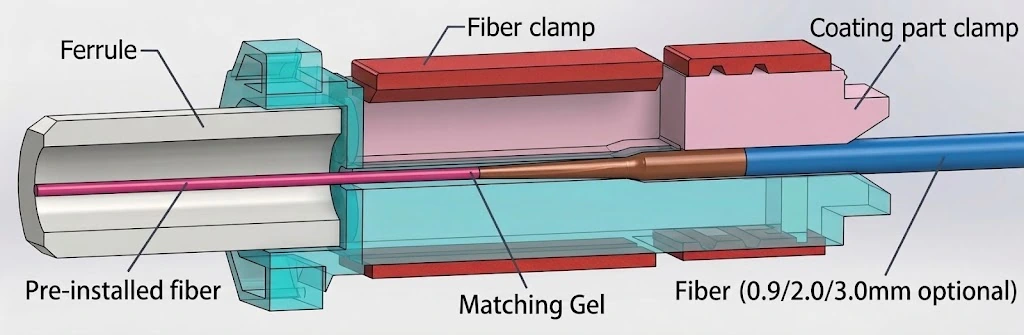

Construction: Pre-polished, embedded fiber stub with mechanical alignment clamp
Applications
-
FTTH subscriber drop cable terminations and terminal box interconnections.
-
Quick repair and restoration of broken aerial or indoor drop cables.
-
Fiber distribution hubs, optical distribution frames, and terminal wall outlets.
-
Temporary link bypasses and network troubleshooting handoffs.
Installation Guidelines
Before start,always keep hands, tools, and the working area clean and dry to prevent particulate contamination.
Selection Considerations
-

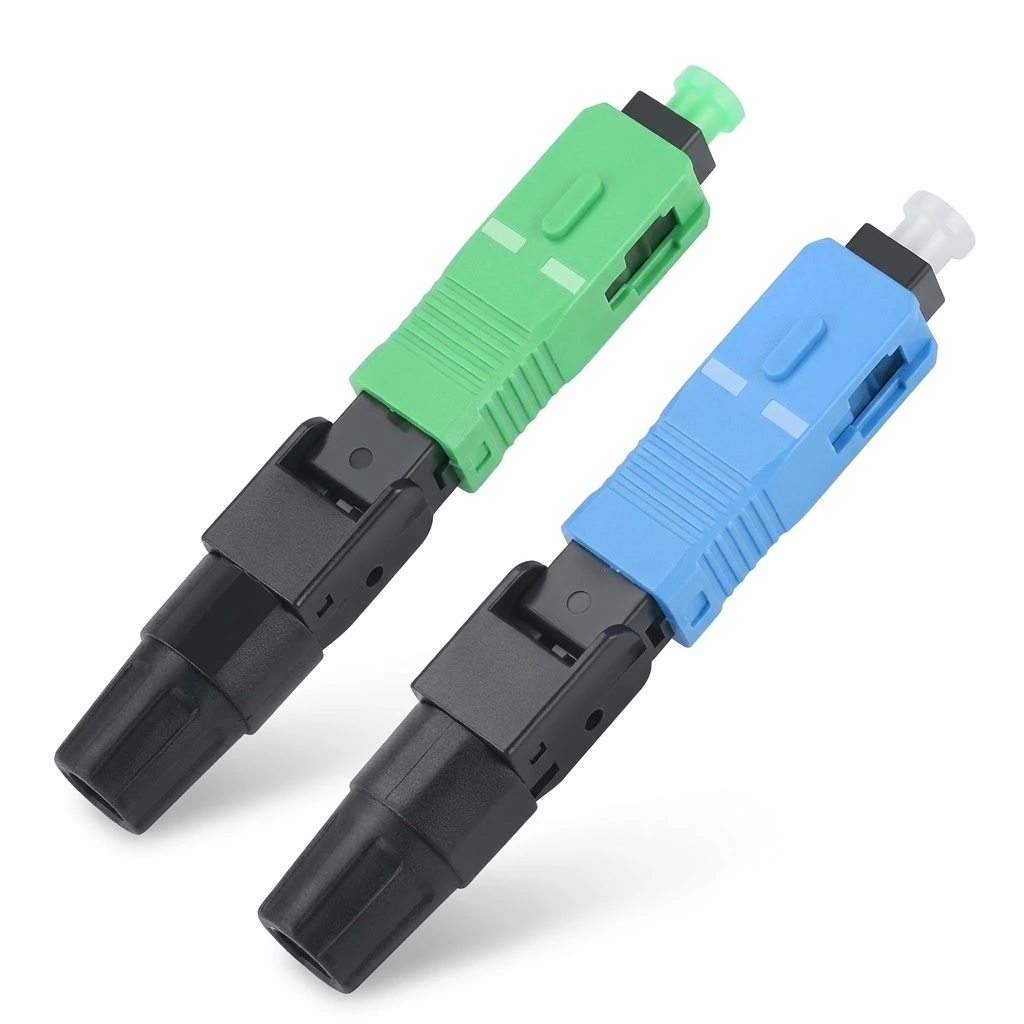

End-Face Polish Standard: Ensure mating patch panels and adapters use green SC/APC ports. Mating an angled SC/APC connector with a blue SC/UPC port damages the ferrule end face and introduces severe insertion loss.
-
Cable Sheath Fit: Verify whether the drop cable in use matches 2.0 x 3.0 mm or 2.0 x 1.6 mm flat dimensions, or uses 2.0 mm, 3.0 mm, or 0.9 mm round profiles, ensuring the mechanical clamp secures the outer sheath properly.
-
Field Clamping versus Fusion Splice: While field fast connectors enable single-technician restoration in under a minute, critical feeder links requiring insertion loss below 0.05 dB require thermal fusion splicing.
Frequently Asked Questions
Does this connector require manual polishing or epoxy curing on site?
No. The ceramic ferrule contains a factory-embedded, pre-polished fiber stub. Field termination relies entirely on mechanical clamping after stripping and cleaving.
What cable profiles fit this SC APC connector?
The connector supports 2.0 x 3.0 mm and 2.0 x 1.6 mm flat drop cables, along with 2.0 mm and 3.0 mm round cords and 0.9 mm tight-buffered indoor cables.
Can the connector be reused if the first termination attempt fails?
Yes. The mechanical clamping structure allows the connector to be opened and re-terminated at least 10 times without compromising performance.
How much mechanical pull force can the connector withstand?
The connector provides a tensile strength rating of >= 50 N, and holds bare fiber with a fastening strength of >= 5 N. Under a 20 N inline pull test, insertion loss change remains delta IL <= 0.3 dB.
Why Choose This Fiber Fast Connector SC APC
Deploying this fiber fast connector SC APC provides installation teams with a fast, field-proven method to terminate optical drops without lugging fusion splicers to subscriber premises. The combination of pre-polished ceramic ferrules, APC >= 60 dB return loss, and full RoHS compliance ensures dependable physical layer performance across broadband access networks.
