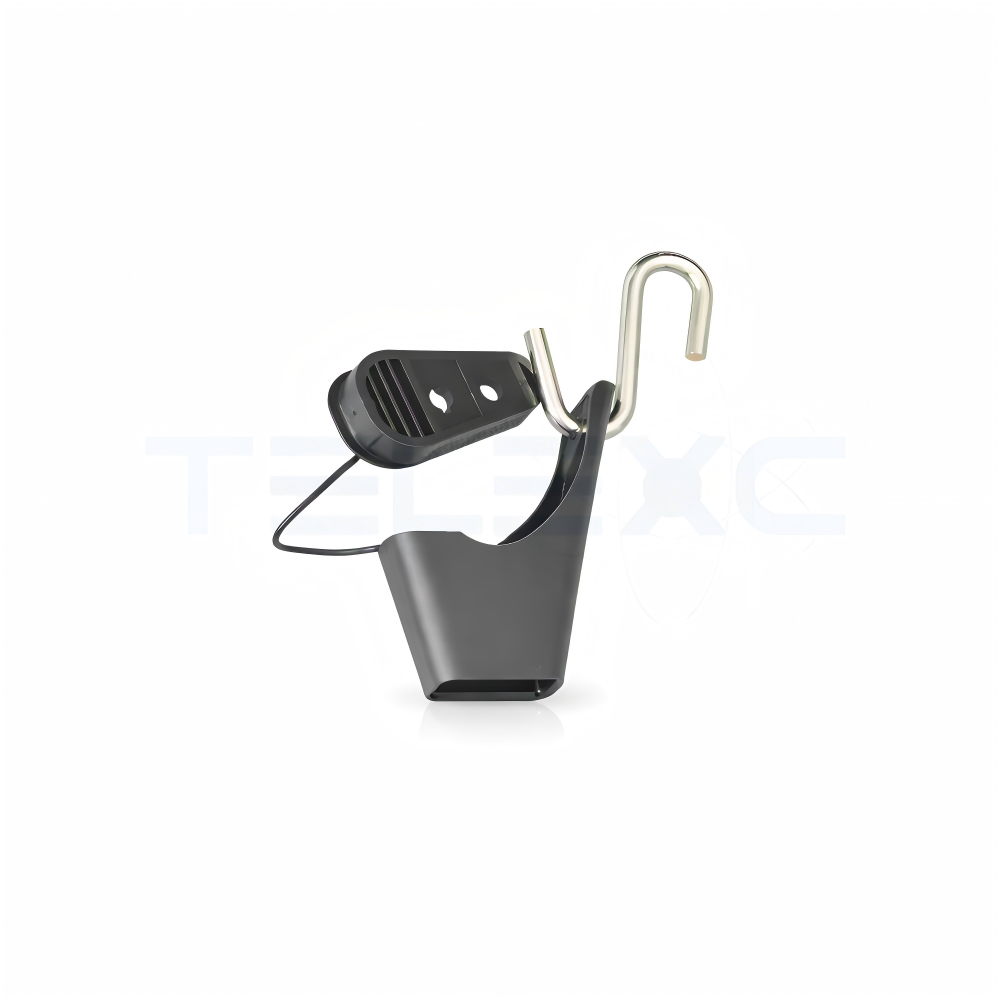

S-Hook Fiber Optic Drop Cable Clamp for FTTH Networks – Model TX-01

S-Hook Fiber Optic Drop Cable Clamp for FTTH Networks – Model TX-01

Key Features

  • Self-adjusting wedge design for secure cable gripping

  • Durable UV-resistant PA66 thermoplastic body

  • Stainless steel S-hook for strong and reliable attachment

  • Supports 1-pair and 2-pair drop wire cables

  • Grooved interior improves cable friction and prevents slippage

  • Suitable for both indoor and outdoor installations

  • Quick installation without specialized tools

  • Resistant to corrosion, UV exposure, and environmental stress

Category: Tags: , , , , , , ,

The S-Hook Fiber Optic Clamp is a reliable tension clamp designed for securing FTTH drop cables in overhead telecommunication networks. It is used to anchor flat or round fiber optic drop cables from distribution points to buildings, poles, or customer premises.

The clamp features a self-adjusting wedge mechanism that firmly grips the cable without causing damage. A strong stainless steel S-hook allows quick attachment to pole brackets, drive hooks, or wall hooks, making installation simple and efficient.

Manufactured from UV-resistant PA66 nylon and stainless steel, the TX-SH01 clamp provides excellent durability, corrosion resistance, and environmental stability. Its grooved inner structure increases friction between the clamp and cable, preventing slippage even under mechanical load.

This clamp is widely used in FTTH, FTTB, and FTTX fiber optic deployments for both indoor and outdoor installations.

International Standard Compliance

The TX-SH01 drop cable clamp is manufactured in compliance with recognized telecom and quality standards:

  • ISO 9001 Quality Management Manufacturing

  • RoHS Environmental Compliance

  • IEC guidelines for fiber optic accessories

  • Mechanical and tensile testing according to telecom installation standards

These standards ensure safe and reliable performance in telecom network infrastructure.

Construction & Materials

The TX-SH01 clamp is designed using a combination of durable materials to ensure strong mechanical performance and long service life.

Main components include:

  • Body: UV-resistant PA66 nylon with excellent insulation properties

  • Hook: Stainless steel S-hook with corrosion protection

  • Internal wedge: Grooved structure that enhances cable grip

The manufacturing process includes:

  1. Precision molding of nylon housing

  2. Stainless steel hook forming

  3. Assembly of the wedge mechanism

  4. Mechanical and tensile strength testing

This construction ensures the clamp can withstand extreme weather conditions and mechanical loads.

Installation Guide

  1. Insert the drop cable into the clamp body.

  2. Ensure the cable is positioned within the wedge grooves.

  3. Pull the cable to allow the self-adjusting wedge to grip firmly.

  4. Attach the S-hook to a pole bracket, drive hook, or wall hook.

  5. Adjust cable tension and confirm secure anchoring.

Installation requires no special tools, allowing quick field deployment.

S-Hook Fiber Optic Clamp used for FTTH installations. UV-resistant nylon body with stainless steel hook for reliable cable anchoring.

Technical Parameters

Parameter Specification
Model No. TX-01
Product Name S-Hook Fiber Optic Drop Cable Clamp
Outer Material PA66 UV-Resistant Nylon
Hook Material Stainless Steel
Max Tensile Strength 0.75 kN
Length 150 mm
Steel Hook Thickness 4 mm
Nylon Thickness 7.2 mm
Weight Approx. 40 g
Operating Temperature −60°C to +60°C
Installation Method S-Hook Mounting

Applications

The TX-SH01 drop wire clamp is commonly used in:

  • FTTH (Fiber to the Home) installations

  • Fiber optic drop cable anchoring

  • Telephone drop wire networks

  • Building entry cable installations

  • Pole-to-building cable routing

  • FTTB and FTTX telecom distribution networks

Product Advantages

  • Quick and simple installation process

  • Strong gripping mechanism prevents cable slippage

  • Durable materials for long outdoor service life

  • Lightweight design for easy handling

  • Compatible with various telecom mounting hardware

  • Cost-effective solution for large FTTH deployments

FAQs

1. What is an S-hook fiber optic drop cable clamp used for?
It is used to secure fiber optic drop cables between poles, brackets, or buildings in FTTH network installations.

2. Can this clamp be used outdoors?
Yes. The UV-resistant nylon body and stainless steel hook provide excellent outdoor durability.

3. What cable types are compatible with this clamp?
It is designed for flat or round FTTH drop cables and telephone drop wires.

4. Does the clamp require special installation tools?
No. The S-hook design allows fast installation without specialized tools.

5. What is the tensile strength of the clamp?
The clamp can withstand approximately 0.75 kN tensile load.

6. Can it support multiple cable pairs?
Yes. It can support one-pair and two-pair reinforced drop wires.

7. Is the clamp resistant to corrosion?
Yes. The stainless steel hook and UV-resistant nylon provide strong corrosion resistance.

8. What temperature range can the clamp operate in?
It can operate in temperatures from −60°C to +60°C.

Why Choose Telexc

Telexc provides high-quality telecom hardware designed for modern fiber optic networks.

Key reasons to choose Telexc:

  • Strict quality inspection and testing procedures

  • Durable materials suitable for harsh environments

  • Reliable solutions for FTTH infrastructure projects

  • Custom product options for large telecom deployments

  • Competitive manufacturing prices and global supply capability
