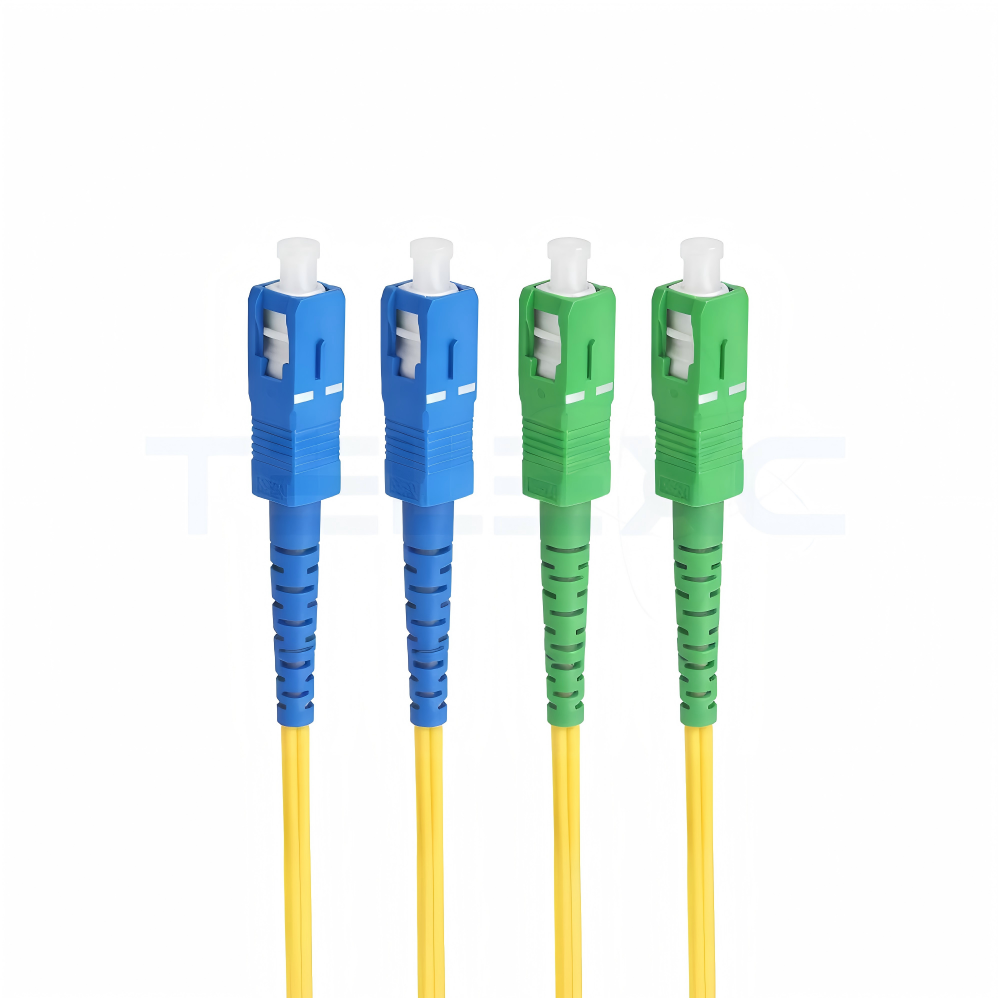

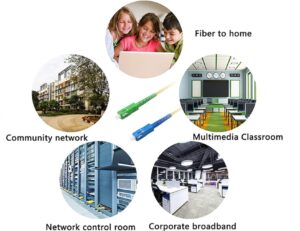

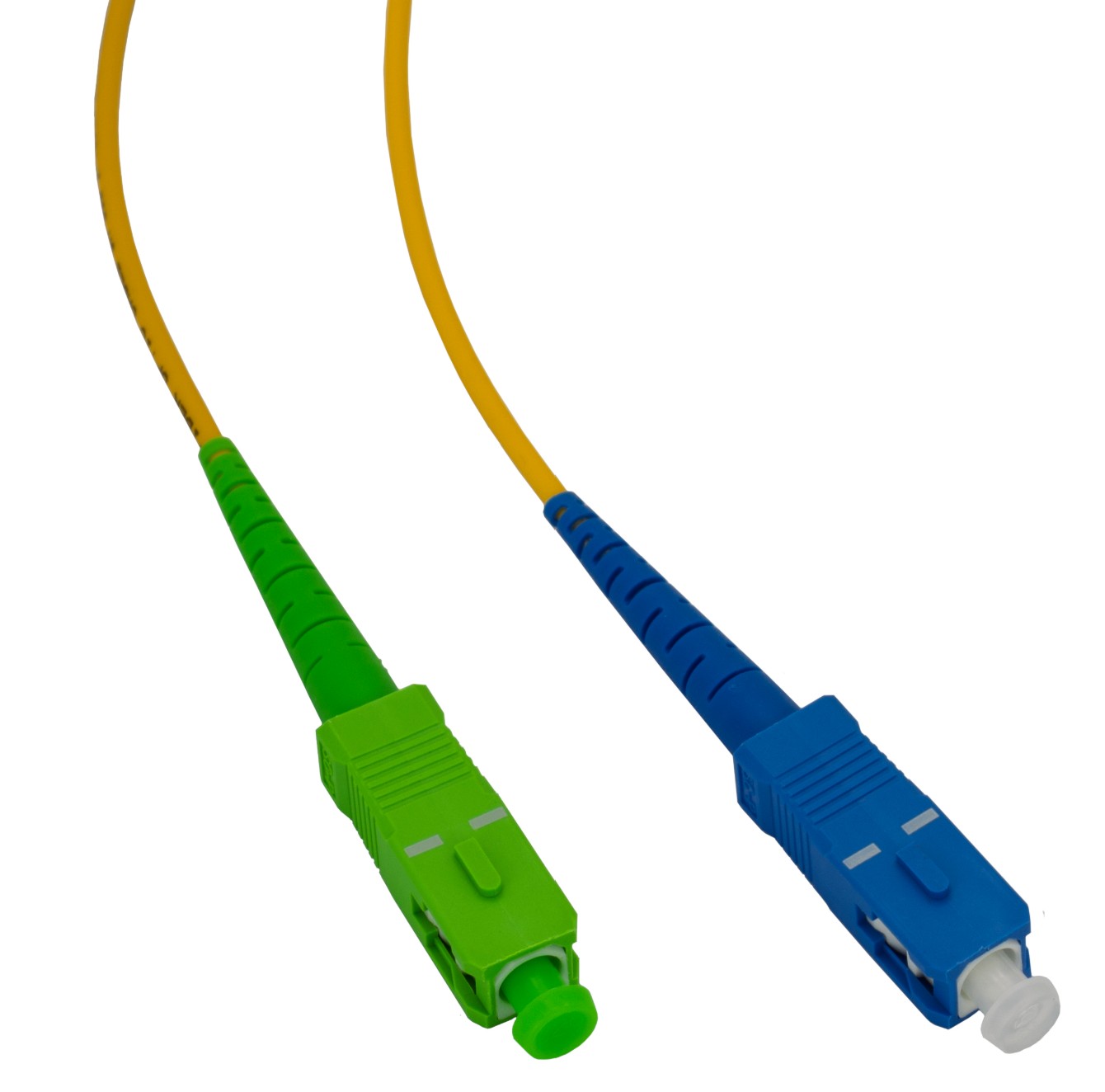

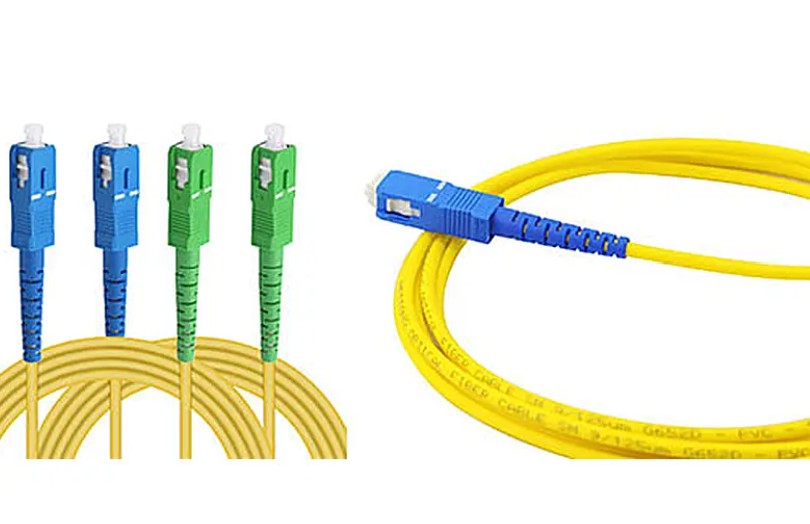

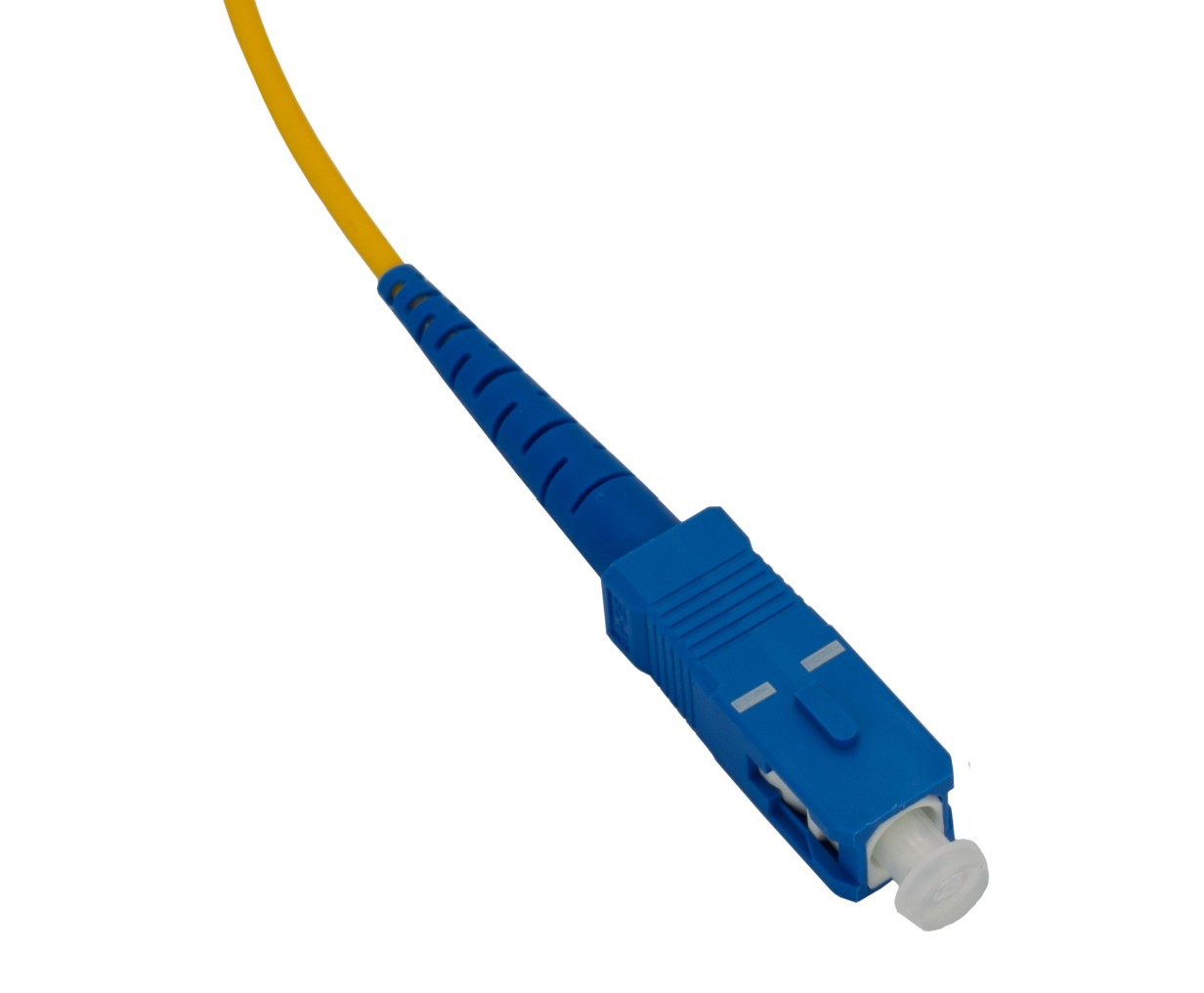

A single-mode simplex fiber patch cord is engineered for reliable optical signal transmission in telecom, data center, and FTTH networks. Designed with SC/UPC to SC/APC connectors and OS2 9/125 µm single-mode fiber, it ensures low insertion loss, high return loss, and stable long-term performance. Each patch cord is factory tested to meet international quality and performance standards. This single-mode fiber patch cord is fully suitable for FTTH, FTTx, and access networks and provides stable performance across temperature variations.
Model Number
TX-SM-SCU-SCA-2M
(Standard lengths: 1, 2, 3, 5, 8, 10, 15 m | Custom lengths on request)
International Standard Compliance
-
ITU-T G.652D
-
IEC 61754 (SC connector interface)
-
IEC 61300 (optical performance testing)
-
RoHS-compliant materials
Construction & Materials
-
OS2 single-mode fiber core (9/125 µm)
-

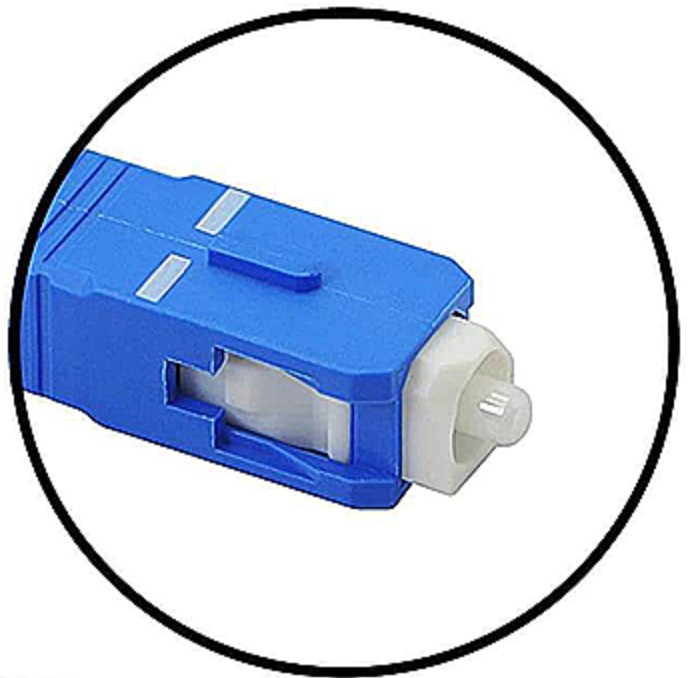

Precision-polished ceramic ferrules
-
Simplex fiber structure
-
High-quality environmental-grade PVC jacket
-
Yellow outer sheath for single-mode identification
Installation Guide
-
Inspect connectors and remove dust caps before use
-
Clean ferrules using approved fiber cleaning tools
-
Align SC connectors with adapters and insert gently
-
Avoid bending below the minimum bend radius
-
Replace dust caps when the patch cord is not in use
High-quality single-mode fiber patch cord with SC/UPC to SC/APC connectors, low insertion loss, high return loss, OS2 9/125 fiber, ideal for FTTH and telecom networks.
