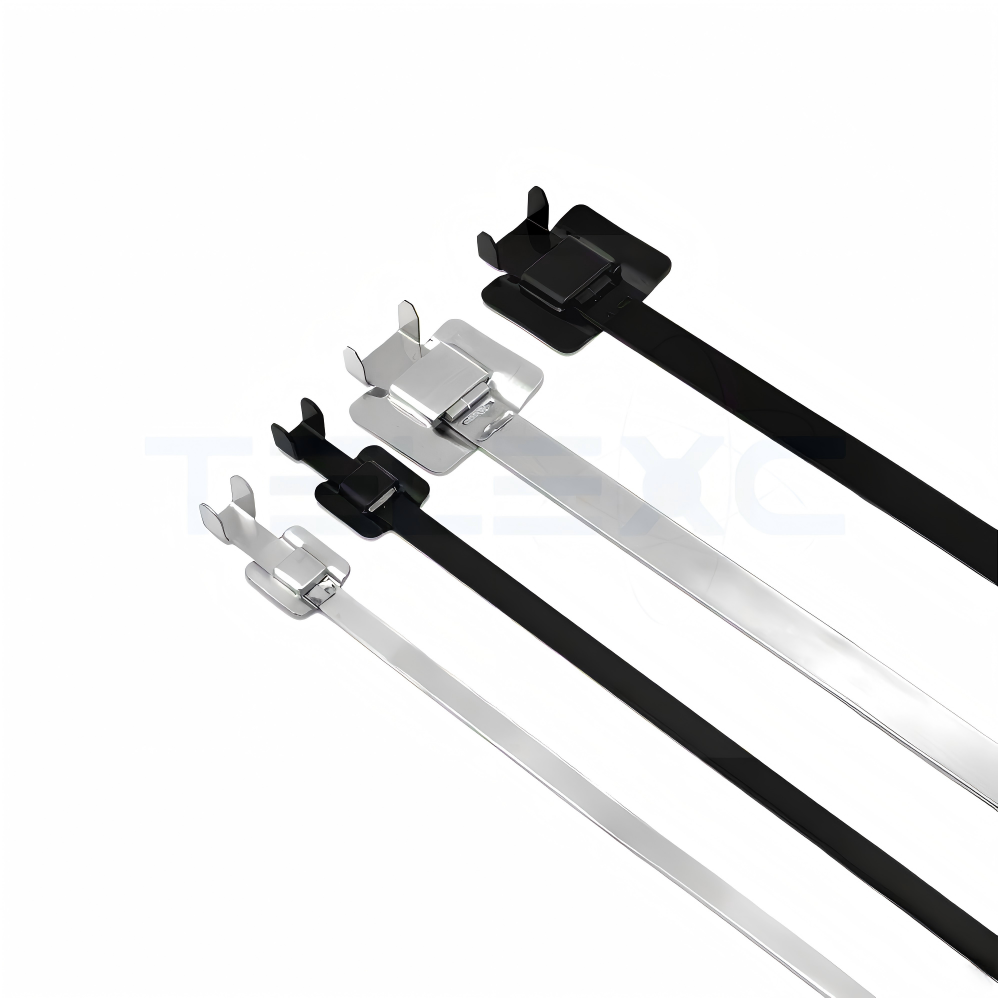

Self-Locking PVC Coated Stainless Steel Cable Tie

Key Features

  1. PVC-Coated Stainless Steel – Combines mechanical strength with corrosion resistance.
  2. Self-Locking Ball Mechanism – Quick, secure installation at any tie length.
  3. Wide Temperature Range – Functional from -40°C to +150°C.
  4. Chemical & UV Resistant – Suitable for outdoor, marine, and industrial environments.
  5. Versatile Applications – Ideal for automotive, communications, shipbuilding, and construction projects.
Categories: , Tags: , , , , , , , , , , , ,

The Self-Locking Stainless Steel Cable Tie is PVC Coated and designed for heavy-duty bundling in harsh environments. Made from high-quality 304/316 stainless steel with a black polyester coating, it offers excellent corrosion resistance, UV protection, and mechanical strength.

Its self-locking ball-bearing mechanism allows rapid installation by hand or tool, securing cables safely and efficiently. Ideal for outdoor, indoor, marine, and industrial applications, these ties protect wires while maintaining durability under extreme temperatures and chemical exposure.

Available in multiple lengths and widths, the TX-SS304 series supports OEM packaging and bulk orders for industrial and commercial projects.

International Standard Compliance

  • RoHS Compliant – Environmentally safe materials
  • UL Listed – Certified for electrical and outdoor applications
  • ASTM A580 & ASTM A240 – Stainless steel quality standards
  • ISO 9001 Certified – Quality management assurance
  • UV & Chemical Resistance Tested – For long-term outdoor and industrial reliability

Material & Construction

  • Stainless Steel Grade 304/316 with black polyester coating
  • Self-locking ball-bearing mechanism
  • Fire-proof, UV-resistant, and halogen-free
  • High resistance to chemicals, acids, and alkalis
  • Rounded edges for cable and installer safety

Installation Guide

  1. Wrap the cable tie around cables or bundles.
  2. Insert the tail into the self-locking head.
  3. Pull the tail until fully tightened for secure bundling.
  4. Use a cutting tool to trim excess tail if necessary.
  5. Ensure smooth edges face cables to prevent damage.

Technical Parameters

Model No. Length (in/mm) Min. Tensile Strength Strap Width (in/mm) Max Bundle Dia (in/mm) Head Width (in/mm) Package Qty
TX-SS304-05-BL 5.0″ / 127 200 lbs 0.18″ / 4.6 1″ / 25.4 0.26″ / 6.5 100
TX-SS304-08-BL 8.0″ / 203 200 lbs 0.18″ / 4.6 2″ / 50.8 0.26″ / 6.5 100
TX-SS304-11-BL 11.0″ / 279 200 lbs 0.18″ / 4.6 2.7″ / 68.6 0.26″ / 6.5 100

Applications

  1. Industrial Cable Bundling – Secures wires in factories and power plants.
  2. Outdoor Installations – Resists UV and weather in telecom and solar setups.
  3. Marine & Offshore – Corrosion-resistant for boats, ports, and offshore platforms.
  4. Automotive & Aerospace – Secures cables in vehicles and aircraft wiring systems.
  5. Construction & Infrastructure – Used in civil, nuclear, and heavy engineering projects.

Product Advantages

  1. High Tensile Strength – Supports up to 200 lbs for heavy-duty applications.
  2. Corrosion Protection – Polyester coating prevents rust and chemical damage.
  3. UV & Fire Resistant – Suitable for prolonged outdoor use.
  4. Easy & Safe Installation – Rounded edges protect cables and hands.
  5. Versatile Material Options – 304/316 stainless steel for varying environmental needs.

FAQs

Q1: What materials are used in the cable tie?
A1: Stainless Steel Grade 304/316 with black polyester coating.

Q2: Are these ties suitable for outdoor use?
A2: Yes, they are UV and corrosion resistant for outdoor environments.

Q3: What is the maximum working temperature?
A3: Up to 150°C / 302°F.

Q4: Can they be used underwater or buried?
A4: Yes, suitable for underground and wet applications.

Q5: What is the tensile strength?
A5: Standard TX-SS304 ties support up to 200 lbs.

Q6: Are they safe for sensitive cables?
A6: Yes, smooth edges and PVC coating protect cables.

Q7: Can custom sizes be ordered?
A7: Yes, lengths and widths are customizable upon request.

Q8: Are these fire-resistant?
A8: Yes, they are non-flammable and halogen-free.
