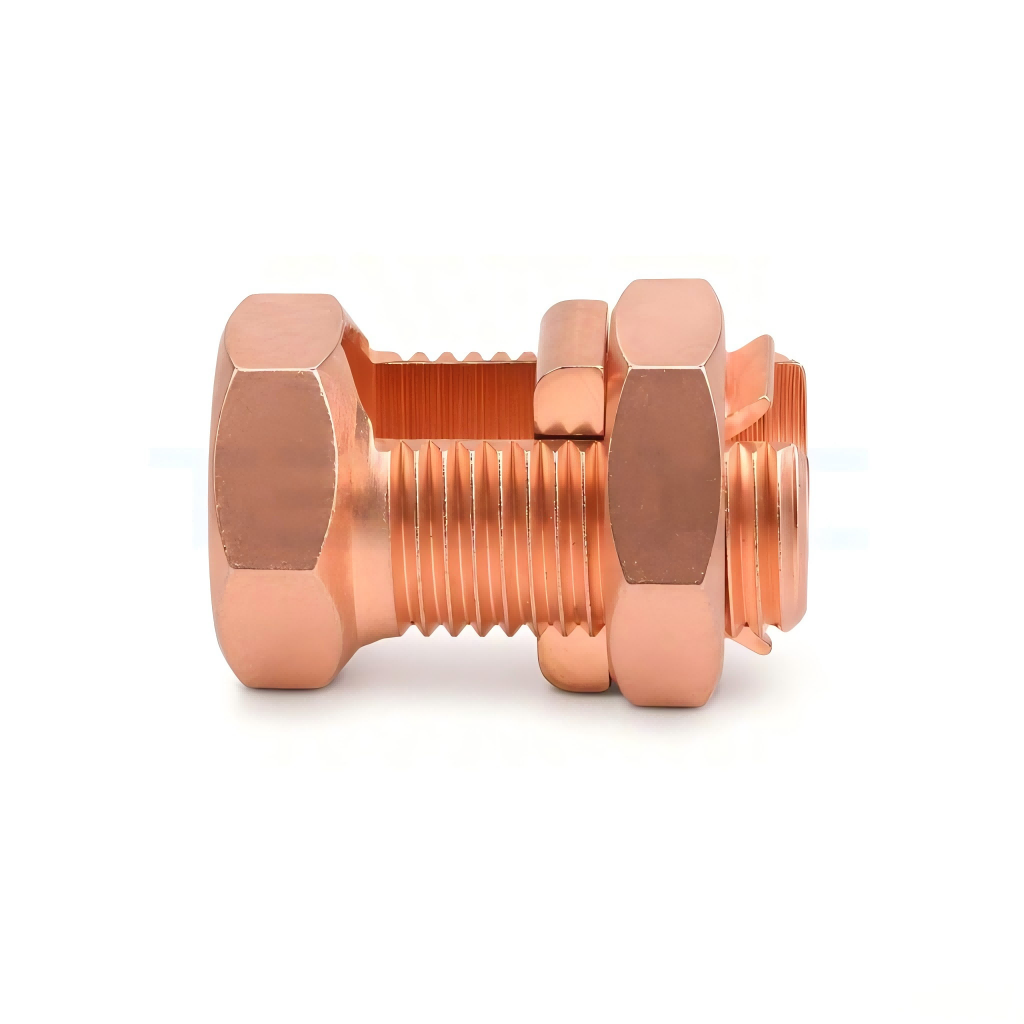

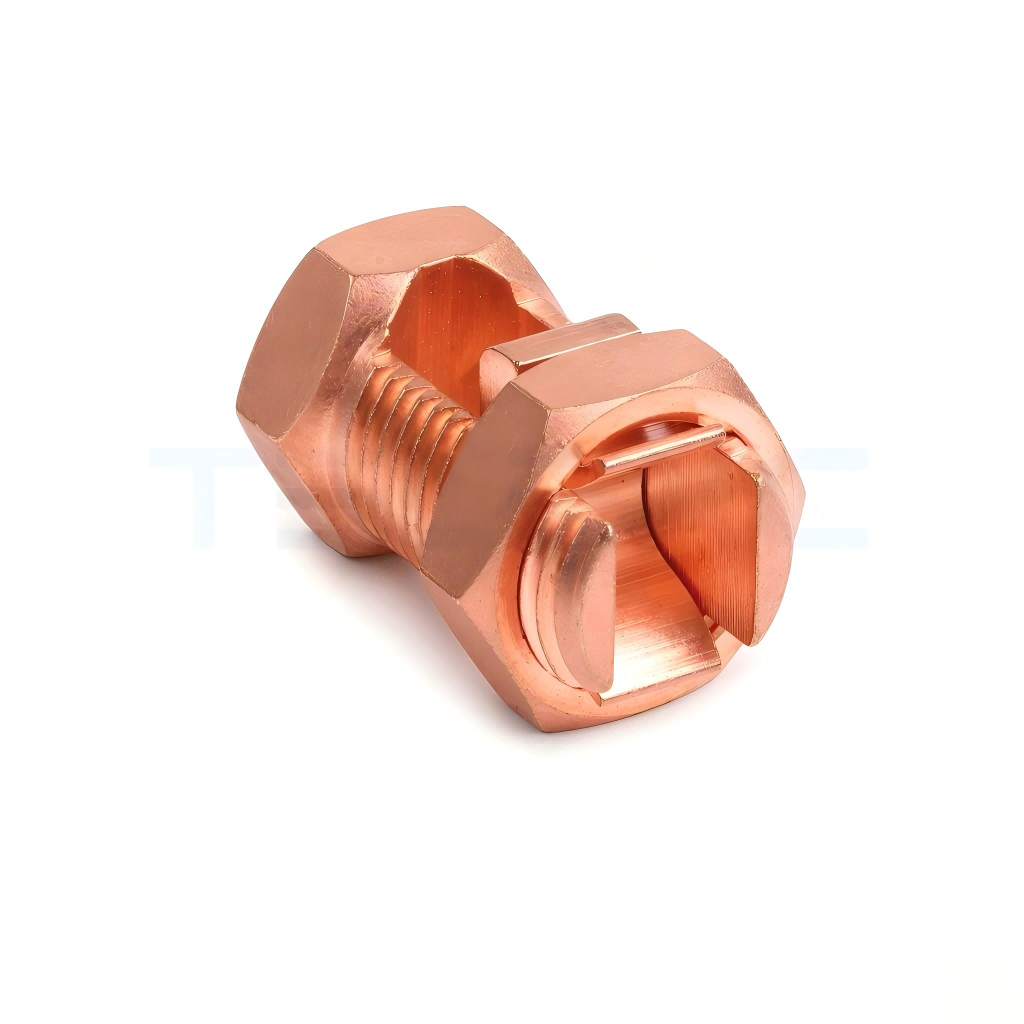

Split Bolt Connector – Copper Alloy Electrical Connector

Key Features

High Conductivity Copper Alloy
Ensures efficient current flow with minimal resistance.
Split Body Design
Allows easy insertion and secure fastening of conductors.
Large Thread Structure
Enables quick installation and strong clamping force.
Corrosion Resistant Construction
Suitable for outdoor and harsh environmental conditions.
Multi-Conductor Capability
Supports two or three conductor configurations.

Split Bolt Connector is a reliable electrical fastening solution designed for joining two or more conductors in power, grounding, and bonding applications. Manufactured from high-strength, high-copper alloy, it delivers excellent conductivity, strong mechanical grip, and long-term durability in both indoor and outdoor environments.

The Split Bolt Connector’s split-body design allows easy insertion and secure tightening around conductors, ensuring a low-resistance electrical connection. The large thread structure enables smooth installation and firm clamping, making it suitable for copper and copper-clad steel (Copperweld) cables across various electrical systems. It ensures secure copper wire connection with high conductivity, corrosion resistance, and reliable performance for grounding systems.

International Standard Compliance

Complies with UL and CSA standards
Suitable for direct burial applications
Designed for grounding and bonding systems
Manufactured under quality-controlled production standards

Construction & Materials

Body Material: High-strength copper alloy
Thread Design: Large-thread pattern for easy tightening
Structure: Split bolt configuration
Finish: Natural corrosion-resistant copper surface
Design Capability: Supports multi-conductor connections

Installation Guide

Prepare Conductors: Clean wires to remove dirt and oxidation.
Insert Conductors: Place wires inside the connector slot.
Align Properly: Ensure full contact between conductors.
Tighten Bolt: Use a wrench to secure the connection firmly.
Test Connection: Verify conductivity using a testing device.

Technical Parameters

Model No.	Cable Range (mm²)
TX-SBC-10	6 – 10 mm²
TX-SBC-16	11 – 16 mm²
TX-SBC-25	17 – 25 mm²
TX-SBC-35	26 – 35 mm²
TX-SBC-50-70	40 – 70 mm²
TX-SBC-90-120	75 – 120 mm²

Parameter	Specification
Product Type	Split Bolt Connector
Material	High Copper Alloy
Conductor Type	Copper / Copperweld
Installation Method	Wrench Tightening
Application	Electrical & Grounding Connections

Applications

Electrical Power Systems

Used for connecting conductors in power distribution networks.
Ensures stable and efficient current transfer.

Grounding & Earthing Systems

Provides secure bonding for grounding applications.
Enhances safety and fault current dissipation.

Industrial Installations

Suitable for heavy-duty electrical wiring systems.
Handles high current loads effectively.

Telecom & Utility Networks

Used in communication and infrastructure systems.
Ensures reliable electrical connections.

Direct Burial Applications

Can be installed underground without frequent maintenance.
Designed for long-term durability.

Product Advantages

Low Electrical Resistance

Ensures efficient energy transfer.
Reduces heat generation and power loss.

High Current Capacity

Supports demanding electrical loads.
Suitable for industrial applications.

Easy Installation

Simple tightening mechanism using standard tools.
Saves time in field operations.

Versatile Application

Supports multiple conductor sizes and configurations.
Flexible for various installation needs.

Long Service Life

Durable copper alloy resists corrosion and cracking.
Ensures reliable long-term performance.

FAQs

1. What is a split bolt connector used for?
It is used to join two or more electrical conductors securely.

2. What materials are supported?
It supports copper and copper-clad steel conductors.

3. Is it suitable for outdoor use?
Yes, it is corrosion resistant and suitable for harsh environments.

4. Can it be used underground?
Yes, it is suitable for direct burial applications.

5. How is it installed?
It is installed by tightening with a standard wrench.

6. Does it support multiple wires?
Yes, it can support two or three conductors depending on model.

7. Is it reusable?
It can be reused if not damaged during removal.

8. How to ensure proper connection?
Clean wires properly and tighten to recommended torque.
