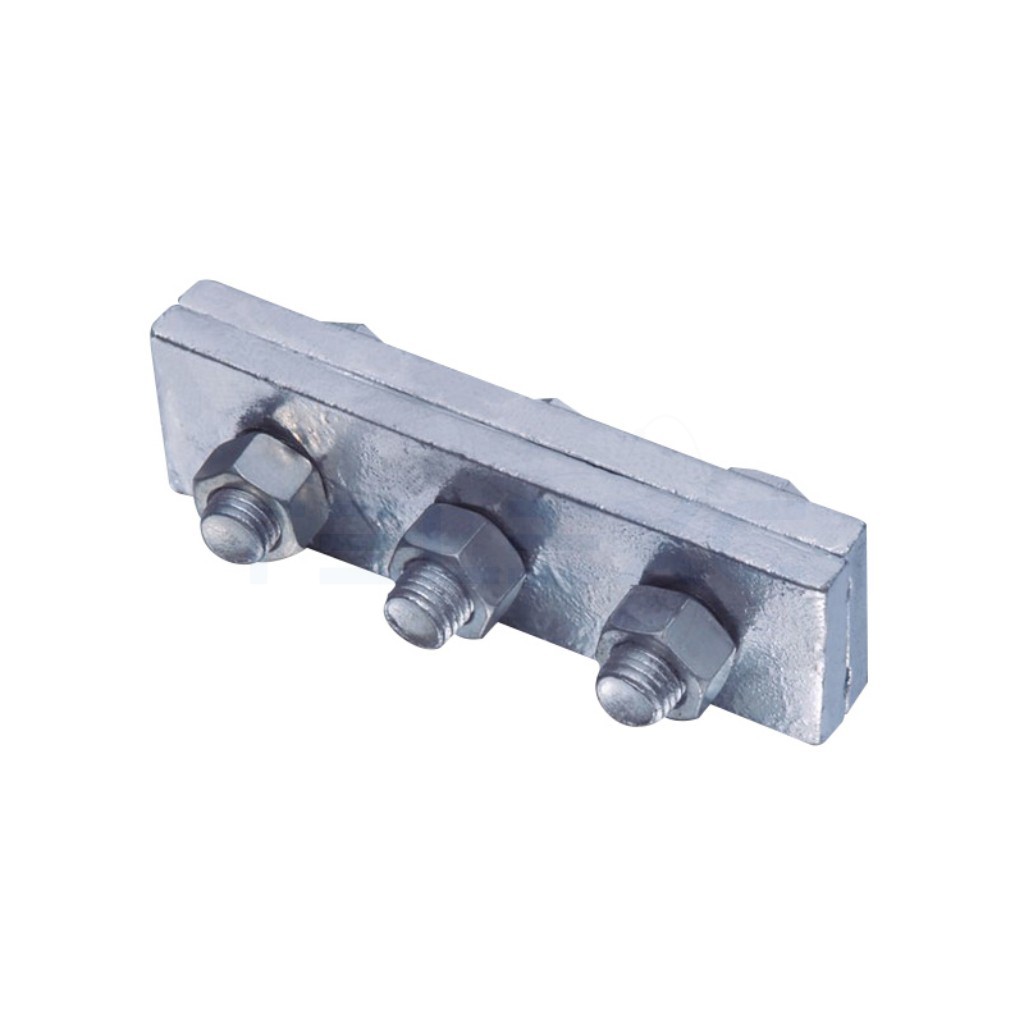

The TX-JB PG Clamp is a durable parallel groove connector specifically designed for aluminum conductors and ACSR (Aluminum Conductor Steel Reinforced) cables. It provides a stable electrical and mechanical connection without requiring conductor cutting, making it ideal for overhead transmission and distribution systems.
Constructed with a high-quality aluminum alloy body and hot-dip galvanized steel bolts, the clamp ensures low resistance, strong clamping force, and long service life. Its optimized groove structure maintains firm contact between conductors, ensuring efficient current flow even under varying environmental and load conditions.
International Standard Compliance
- Designed in accordance with IEC standards for electrical connectors
- Galvanization complies with ASTM A153
- Manufactured under an ISO 9001 quality management system
- Suitable for utility and industrial power applications
Construction & Materials
- High-Conductivity Aluminum Alloy
Ensures efficient electrical performance with minimal energy loss. - Hot-Dip Galvanized Steel Hardware
Provides mechanical strength and resistance to corrosion. - Two/Three Bolt Configuration
Offers balanced clamping force for different conductor sizes. - Precision Groove Alignment
Maintains conductor positioning and prevents slippage. - Non-Magnetic Design
Reduces energy loss and improves overall system efficiency.
Installation Guide
- Clean and inspect conductors before installation.
- Select the appropriate clamp size for the conductor range.
- Position conductors inside the clamp grooves.
- Assemble clamp halves and insert bolts.
- Tighten evenly and verify secure electrical contact.
