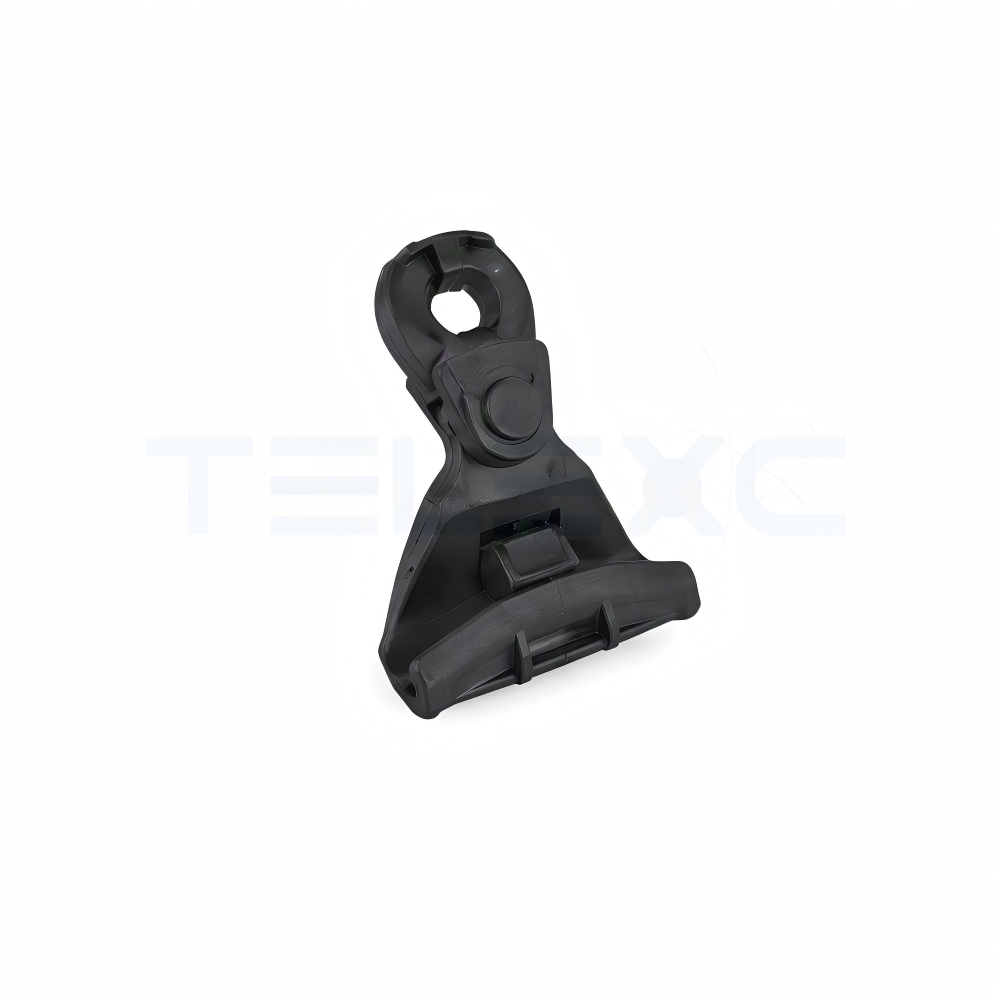

The TX-PS1500+LM Suspension Clamp is designed for secure suspension of low-voltage aerial bundled cables (LV ABC) with an insulated neutral messenger on wooden poles, concrete poles, and building walls. It provides stable cable support while minimizing mechanical stress on the conductor.

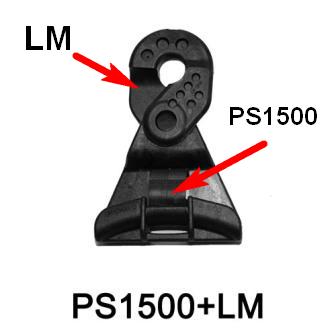

“PS1500” represents the clamp’s mechanical strength class (1500 daN), making it suitable for demanding outdoor environments. The “LM” (movable link) design allows flexible alignment during installation and helps reduce tension on the cable, improving overall system reliability.
The clamp features a tool-free installation system with a wing nut, enabling fast and efficient mounting without special tools. Its high-quality UV-resistant polyamide body, combined with corrosion-resistant metal components, ensures long-term durability under harsh weather conditions.
Engineered for modern power distribution networks, TX-PS1500+LM offers a reliable, maintenance-free solution where safety, durability, and quick installation are essential.
International Standard Compliance
Construction & Materials
-
Body: High-strength UV-stabilized polyamide (Ultramide grade)
-
Link & Fasteners: Corrosion-resistant aluminum alloy / galvanized steel
-
Design: One-piece construction with captive components to prevent loss during installation
Installation Guide
-
Position the clamp on the pole bracket or hook.
-
Insert the insulated neutral messenger cable into the clamp groove.
-
Tighten the wing nut manually until the cable is firmly secured.
-
Ensure proper alignment using the movable link feature.
-
Confirm secure fixation before energizing the line.
-
No special tools required.
FAQs
1. What cable sizes can TX-PS1500 support?
It supports ABC cables with cross-sections from 16 mm² to 120 mm².
2. Is any tool required for installation?
No, the clamp features a wing nut system for tool-free installation.
3. Can it be installed on walls as well as poles?
Yes, it is suitable for poles and wall-mounted applications.
4. What is the maximum load capacity?
The clamp has a breaking load of 12 kN and a vertical tensile strength of 1500 daN.
5. Is the material resistant to UV exposure?
Yes, the body is made from UV-resistant polyamide for outdoor durability.
6. Are there any loose parts?
No, the clamp is designed with captive components to prevent part loss.
7. What standards does this product comply with?
It complies with EN 50483-3 and NF C 33-040 standards.
8. What is the weight of the clamp?
Approximately 178 grams per unit.
