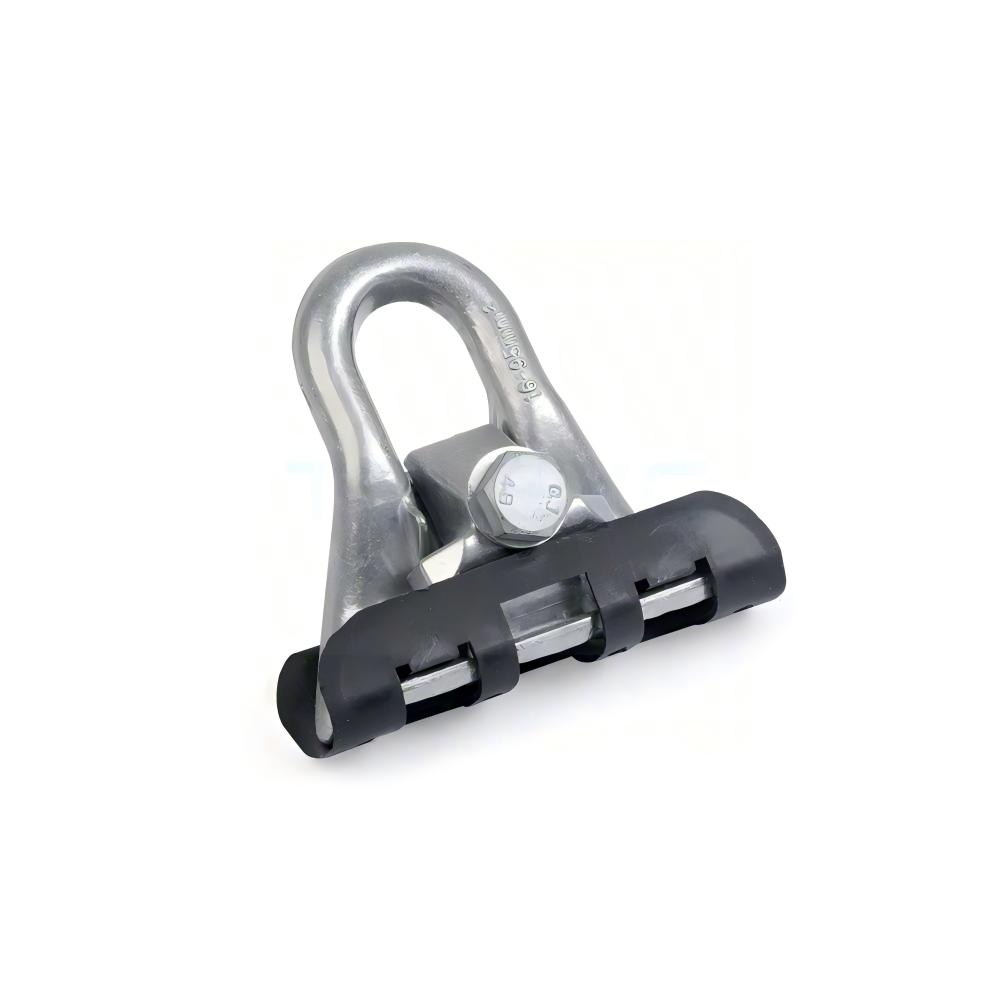

The TX94 Suspension Clamp is engineered for 16–95 mm² low-voltage ABC (Aerial Bundled Cable) systems, providing high-tension support and secure suspension. Designed for self-supporting, insulated, and bare messenger LV-ABC lines, it ensures cables remain stable under mechanical stress, environmental conditions, and daily operational load.
Constructed from high-strength aluminum alloy and hot-dip galvanized steel, the clamp includes a shear-head bolt and adjustable clamping mechanism, enabling tool-free installation without damaging cable insulation. Compatible with eye bolts, pigtail hooks, and insulation piercing connectors, it offers flexible mounting solutions for poles or walls.
The TX94 clamp is suitable for residential, commercial, and light industrial installations, ensuring long-lasting reliability, corrosion resistance, and minimal maintenance.
International Standard Compliance
-
EN 50483-2 – LV ABC accessories standard
-
NFC 33-042 – French standard for ABC cable clamps
-
Meets GB/T2314-1997, GB/T2317.3-2000, GB/T13140.4-1998 for mechanical, thermal, and environmental performance
Construction & Materials
-
Clamp Body: High-strength aluminum alloy
-
Bolts: Galvanized steel for corrosion resistance
-
Insulating Cover: UV and weather-resistant engineering plastic
-
Durable under extreme temperatures, humidity, chemical exposure, and UV radiation
-
Ensures insulation protection and mechanical reliability
Installation Guide
-
Cable Measurement: Mark the suspension point on the ABC cable.
-
Clamp Positioning: Align the clamp at the marked location.
-
Cable Securing: Tighten the shear-head bolt or wingnut to grip the cable firmly.
-
Verification: Ensure no slippage occurs, and the cable is stable.
-
Optional Accessories: Use eye bolts, pigtail hooks, or insulation piercing connectors as needed.
Required Tools: Minimal; tool-free installation with pre-installed bolts
