The ADSS/OPGW metal junction box is a splicing box designed to house the fiber core splices to the outdoor intermediate optical cable leading to the patch panel. It serves on power transmission and distribution lines to protect and organize fiber optic cable splices, connectors, and branching points for ADSS and OPGW cables. The junction box consists of stainless steel, galvanized steel, or aluminum alloy that protects optical fiber splicing and cable connections from environmental conditions. The metal junction box serves as a centralized point for managing fiber optic connections while ensuring reliable data transmission. Modern electrical utilities rely on fiber optic communication for supervisory control, protection relays, remote monitoring, and smart grid applications. Additionally, the box protects fiber connections by ensuring uninterrupted data transmission between substations, control centers, and field equipment.

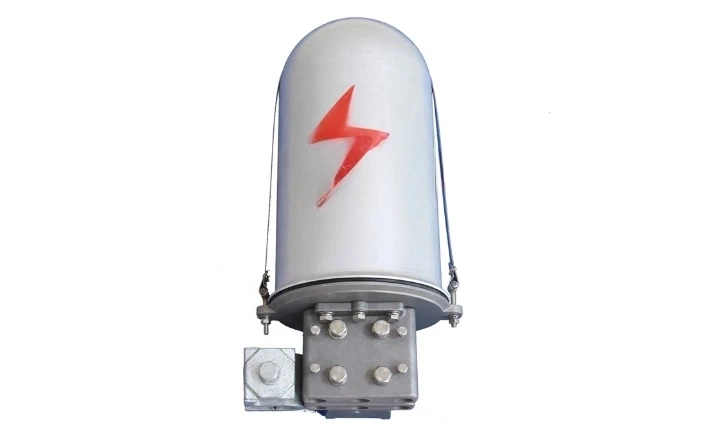

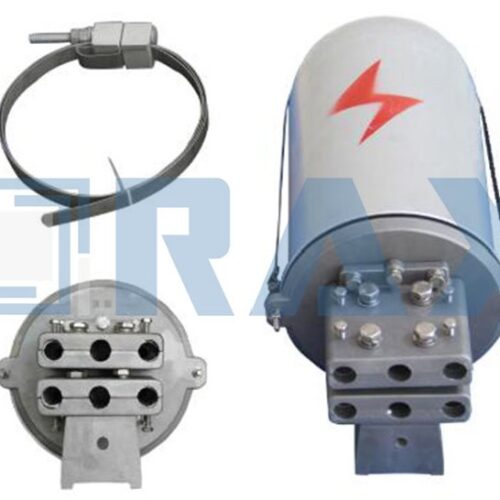

ADSS / OPGW Metal Junction Box Dome Type for Pole & Tower
Key Features
- Designed for ADSS and OPGW fiber optic cables
- High‑strength aluminum alloy enclosure
- Lockable structure for enhanced security
- Dome‑to‑base design with hinged splice trays
- Supports up to 8 splice trays
- Guaranteed fiber bending radius ≥ 40 mm
- Excellent waterproof, dustproof, and anti‑corrosion performance
- Lightning protection and grounding device included
- Easy re‑entry and repeatable sealing
- Suitable for tower, pole, wall, aerial, duct, and direct‑buried installations

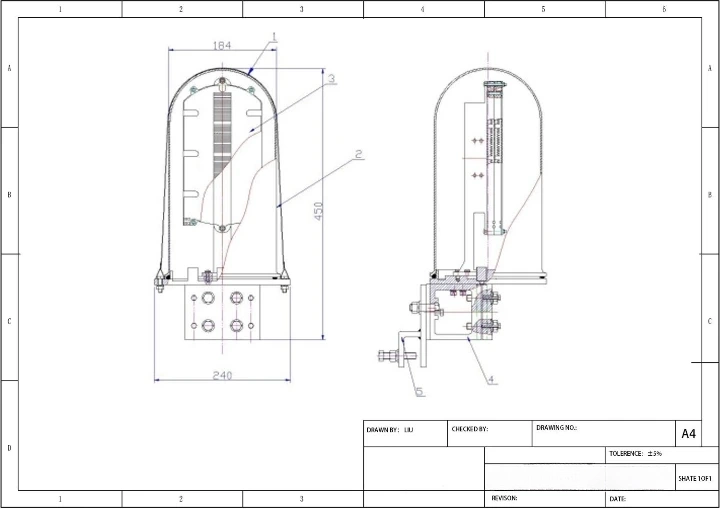

Components of the ADSS/OPGW metal junction box
An ADSS/OPGW metal junction box protects and organizes fiber optic connections in power transmission and distribution networks. It consists of components and features that ensure reliable operation under demanding outdoor conditions while simplifying installation and maintenance. The metal box is corrosion resistant, has a weatherproof design, high mechanical strength, large fiber capacity, and flexible cable management. The common components include:
- Metal enclosure—this is the main protective housing that shields internal fiber optic components from mechanical damage. It protects fiber splices and cables, prevents unauthorized access, and supports outdoor installation.
- Fiber splice trays – the trays hold fusion splices while maintaining fiber bend radius. It organizes optical fibers, protects fusion splice sleeves, and allows orderly expansion.
- Cable entry and exit ports – these allow ADSS or OPGW cables to enter and leave the enclosure while maintaining a weatherproof seal. The ports secure cable routing, prevent water ingress, and reduce mechanical stress on fibers.
- Cable glands and sealing systems—these create a watertight seal around incoming cables. This prevents moisture penetration, blocks dust, and improves cable retention.
- Cable clamps and strain relief devices—these secure the cable before it reaches the splice area. It also prevents cable movement, reduces tensile stress, and protects delicate fiber splices.
- Fiber management system – this is the internal routing system that includes guides, organizers, and retainers. The system maintains minimum bend radius, prevents fiber tangling, and improves maintenance efficiency.
- Mounting brackets – these attach the junction boxes to poles, towers, or walls. They ensure secure installation, resist wind and vibration, and simplify installation.
Types of the ADSS/OPGW metal junction box
Metal junction boxes are available in different configurations to accommodate different installation environments, cable capacities, and network requirements. The type selected depends on the cable system, mounting method, application, and fiber management needs.

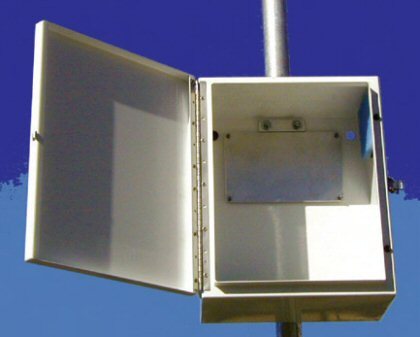

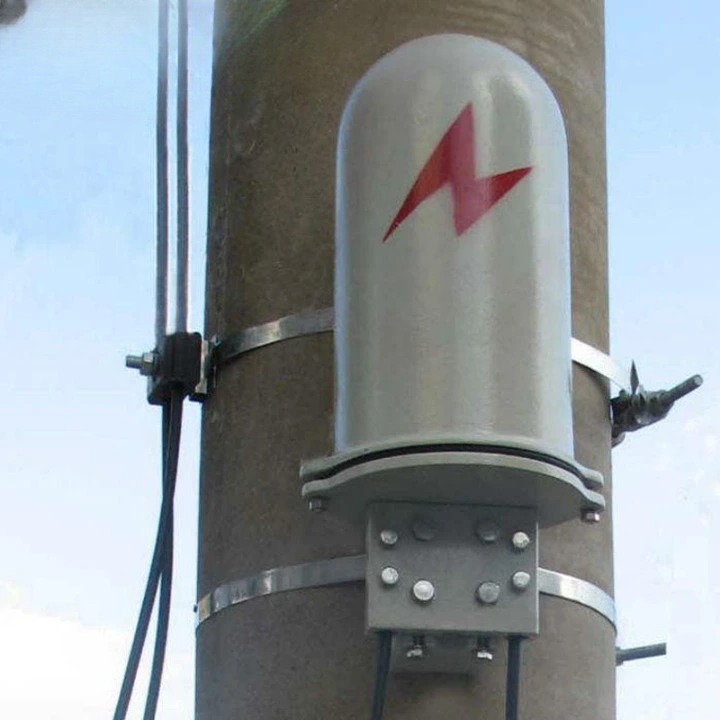

Pole-mounted metal junction box
These are designed for installation on utility poles carrying ADSS or OPGW fiber optic cables. It serves in distribution power lines, rural communication networks, smart grid infrastructure, and telecommunication networks. It consists of a compact design, stainless steel, and pole-mounting brackets and is suitable for medium fiber capacities.
Tower-mounted splicing box
These boxes are specifically designed for high-voltage transmission towers where OPGW cables are installed. This includes transmission lines, utility substations, and long-distance fiber optic communication networks. It consists of heavy-duty construction, high resistance to vibration, secure mounting hardware, and enhanced weatherproof protection.
Wall-mounted fiber splicing box
These are installed on building walls, control rooms, substations, and equipment shelters. They consist of a compact footprint, a lockable enclosure, organized cable routing, and easy accessibility. Wall-mounted boxes offer efficient space use, simplified maintenance, and enhanced security.

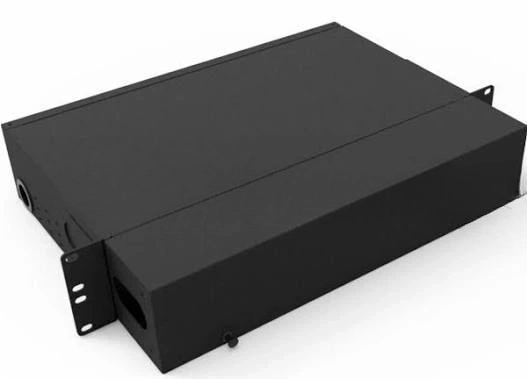

Rack-mounted fiber junction box
The junction boxes fit standard equipment racks in communication rooms and data centers. They serve in utility communication centers, network operation centers, and fiber distribution rooms. It has standard rack dimensions, high-density fiber management, modular splice trays, and front-access maintenance.

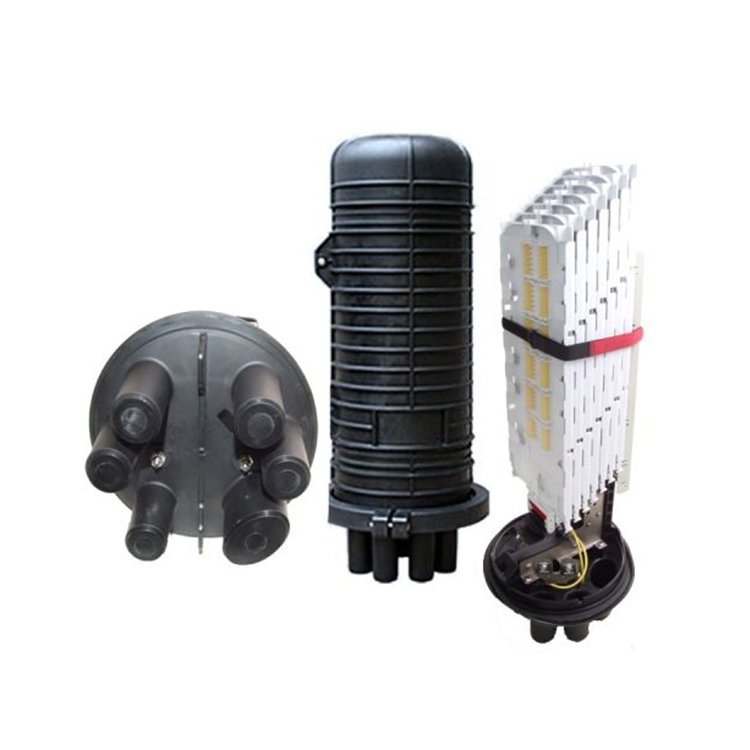

Inline metal junction box
The junction box connects two fiber optic cable sections along a transmission route. It serves in cable extensions, fiber repairs, and long-distance communication lines. It consists of compact design, sealing performance, and straight-through cable routing.
High-capacity splicing box
The models are ideal for communication systems that need a large number of fiber connections. It serves in backbone communication networks, major substations, and regional fiber hubs. It supports network growth, efficient fiber organization, and reduced need for extra enclosures.

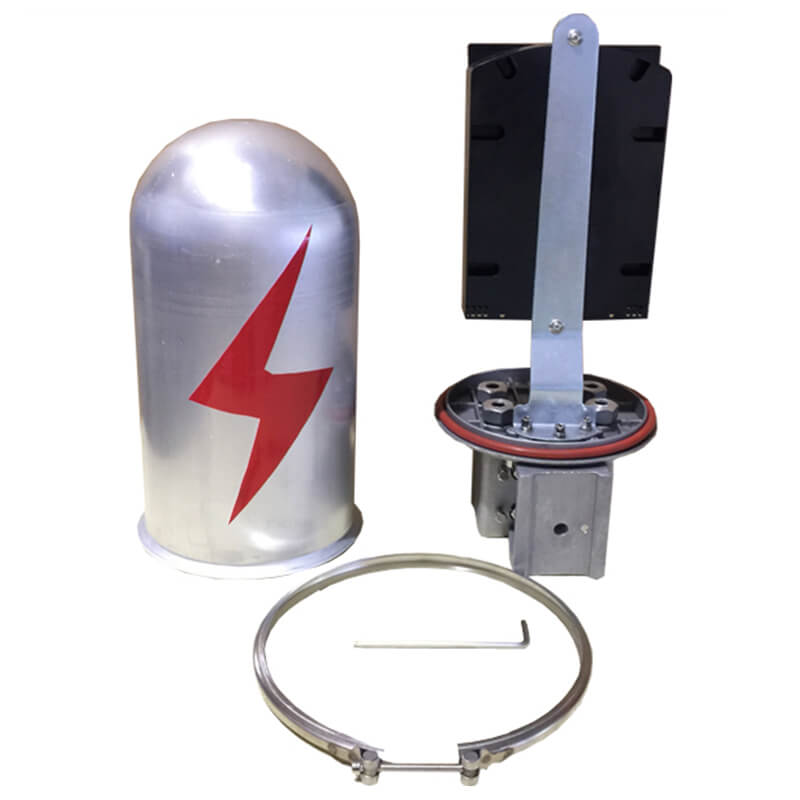

Key functions of the fiber splicing box in power networks
The splicing metal box serves as the interface between optical fiber cables used for communication, monitoring, protection, and control in electrical transmission and distribution networks. They provide a secure and organized environment for fiber optic connections. This helps maintain reliable communication and supports the safe operation of the power grid. Here are the key functions of the metal junction box.
- Protecting fiber optic splices and connections – the splicing box protects fusion splices and optical fiber connections from physical damage and environmental hazards. It protects fibers against moisture ingress, dust, UV radiation, mechanical impact, rodent damage, and corrosion.
- Providing secure cable termination – the box serves as a secure termination point for ADSS and OPGW cables installed along transmission and distribution lines. Its cable management system anchors incoming and outgoing cables, prevents excessive cable movement, and relieves mechanical stress on fiber splices.
- Supporting fiber splicing and distribution—the metal junction box enables fusion splicing, cable branching, fiber distribution, and network expansion. This allows utilities to extend communication networks without replacing the existing infrastructure.
- Organizing fiber management – the internal splice trays and cable routing accessories maintain an organized fiber layout. Fiber management prevents fiber entanglement, reduces bending losses, and improves maintenance efficiency.
- Enabling reliable power system communication – the splicing box maintains dependable communication for SCADA systems, teleprotection systems, substation automation, and remote monitoring. This offers reliable communication that allows utilities to track and control electrical assets in real time.
- Enhancing network reliability – the junction box reduces communication failures by protecting fiber infrastructure from environmental and mechanical damage. This results in lower network downtime, stable data transmission, and improved system availability.
Selecting the right ADSS/OPGW metal junction box
Selecting the right ADSS/OPGW metal junction box ensures the reliability, safety, and performance of fiber optic communication systems in power transmission and distribution networks. The right junction box should match the cable type, installation environment, network capacity, and operational requirements. Here are the key considerations for selecting the metal junction box.
- Determine cable type – choose a junction box compatible with the cable construction to ensure proper installation and safe operation. Check whether the box will work with ADSS or OPGW cables.
- Consider the installation location – the mounting method should suit the installation environment. Common installation options include pole-mounted, transmission tower-mounted, wall-mounted, substation-mounted, or communication-cabinet-mounted.
- Evaluate fiber capacity—select a junction box with enough splice and fiber management capacity for current and future network requirements. Common capacities include 12 cores, 24 cores, 48 cores, up to 288 cores, and higher.
- Check the ingress protection rating—the junction boxes should provide effective protection against dust and water. Higher IP ratings improve reliability in severe weather conditions.
- Assess environmental conditions – consider exposure to high temperatures, low temperatures, heavy rainfall, UV radiation, and high humidity.
- Verify mechanical strength – the junction box should withstand cable tension, mechanical impact, and transportation loads.
- Confirm cable entry configuration – the enclosure should support the needed number and size of cable entries. It is important to consider the number of cable ports, cable diameter compatibility, waterproof cable glands, and future expansion needs.
ADSS/OPGW metal junction box installation guide
Proper installation of the metal junction box protects fiber optic connections, maintains communication reliability, and ensures the performance of power transmission and distribution networks. Here is the installation process for the junction box.
- Select suitable ports and prepare cable entry.
- Strip the cable sheath and secure strength members.
- Clean fibers and route loose tubes into protective sleeves.
- Arrange excess fiber length in the storage bracket.
- Perform fiber fusion splicing and secure joints in splice trays.
- Seal cable entries using heat-shrink tubes.
- Close the enclosure and lock the clamps.
- Mount the junction box using tower, pole, or wall-mounting kits.
Technical specifications for the fiber splicing junction box
A fiber splicing junction box protects, organizes, and manages optical fiber splices in power transmission and distribution networks. High-quality junction boxes conform to industry standards for optical, mechanical, and environmental performance. The mechanical and environmental specifications include:
| Parameter | Specification |
| Enclosure material | Aluminum Alloy |
| Protection rating | IP65 (IEC 60529) |
| Operating temperature | -40°C to +65°C |
| Storage temperature | -40°C to +80°C |
| Atmospheric temperature | 62–106 kPa |
| Fiber bending radius | ≥ 47 mm |
| Excess fiber storage | ≥ 1.5 m |
| Axial tensile strength | ≥ 1000 N (1 min) |
| Side crush resistance | ≥ 2000 N / 100 mm (1 min) |
| Insulation resistance | ≥ 2 × 10⁴ MΩ |
| Dielectric strength | 15 kV DC / 1 min (no breakdown) |
| Sealing performance | Heat-shrink + silicone gasket |
| Designed service life | ≥ 25 years |
Applications of ADSS/OPGW metal junction boxes
An ADSS/OPGW metal junction box provides a secure enclosure for fiber splicing, cable distribution, and connection management. It ensures reliable communication between substations, control centers, and field equipment. It has a robust construction that makes it suitable for demanding outdoor environments that need reliability. Common application areas include:
- Power transmission OPGW networks
- ADSS aerial fiber optic links
- FTTX/FTTH/FTTB networks
- Telecom backbone infrastructure
- CATV and data communication systems
- Long-distance outdoor fiber deployments
