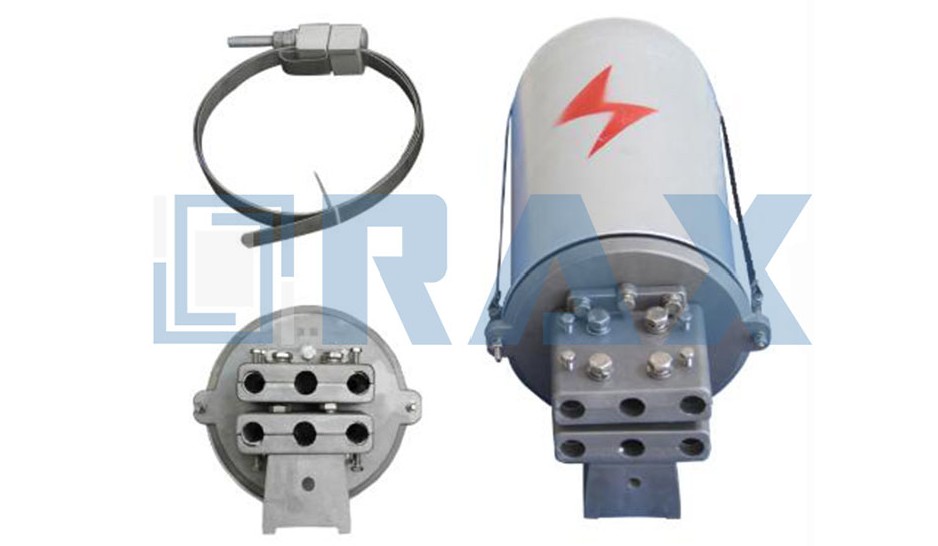

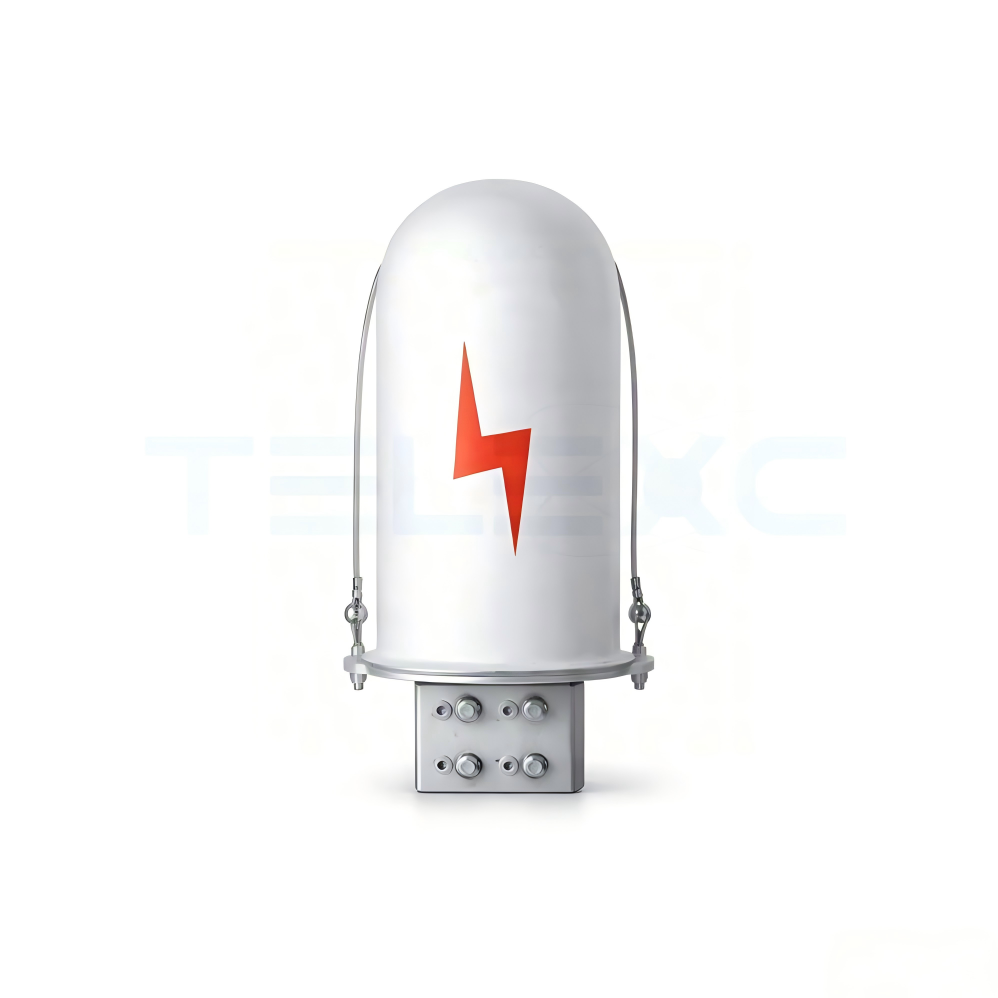

The Telexc TX Series ADSS/OPGW Metal Junction Box is a heavy‑duty outdoor fiber optic splice enclosure designed for secure splicing and protection of ADSS (All‑Dielectric Self‑Supporting) and OPGW (Optical Ground Wire) cables. It is widely used in power transmission lines, telecom backbones, FTTX networks, CATV, and long‑distance optical communication systems.
Manufactured from high‑strength aluminum alloy, the enclosure delivers excellent mechanical strength, corrosion resistance, and long‑term reliability under high‑voltage electric field environments. The dome‑to‑base structure supports multiple splice trays with hinged access, allowing maintenance of any tray without disturbing others. Advanced sealing technology ensures IP65 protection against water, dust, vibration, UV exposure, and extreme temperatures.
The TX Series is suitable for tower mounting, pole mounting, wall installation, aerial deployment, duct installation, and direct burial, providing flexible solutions for diverse outdoor network scenarios.
International Standard Compliance
- IEC 60529 (IP Protection Rating)
- IEC 61300 (Fiber Optic Interconnecting Devices)
- ISO 9001 Quality Management System
- ITU‑T recommendations for optical fiber networks
Construction & Materials
- Enclosure body: High‑grade aluminum alloy
- Sealing system: Heat‑shrink tubes, silicone sealing rings, and clamps
- Splice trays: Smooth, burr‑free polymer trays
- Grounding system: Integrated lightning protection and earthing terminal
- Fasteners: Stainless steel and anti‑corrosion hardware
Installation Guide
- Select suitable ports and prepare cable entry.
- Strip cable sheath and secure strength members.
- Clean fibers and route loose tubes into protective sleeves.
- Arrange excess fiber length in the storage basket.
- Perform fiber fusion splicing and secure joints in splice trays.
- Seal cable entries using heat‑shrink tubes.
- Close the enclosure and lock the clamps securely.
- Mount the junction box using tower, pole, or wall mounting kits.
Mechanical & Environmental Parameters
| Parameter | Specification |
|---|---|
| Enclosure Material | Aluminum Alloy |
| Protection Rating | IP65 (IEC 60529) |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -40°C to +80°C |
| Atmospheric Pressure | 62–106 kPa |
| Fiber Bending Radius | ≥ 47 mm |
| Excess Fiber Storage | ≥ 1.5 m |
| Axial Tensile Strength | ≥ 1000 N (1 min) |
| Side Crush Resistance | ≥ 2000 N / 100 mm (1 min) |
| Insulation Resistance | ≥ 2 × 10⁴ MΩ |
| Dielectric Strength | 15 kV DC / 1 min (no breakdown) |
| Sealing Performance | Heat-shrink + silicone gasket |
| Designed Service Life | ≥ 25 years |
