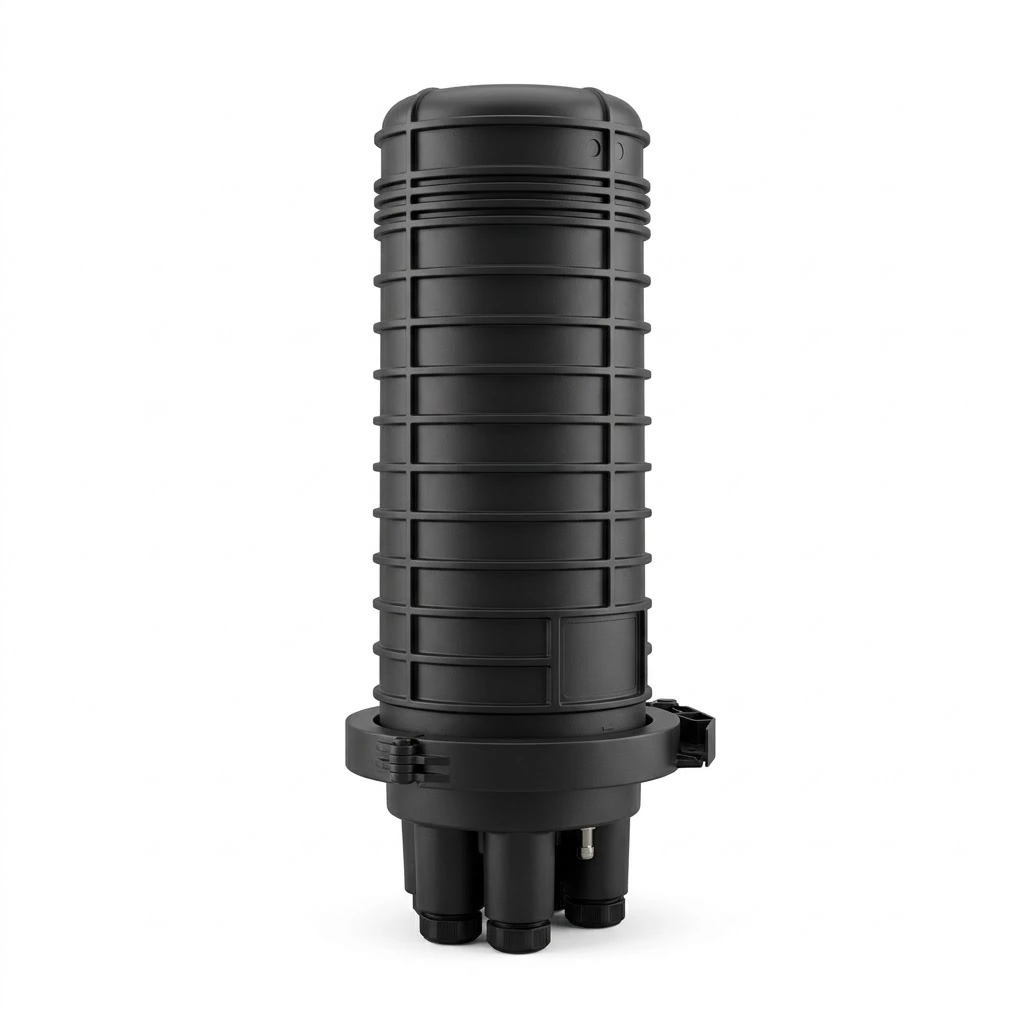

Mechanical Sealed Vertical Dome Enclosure
A fiber optic dome closure provides a secure, environmentally sealed housing for outdoor cable splices in aerial, duct, and direct-buried outside plant deployments. Designed to manage up to 144 fiber cores, this enclosure incorporates a fully mechanical sealing structure to protect optical connections against moisture and dust in harsh outdoor environments.
The fiber optic dome closure protects high-capacity fiber splices across outside plant infrastructure. Constructed from polypropylene with glass fiber (PP+GF), the enclosure withstands outdoor exposure while maintaining structural integrity. It accommodates a maximum capacity of 144 fibers utilizing up to 6 splice trays, with each tray supporting up to 24 single fusion splices.
Key Features
-
Capacity: Supports up to 144 cores capacity utilizing a maximum of 6 splice trays, with each tray accommodating up to 24 single fusion splices.
-
Sealing Structure: Utilizes a mechanical sealing structure providing IP68 airproofing performance for cable entries.
-

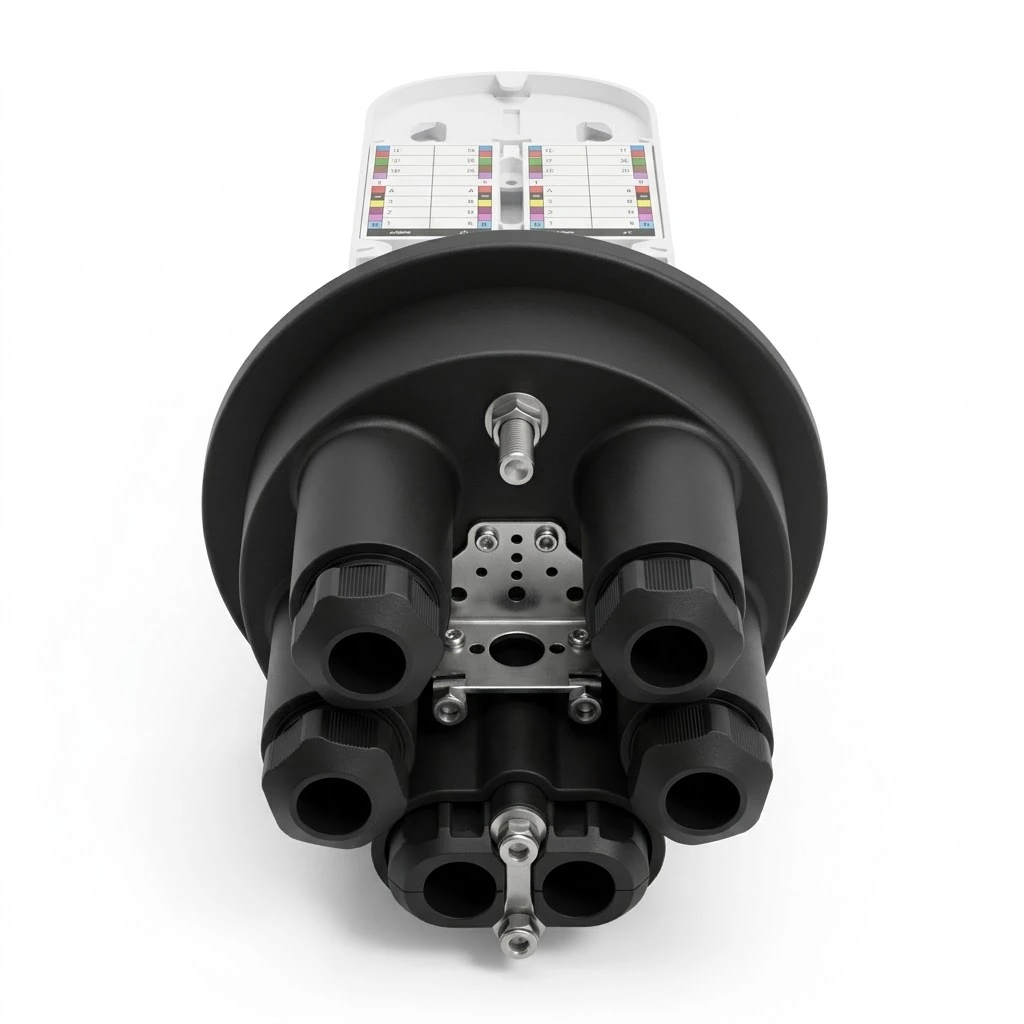

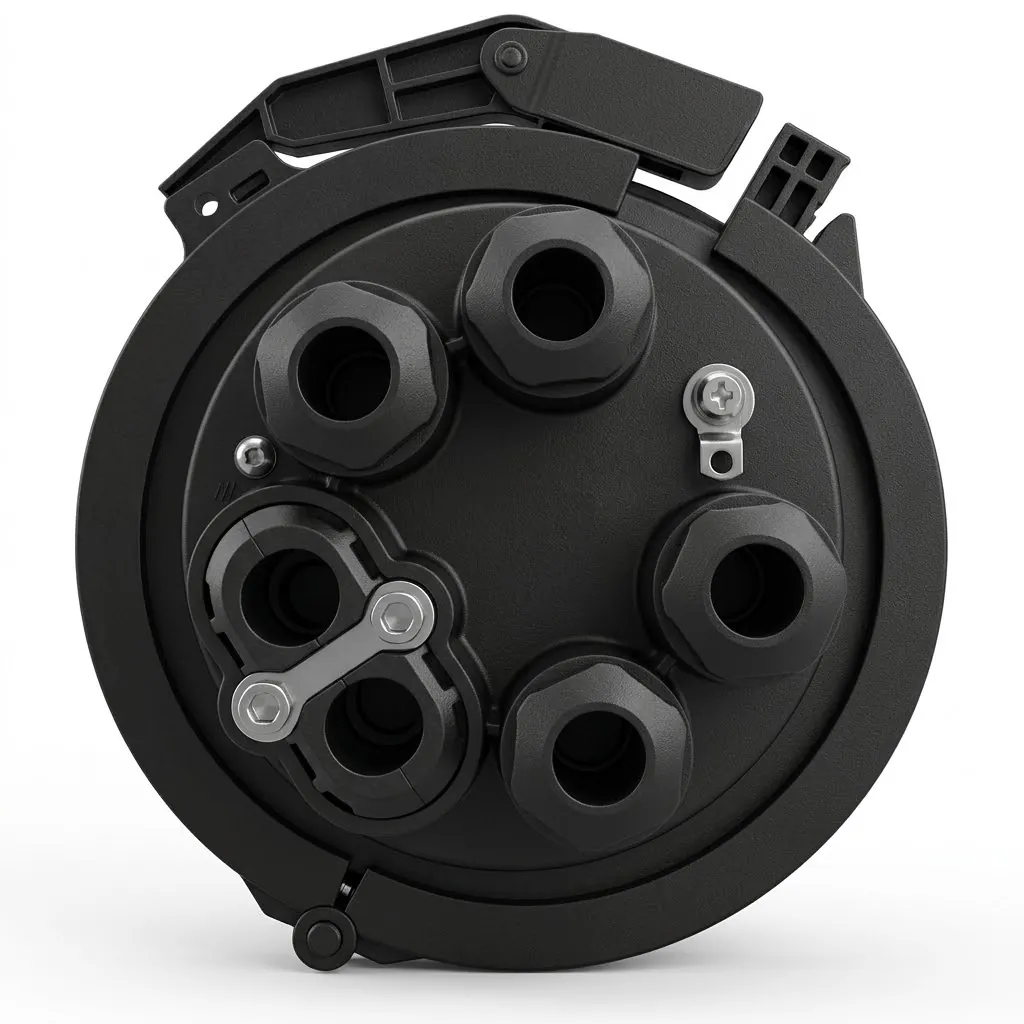

Cable Entrances: Features 5 total cable entrances, including 4 small ports for cable diameters from 5 to 7 mm and 1 elliptical port for cable diameters from 10 to 17.5 mm.
-
Mechanical Protection: Delivers an impact strength of 16 N-m and an IK09 rating.
-
Enclosure Body: Built with a PP+GF material housing, a plastic hoop securing the bottom and cover, and a seal fitting for waterproofing.
- Electrical Isolation: Delivers insulation resistance and withstands voltage resistance up to 15 kV DC between metallic components.

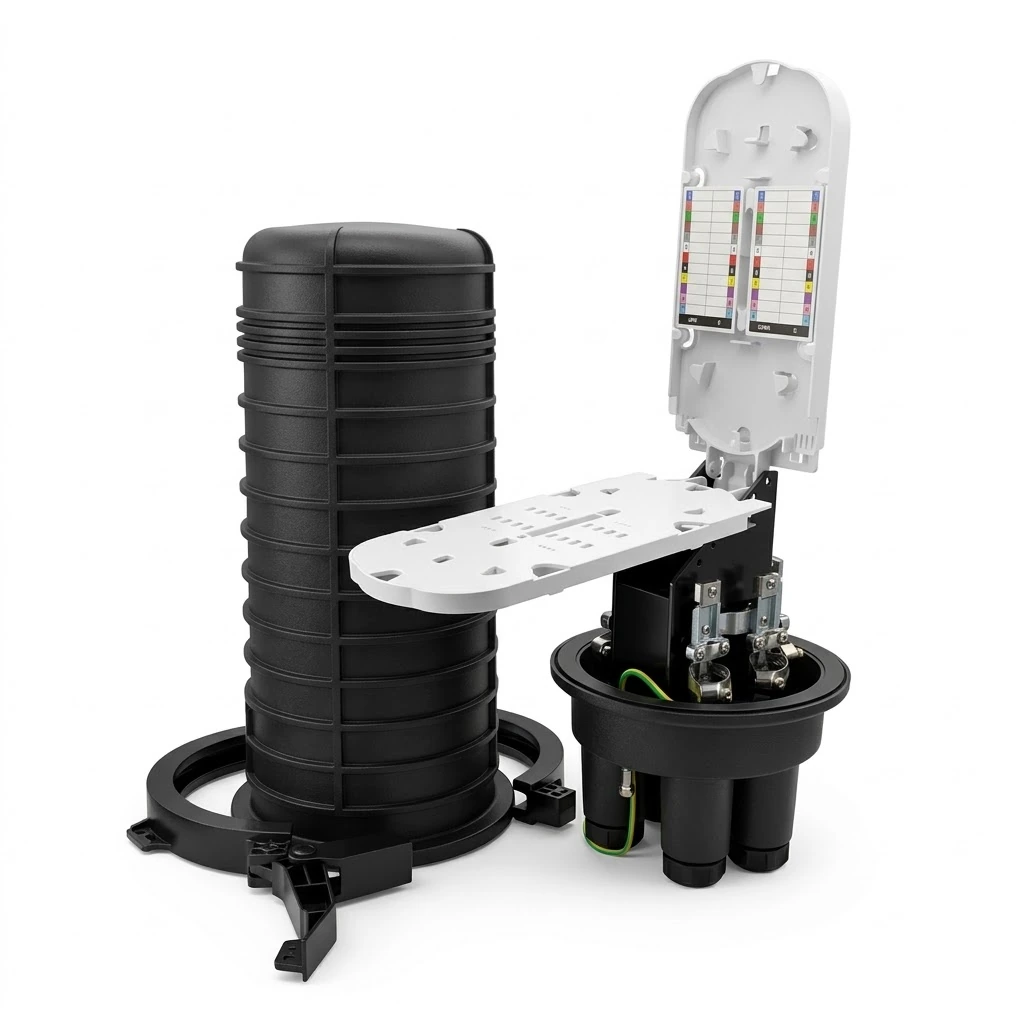

Product Configuration
The closure assembly includes the following primary components and standard accessories:
-

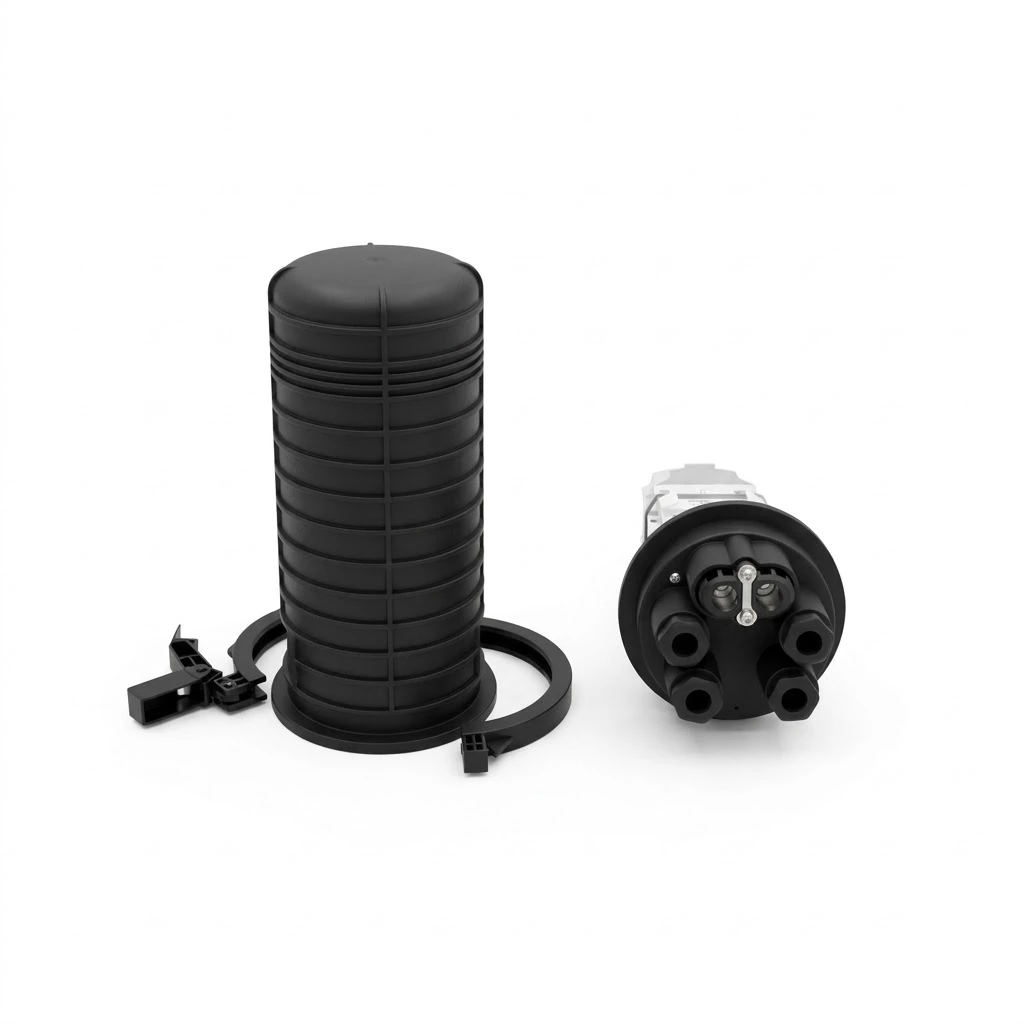

Cover: 1 piece with dimensions of 450 x 230 mm.
-
Base: 1 set for fixing internal components.
-
Plastic Hoop: 1 set for securing the bottom and cover.
-
Seal Fitting: 1 piece for waterproof and sealing functions.
-

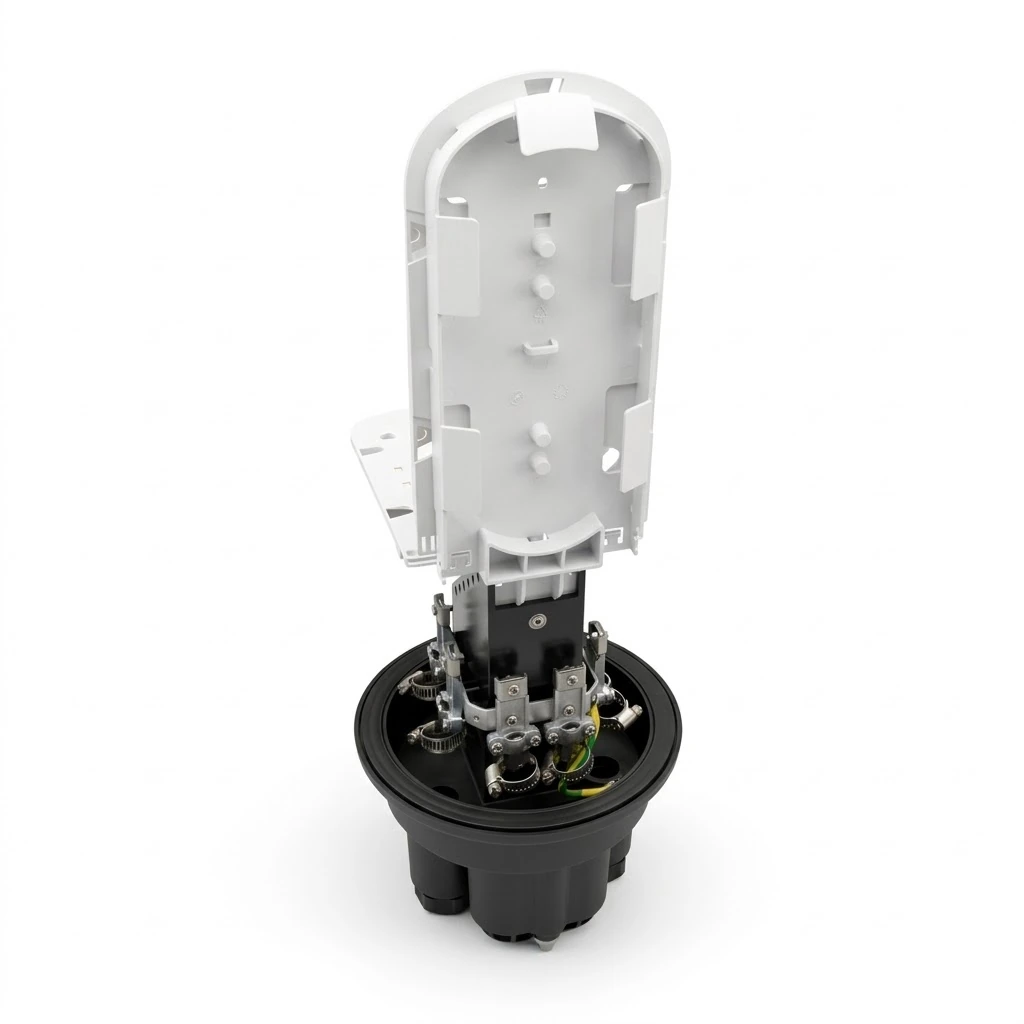

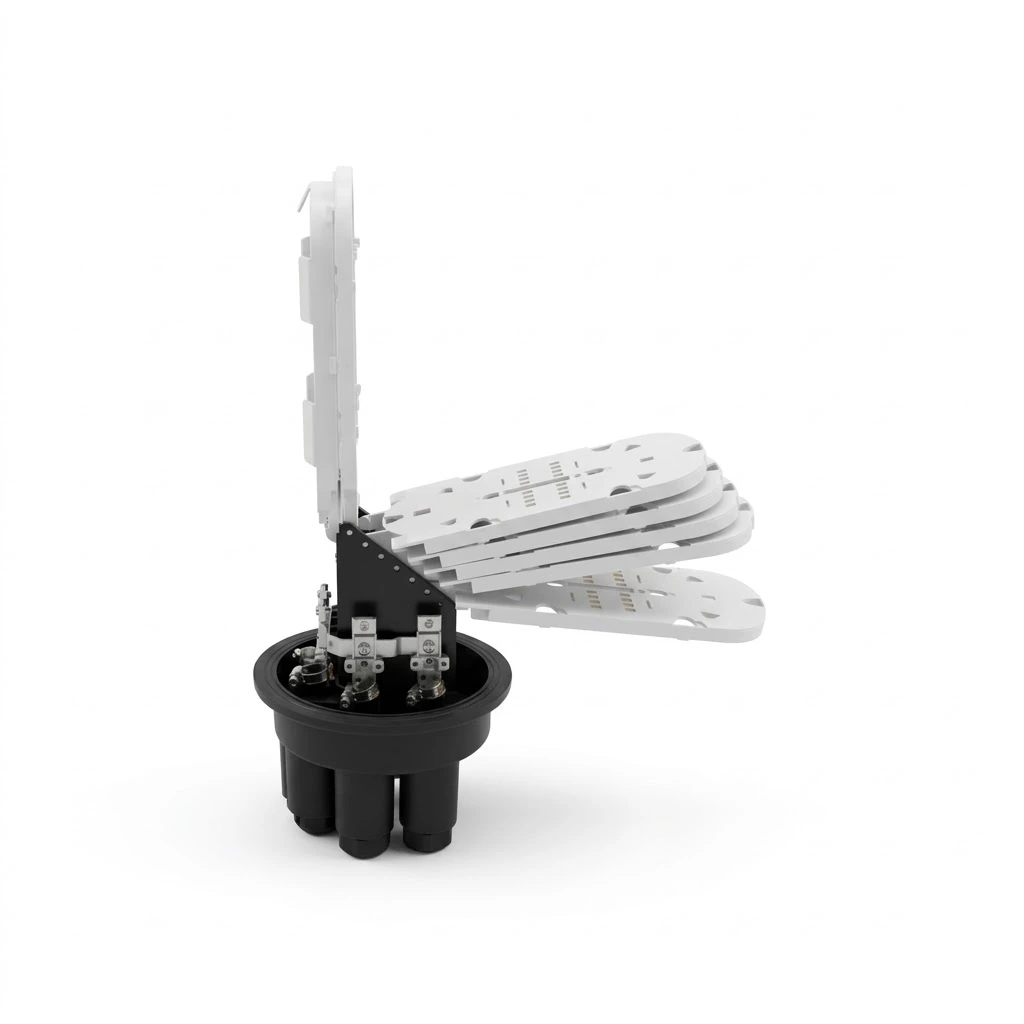

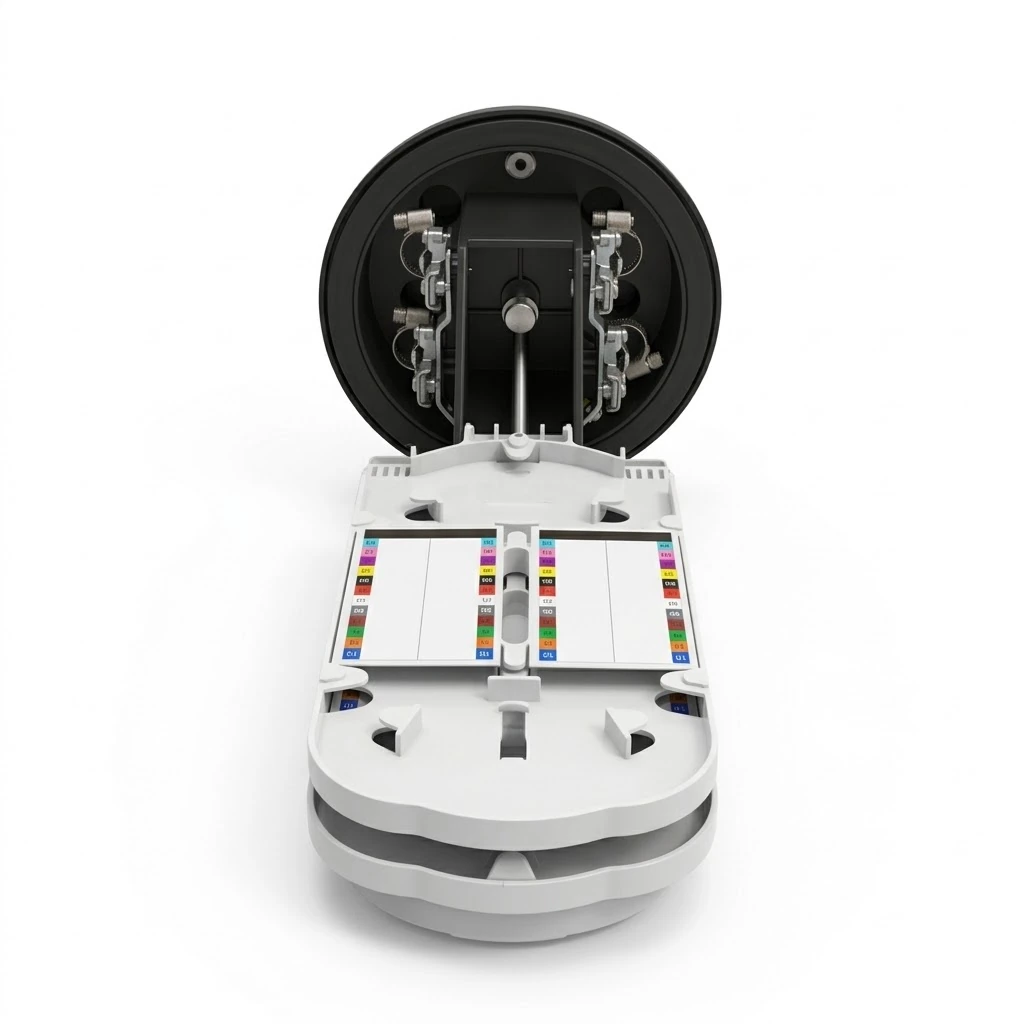

Plastic Tray Holder: 1 set for fixing the splice tray and storing non-cut cable.
-

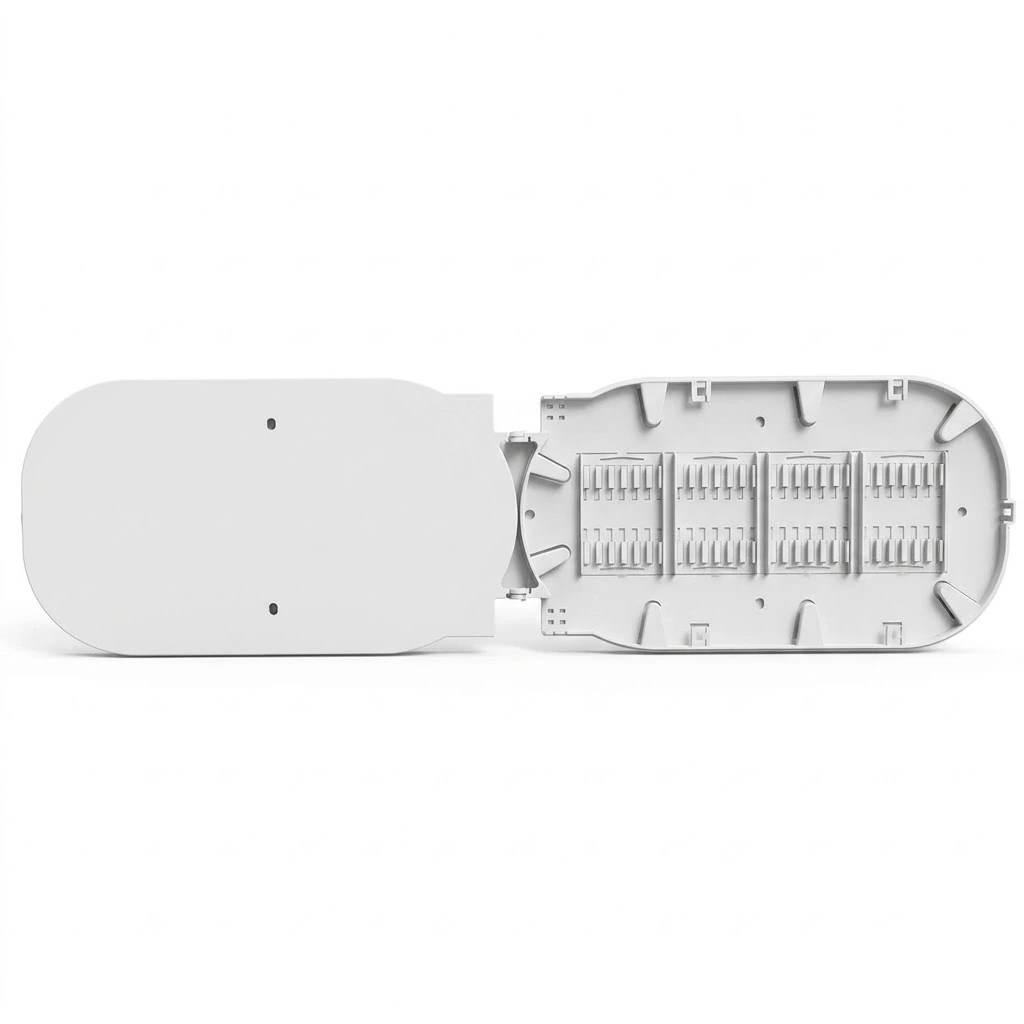

Fiber Splice Tray: Quantity based on the fiber count of the enclosure.
-
Accessories Kit: Includes fiber splice protective tubes, nylon ties, a pole hoop for mounting, labeling paper, insulating tape, and a 1 m EVA transparent hose for fiber protection.

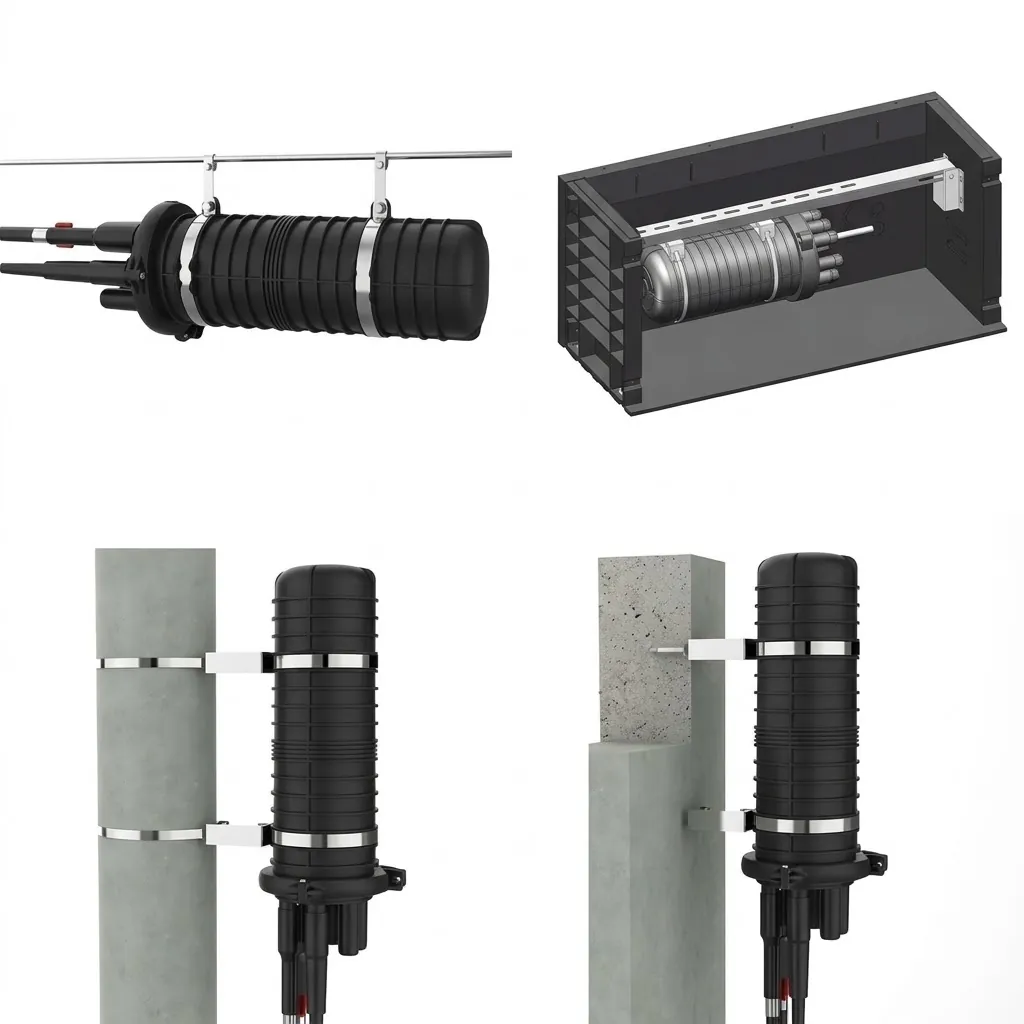

Applications
-
Outside plant (OSP) fiber optic networks
-
Aerial strand and pole-mounted installations
-
Underground duct deployments
Installation / Deployment
-
Mount the closure on poles using the included pole hoop assembly.
-
Route incoming cables through the designated small ports or elliptical port using the mechanical seal fittings.
-
Secure internal fibers and non-cut storage loops using the plastic tray holders, splice trays, and nylon ties.
-
Fasten the cover to the base using the plastic hoop mechanism.
FAQ
What is the maximum fiber capacity of the closure?
The closure supports up to 144 fiber cores using 6 splice trays.
What cable diameters are supported by the cable entrances?
The 4 small ports support cable outer diameters from 5 to 7 mm, and the elliptical port supports 10 to 17.5 mm.
What is the sealing rating of the enclosure?
The enclosure features an IP68 sealing rating with a mechanical sealing structure.
A fiber optic dome closure delivers reliable environmental protection and mechanical organization for high-capacity outside plant networks. By utilizing a mechanical sealing structure, robust PP+GF construction, and flexible cable entry ports, this enclosure ensures stable, long-term performance for up to 144 fiber splices in demanding aerial and duct environments.
