96 Cores Horizontal Fiber Splice Enclosure

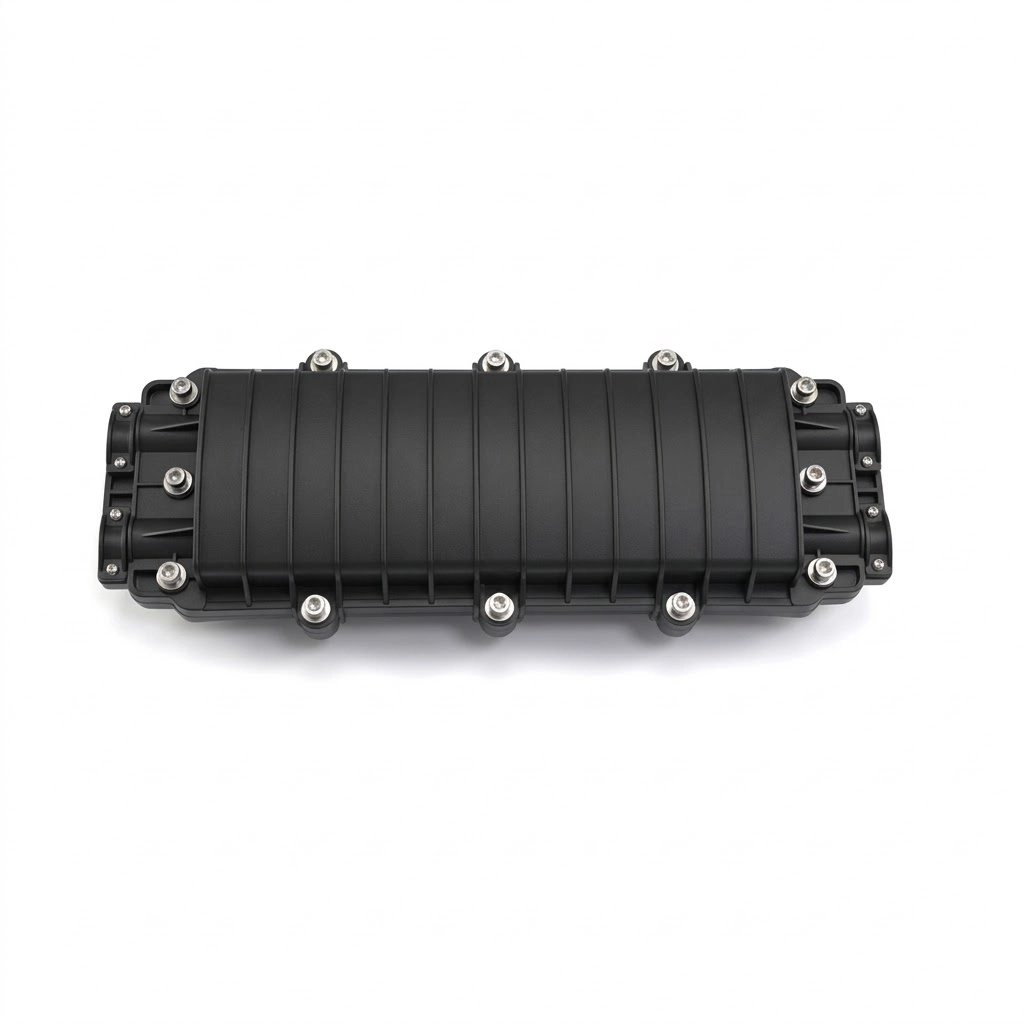

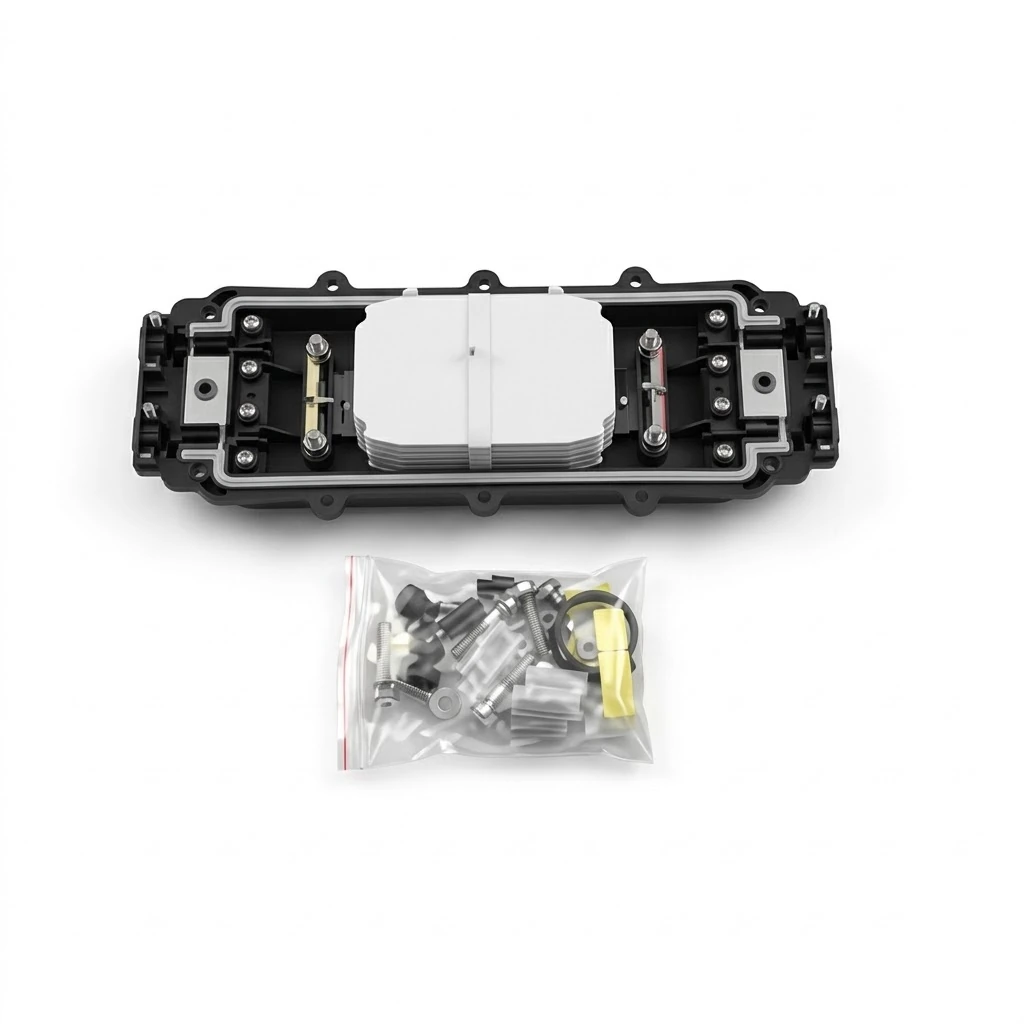

This horizontal fiber splice enclosure protects optical fiber splices and joints in outside plant (OSP) and indoor network layouts. Built with 4 inline cable ports arranged with 2 inlets and 2 outlets, the unit houses up to 96 single-core fusion splices. Furthermore, the high-strength engineering plastic casing (ABS or ABS+PC) resists mechanical impact, UV aging, and chemical corrosion. Inside the casing, 8 integrated 12-fiber splice trays organize fiber routing and hold excess buffer tube slack properly. Additionally, the enclosure delivers IP68-rated protection against moisture and dust within an operating temperature range of -40°C to +65°C.
Key Features
-

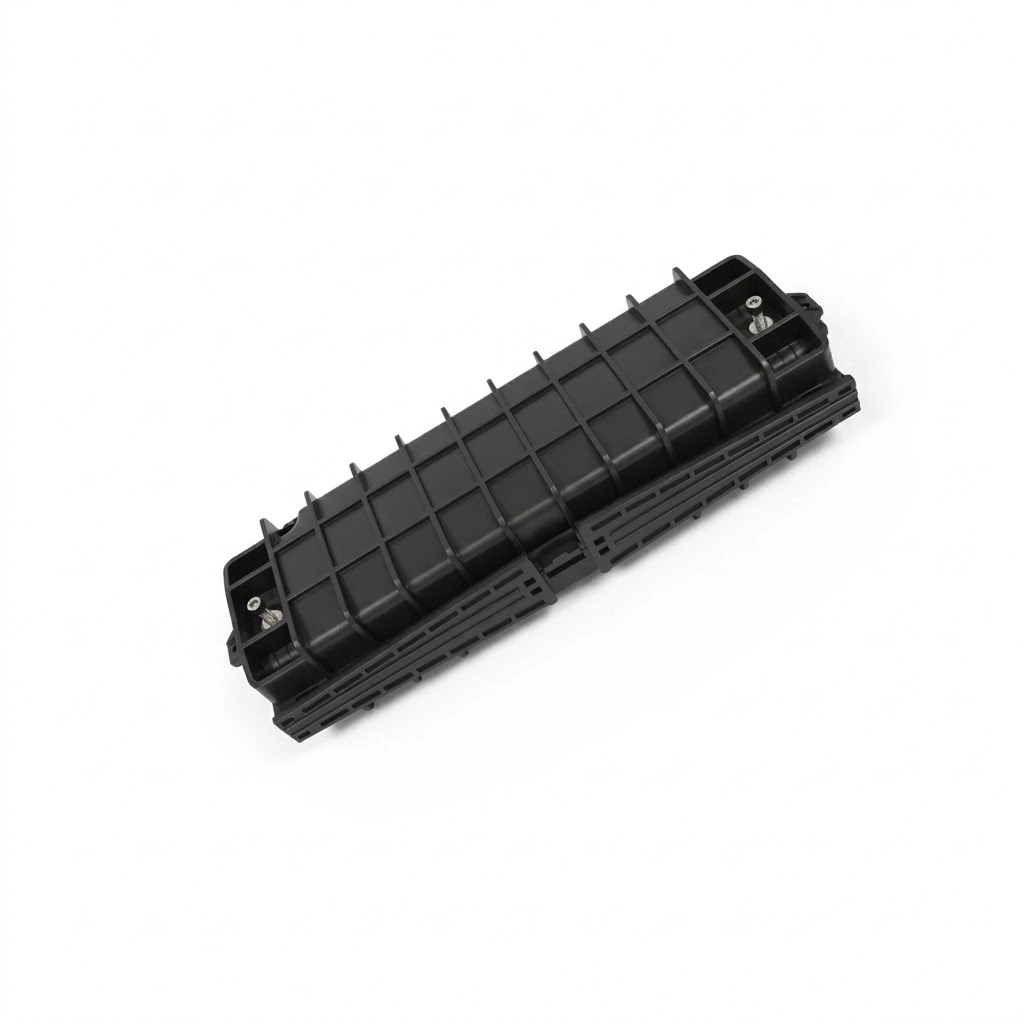

Housing Material: High-strength ABS or ABS+PC engineering plastic provides mechanical rigidity, anti-aging performance, and corrosion resistance. Protects optical fibers in exposed outdoor environments.
-

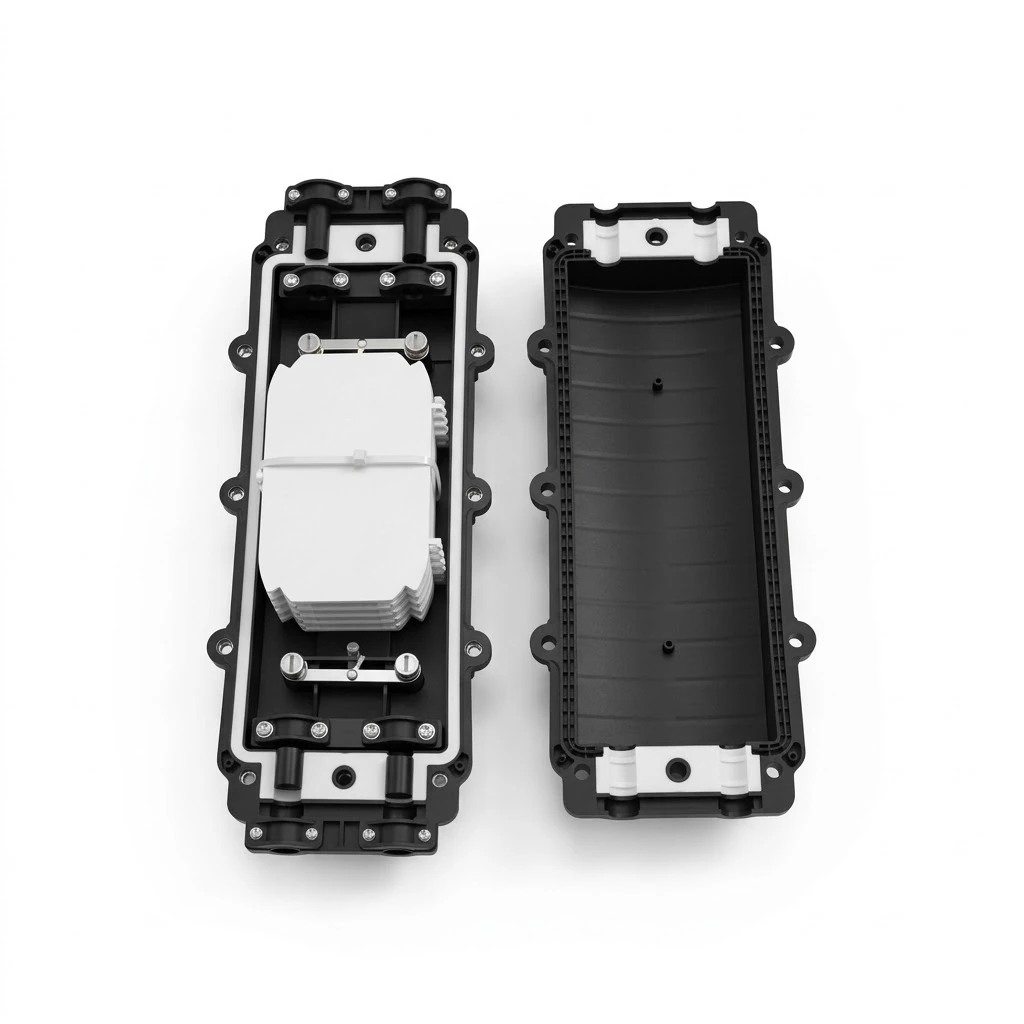

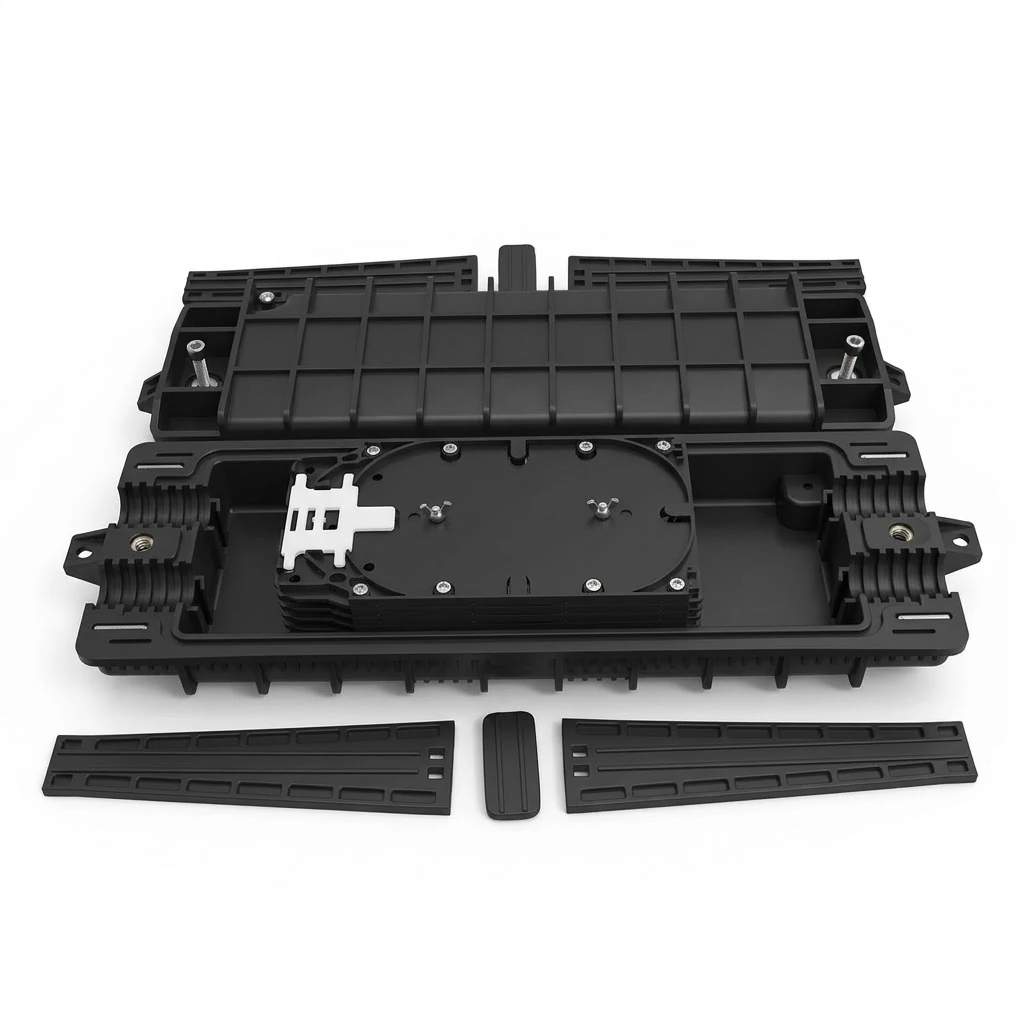

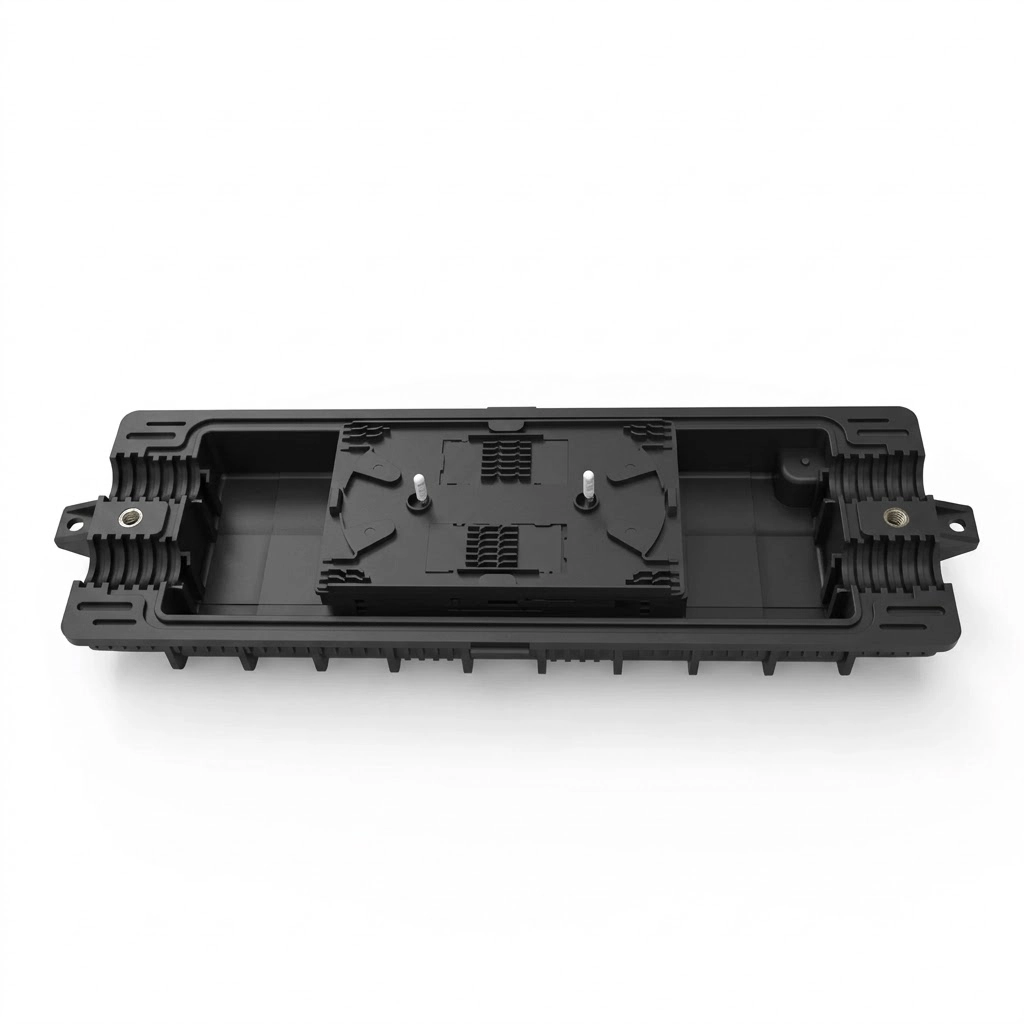

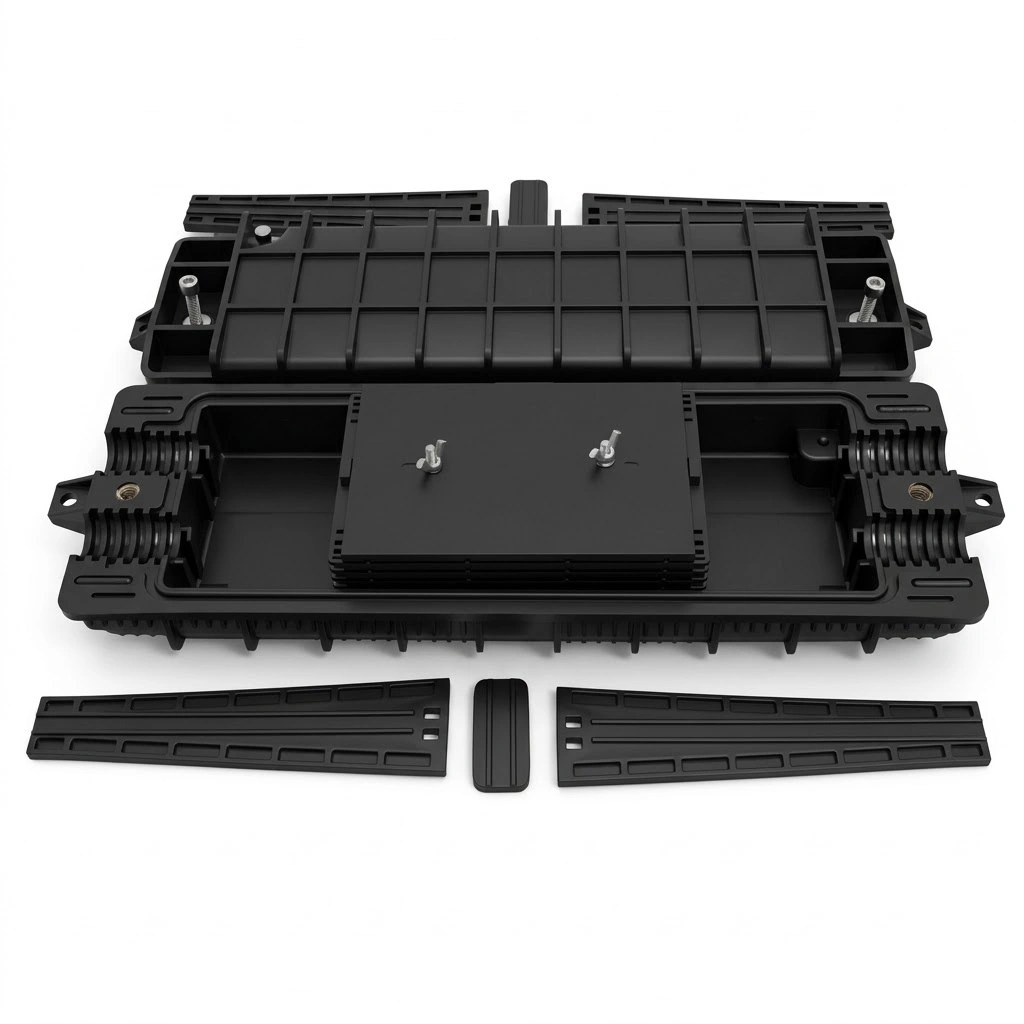

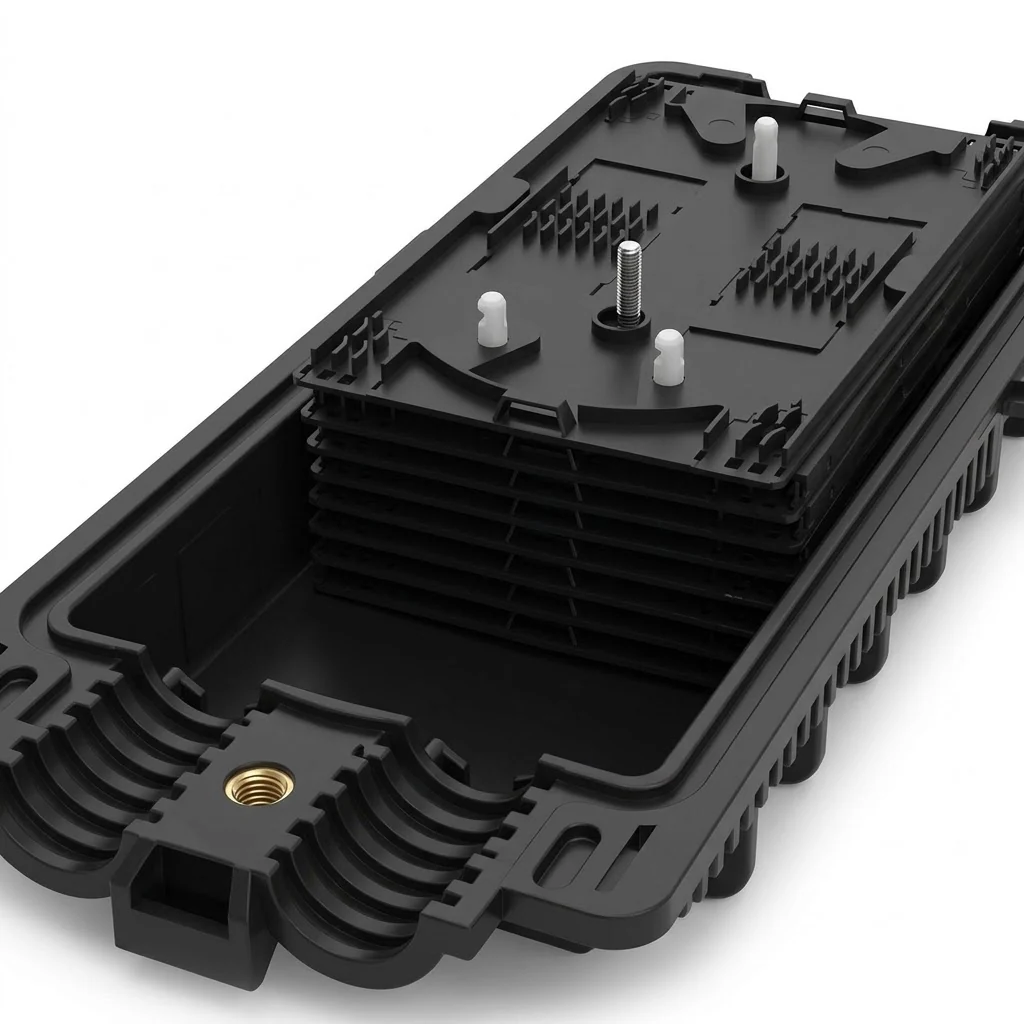

Splice Capacity: Holds up to 96 single-fiber splices across 8 stacked 12-fiber splice trays. Keeps fusion splices segregated and excess fiber loops properly routed.
-

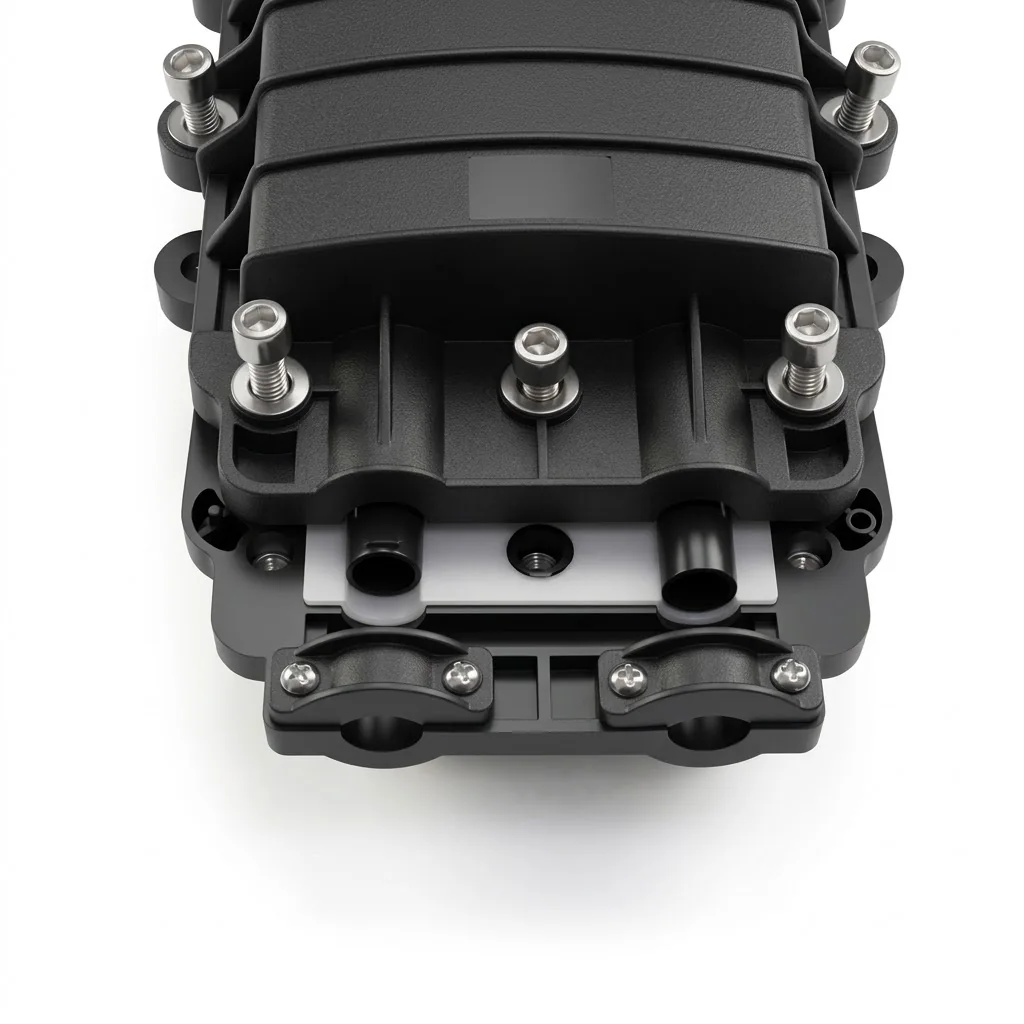

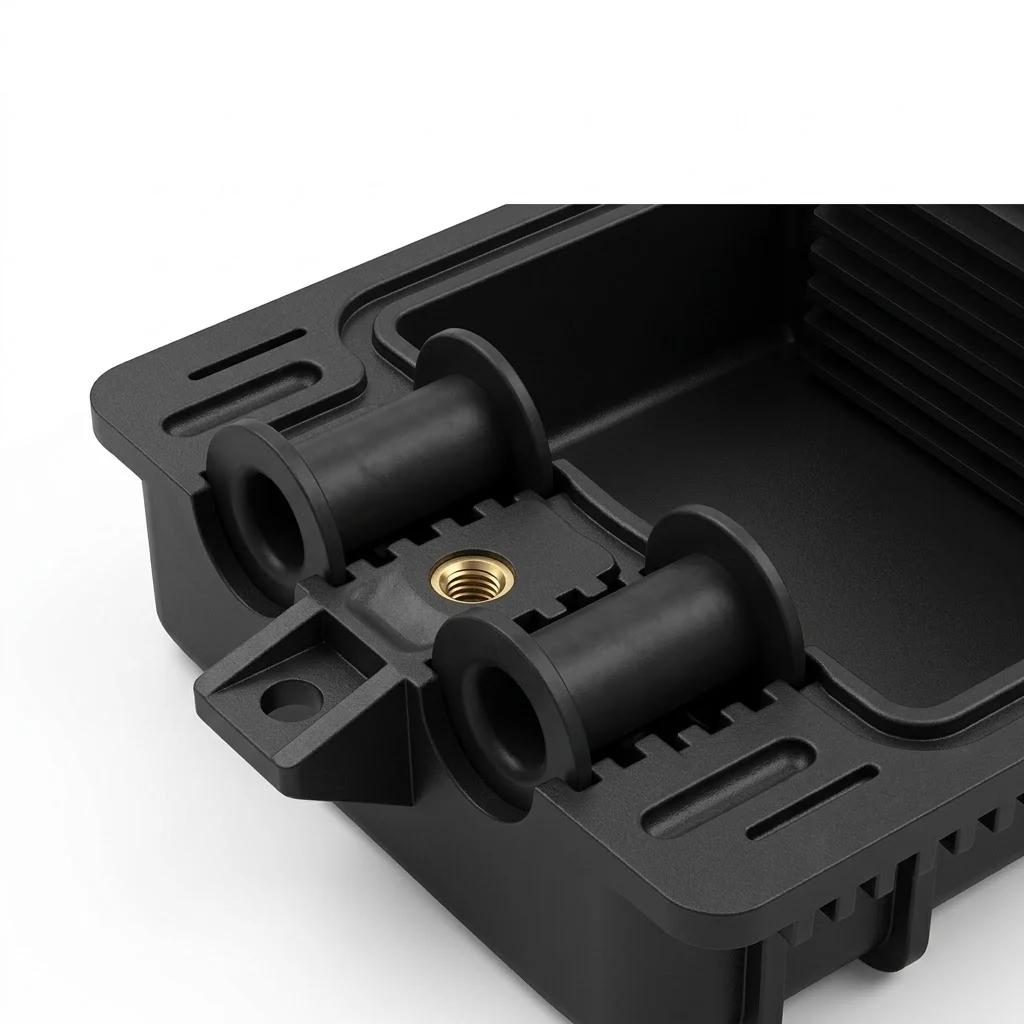

Port Configuration: 4 inline entry ports arranged as 2 inlets and 2 outlets on opposing sides. Accommodates straight-through and branch fiber cable runs.
-

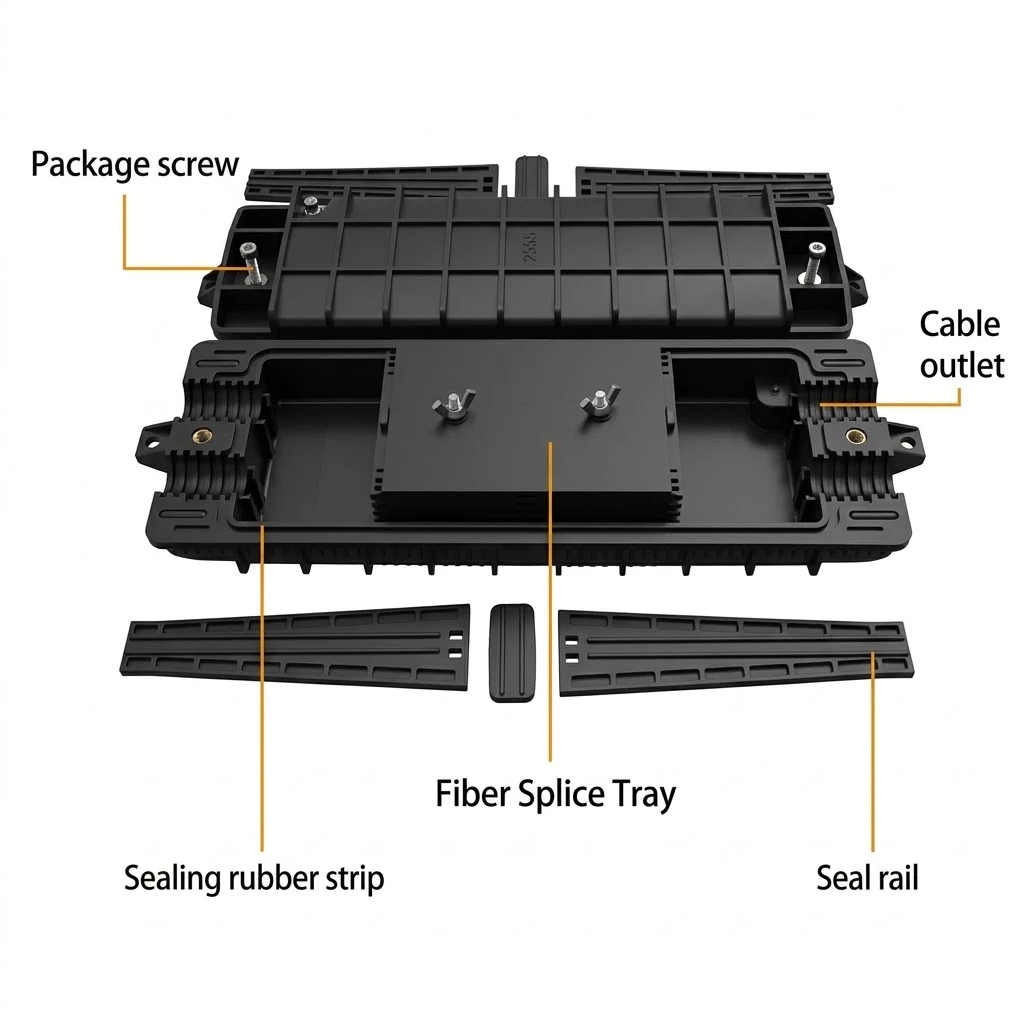

Weatherproof Sealing: Reusable silicone rubber perimeter gasket achieves up to IP68 ingress protection. Enables repeated re-entry for routine circuit maintenance without degrading weather resistance.
-

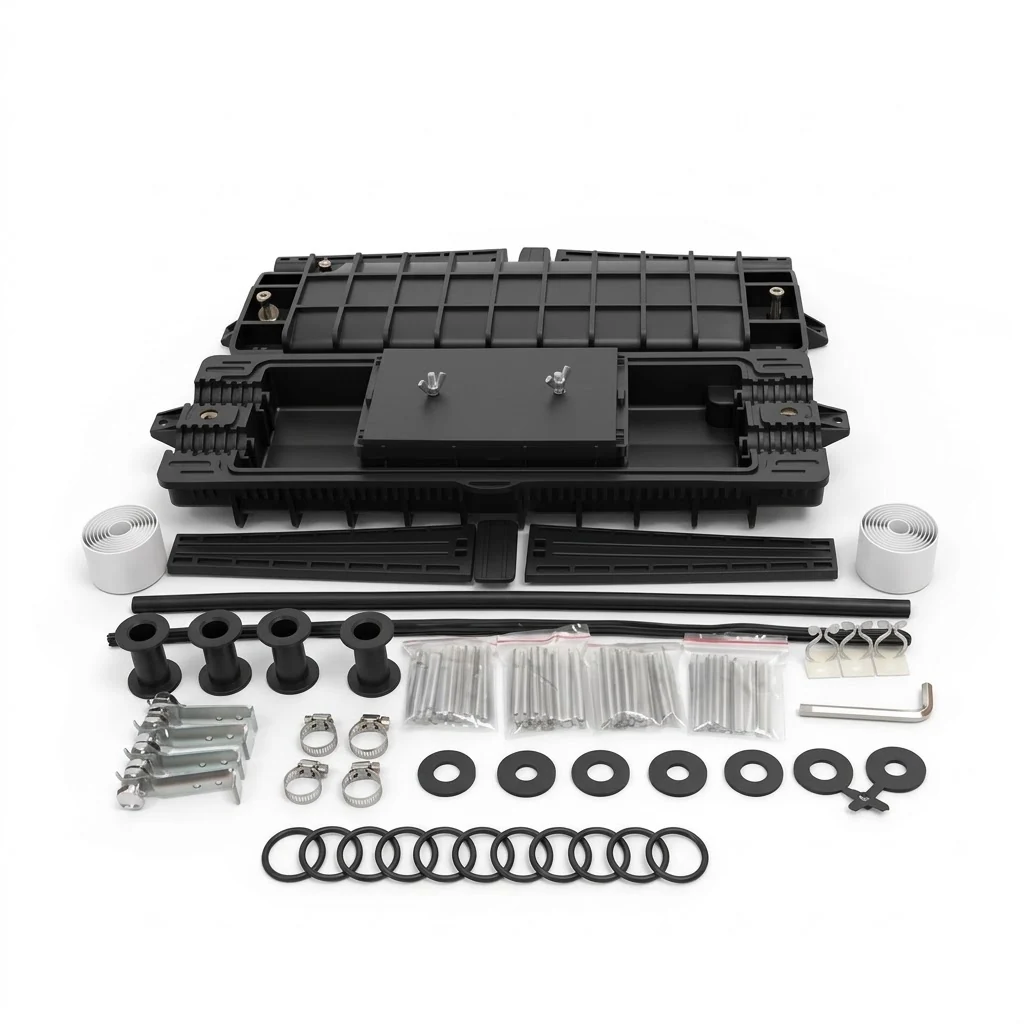

Cable Clamping Options: Accommodates interchangeable metal or plastic cable bracket structures. Allows field technicians to anchor different cable types securely based on mechanical line requirements.
Horizontal Fiber Splice Enclosure Configuration
-
Enclosure Style: Inline / horizontal flat case
-
Total Cable Entry Ports: 4 ports (2 inlet, 2 outlet)
-
Splice Tray Capacity: 12 single fibers per tray
-
Splice Trays Included: 8 pieces
-
Maximum Fiber Capacity: 96 single-core splices
-
Cable Retention System: Selectable metal or plastic internal clamping brackets
-
Sealing Gasket: Continuous silicone rubber profile
Applications
-
Outside plant (OSP) straight-through and branch fiber jointing.
-
Aerial pole and strand-mounted telecom networks.
-
Underground manhole, handhole, and duct deployments.
-
Direct buried fiber optic cable access points.
-
FTTH feeder and distribution network infrastructure.
-
Indoor building entrance facility splice and storage junctions.
Selection Considerations
-
Cable Outer Diameter: Ensure all incoming and outgoing cables fit within the 10 mm – 18 mm diameter range.
-
Bracket Material Selection: Specify metal clamping brackets for high-tension outdoor plant cables or plastic brackets for standard FTTH distribution cables.
-
Fiber Core Count: Confirm that the total splice count does not exceed 96 single fibers (maximum 8 trays installed).
-
Environmental Demands: Verify that field conditions fall within the -40 deg C to 60 deg C operating window and do not exceed IP68 parameters.
Frequently Asked Questions
What is the maximum splice capacity of this horizontal fiber splice enclosure?
The enclosure supports a maximum capacity of 96 single-fiber fusion splices using 8 factory-supplied 12-fiber splice trays.
What cable diameter range do the ports accept?
The 4 inline entry ports accommodate fiber cables with outer diameters between 10 mm and 18 mm.
Can this enclosure be reopened for maintenance?
Yes. The silicone rubber sealing structure allows technicians to reopen and reseal the enclosure repeatedly without damaging the sealing gasket.
What casing materials are offered?
The enclosure casing is manufactured from industrial-grade ABS or ABS+PC polymer blends.
In which environments can this enclosure be installed?
The unit can be deployed in aerial, underground, duct, direct buried, and building entrance installations.
For reliable outside plant fiber protection, this horizontal fiber splice enclosure delivers dependable joint preservation, organized fiber routing, and IP68 environmental sealing. Contact sales to request free product samples, evaluate wholesale pricing, or discuss minimum order quantities (MOQ 50 pieces, standard 2-year warranty).
