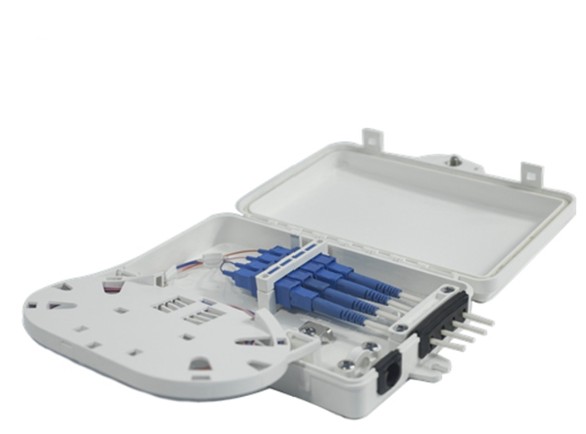

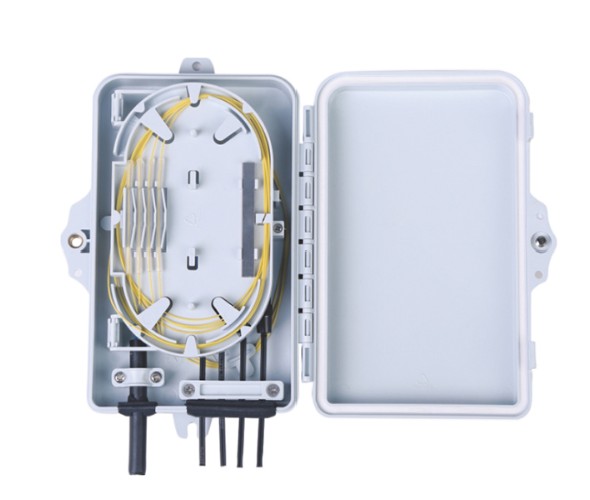

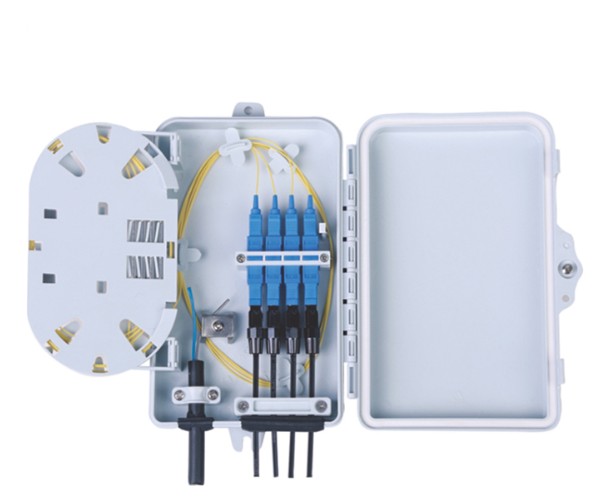

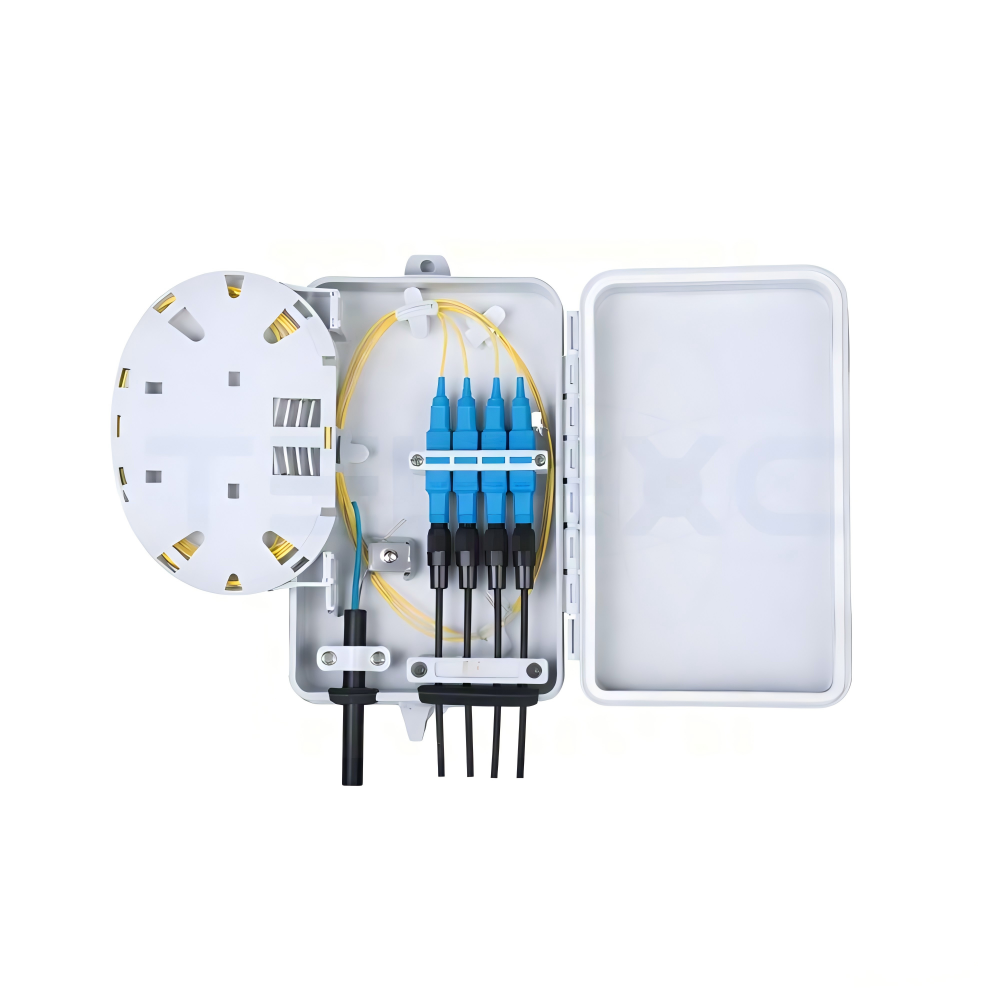

The TX-FDB-04 4 Core Fiber Optic Distribution Box is designed as a reliable termination point where feeder cables connect to drop cables in FTTH and FTTX networks. This enclosure supports fiber splicing, splitting, and distribution while providing secure, organized management for your fiber network.
With a weatherproof IP65-rated design, the TX-FDB-04 is suitable for both indoor and outdoor installations. Its compact and lightweight structure ensures easy mounting and efficient network organization for residential, commercial, or small-scale fiber networks.
Model Number
TX-FDB-04
International Standard Compliance
-
IEC 60529: IP65 dust and water protection
-
RoHS Compliant
-
ITU-T G.652 / G.657 fiber standards

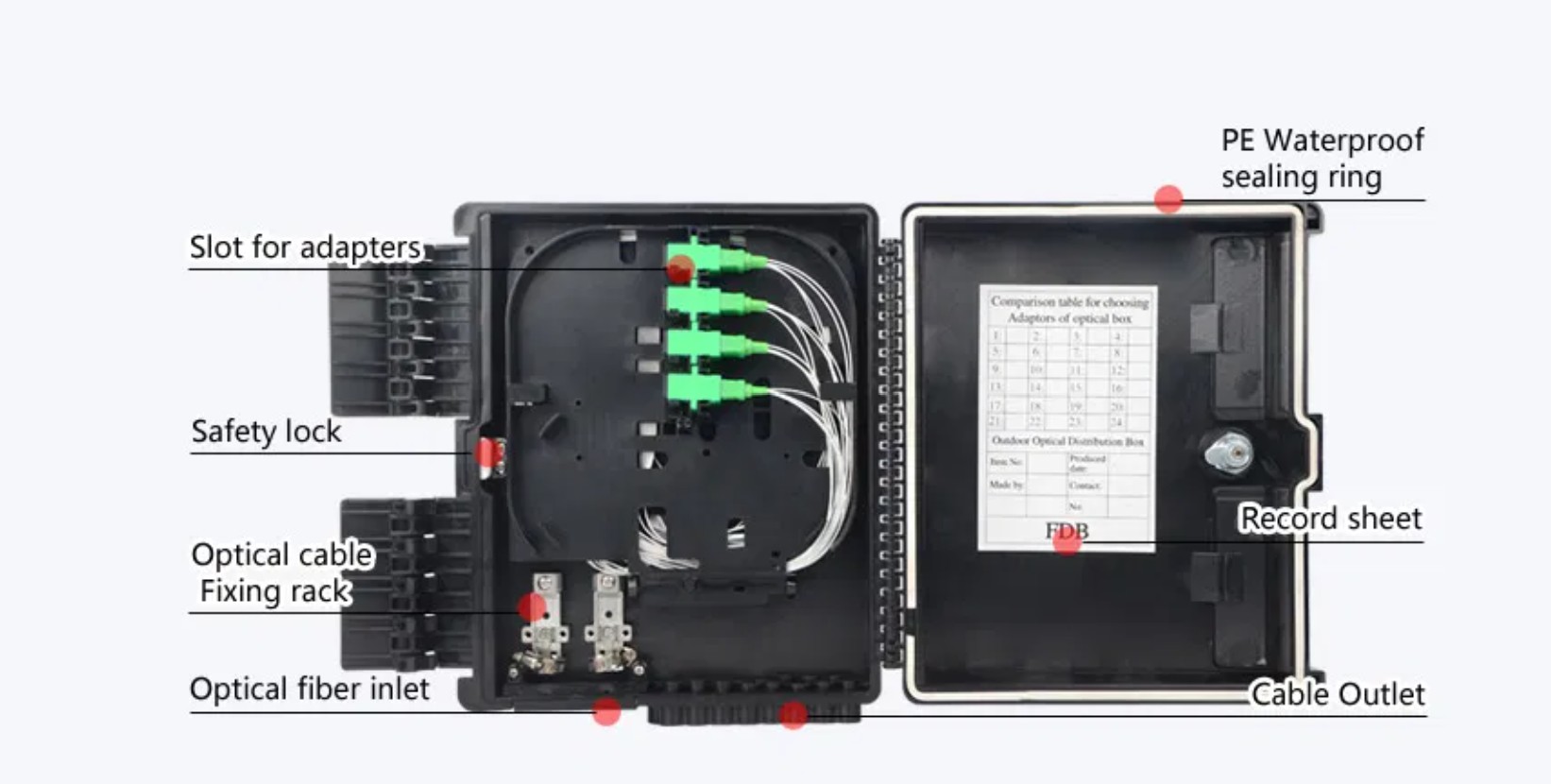

Construction & Materials
-
Body: High-strength ABS + PC for durability, flame retardant, and UV-resistant
-
Internal Tray: Provides fiber routing, splicing, and distribution management
-
Ports: Rubber-sealed for cable protection
-
Security: Anti-theft locking mechanism included
-
Mounting: Wall or pole mountable with optional accessories
Installation Guide
-
Select a wall or pole location for mounting.
-
Secure the box using screws or mounting brackets.
-
Route feeder and drop cables through rubber-sealed entry ports.
-
Place fibers in the internal splice tray for splicing or patching.
-
Install SC or LC adapters as required.
-
Lock the cover to protect fibers from environmental damage.
