ABC Line Anchor Clamp 16–35 mm² - Dead End Clamp | Telexc

ABC Line Anchor Clamp 16–35 mm² | PAM Series Dead-End Tension Clamp

Key Features

Tool-free installation for fast and efficient setup
High mechanical strength up to 5 kN load capacity
UV and weather-resistant construction for outdoor use
Insulation-safe wedge system prevents cable damage
Compact and durable design for long service life
Allows line deviation up to:
- 50° (single anchoring)
- 100° (double anchoring)

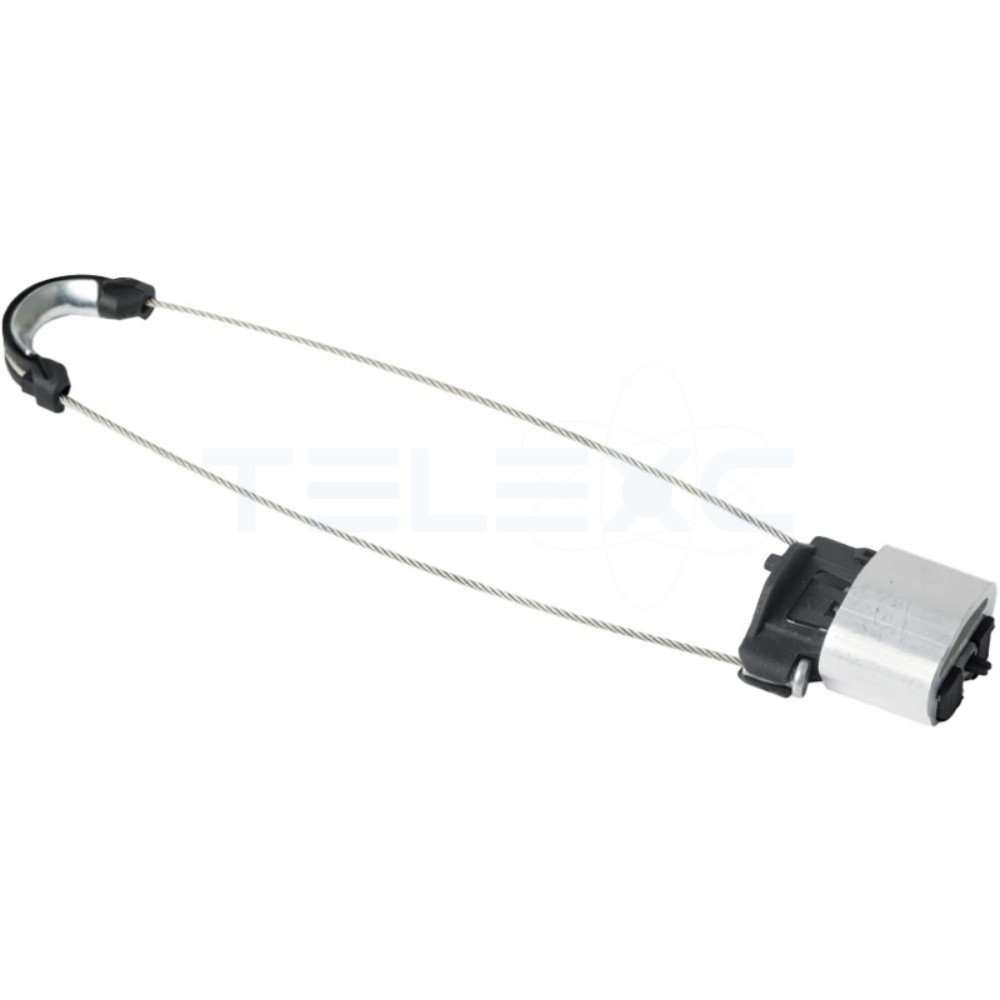

The ABC Line Anchor Clamp by Telexc is designed for secure dead-end anchoring of LV Aerial Bundled Conductors (ABC) with insulated neutral messenger systems. It provides strong mechanical grip while ensuring cable insulation safety through UV-resistant polymer wedges and a corrosion-resistant aluminium alloy body.

This ABC Line Anchor Clamp model TX-PAM 16/35 supports conductor cross-sections from 16 to 35 mm² with a cable diameter range of 3–7 mm and a breaking load capacity of 5 kN. It is suitable for overhead distribution networks requiring higher mechanical strength and long-term reliability.

The clamp allows line deviation up to 50° for single anchoring and 100° for double anchoring, making it ideal for complex routing in both urban and rural electrical systems.

Its tool-free installation design ensures fast deployment, reduced labor effort, and consistent performance in harsh outdoor environments.

International Standard Compliance

Manufactured in accordance with:

NFC 33-041
NFC 33-042
EN 50483-3
ISO 9001

Construction & Materials

Body: High-strength corrosion-resistant aluminium alloy
Wedges: UV-stabilized polymer for secure insulation grip
Bail: Stainless steel with anti-corrosion protection
Reinforcement: Nylon with fiberglass for enhanced durability

Installation Guide

Open the clamp and place the conductor into the designated groove.
Tighten the shear head nut until a secure locking position is achieved.
Fix the bracket using 2 × M14 bolts or stainless steel straps (20 × 0.7 mm).
Ensure proper alignment before final tightening for stable installation.

No special tools are required for installation.

Technical Parameters

Model No.	Conductor Range	Cable Diameter	Breaking Load	Material
TX-PAM 16/35	16–35 mm²	3–7 mm	5 kN	Aluminium Alloy, Nylon + Fiberglass, Stainless Steel

Applications

LV Overhead Distribution Networks

Used for secure anchoring of ABC conductors in power distribution lines.

Urban Electrical Infrastructure

Suitable for dense city installations requiring strong and compact fittings.

Rural Electrification Projects

Provides reliable support for long-distance overhead lines.

Street Lighting Systems

Ensures stable cable fixing for lighting and utility networks.

Short and Medium Span Lines

Ideal for installations requiring controlled mechanical tension and stability.

Product Advantages

High Load Performance

Designed to handle up to 5 kN mechanical tension safely.

Insulation Protection System

Wedge design prevents damage to conductor insulation during operation.

Fast Tool-Free Installation

Reduces installation time and simplifies field work.

Durability in Harsh Conditions

Resistant to UV, corrosion, and extreme weather environments.

Flexible Line Handling

Supports up to 100° deviation for complex network layouts.

FAQs

1. What is TX-PAM 16/35 used for?
It is used for anchoring LV-ABC conductors in overhead power lines.

2. What is its maximum load capacity?
It supports up to 5 kN breaking load.

3. Does it damage cable insulation?
No, it uses polymer wedges to protect insulation.

4. Is installation tool-free?
Yes, it is designed for quick tool-free installation.

5. What conductor size does it support?
It supports 16–35 mm² conductors with 3–7 mm diameter.

6. Can it be used outdoors?
Yes, it is UV and weather resistant for outdoor environments.

7. What standards does it follow?
It complies with NFC 33-041, NFC 33-042, and EN 50483-3.

8. What line deviation is allowed?
Up to 50° single anchoring and 100° double anchoring.
