Thermoplastic Insulation Piercing Connector for LV cable

Advanced Low Voltage Insulation Piercing Connector with UV and Water Protection

Key Features

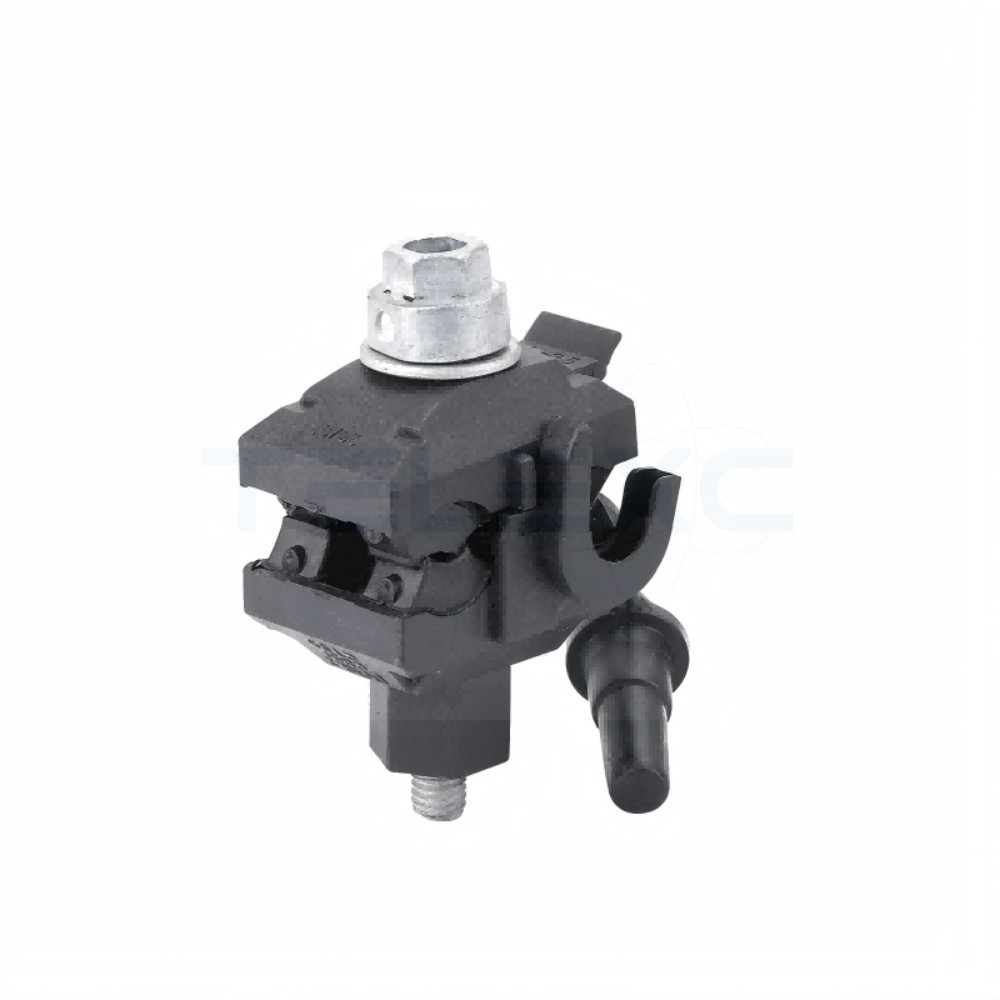

Model: TX-IPC-03 (JJC-3 Series)
Conductor Range: Main 16–95 mm² / Branch 4–35 mm² (max 50 mm²) /
Nominal Current: 157 A
Tightening Torque: 13±1NM
Waterproof and UV-resistant thermoplastic body
Tin-plated copper or aluminium alloy blades for superior conductivity
Shear-head bolt ensures uniform and reliable contact pressure
Captive end caps prevent moisture and dust ingress
Maintenance-free and corrosion-resistant construction
Operating Temperature: -55°C to +55°C
Compatible with XLPE, PE, and PVC insulated cables
Safe for energized installation (main line not under load)

The TX-IPC-03 Low Voltage Insulation Piercing Connector is designed for dependable and durable connections in LV aerial bundled cable (ABC) systems. Made from UV-resistant, waterproof thermoplastic, it provides excellent electrical contact and long-term reliability in demanding outdoor environments. The connector enables quick, secure, and insulation-intact connections between aluminium or copper conductors, eliminating the need for stripping cable insulation.

Standard Compliance: NFC 33-020, ANSI C119.5, EN 50483-4

Construction & Materials

Contact Blades: Tin-plated copper or aluminium alloy
Body: Reinforced fiberglass thermoplastic
Sealing: Waterproof elastomeric caps

Performance & Reliability

Tested according to EN 50483-4, NFC 33-020, and ANSI C119.5 to guarantee high endurance and electrical performance:

Withstands 6 kV in a 30 cm water bath
Maintains stable contact resistance after overload and load cycling
Proven corrosion resistance in salt fog and SO₂ chamber tests
Resistant to UV radiation, humidity, and temperature cycling

Installation Guide

Install using a Dielectric Torque Wrench. The shear-head nut ensures correct tightening torque for optimal contact pressure and watertight sealing. Installation requires no insulation stripping, reducing installation time and preventing conductor damage.

Technical Parameters

Model	Equivalent	Main Line (mm²)	Branch Line (mm²)	Nominal Current (A)	Size (mm)	Weight (g)	Piercing Depth (mm)	Bolt (Pcs)
TX-IPC-03	JJC-3	16–95	4–35 (50)	157	46×52×87	160	2.5–3.5	1*M8

Applications (Telexc Insulation Piercing Connector)

Telexc Insulation Piercing Connectors are designed for reliable and fully insulated connections in various low-voltage power distribution systems, including:

Overhead LV Distribution Lines: Ideal for branching Aerial Bundled Cables (ABC) in utility and commercial networks.
Street Lighting and Service Taps: Ensures safe and durable connections for lighting poles and service lines.
Metering and Branch Connections: Suitable for LV distribution boxes, metering points, and T-junctions.
Utility Network Expansion and Maintenance: Simplifies upgrades and system modifications without cutting main conductors.
High-Rise Building Power Systems: Used as the main supply line clamp in vertical cable trunk or plug-in busbar systems, ensuring stable power delivery and operational safety.

Product Advantages (Telexc Insulation Piercing Connector)

Quick Direct Connection: Allows fast and reliable connection to conductors without the need to strip or cut cable insulation, ensuring simple and efficient installation.
Precision Torque Control: Features a shear-bolt head that automatically shears off at the correct torque, guaranteeing consistent, secure, and maintenance-free connections.
Enhanced Safety: Fully insulated, waterproof body with nonconductive sealing prevents accidental contact with live components and ensures long-term electrical safety.
Durable, Corrosion-Resistant Construction: Made from high-quality copper or aluminum with bimetallic tin-plated teeth for compatibility with both copper and aluminum conductors.
UV-Resistant and Flame-Retardant: Engineered to withstand harsh environmental conditions, providing excellent performance in outdoor and high-temperature applications.
Low Maintenance and Cost-Effective: Designed for extended service life with minimal upkeep, reducing installation time, operational costs, and system downtime.

FAQs – Telexc Insulation Piercing Connectors

1. How do I choose the right insulation piercing connector?
Select a connector suitable for your cable size and application. Telexc IPCs feature easy installation—no need to strip or cut the main cable insulation. They can be installed at any point along the line using a standard wrench, even on live conductors, ensuring a simple and reliable setup.

2. Are Telexc Insulation Piercing Connectors safe to use?
Yes. Telexc connectors are resistant to mechanical stress, vibration, moisture, corrosion, and aging. They have been proven in long-term field use for over 30 years with minimal maintenance requirements.

3. What are the economic advantages of using Telexc IPCs?
Their compact design minimizes installation space and eliminates the need for terminal or junction boxes, reducing both material and labor costs.

4. What types of cables are compatible with Telexc IPCs?
They are designed for low-voltage aerial bundled conductors (LV-ABC) and service cables, making them ideal for connections between utility lines and customer premises.

5. What tools are needed for installation?
Only a standard wrench with the correct hex socket size is required—no special tools are necessary.

6. How can I ensure the correct tightening torque during installation?
Each Telexc connector features a shear-head bolt that breaks off automatically when the optimal torque is reached, guaranteeing proper contact pressure and electrical reliability.

7. Do I need to strip the cable insulation before installation?
No. The built-in piercing blades automatically penetrate the cable insulation to create a secure electrical connection.

8. Is there any risk of electric shock from exposed metal parts?
No. Telexc IPCs are fully insulated, and all conductive parts are safely enclosed to prevent accidental contact during and after installation.
