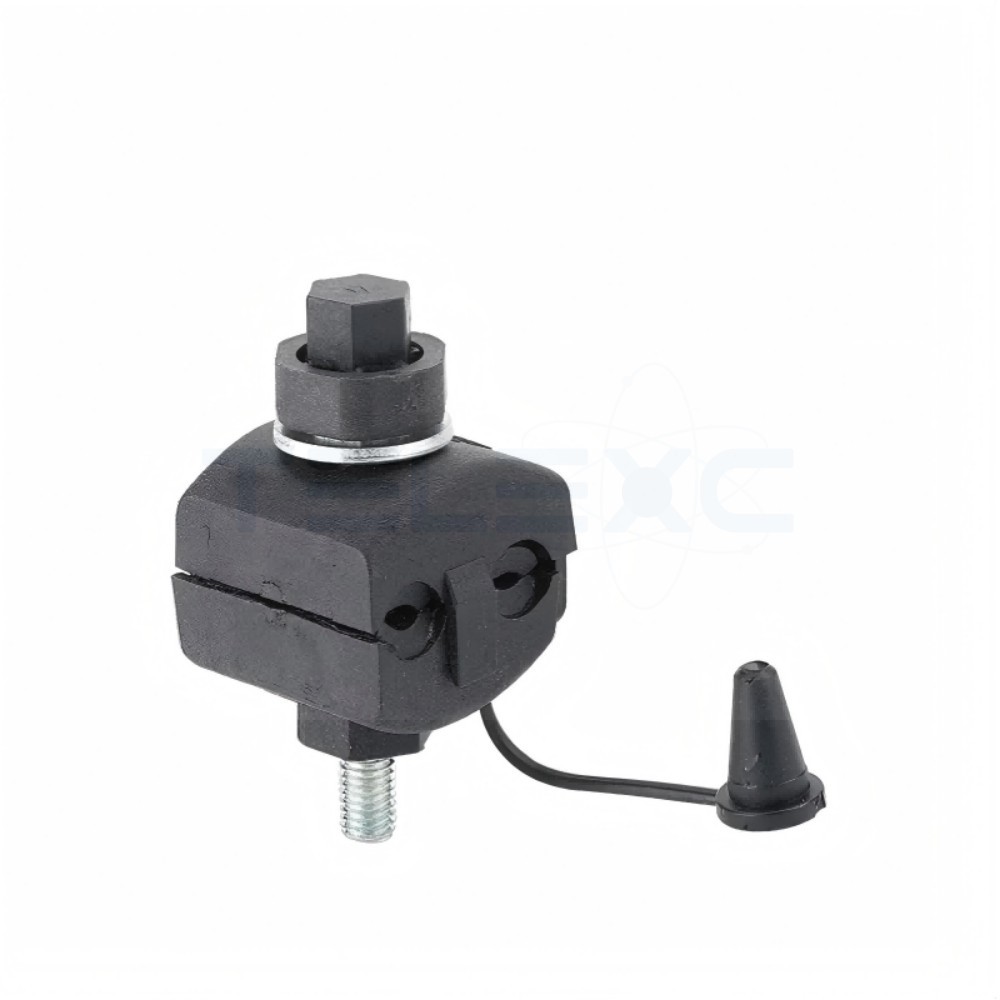

The TX-IPC-LVN-03 LV Insulation Piercing Connector 35–70 mm² / 35–70 mm² provides safe and reliable branching of low-voltage ABC conductors. It enables secure connections between insulated aluminium or copper conductors without stripping insulation. Its single shear-head bolt allows controlled torque to penetrate insulation and optimal electrical contact while maintaining the mechanical integrity of the conductors. It offers long-term performance in outdoor environments. Ideal for service line systems, street lighting, and building electrical systems where a single-tap connection is sufficient.
Standard: NFC 33 020, ANSI C119.5, EN 50483-4
Construction & Materials:
-
Body: PA66 Fiberglass Reinforced Thermoplastic, High-strength, UV-resistant thermoplastic for durability and insulation.
-
Teeth: Tinned copper alloy/ Copper/Aluminium Teeth for excellent conductivity and corrosion resistance.
-
Bolts: Hot-dip galvanized or stainless steel with Zinc Alloy Shear Head for torque control.
-
Sealant: Pre-filled waterproof grease ensures a watertight connection and corrosion protection.
-
End Cap: Integrated PVC Cap, which prevents contamination and loss during installation.
- Color: Black
Performance & Reliability:
-
Watertightness: Tested at 6 kV for 1 minute under water.
-
Electrical Contact: Teeth penetrate insulation without conductor damage.
-
Mechanical Strength: Maintains cable integrity under load and vibration.
-
Environmental Resistance: Performs reliably in UV, rain, and temperature variations.
-
Maintenance-Free: Long service life with minimal degradation over time.
-
Safety: Live-line installation possible under non-load conditions.
Installation Guide
-
Insert main and branch conductors into the connector grooves.
-
Tighten the shear-head bolt using a dielectric torque wrench until the head shears off to ensure correct torque.
-
Verify proper seating and a waterproof seal before energizing.
-
No insulation stripping required.
-
Suitable for energized mains if not under load.
LV ABC Insulation Piercing Connector conductor range (Main 35–70 mm² / Branch 35–70 mm²) is designed for quick, reliable, and maintenance-free electrical connections in the LV distribution system
