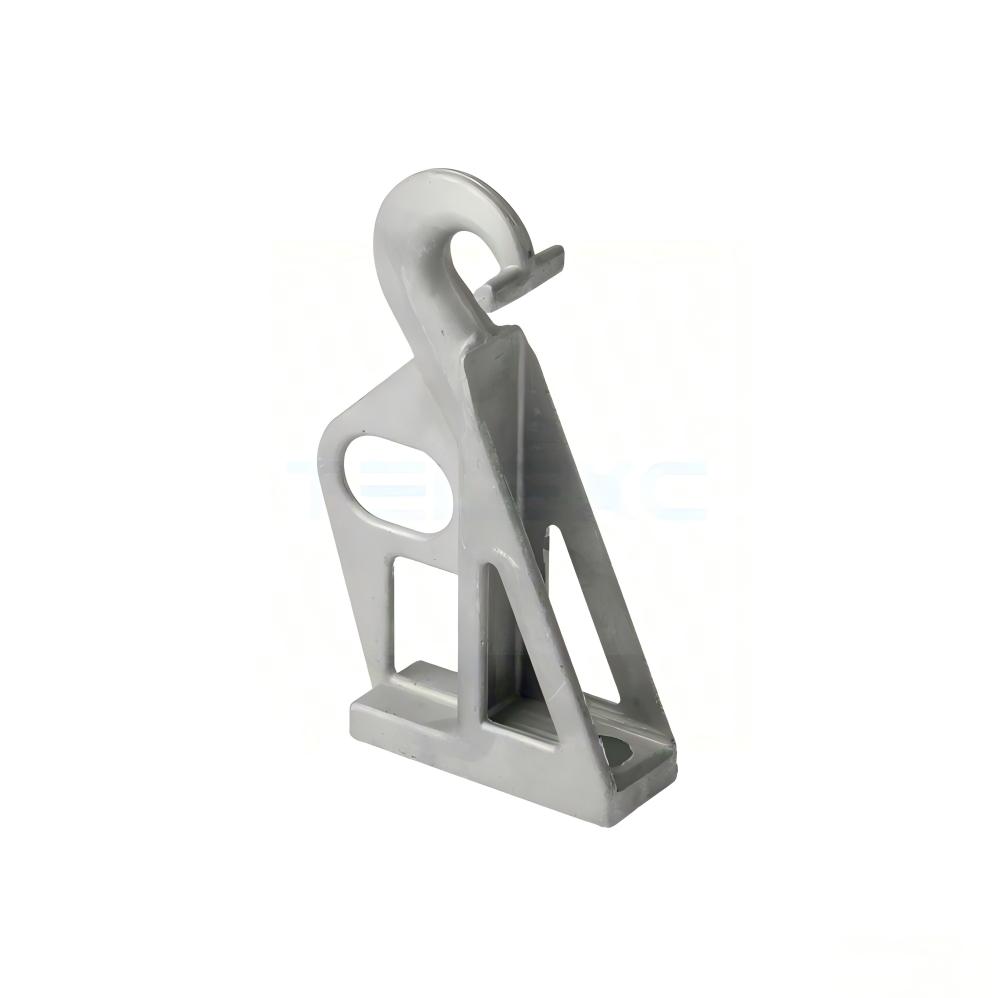

Aluminium Alloy Bracket for Strain and Suspension Clamps

Aluminium Alloy Bracket for Strain and Suspension Clamps

Key Features

  • High-strength, corrosion-resistant aluminum alloy

  • UV-resistant, glass fiber-reinforced synthetic components

  • Anti-slip design prevents clamp movement

  • Customizable size, color, and specifications

  • Easy and secure installation

Category: Tags: , , ,

The Aluminium Alloy Bracket for Strain and Suspension Clamps (Type-T) is a high-performance mounting fitting designed to provide secure and durable support for low-voltage Aerial Bundled Cable (LV-ABC) lines. It is suitable for mounting strain clamps and suspension clamps on utility poles or building walls in residential, commercial, and industrial environments.

Manufactured from high-strength, corrosion-resistant aluminum alloy, this bracket ensures long-term mechanical reliability while preventing clamp rotation under load. Its universal mounting design allows easy installation using bolts or stainless-steel straps, making it a versatile and cost-effective solution for overhead low-voltage distribution networks.

Compliance Standards

The bracket is designed and manufactured in accordance with international and utility-approved standards:

  • NFC 33-040

  • NFC 33-041

  • EN 50483

  • ISO 9001 – Quality Management System

Material & Construction

  • Main Material:

    • High-strength cast aluminum alloy

  • Auxiliary Components:

    • UV-resistant, glass fiber-reinforced synthetic elements (where applicable)

  • Manufacturing Process:

    • Precision aluminum casting for dimensional accuracy and consistent strength

  • Surface Finish:

    • Natural aluminum finish

    • Optional protective coatings available

  • Structural Design:

    • Reinforced body to support strain and suspension loads

    • Anti-slip and anti-rotation geometry for clamp stability

Design & Function

  • Made from durable cast aluminum alloy with high mechanical strength

  • Can hold one or two clamps securely without rotation

  • Fixed using M14/M16 bolts or 20×0.7 mm stainless steel straps

  • Supports line deviation angles up to 30° towards the pole and 50° away.

  • Aluminium Alloy Bracket for Strain and Suspension Clamps provides strong, corrosion-resistant support for LV-ABC and overhead line installations.

Installation Guide

The Aluminium Alloy Bracket for Strain and Suspension Clamps supports flexible mounting options:

Option 1: Bolt Installation

  1. Position the bracket on the pole or wall.

  2. Fix using M14 or M16 bolts with appropriate anchors.

  3. Tighten securely to ensure firm load transfer.

Option 2: Stainless-Steel Strap Installation

  1. Place the bracket at the required position on the pole.

  2. Secure using 20 × 0.7 mm stainless-steel straps and buckles.

  3. Ensure straps are evenly tightened to prevent movement.

Clamp Installation

  • Mount one or two strain or suspension clamps onto the bracket.

  • Verify that clamps are seated correctly and that rotation is prevented.

No special tools are required beyond standard bolting or banding equipment.

Technical Parameters



Model

Breaking Load (kN)

ES1500

15

ES1500-B

12

CA1500

12

Applications

  • Mounting strain and suspension clamps on poles or building walls

  • Low-voltage Aerial Bundled Cable (LV-ABC) networks

  • Residential, commercial, and industrial power distribution systems

  • Supporting insulated neutral messengers

  • Overhead low-voltage line installations

Product Advantages

  • Reliable Mechanical Performance under tension and suspension loads

  • Corrosion Resistance for long-term outdoor service

  • Installation Flexibility reduces labor time and cost

  • Clamp Stability ensures secure conductor positioning

  • Reduced Maintenance due to durable materials and robust design

  • Wide Compatibility with standard LV-ABC clamps

FAQs

Q1: How many clamps can this bracket support?
The bracket can support one or two strain or suspension clamps, depending on installation requirements.

Q2: Can it be installed on building walls?
Yes. It is suitable for installation on concrete or brick walls using anchor bolts.

Q3: Is it resistant to UV and harsh weather?
Yes. The aluminum alloy and UV-resistant synthetic components ensure excellent outdoor performance.

Q4: What deviation angles can it support?
It supports line deviation angles up to 30° toward the pole and 50° away from the pole.

Q5: Is customization available?
Yes. Telexc offers OEM and ODM customization for size, color, and specifications.

Our Services

  1. Rich experience in ODM & OEM production
  2. Excellent one-stop solution for telecom and power hardware
  3. High-quality precision casting and forging capabilities
  4. Factory-direct pricing with fast delivery
  5. Strict quality control and inspection at every stage
  6. Warm welcome to visit our factory for cooperation opportunities

About Us

Telexc is a high-tech enterprise specializing in the manufacturing of hardware equipment for the telecommunications and electric power sectors. With production and sales centers in Tianjin and Hebei, China, our products are successfully operating in over 30 countries and have been trusted in power systems for more than 20 years. We are an approved and certified supplier to major telecom companies worldwide and have earned excellent references from numerous utility departments. Our facilities are equipped with modern machinery, advanced testing equipment, and a skilled engineering team.
TTF TELE is certified under:

  • ISO 9001(Quality Management)
  • ISO 14001(Environmental Management)
  • ISO 45001(Occupational Health & Safety)

With innovation, reliability, and customer satisfaction at our core, Telexc continues to lead the way in transmission and telecommunication line hardware manufacturing.

Why Choose Telexc

  • Over 20 years of experience in power and telecommunication line hardware

  • Approved supplier to major global utilities and telecom operators

  • Strong ODM & OEM manufacturing capabilities

  • Advanced precision casting and forging facilities

  • Strict quality control at every production stage

  • Factory-direct pricing with fast delivery

  • Products successfully operating in 30+ countries worldwide

Telexc delivers durable, standards-compliant mounting solutions engineered for the safe and reliable operation of low-voltage overhead distribution networks.
