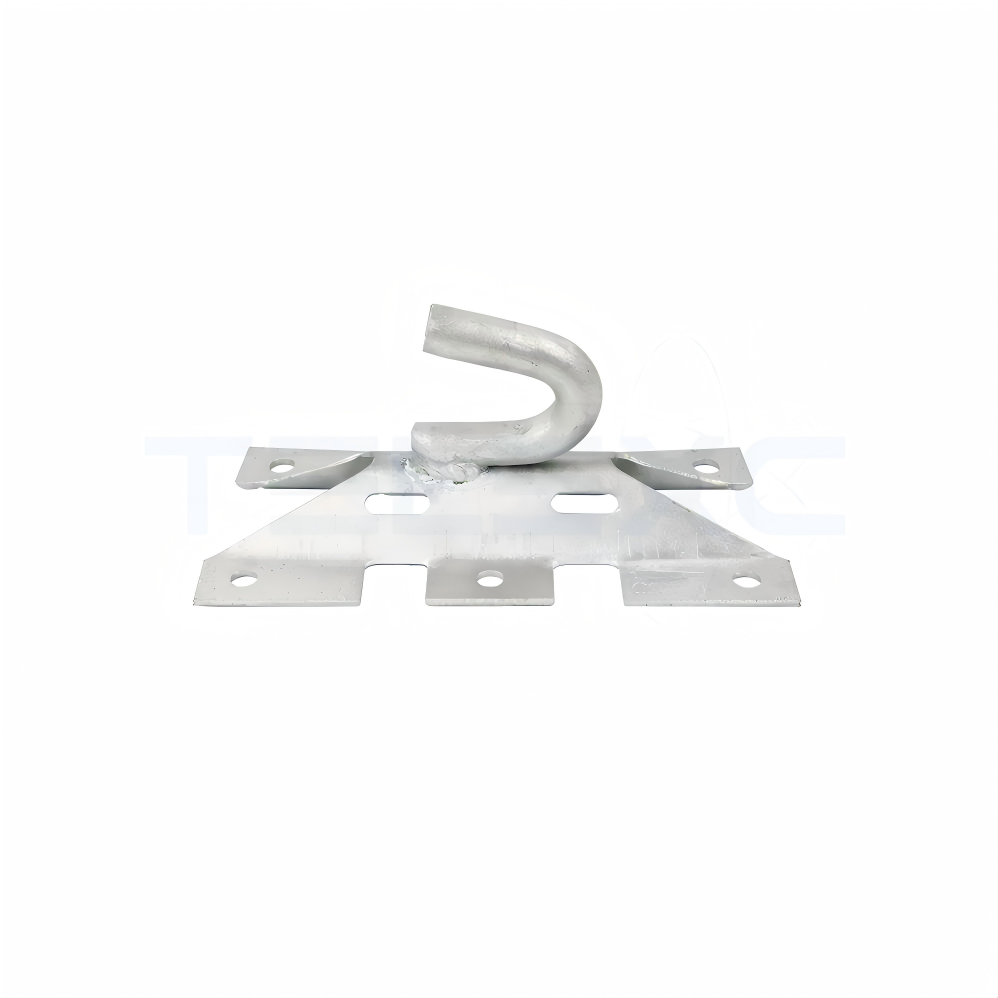

The Aluminum Alloy Anchor Hook / Metal Wall Bracket is a robust and reliable mounting accessory designed for Low Voltage Aerial Bundled Cable (LV ABC) systems. It provides secure anchoring for single or double anchor clamps on metal, concrete, or wooden poles, as well as building walls.
Manufactured from high-grade aluminum alloy, the bracket delivers excellent mechanical strength, superior corrosion resistance, and long-term stability under harsh outdoor conditions. Its optimized geometry ensures safe load transfer and prevents clamp rotation, making it ideal for modern power distribution and telecommunication networks.
Compliance Standards
The product is manufactured and tested in compliance with international utility and quality standards, including:
-
ISO 9001 – Quality Management System
-
ISO 14001 – Environmental Management System
-
ISO 45001 – Occupational Health & Safety
-
IEC / EN standards for overhead line fittings (as applicable)
Material & Construction
-
Main Body Material:
-
High-strength aluminum alloy (standard)
-
Optional: carbon steel, stainless steel, or zinc-plated steel
-
-
Surface Finish:
-
Natural aluminum finish
-
Hot-dip galvanized
-
Electro-galvanized
-
Custom coatings available on request
-
-
Construction Features:
-
One-piece precision casting or forging
-
Reinforced upper bulge to prevent clamp rotation
-
Optimized load-bearing structure for long service life
-
Design & Function
The anchor bracket is designed to fix and support anchor clamps used in LV ABC systems. The upper bulge prevents the clamp from rotating, ensuring a firm and secure grip.
When paired with glass fiber–reinforced polyamide anchor clamps (with steel or aluminum covers), it delivers excellent mechanical performance and insulation. The integrated spring mechanism in the clamp simplifies conductor insertion, reducing installation time and labor.
The bracket can be easily mounted using bolts or stainless-steel straps, ensuring adaptability to various installation environments and structures.
Installation Guide
-
Select Mounting Location
Choose a suitable pole or wall surface (metal, concrete, or wood). -
Fix the Bracket
-
Use bolts for wall or concrete installations
-
Use stainless-steel bands or straps for pole mounting
-
-
Attach Anchor Clamp
Hang the LV ABC anchor clamp onto the bracket hook. -
Insert Conductors
Insert conductors into the self-adjusting anchor clamp. The spring mechanism ensures automatic gripping. -
Final Check
Ensure the clamp is fully seated and the upper bulge restricts rotation.
No special tools are required, which reduces installation time and labor costs.
