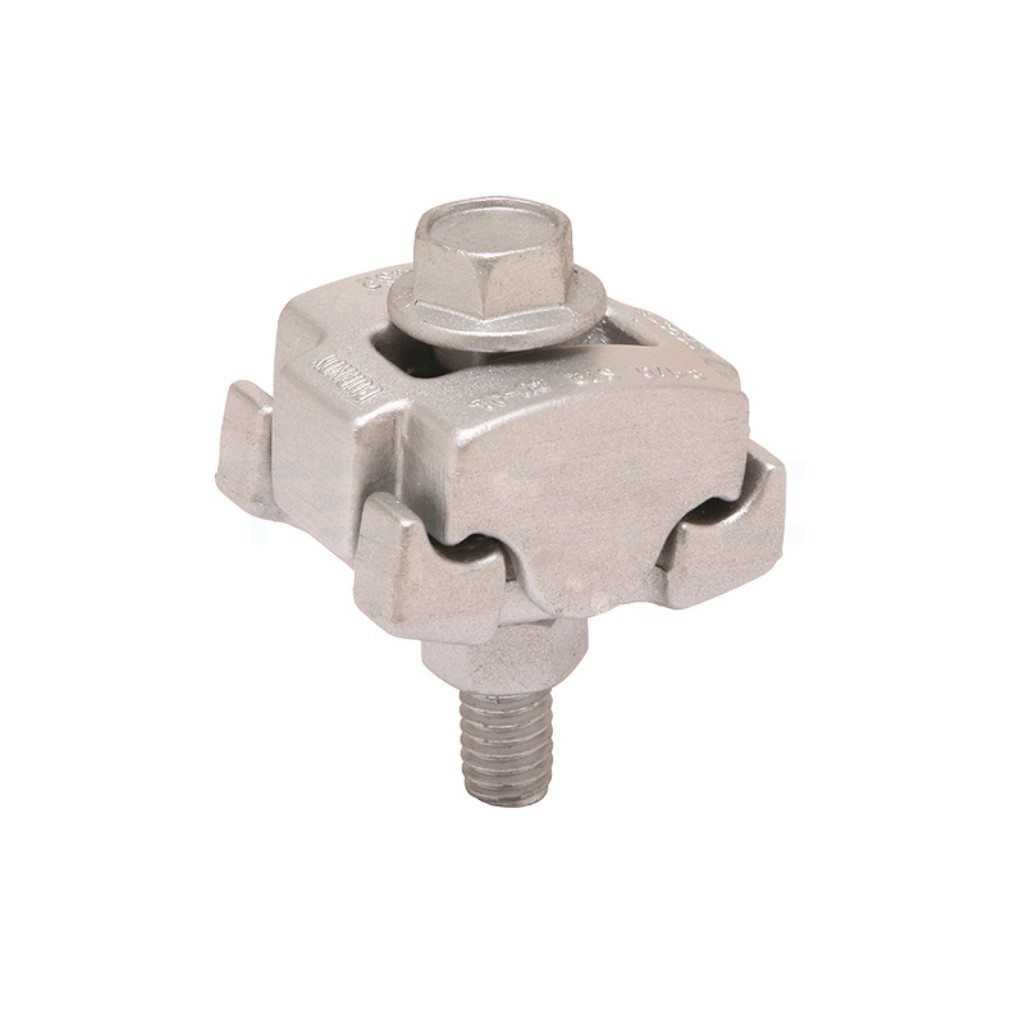

Aluminum Alloy Parallel Groove Clamp (LC52 / LC66 Series)

Key Features

High-Conductivity Aluminum Alloy Body
Ensures efficient current transfer with minimal electrical losses.
Multi-Conductor Compatibility
Suitable for aluminum, copper, ACSR, 6201, and 5005 conductors.
Dual Wrench Installation System
Allows fast and flexible installation using one or two wrenches.
Anti-Corrosion Design
Engineered to resist oxidation, galvanic corrosion, and harsh environments.
Secure Interlocking Structure
Prevents mismatch and ensures a stable mechanical grip under load.

Aluminum Alloy PG Clamp is a high-performance parallel groove connector designed for splicing and tapping of aluminum, copper, ACSR, and alloy conductors in overhead power systems. Manufactured from premium high-conductivity aluminum alloy, it ensures stable electrical contact, reduced resistance, and long-term durability under demanding field conditions.

Its precision-engineered groove structure delivers uniform pressure distribution across conductors, improving mechanical grip and electrical efficiency. Designed for utility and industrial applications, it provides reliable performance even under temperature fluctuations, vibration, and harsh outdoor environments.

International Standard Compliance

RUS Approved for utility-grade applications
RoHS compliant for environmental safety
Designed in line with international overhead line connector standards
Meets utility transmission and distribution requirements

Construction & Materials

Body Material: High-strength aluminum alloy for conductivity and durability
Bolts: Hot-dip galvanized steel for corrosion resistance
Washers: High-tension steel washers for stable pressure
Surface Finish: Anti-oxidation treatment for extended lifespan
Design: Interlocking groove structure to avoid misalignment

Installation Guide

Prepare Conductors: Clean and align conductors before installation.
Place Conductors: Insert both conductors into parallel grooves.
Align Clamp Body: Ensure proper interlocking of clamp halves.
Tighten Bolts: Use recommended torque with the one or two-wrench method.
Final Check: Confirm a tight grip and electrical continuity before energizing.

Technical Parameters

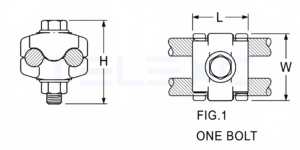

Model No.	Groove A	Groove B	L (mm)	W (mm)	H (mm)	Weight (Kg/Pcs)
TX01-51	#8 AWG 1/0	1/0 AWG	34	43	58	0.107
TX02-52	#8 AWG 2/0	2/0 AWG	36	44	58	0.110

Parameter	Specification
Model No.	TX-UCG25RS
Type	Parallel Groove Clamp (UCG-RS)
Material	High-strength Aluminum Alloy
Bolt Material	Galvanized Steel
Conductor Range	8 AWG to 1/0 AWG (Al/Cu/ACSR/6201/5005)
Dimensions (L × W × H)	1-3/8″ × 1-5/8″ × 2-1/8″
Bolt Type	Square shank, hex head
Installation Method	One or two wrench installation
Torque Value	Approx. 150 lb-inch
Corrosion Protection	High-resistance aluminum alloy body
Standard Compliance	RUS Approved, RoHS Compliant

Applications

Overhead Power Distribution

Used for reliable tapping and splicing of conductors in overhead lines.
Ensures stable electrical transmission with minimal energy loss.

Substation Connections

Ideal for aluminum and copper busbar interconnections.
Provides strong mechanical and electrical bonding.

Utility Transmission Lines

Supports long-distance conductor alignment in transmission networks.
Withstands thermal cycling and mechanical stress.

Industrial Electrical Systems

Used in factories and industrial grids for secure conductor joining.
Handles vibration and heavy electrical loads efficiently.

Renewable Energy Networks

Suitable for solar and wind power electrical interconnections.
Maintains stable performance under outdoor environmental conditions.

Product Advantages

High Electrical Efficiency

Low-resistance contact improves current flow and reduces losses.
Ensures optimized energy transmission performance.

Strong Mechanical Strength

Durable aluminum alloy construction resists deformation under load.
Provides long-term structural reliability.

Universal Conductor Compatibility

Works with copper, aluminum, ACSR, and alloy conductors.
Reduces inventory complexity for installers.

Easy Field Installation

The one- or two-wrench system simplifies the installation process.
Reduces labor time and installation errors.

Weather-Resistant Performance

Designed for harsh outdoor and industrial environments.
Performs reliably under temperature fluctuations.

FAQs

1. What is the TX-UCG25RS clamp used for?
It is used for connecting and tapping overhead conductors securely.

2. Which conductors are compatible with this clamp?
It supports aluminum, copper, ACSR, 6201, and 5005 conductors.

3. Is it suitable for outdoor installation?
Yes, it is corrosion-resistant and designed for harsh environments.

4. What is the installation method?
It supports one or two wrench installations using galvanized bolts.

5. Does it require maintenance?
Minimal maintenance is required due to corrosion-resistant materials.

6. What is the torque requirement?
Approximate installation torque is 150 lb-inch.

7. Is it certified for utility use?
Yes, it is RUS-approved and RoHS compliant.

8. Can it be used for both tapping and splicing?
Yes, it is designed for both parallel tapping and conductor splicing.
