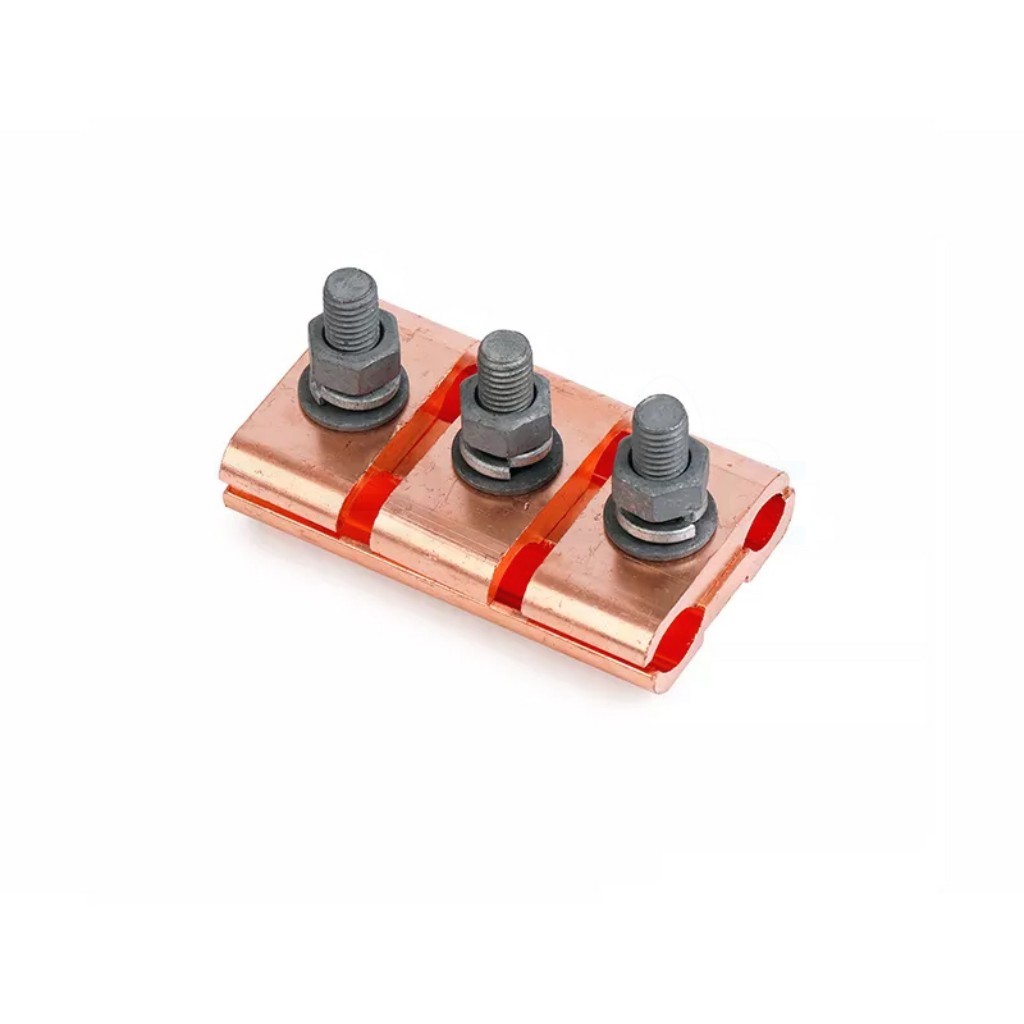

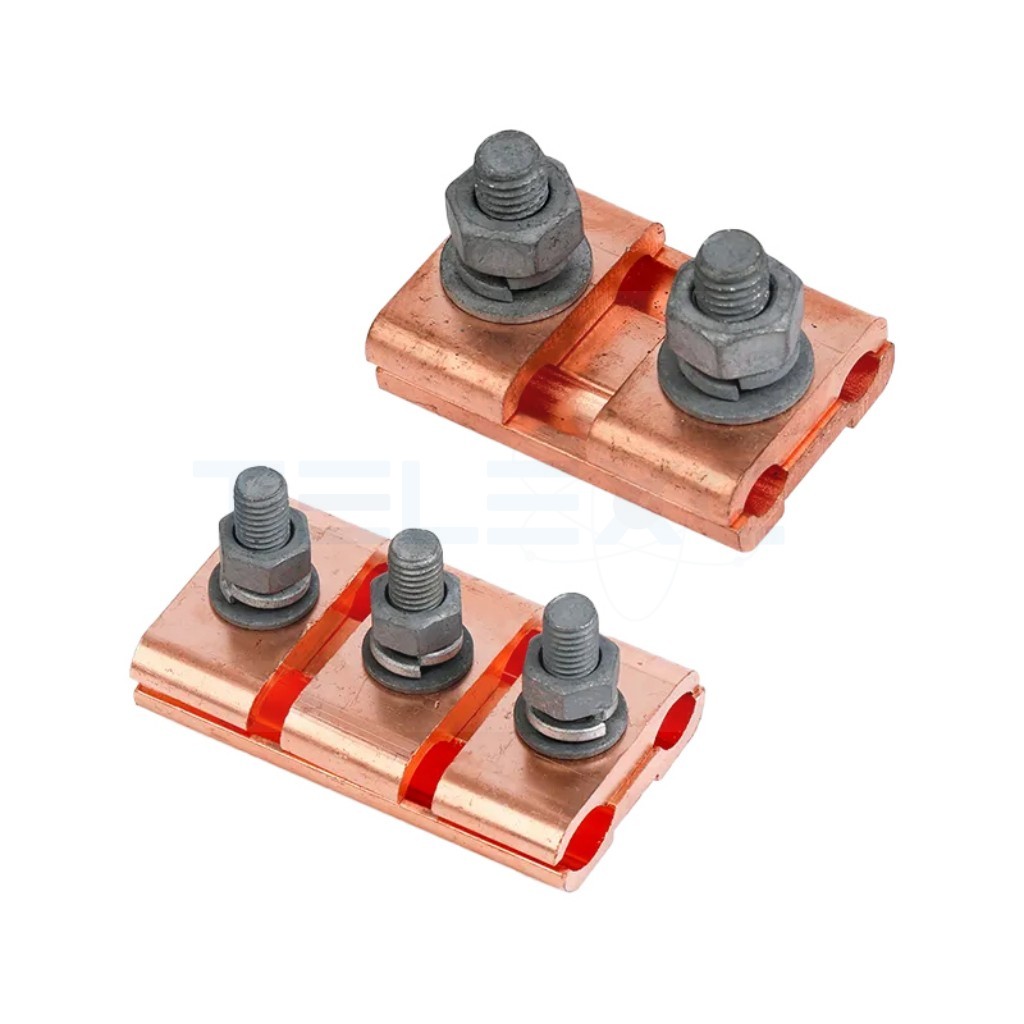

Copper PG Clamp is designed for secure and efficient connection of two parallel bare copper conductors in overhead and power distribution systems. It features a precision-engineered wide contact surface that ensures maximum electrical conductivity while minimizing power loss and heat generation during operation.
Manufactured from high-strength copper alloy, this clamp delivers excellent mechanical strength along with superior corrosion resistance, making it suitable for long-term outdoor and industrial applications. The robust 3-bolt design ensures uniform pressure distribution across the conductors, providing a stable and vibration-resistant connection even under varying load and temperature conditions.
With its versatile structure, the Copper PG Clamp accommodates different conductor sizes, making it ideal for flexible installation in modern electrical networks. It is widely used in transmission lines, substations, and industrial power systems where reliable and continuous electrical performance is critical.
International Standard Compliance
- Manufactured in accordance with IEC electrical connector standards
- Hot-dip galvanization complies with ASTM A153
- Produced under ISO 9001 quality management systems
- Suitable for utility-grade transmission and distribution applications
Construction & Materials
- Body: High-strength copper alloy for conductivity and durability
- Bolts & Nuts: Stainless steel for corrosion resistance
- Washers: Spring type for consistent pressure retention
- Groove Design: Cross-grooved for enhanced grip and mechanical strength
Installation Guide
- Prepare Conductors: Clean and align both copper conductors properly.
- Position Clamp: Place wires into the groove, ensuring full contact.
- Tighten Bolts: Secure evenly using appropriate torque tools.
- Check Alignment: Ensure no conductor slippage or misalignment.
- Final Inspection: Confirm tightness and electrical continuity.
