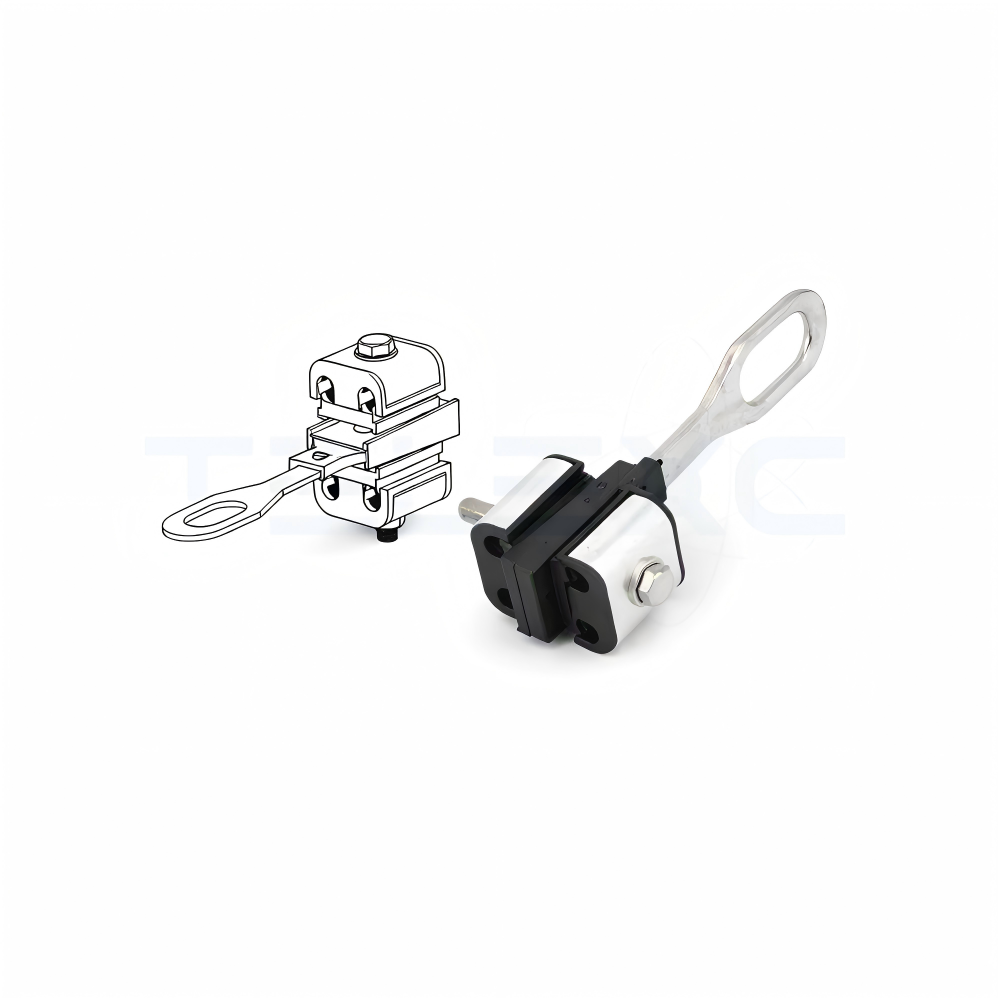

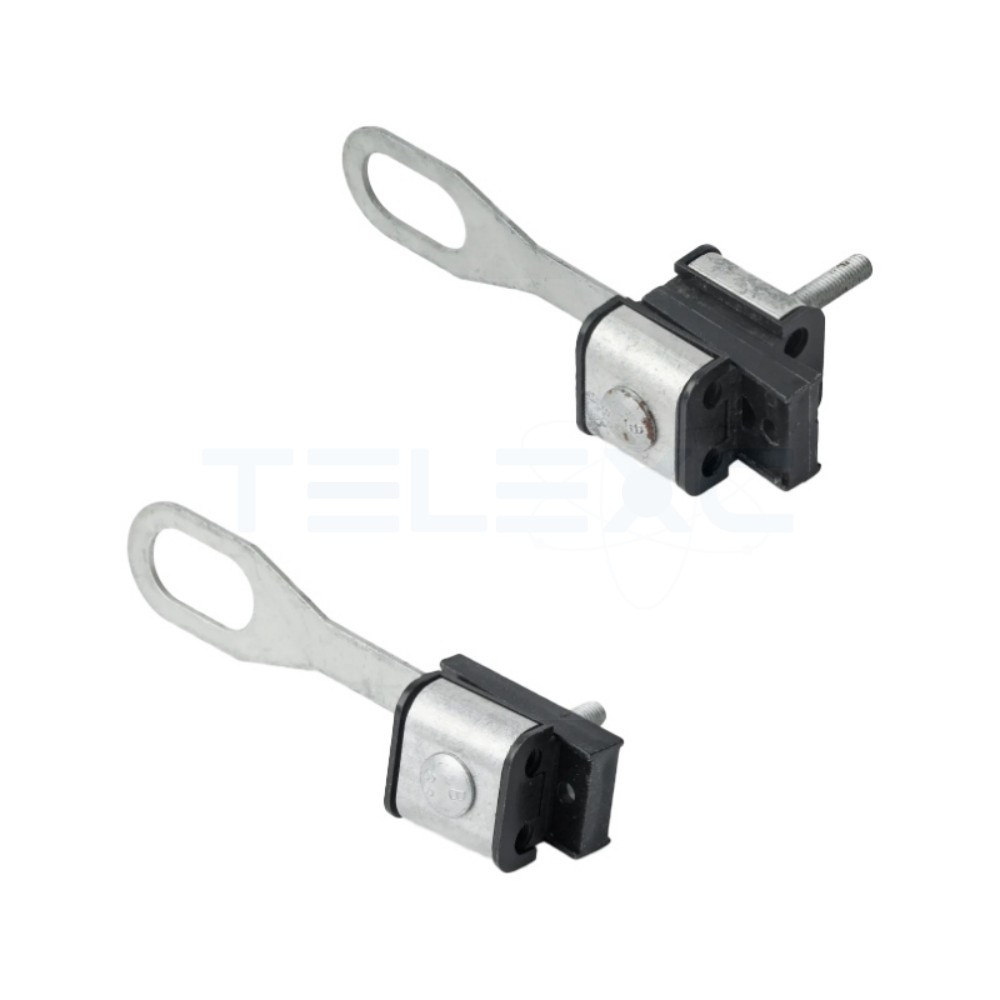

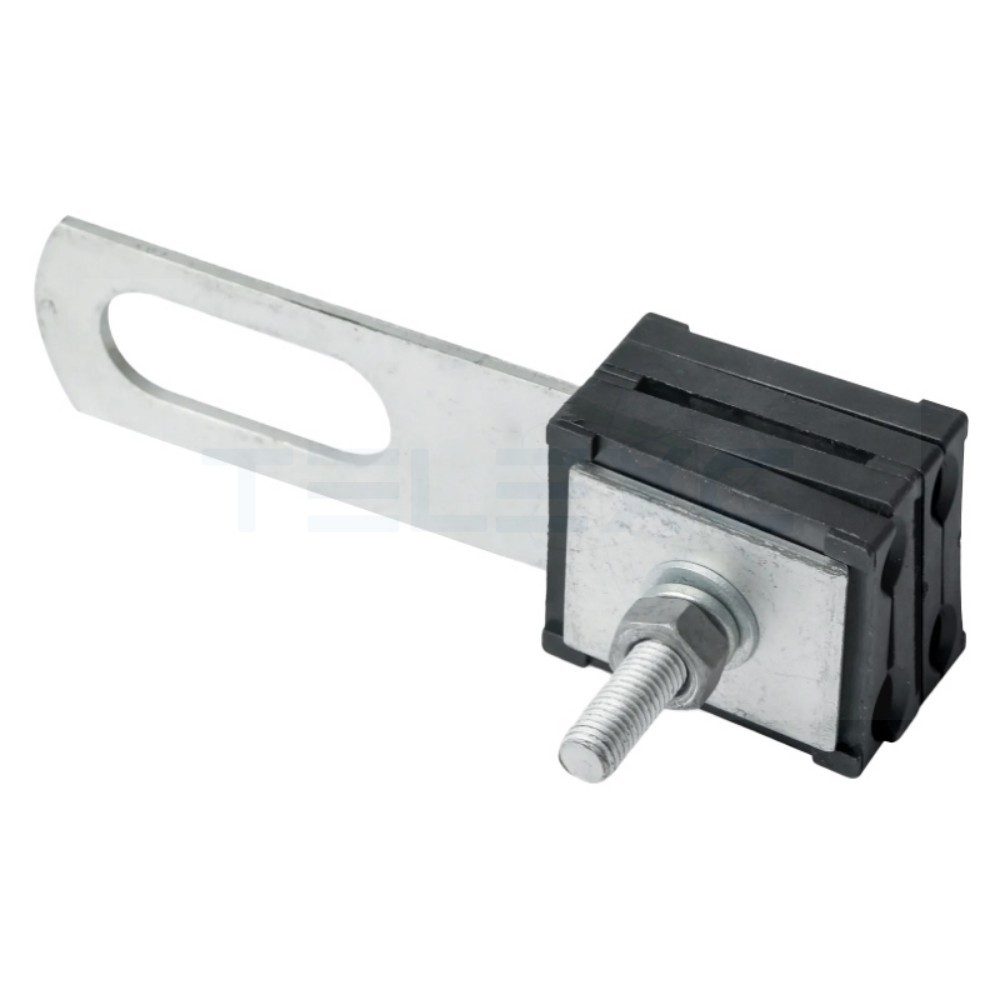

The Aluminum Alloy Tension Clamp is designed for anchoring and tensioning 4-core aerial bundled cable (ABC) in low-voltage overhead distribution networks. Built with a high-strength aluminum alloy body and weather-resistant fastening components, this clamp provides secure cable retention over span lengths while helping protect the insulated messenger and conductor surface.
Its preformed wedge-style structure allows quick installation without complex tools, making it suitable for utility poles, wall-mounted hooks, standard brackets, and pigtail fittings. The clamp is developed for reliable holding force in demanding outdoor environments, including rain, wind, heat, and cold. Its lightweight but durable construction also simplifies transport, site handling, and installation work.
The TX-PA4 series is available in several size ranges for different conductor sections, including common 4 × 16–35 mm², 4 × 16–50 mm², 4 × 50–120 mm², and similar low-voltage ABC applications. Depending on model selection, the clamp body may be paired with nylon wedges, galvanized steel hardware, or equivalent weather-resistant components to deliver stable mechanical performance and long service life.
This clamp is widely used for dead-end, anchor, and strain connection points in aerial bundled cable systems where dependable tension holding and easy field installation are required.
International Standard Compliance
The TX-PA4 Tension Clamp is manufactured according to recognized utility hardware quality and performance practices.
- Designed in accordance with NF C 33-042 reference requirements for applicable clamp types
- Production can be managed under ISO 9001 quality control systems
- Material selection can be aligned with RoHS compliance requirements on request
- Suitable for utility and overhead distribution hardware projects requiring reliable mechanical performance
Construction & Materials
The TX-PA4 clamp is manufactured using durable materials chosen for mechanical strength, corrosion resistance, and stable outdoor performance.
Typical construction includes:
- Clamp body: High-strength aluminum alloy
- Wedge/insert: Engineering polymer or nylon, depending on model
- Bail/hook interface: Galvanized steel or equivalent corrosion-resistant metal
- Fastening hardware: Hot-dip galvanized steel where applicable
- Cable contact area: Designed to grip securely while reducing surface damage to the insulated messenger or conductor
Its preformed and wedge-operated structure supports a strong holding force while maintaining practical installation convenience for overhead ABC line work.
Installation Guide
- Confirm the cable type, conductor range, and required mechanical load before selecting the correct TX-PA4 model.
- Check the bracket, hook, wall anchor, or pole fitting to ensure compatibility with the clamp bail.
- Open or prepare the clamp according to the wedge design.
- Insert the ABC cable into the clamp body in the proper position.
- Ensure the messenger or supported section is seated correctly inside the gripping zone.
- Allow the wedge section to lock the cable naturally or tighten as required by the model structure.
- Attach the clamp bail to the hook, bracket, or pigtail support point.
- Verify that the cable is aligned properly and that the clamp is holding the required tension.
- Inspect the insulation surface to confirm it is not cut, pinched, or excessively compressed.
- Complete final line tensioning and recheck installation security.
Installation Note:
For best performance, always match the clamp size to the cable diameter and cross-sectional range. Use only on suitable low-voltage ABC applications according to project design.
Applications
The TX-PA4 Aluminum Alloy Tension Clamp is suitable for:
- 4 core ABC cable dead-end anchoring
- Low-voltage overhead distribution lines
- Utility pole line cable tensioning
- Service line and branch line anchoring
- Pole and wall-mounted cable support points
- Intermediate fixing in selected distribution layouts
- Outdoor cable retention in harsh weather environments
FAQs
1. What is this clamp used for?
The TX-PA4 clamp is used to anchor and tension 4 core ABC cable in low-voltage overhead distribution systems.
2. Is this clamp suitable only for 4 core cable?
The main series is intended for 4 core ABC cable, but some variants are also available for selected 2 core applications.
3. What material is used for the clamp body?
The clamp body is typically made from high-strength aluminum alloy, with some models also using nylon or composite wedge components.
4. Can this clamp be installed without special tools?
Many wedge-type versions are designed for simple and fast installation, and some models can be installed without special tools.
5. Is the clamp resistant to outdoor weather?
Yes. It is designed to withstand common outdoor conditions such as rain, wind, temperature changes, and general corrosion exposure.
6. What cable size ranges are available?
Available models cover common ranges such as 4 × 16–35 mm², 4 × 16–50 mm², 4 × 25–50 mm², and 4 × 50–120 mm².
7. What is the maximum breaking load available in this range?
Depending on model selection, the breaking load can reach up to 30 kN.
8. Can Telexc provide customized clamp options?
Yes. Telexc can support customized specifications based on conductor size, material preference, and project requirements.
