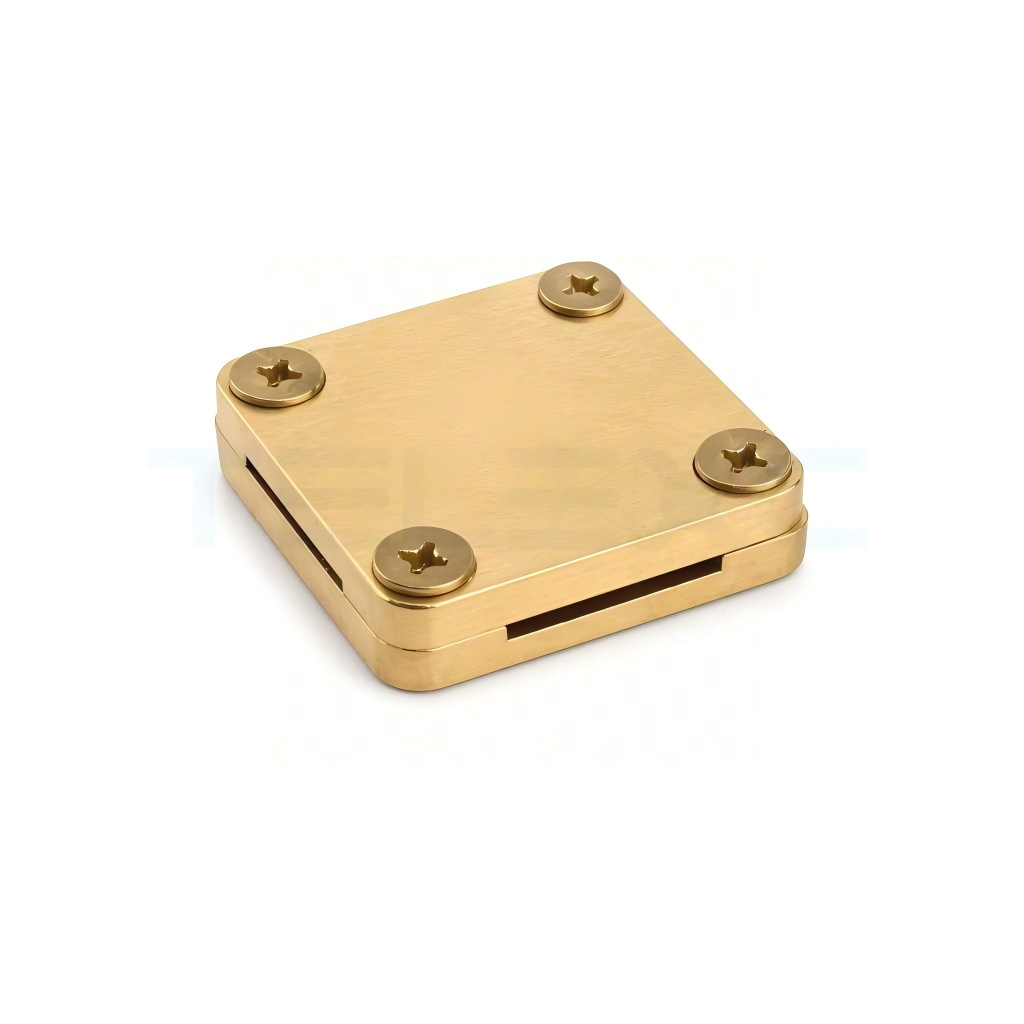

Square Cable Clamp is a robust connector designed for securing and joining conductors, tapes, and cables in lightning protection and grounding systems. Its square-profile design ensures even pressure distribution, providing a stable and low-resistance electrical connection across multiple conductor configurations.

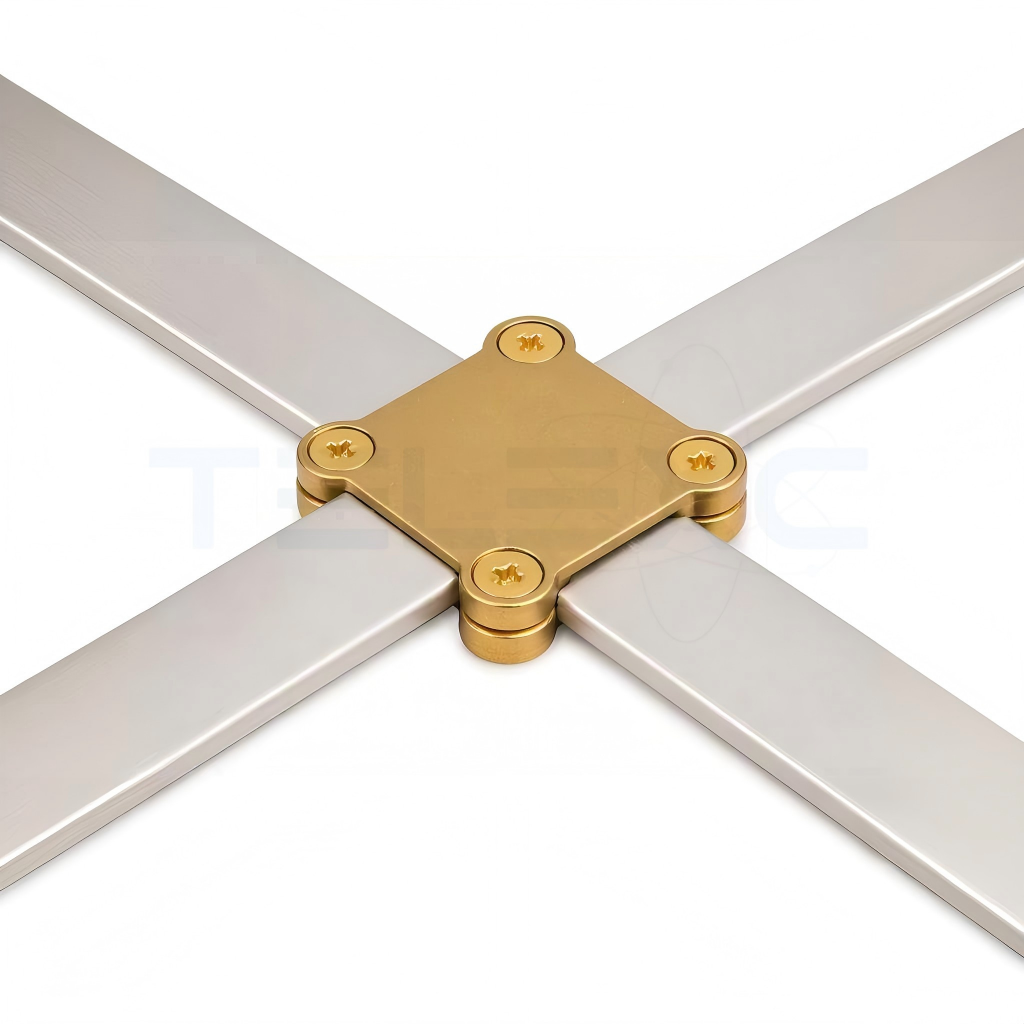

Manufactured from high-quality brass, copper alloy, or phosphor bronze, this clamp offers excellent conductivity and corrosion resistance. It is ideal for forming cross, straight-through, or tee connections, making it a versatile solution for structured earthing networks and cable routing on walls or flat surfaces. Square Cable Clamp for lightning protection and grounding systems ensures secure multi-way conductor connection with high conductivity and durability.
International Standard Compliance
- Complies with BS EN 62561-1 standards
- Suitable for IEC lightning protection systems
- RoHS-compliant materials
- Manufactured under ISO quality systems
Construction & Materials
- Body Material: Brass / Copper Alloy / Phosphor Bronze
- Design: Square clamp with recessed lid
- Fastening: Screw-fixed top cover
- Base: Countersunk hole for mounting
- Finish: Corrosion-resistant surface
Installation Guide
- Prepare Surface: Ensure the mounting surface is clean and stable.
- Position Clamp: Place conductors or tapes into the clamp base.
- Align Properly: Arrange cables for correct joint configuration.
- Fix Clamp: Secure base using a screw through a countersunk hole.
- Tighten Cover: Fasten top screws to ensure a firm connection.
