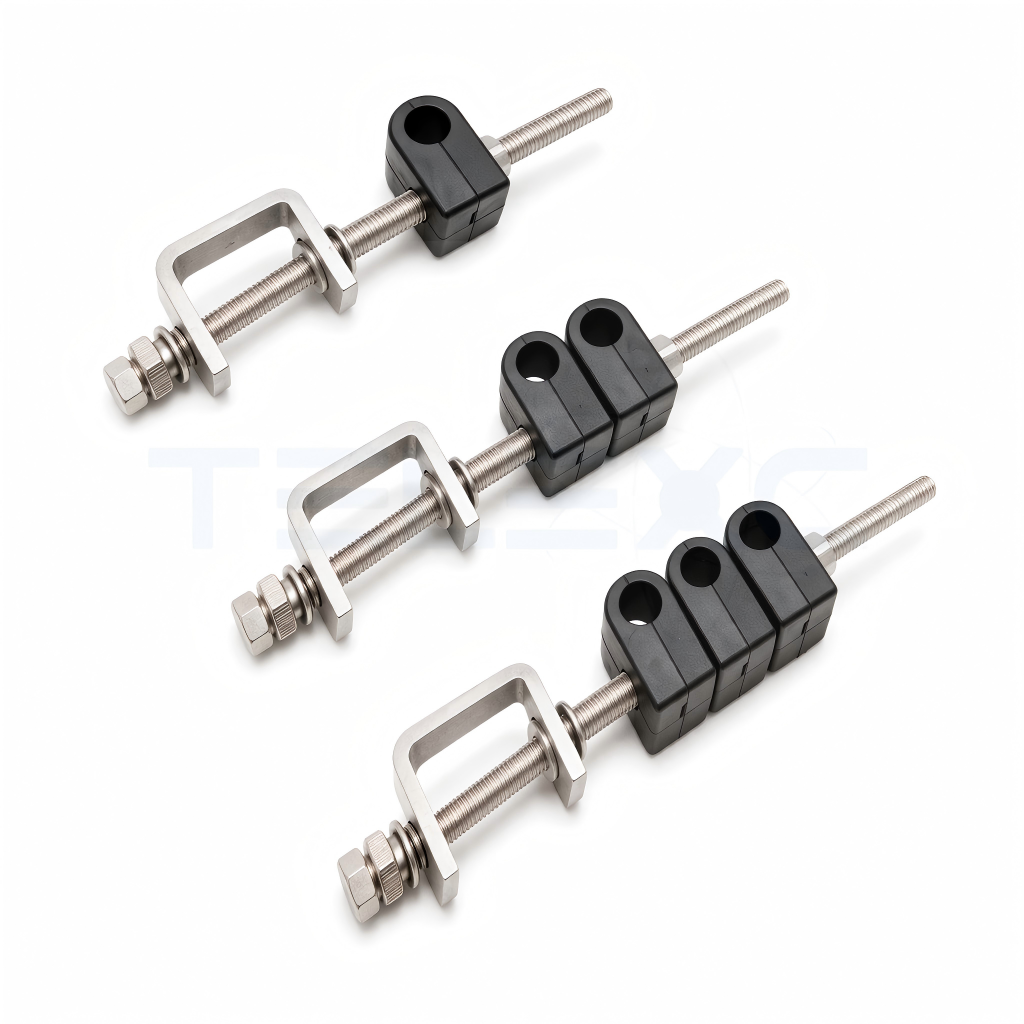

The Single Hole Feeder Clamp is designed for secure fixation and support of 5D-FB cables. Available in one-way, two-way, three-way, and four-way configurations, this clamp provides versatile installation options for different cable runs. Each variant ensures stable positioning, reduces mechanical stress on cables, and withstands environmental factors for long-lasting reliability.
- One-way clamp: Secures one 5D-FB cable.
- Two-way clamp: Secures two 5D-FB cables.
- Three-way clamp: Secures three 5D-FB cables.
- Four-way clamp: Secures four 5D-FB cables.
International Standard Compliance
- RoHS 2002/95/EC Compliant
- ISO 9001 Quality Management System standards
- Salt spray corrosion test: 96 hours
Construction & Materials
- 304 Stainless Steel Components: Rods, nuts, washers, screws, and angle adapters
- UV-Resistant PP/ABS Hanger: Durable against sunlight, aging, and moisture
- Anti-Aging Rubber Inserts: Protect cable surface from abrasion
Installation Guide
- Select an appropriate one-way, two-way, three-way, or four-way clamp.
- Mount the angle adapter onto the support structure.
- Insert the 5D-FB cable into the single-hole hanger.
- Secure using an M8 threaded rod, nut, spring washer, and flat washer.
- Tighten using an M8 spanner.
- Verify alignment and load stability before energizing.
Product Codes
| Product Code | Description |
|---|---|
| FCS-1 | One-way feeder clamp for 5D-FB |
| FCS-2 | Two-way feeder clamp for 5D-FB |
| FCS-3 | Three-way feeder clamp for 5D-FB |
| FCS-4 | Four-way feeder clamp for 5D-FB |
