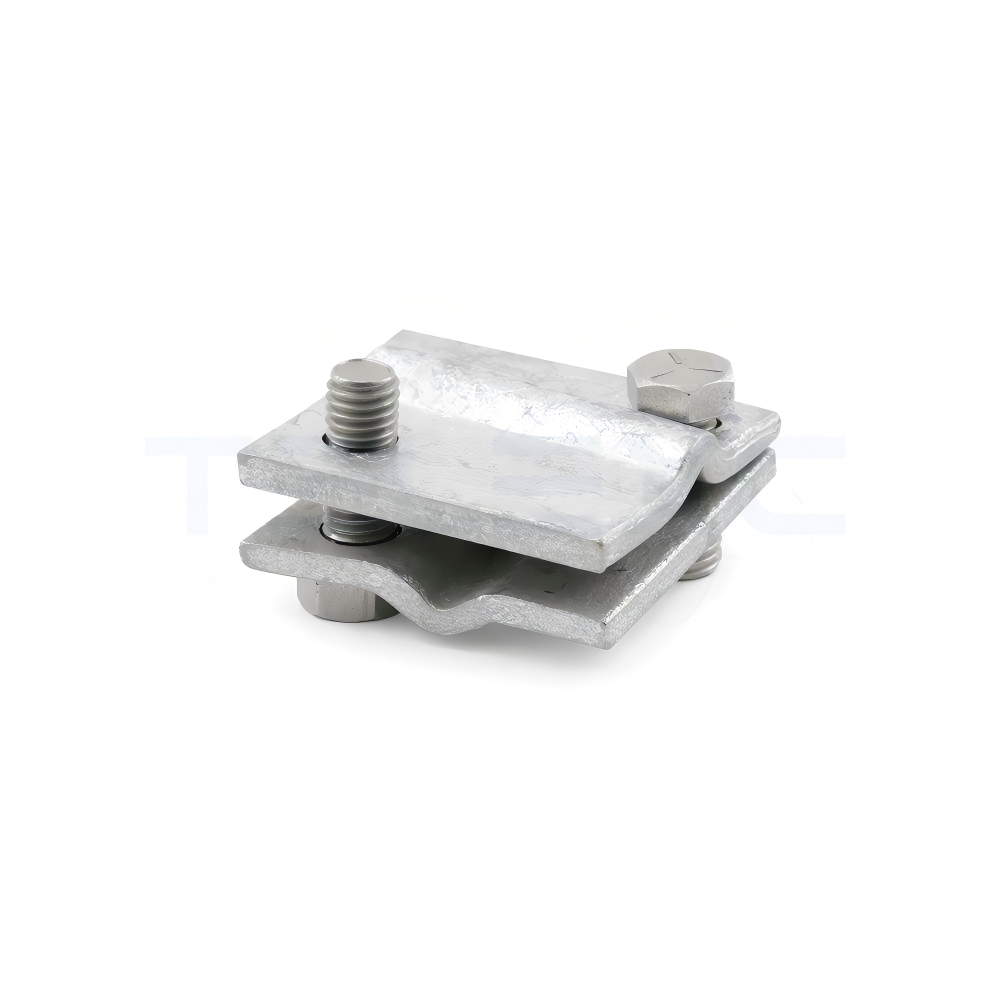

The Crossover Clamp Series is designed to securely fasten two overhead strands crossing at a 90-degree angle, ensuring stability and reducing abrasion at intersection points. Available in multiple sizes from 1/4″ to 1/2″ strand, this series supports a wide range of transmission and telecom applications.
Manufactured from high-strength hot-dip galvanized steel, these clamps provide excellent resistance against corrosion, environmental exposure, and mechanical stress. The design ensures controlled clamping pressure, preventing strand damage while maintaining a firm hold.
Each clamp is supplied with heavy-duty hex bolts, allowing easy installation and long-term reliability in overhead line systems. The TX-CC Crossover Clamp Series is designed for perpendicular strand connections and has a galvanized coating that ensures long service life.
International Standard Compliance
- ASTM A153 (Hot-dip galvanizing)
- ISO 9001 certified production
- IEC guidelines for overhead line hardware
- RoHS-compliant materials
- Mechanical strength tested
Construction & Materials
- High-grade carbon steel construction
- Hot-dip galvanized finish per ASTM A153

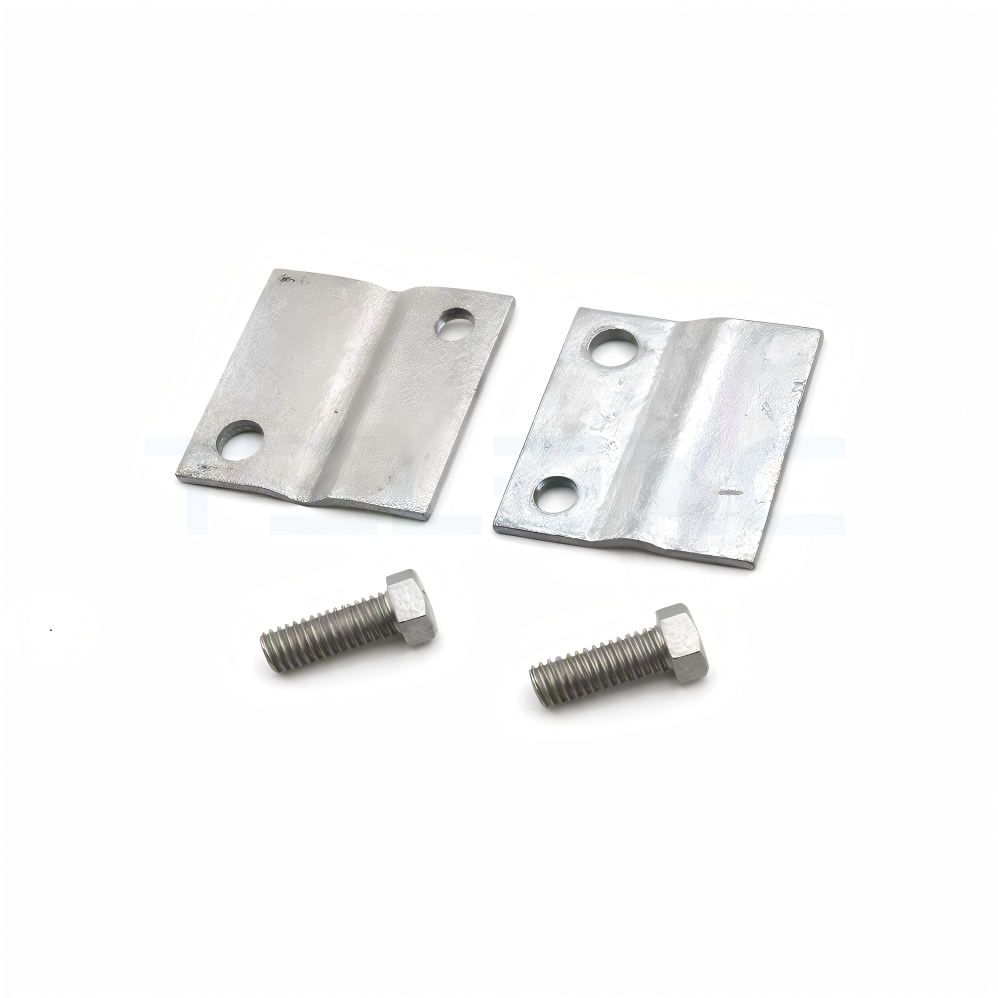

- Supplied with hex bolts and nuts
- Smooth curved design to protect strands
- Suitable for outdoor and harsh environments
Installation Guide
- Position the clamp at the strand crossing location.
- Insert strands into the clamp grooves.
- Align clamp halves correctly.
- Tighten hex bolts evenly using proper tools.
- Inspect installation for a secure and stable fit.
