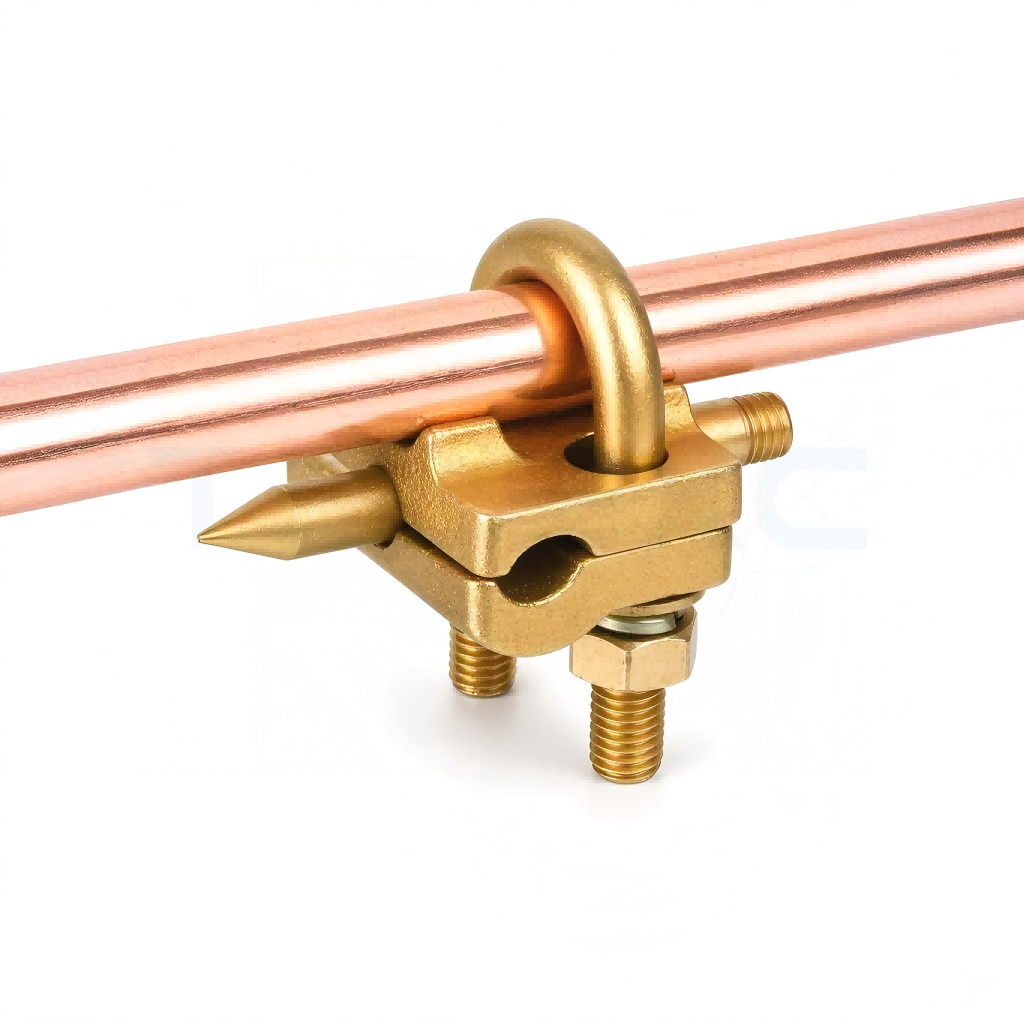

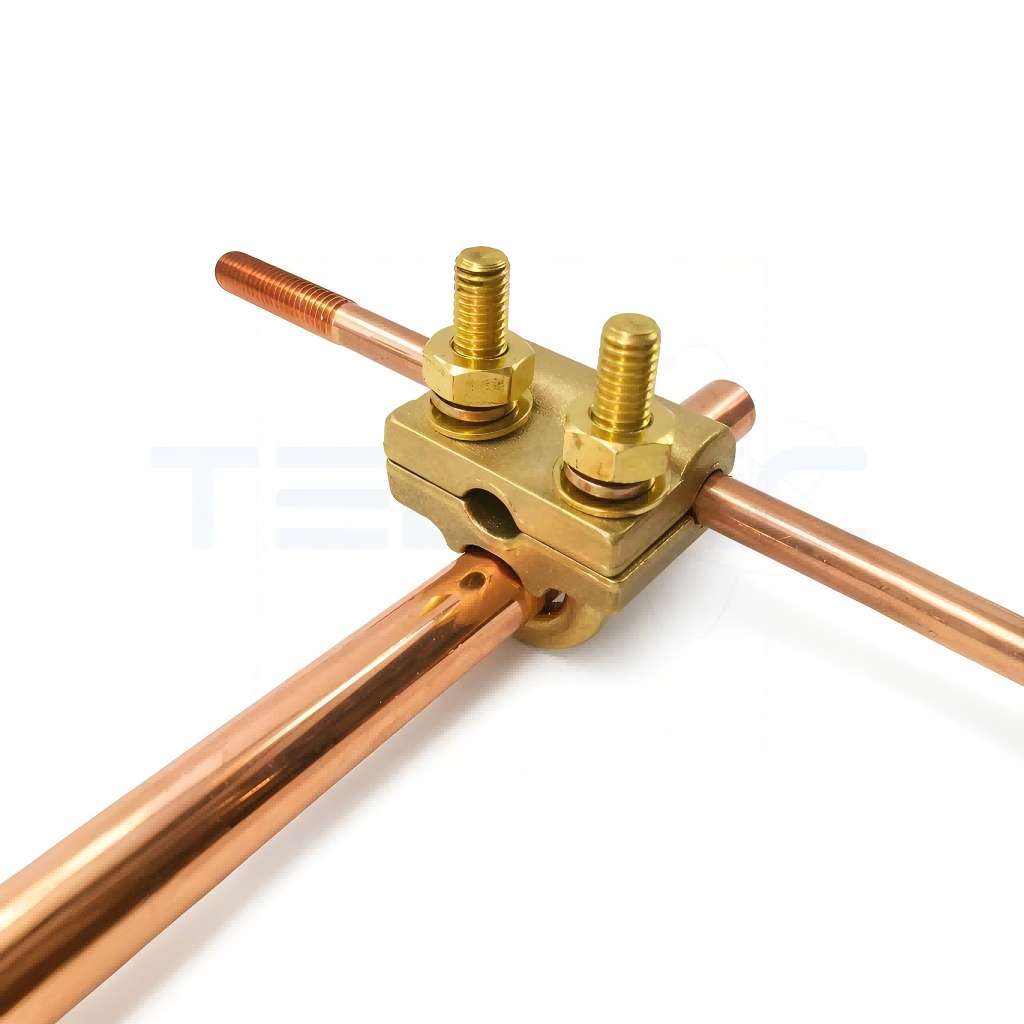

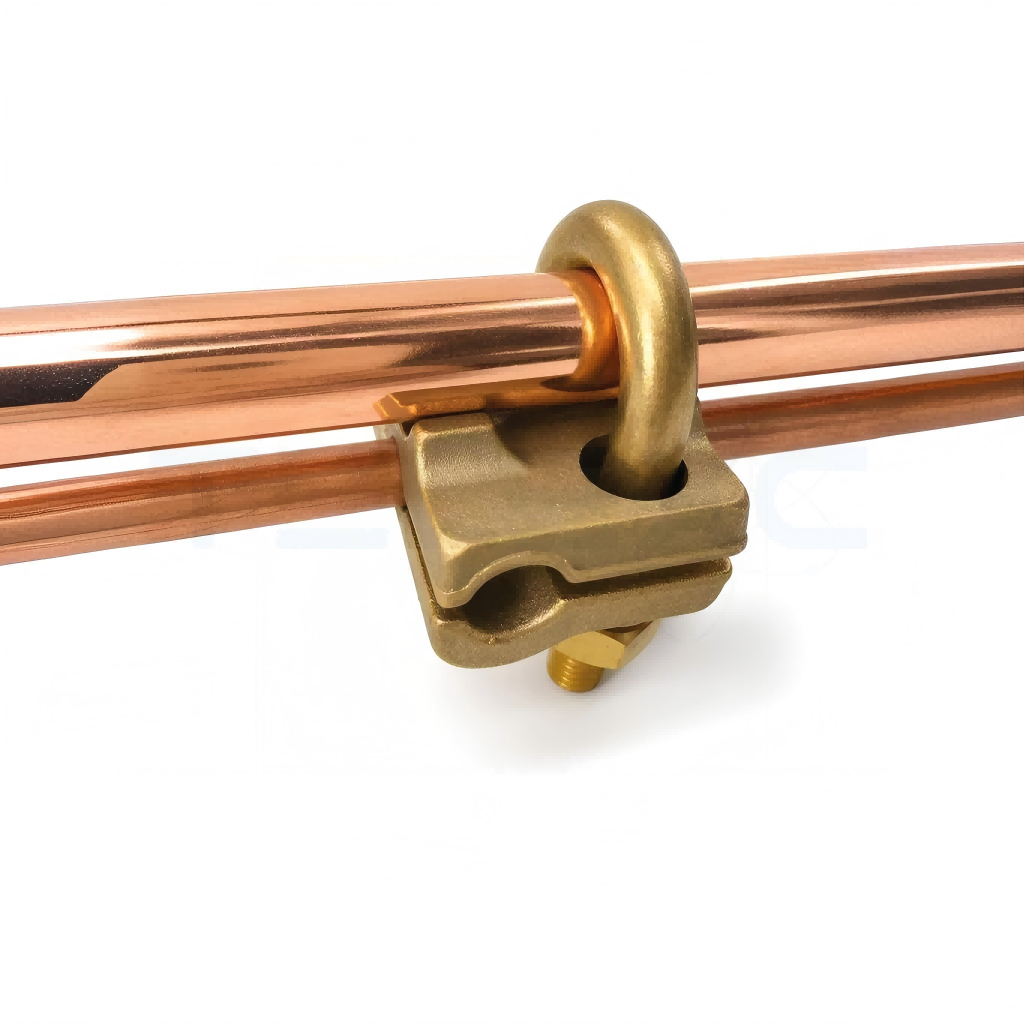

Brass Earth Clamp – Brass Rod Clamp – Saddle Type Grounding Connector

Key Features

Strong Electrical Conductivity
Ensures efficient grounding with minimal resistance.
Robust Clamping Design
Saddle structure provides a firm grip on wires and conductors.
Corrosion-Resistant Material
Performs reliably in harsh environmental conditions.
Long Service Life
Designed for durability exceeding 50 years.
Easy Installation
Simplified design reduces installation time and effort.

Category: Supporting Hardware & Grounding Tags: Brass Clamp, brass earth clamp, brass earth clamp for grounding systems, copper clamp, copper grounding clamp connector, corrosion-resistant grounding clamp, earth clamp, earthing connector, grounding clamp, lightning protection clamp, lightning protection earth clamp, saddle clamp, saddle clamp for earthing applications, wire rope clamp

Brass Earth Clamp is a high-performance grounding connector designed for secure fixing and electrical continuity in earthing and lightning protection systems. Manufactured from premium brass, bronze, or pure copper, it ensures excellent conductivity, corrosion resistance, and long operational life. Its saddle clamp structure allows quick installation and firm grip on conductors, making it suitable for various industrial and utility grounding applications.

International Standard Compliance

Manufactured under an ISO 9001:2015 quality management system
Designed for global grounding and lightning protection practices
Meets industry requirements for electrical safety and durability

Construction & Materials

Made from high-grade brass, bronze, or pure copper
Precision-cast and machined for accurate fitting
Smooth surface finish for improved contact and corrosion resistance

Installation Guide

Position the clamp over the conductor or earth wire.
Insert the wire rope or conductor into the saddle.
Tighten bolts evenly to secure the connection.
Ensure firm contact for proper conductivity.
Inspect the connection before system commissioning.

Quality Control

IQC (Incoming Quality Check)
Raw materials are inspected before production.
IPQC (Process Quality Control)
Continuous monitoring during manufacturing stages.
First Piece Inspection
Initial product checked for dimensional accuracy.
Mass Production Control
Bulk products are verified for consistency.
OQC / FQC (Final Inspection)
Final quality check before packaging and dispatch.

Technical Parameters

Parameter	Specification	Parameter	Specification
Model No.	TX-BEC	Structure	Saddle Clamp
Material	Brass / Bronze / Pure Copper / Alloy	Function	Connecting and fixing
Measurement System	Metric	Surface Finish	Smooth
Conductivity	High	Corrosion Resistance	Excellent
Service Life	≥ 50 Years	Service Mode	OEM & ODM
Standard	Standard	Application	Earthing & Lightning Systems
Installation	Easy & Tool-Friendly	Certification	ISO 9001:2015

Size:

Suitable for a Ground Rod	Suitable for Cable	Suitable for Copper Tape
7mm	10 mm2	15mm*2mm
8 mm	16 mm2	15mm*3mm
10 mm	25mm2	20mm*2mm
11 mm	30 mm2	20mm*3mm
12 mm	35 mm2	20mm*4mm
14.2(5/8″)mm	50 mm2	25mm*2mm
15 mm	70 mm2	25mm*3mm
16 mm	95 mm2	30mm*3mm
17.2(3/4″)mm	120 mm2	30mm*4mm
19 mm	150 mm2	30mm*5mm
20 mm	185 mm2	40mm*4mm
22 mm	240 mm2	40mm*5mm
25 mm	300 mm2	50mm*5mm

Applications

Power Distribution Systems

Used for grounding connections in substations and power networks.

Lightning Protection Systems

Provides reliable conductor fixing in lightning protection setups.

Telecommunication Installations

Ensures stable grounding for communication towers and equipment.

Industrial Earthing Systems

Suitable for factories and heavy-duty grounding requirements.

Construction & Infrastructure Projects

Widely used in building grounding and safety systems.

Product Advantages

Excellent Conductivity

Provides a low-resistance path for effective grounding performance.

High Corrosion Resistance

Suitable for long-term outdoor and underground use.

Durable Construction

Maintains mechanical strength under stress and vibration.

Cost-Effective Solution

Offers reliable performance at competitive pricing.

Versatile Application

Compatible with various conductor types and sizes.

FAQs

1. What is the function of a brass earth clamp?
It connects and secures conductors in grounding systems.

2. Which material is best for conductivity?
Pure copper offers the highest conductivity, followed by brass.

3. Is this clamp suitable for outdoor use?
Yes, it is corrosion-resistant and ideal for outdoor environments.

4. How long does the clamp last?
It has a service life of more than 50 years under normal conditions.

5. Is installation complicated?
No, it is designed for quick and easy installation.

6. Can it be customized?
Yes, sizes and materials can be customized as per requirements.

7. What standards does it comply with?
It complies with ISO 9001:2015 quality standards.

8. Where is it commonly used?
It is widely used in power systems, telecom, and industrial grounding.
