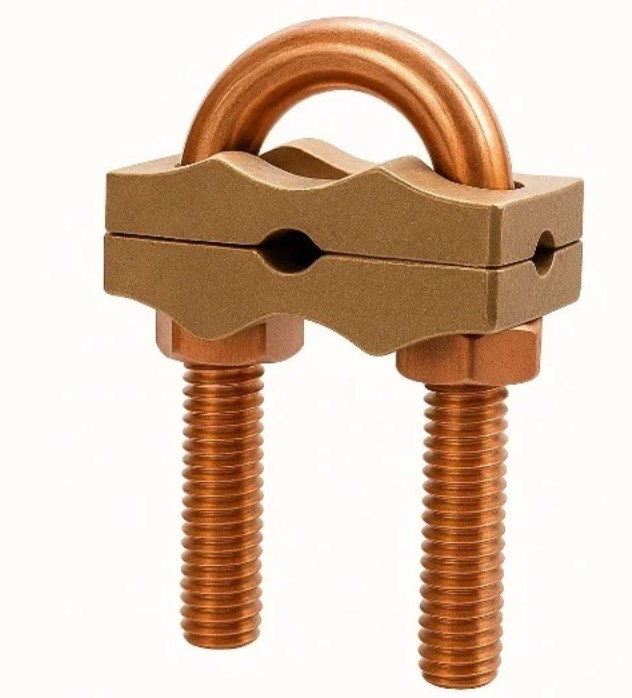

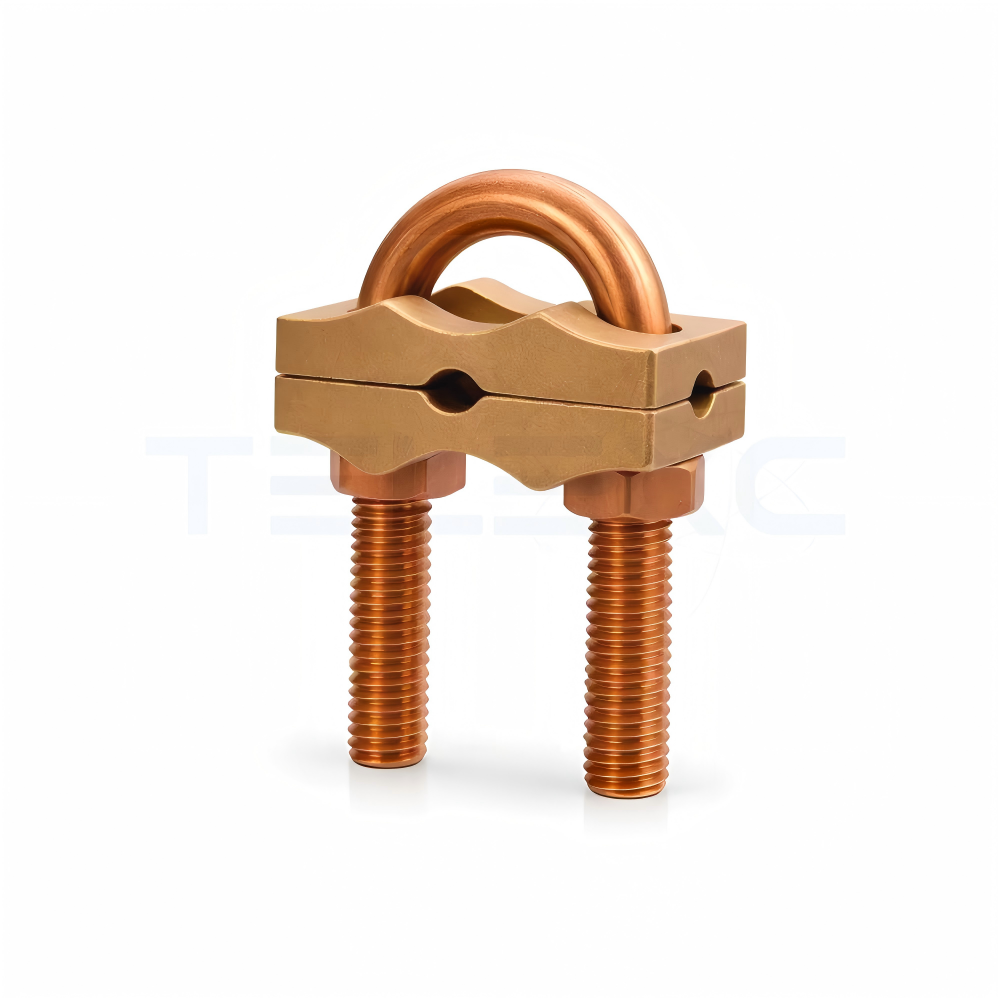

Bronze and Copper U Bolt & Guv Clamps are precision-engineered grounding connectors designed to create reliable mechanical and electrical bonds between earth rods, copper conductors, and grounding tapes. These clamps are widely used in earthing, lightning protection, and bonding systems where long-term conductivity and corrosion resistance are critical.
Manufactured from high-conductivity Copper and corrosion-resistant Bronze alloys, Telexc clamps are suitable for direct outdoor exposure and demanding industrial environments. The robust U-bolt and Guv-type designs ensure uniform pressure, secure contact, and stable performance under fault current and vibration conditions. Optional stainless steel or bronze fasteners further enhance durability and service life.
Model Range
-
TX-BUC – Bronze U Bolt Clamp
-
TX-CUC – Copper U Bolt Clamp
-
TX-BGC – Bronze Guv Clamp (Rod to Cable)
-
TX-CGC – Copper Guv Clamp
-
TX-RTC – Rod to Cable Guv Connector
| Parameter | Specification |
|---|---|
| Clamp Type | U Bolt Clamp / Guv (Rod to Cable) |
| Clamp Material | Bronze / Copper |
| Rod Diameter | 12 mm – 25 mm |
| Conductor Size | 25 sq.mm – 120 sq.mm |
| Tape Size | 25×3 mm to 50×6 mm |
| U Bolt / Fasteners | Stainless Steel 304 / 316, Bronze |
| Manufacturing | Casting + CNC Machining |
| Installation | Outdoor / Direct Exposure |
| Finish Options | Natural, Tinned, Nickel Plated |
| Mechanical Strength | >200 Nm pull resistance |
International Standard Compliance
-
BS 7430 – Code of practice for earthing
-
IEC 62561 – Lightning protection components
-
ASTM B62 / B187 / B124 – Copper & Bronze alloys
-
IEEE Grounding Guidelines
-
Suitable for NEC-based installations
Construction & Materials
-
Bronze Clamps: High-grade gunmetal and tin bronze alloys for corrosion resistance
-
Copper Clamps: Electrolytic Copper (ETP) for maximum conductivity
-

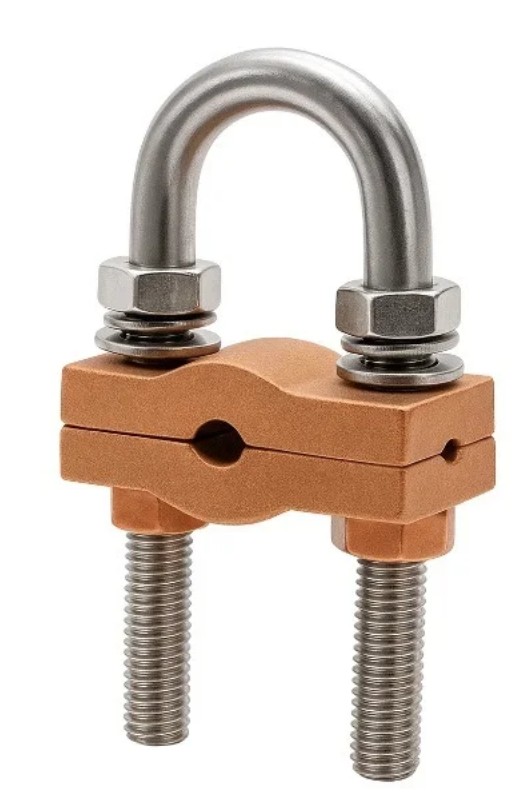

Fasteners: Stainless steel or bronze U-bolts and nuts
-
Design: Saddle base with grooved conductor seat for firm contact
Material selection ensures galvanic compatibility, mechanical stability, and long service life in grounding networks.
Installation Guide
-
Position clamp based on the earth rod or structure
-
Placethe conductor or tape in the grooved channel
-
Insert the U bolt over the conductor and through the clamp body
-
Tighten nuts evenly to ensure uniform pressure
-
Verify firm mechanical grip and electrical continuity
Bronze U-Bolt Clamps are used for secure grounding and earthing systems. Corrosion-resistant, high-conductivity clamps for rods and cables.
