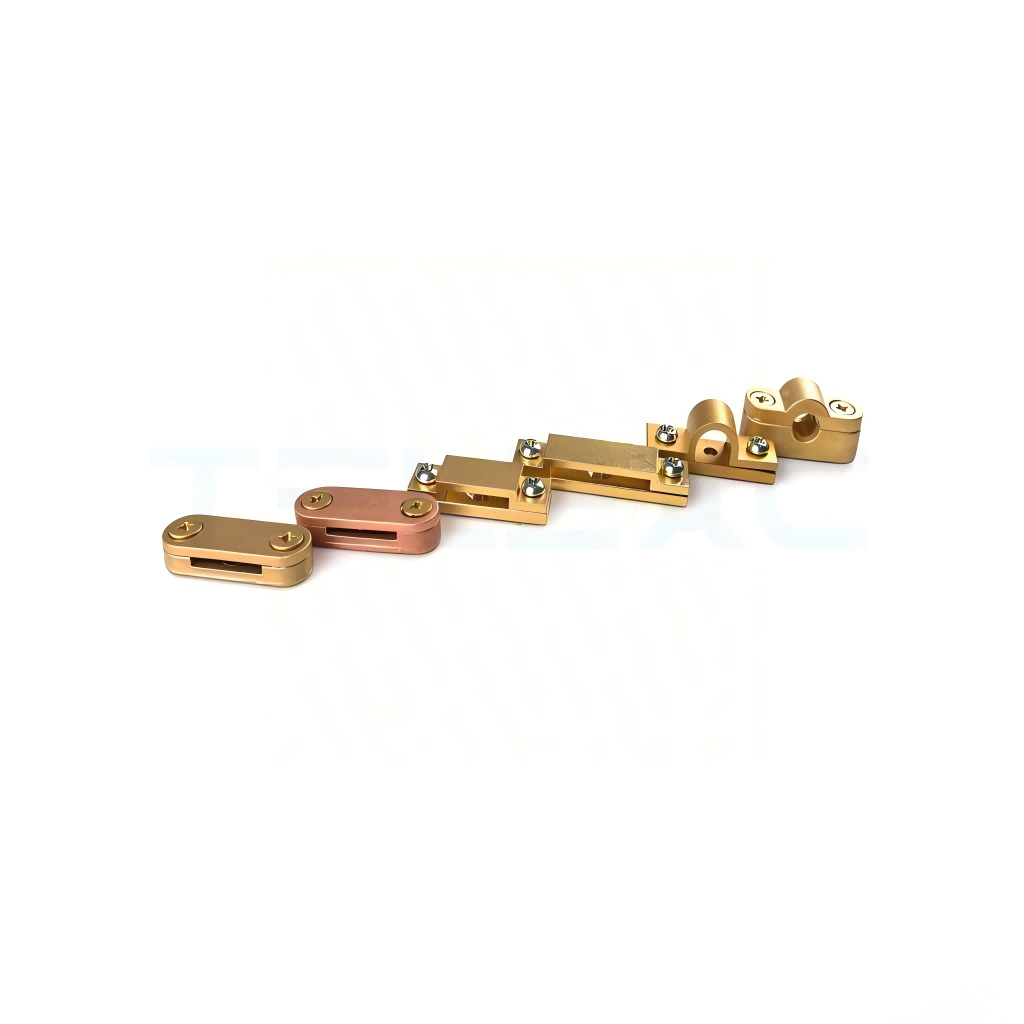

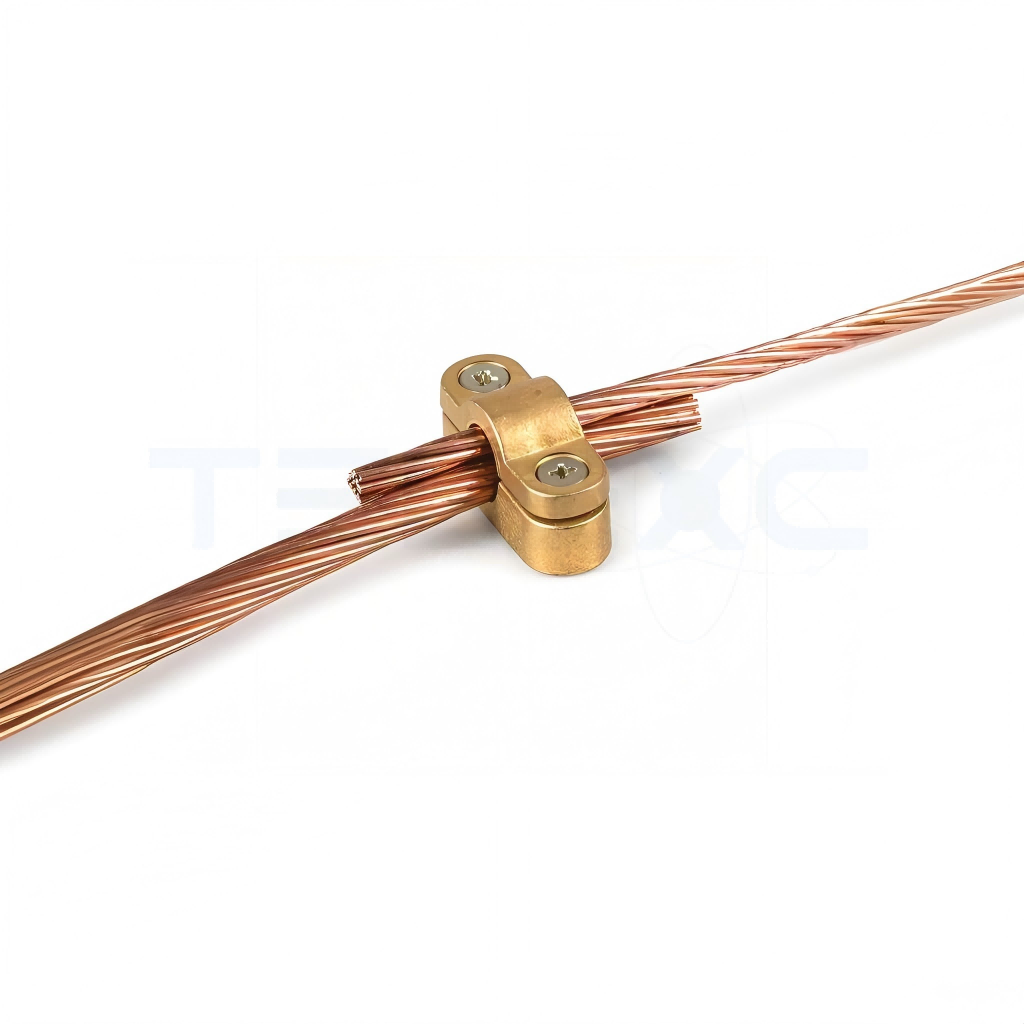

Copper Bar Saddle Clamp is a heavy-duty grounding connector designed for secure fixing and joining of copper bars, tapes, and conductors in earthing and lightning protection systems. Manufactured from pure copper, brass, bronze, or alloy materials, it provides excellent conductivity, strong mechanical grip, and long service life in industrial and outdoor environments.
International Standard Compliance
- Manufactured under ISO 9001:2015 certified system
- Designed for global earthing and lightning protection standards
- Suitable for industrial and infrastructure grounding networks
Construction & Materials
High-Purity Conductive Materials
Copper Bar Saddle Clamp is manufactured using high-purity copper, brass, bronze, or conductive alloy materials to ensure excellent electrical performance.
Precision Machined Design
Each clamp is accurately machined to achieve perfect alignment of copper bars and secure fitting during installation.
Strong Mechanical Structure
Robust saddle design provides firm gripping strength, preventing loosening under vibration or load conditions.
Corrosion Resistant Composition
Material selection ensures high resistance against moisture, soil chemicals, and harsh outdoor environments.
Long-Lasting Electrical Performance
Optimized conductive materials maintain stable conductivity and reliable grounding performance over long service life.
Installation Guide
- Place copper bars in saddle position.
- Align clamp over joint area properly.
- Tighten bolts evenly for strong grip.
- Ensure full surface contact between bars.
- Check electrical continuity after installation.
Quality Control System (ISO 9001 Based)
1. IQC – Incoming Quality Control (Material Verification)
All incoming raw materials such as copper, brass, bronze, and alloys are inspected for chemical purity, conductivity level, and surface integrity in accordance with ISO 9001 quality standards before production approval.
2. IPQC – In-Process Quality Control (Manufacturing Monitoring)
During machining and clamp formation, continuous process monitoring is conducted to ensure dimensional accuracy, structural consistency, and compliance with defined production parameters.
3. First Article Inspection (FAI)
The first manufactured sample from each batch is tested for mechanical fit, conductivity performance, and structural strength prior to mass production release.
4. Mass Production Quality Control (Batch Inspection)
Random sampling and batch-wise inspections are performed during production to ensure uniform quality, eliminate deviations, and maintain product consistency across large volumes.
5. OQC / FQC – Outgoing & Final Quality Control (Pre-Shipment Inspection)
All finished products undergo final verification including dimensional checks, surface finish inspection, mechanical strength testing, and electrical performance validation before packaging and dispatch to ensure full compliance with ISO 9001 standards.
