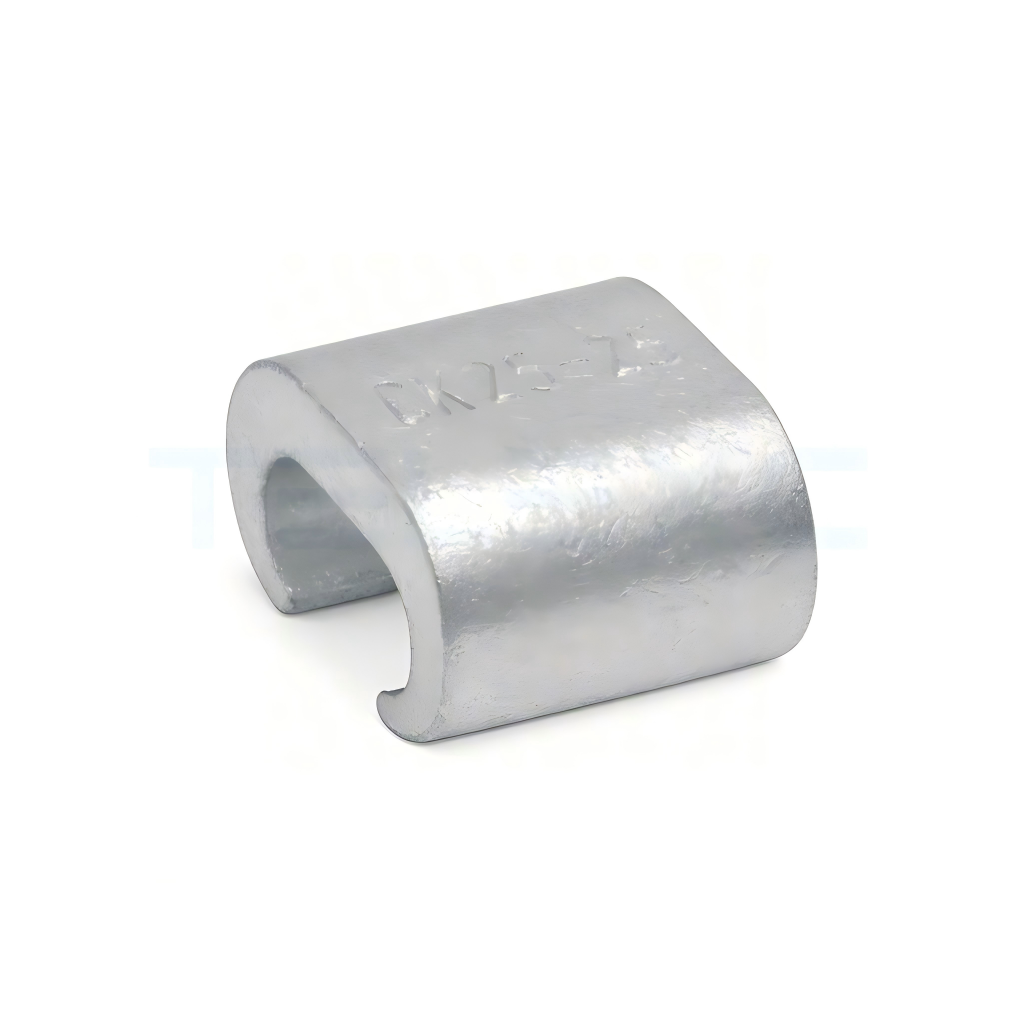

Copper C-Type Branch Clamp 70mm² | Tin-Plated Cable Connector

Key Features

1. Non-Cutting Installation

Allows tapping without cutting the main conductor, simplifying installation.

2. High Conductivity Copper

ETP copper ensures low resistance and efficient current flow.

3. Corrosion Resistant Finish

Tin plating protects against oxidation and environmental damage.

4. Wide Cable Compatibility

Supports both solid and stranded conductors as per standard classes.

5. Compact & Durable Design

Small size with strong mechanical performance for tight installations.

Copper C-Type Clamp Branch Clamp is engineered for reliable branching and tapping of copper conductors without cutting the main line. It ensures strong electrical conductivity and a secure mechanical connection for earthing and power distribution systems.

This C-Type Clamp is manufactured from high-conductivity ETP copper and finished with tin plating; the clamp offers excellent corrosion resistance and long-term performance. It is suitable for both solid and stranded conductors in low and medium-voltage applications.

International Standard Compliance

1. DIN 48201-1 Compatibility

Suitable for non-tension copper conductors used in power systems.

2. DIN EN 60228 Compliance

Supports Class 1 (solid) and Class 2 (stranded) conductors.

3. EN 50182 Reference

Compatible with overhead line conductor requirements.

4. RoHS Compliance

Environmentally safe materials are used in manufacturing.

5. Industry Earthing Standards

Designed for grounding and bonding applications.

Construction & Materials

1. ETP Copper Body

Provides excellent electrical conductivity and mechanical strength.

2. Tin-Plated Surface

Enhances corrosion resistance and extends product life.

3. C-Type Compression Design

Ensures uniform pressure distribution during crimping.

4. Smooth Edge Finishing

Prevents conductor damage during installation.

5. High Strength Structure

Maintains connection integrity under load conditions.

Installation Guide

1. Conductor Preparation

Clean and align both main and tap conductors properly.

2. Clamp Positioning

Place the clamp around the conductors at the desired connection point.

3. Crimping Process

Use an appropriate crimping tool to compress the clamp securely.

4. Connection Check

Ensure tight bonding and proper electrical contact.

5. Final Inspection

Verify no loose ends and confirm stable installation.

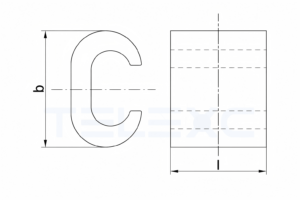

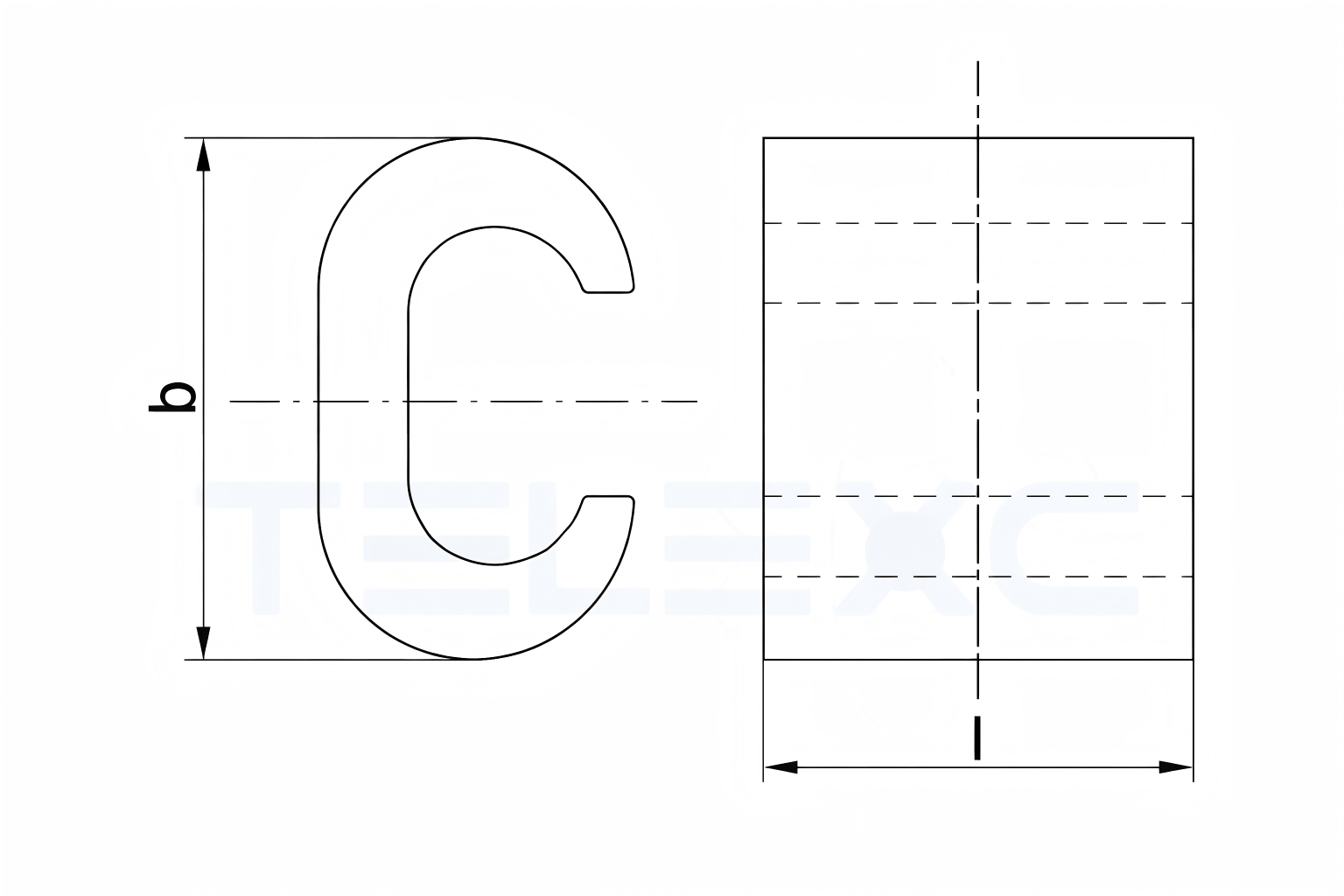

Technical Parameters ( Copper C-Type Branch Clamps)

Standard Range (Equal Conductor Size)

Model No.	Conductor Size (mm²)	Tap Conductor (mm²)	Width B (mm)	Length L (mm)	Weight / 100 pcs (kg)
TX-CCC25	16 – 25	16 – 25	16.0	15	0.94
TX-CCC35	25 – 35	25 – 35	20.2	16	1.68
TX-CCC50	35 – 50	35 – 50	25.7	20	3.42
TX-CCC50B	50	50	28.0	23	4.88
TX-CCC70	70	70	34.16	28	9.69
TX-CCC95	95	95	35.0	25	7.30

Multi-Purpose Range (Different Conductor Sizes)

Model No.	Main Conductor (mm²)	Tap Conductor (mm²)	Width B (mm)	Length L (mm)	Weight / 100 pcs (kg)
TX-CCC10	6 – 10 / 10	4 – 6 / 4 – 10	11.8	12	0.46
TX-CCC16	10 – 16 / 16	4 – 10 / 4 – 10	19.1	17	1.90
TX-CCC25A	16 – 25 / 25	4 – 10 / 4 – 10	19.3	17	1.90
TX-CCC35	16 – 25 / 25 – 35	16 – 25 / 16 – 35	20.4	17	1.75
TX-CCC50A	35 – 50	4 – 25 / 4 – 25	24.6	23	4.40
TX-CCC50B	35 – 50	16 – 35 / 25 – 50	26.5	23	4.20
TX-CCC70A	50 – 70	4 – 35 / 4 – 35	33.8	28	10.70
TX-CCC95A	95	16 – 35	41.0	30	15.00
TX-CCC95B	95	35 – 70	41.0	30	14.00
TX-CCC120	120	35 – 120	45.0	30	16.55
TX-CCC150	150	70 – 150	53.0	35	23.00
TX-CCC185	185	95 – 185	60.0	40	33.00

Material: ETP Copper
Surface: Tin-plated for corrosion resistance
Conductor Type:
- rm = Round multi-stranded
- re = Round single solid
Suitable for Class 1 & Class 2 conductors (DIN EN 60228)
Compatible with non-tension copper cables (DIN 48201-1)
Selected models also support 25 mm² solid conductors

Applications

1. Earthing Systems

Used for grounding connections in electrical installations.

2. Power Distribution Networks

Provides reliable branching in low and medium-voltage lines.

3. Telecom Infrastructure

Supports bonding and grounding in telecom systems.

4. Industrial Electrical Systems

Ensures safe and efficient conductor connections in plants.

5. Overhead Line Connections

Suitable for non-tension conductor branching applications.

Product Advantages

1. Excellent Electrical Performance

Low resistance ensures efficient current transmission.

2. Long Service Life

Tin plating protects against corrosion and environmental factors.

3. Easy Installation

No need to cut the main conductor reduces installation time.

4. Strong Mechanical Bond

Provides a secure and vibration-resistant connection.

5. Versatile Usage

Suitable for multiple conductor types and sizes.

FAQs

1. What is the main use of the TX-CCC70 clamp?

It is used for branching and tapping copper conductors in electrical systems.

2. Does it require cutting the main cable?

No, it allows connection without cutting the main conductor.

3. Is it suitable for outdoor use?

Yes, tin plating provides corrosion resistance for outdoor environments.

4. What type of conductors can it support?

Supports both solid and stranded copper or aluminum conductors.

5. Which tool is required for installation?

A standard crimping tool is required for proper compression.

6. Can it be used for earthing applications?

Yes, it is widely used in grounding and bonding systems.

7. What is the benefit of tin plating?

It prevents oxidation and improves long-term conductivity.

8. Is it reusable after crimping?

No, once crimped, it is designed for permanent connection.
