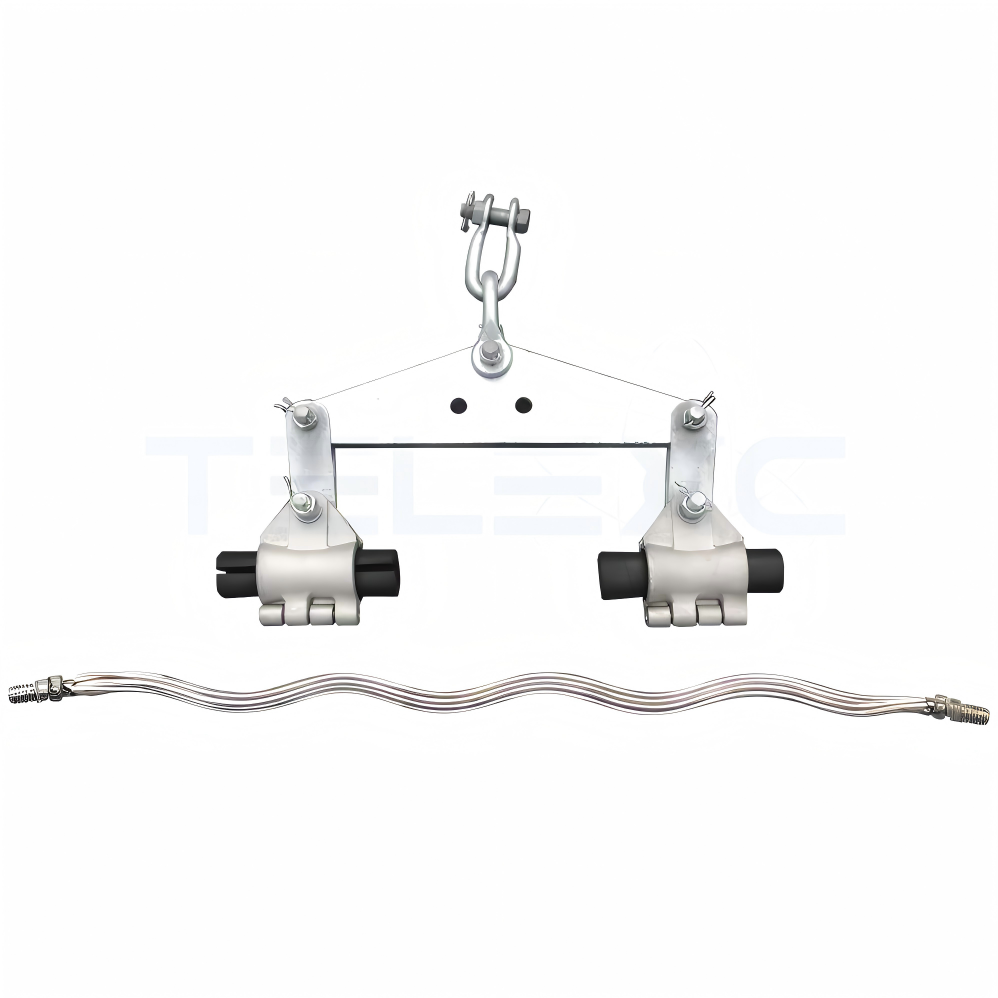

The Double Suspension Helical Set for OPGW is engineered to provide reliable mechanical support for optical ground wire installations on transmission lines with large spans, high elevation differences, and line angles exceeding 30°.
By utilizing a dual-suspension point design combined with inner structural reinforcing rods and outer armor rods, the assembly evenly distributes mechanical stress along the OPGW cable. This design significantly reduces static load concentration and dynamic stress caused by aeolian vibration, thereby improving fatigue resistance and extending the cable’s service life.
The set is widely used on straight-line towers and poles where enhanced holding strength, vibration control, and grounding continuity are required. High-strength double suspension helical set for OPGW, designed for large spans, high angles, and long-term cable protection.
International Standard Compliance
-
IEC 61284 – Overhead line fittings
-
IEC 60794 (relevant sections)
-
GB / DL standards for OPGW fittings
-
ISO 9001 Quality Management System
Construction & Materials

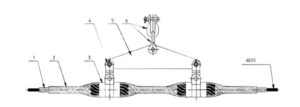

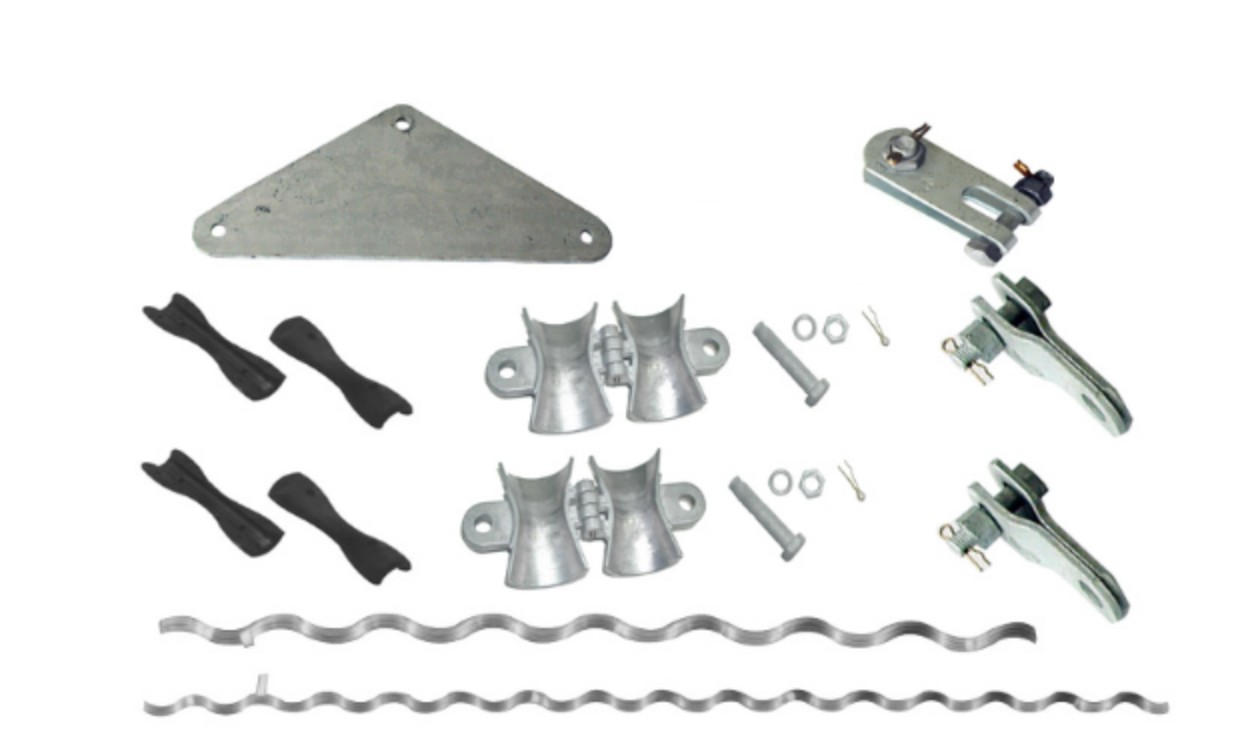

1. Structural Reinforcing Rods 2.Dead-end Component 3. AGS Clamp 4. PS-Link 5.YokePlate 6. U-Clevis 7.Grounding Clamps
-
Structural Reinforcing Rods: High-strength aluminum alloy / aluminum-clad steel
-
Outer Armor Rods: Corrosion-resistant preformed wire
-
Suspension Housing: Hot-dip galvanized steel
-
Link Fittings (PS Link, U-Clevis, Yoke Plate): Forged galvanized steel
-
Grounding Clamps: Conductive aluminum alloy
Robust double-suspension helical sets for OPGW are suitable for extended spans, large-angle towers, and enhanced cable service life.
Installation Guide
-
Verify OPGW diameter and select the correct TCLS model
-
Install structural reinforcing rods over the cable
-
Apply outer armor rods evenly in a preformed direction
-

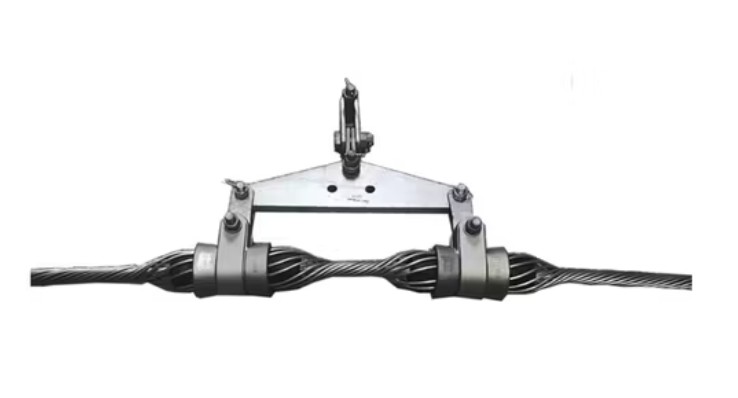

Mount dual suspension housings onto the armor rods
-
Connect the PS links, yoke plate, and U-clevis to the tower hardware
-
Secure grounding clamps and verify electrical continuity
Trained line technicians should perform installation.
Double Suspension Set for OPGW
| Model (TCLS) |
Applicable Cable Diameter (mm) |
Length of Structural Reinforcing Rods (mm) |
Length of Outer Rods (mm) |
Reference Weight (kg) |
Color Code |
| TCLS 0880 |
8.1 – 8.8 |
2110 |
1610 |
1.6 |
GR |
| TCLS 0960 |
8.9 – 9.6 |
2210 |
1610 |
1.7 |
BR |
| TCLS 1010 |
9.7 – 10.1 |
2210 |
1610 |
1.7 |
RE |
| TCLS 1060 |
10.2 – 10.6 |
2210 |
1610 |
1.8 |
BK |
| TCLS 1110 |
10.7 – 11.1 |
2210 |
1610 |
1.8 |
YE |
| TCLS 1160 |
11.2 – 11.6 |
2210 |
1610 |
1.9 |
PU |
| TCLS 1170 |
11.7 – 11.7 |
2310 |
1710 |
2.5 |
BU |
| TCLS 1200 |
11.8 – 12.0 |
2310 |
1710 |
2.5 |
GR |
| TCLS 1270 |
12.1 – 12.7 |
2310 |
1710 |
2.5 |
BR |
| TCLS 1290 |
12.8 – 12.9 |
2410 |
1710 |
2.8 |
RE |
| TCLS 1360 |
13.0 – 13.6 |
2410 |
1810 |
2.9 |
BK |
| TCLS 1410 |
13.7 – 14.1 |
2410 |
1810 |
2.9 |
YE |
| TCLS 1430 |
14.2 – 14.3 |
2410 |
1810 |
2.9 |
PU |
| TCLS 1450 |
14.4 – 14.5 |
2610 |
2010 |
3.5 |
BU |
| TCLS 1510 |
14.6 – 15.1 |
2610 |
2010 |
3.5 |
GR |
| TCLS 1580 |
15.2 – 15.8 |
2610 |
2010 |
3.5 |
BR |
| TCLS 1600 |
15.9 – 16.0 |
3110 |
2410 |
4.3 |
RE |
| TCLS 1690 |
16.1 – 16.9 |
3110 |
2410 |
4.3 |
BK |
| TCLS 1730 |
17.0 – 17.3 |
3110 |
2410 |
4.5 |
YE |
| TCLS 1800 |
17.4 – 18.0 |
3110 |
2410 |
4.6 |
PU |
| TCLS 1840 |
18.1 – 18.4 |
3110 |
2410 |
4.6 |
BU |
| TCLS 1880 |
18.5 – 18.8 |
3110 |
2410 |
6.3 |
GR |
| TCLS 1890 |
18.9 – 18.9 |
3110 |
2410 |
6.3 |
BR |
| TCLS 1990 |
19.0 – 19.9 |
3110 |
2410 |
6.5 |
RE |
FAQs
Q1: When should a double suspension set be used instead of a single suspension?
When the span length is large, the height difference is high, or the line angle exceeds 30°.
Q2: What is the maximum allowable suspension angle?
Single-side suspension angle is typically 30°–36°.
Q3: Is this product suitable for coastal or corrosive environments?
Yes, all steel parts are hot-dip galvanized for corrosion resistance.
Q4: Can the configuration be customized?
Yes, special fittings and configurations are available on request.
