Preformed Helical Suspension Set for OPGW Cables - OPGW Single Suspension Set

Preformed Helical Suspension Set for OPGW Cables – OPGW Single Suspension Set

Key Features

  • Uniform stress distribution along cable length

  • Grip strength exceeds 15–20% of rated tensile strength

  • Excellent fatigue and vibration resistance

  • Prevents cable sheath damage and fiber micro-bending

  • No slippage or conductor damage

  • Long service life in harsh outdoor environments

Category: Tags: , , , , , , , ,

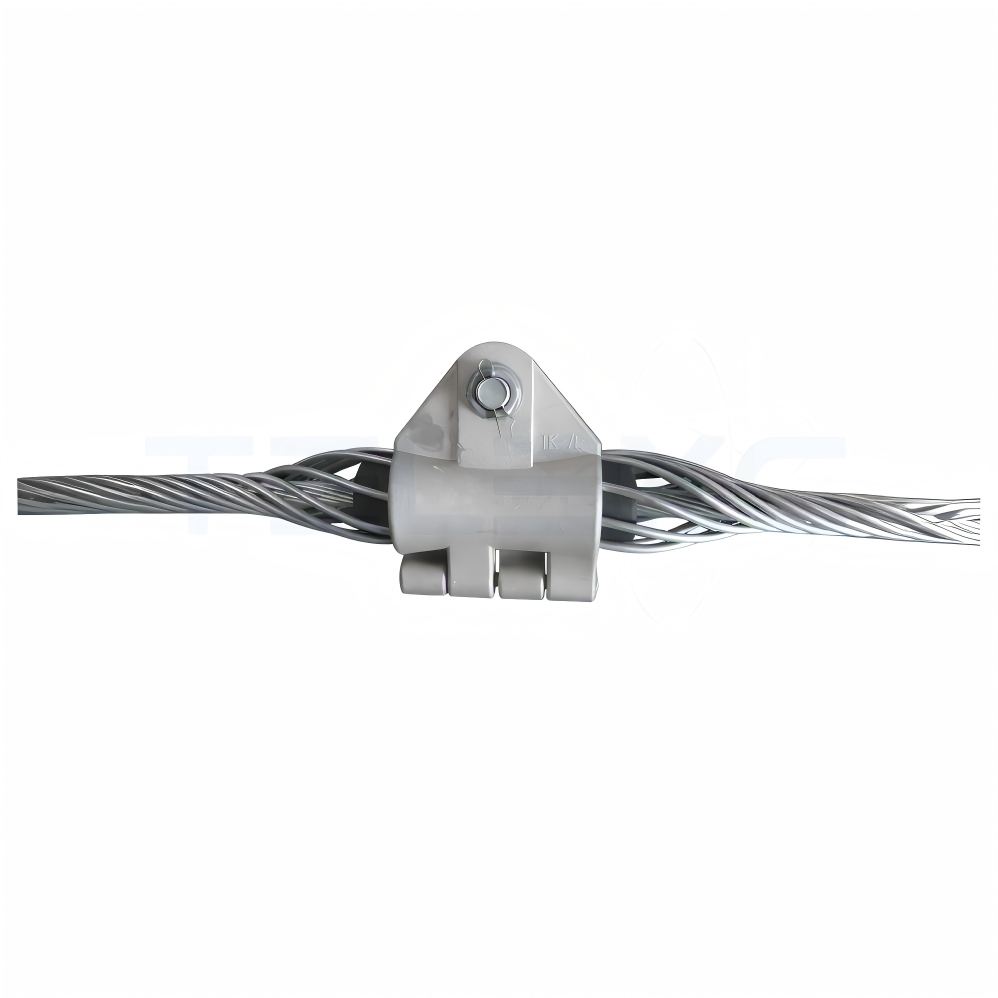

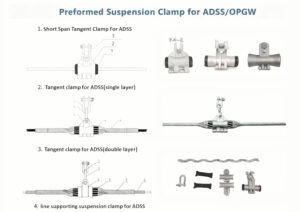

The Preformed Helical Single Suspension Set for OPGW is designed for suspending and supporting Optical Ground Wire (OPGW) on straight-line towers and poles. It effectively transfers axial loads while uniformly distributing radial pressure along the cable, preventing stress concentration and excessive bending.

Using double-layer preformed helical armor rods with elastomer protection, the suspension set significantly reduces static pressure and dynamic stress caused by aeolian vibration. This design enhances fatigue resistance, protects the optical fibers, and extends the operational life of the OPGW cable.

The gripping strength of the suspension set exceeds 15–20% of the rated tensile strength of the cable, ensuring secure mechanical performance without damaging the cable structure.

International Standard Compliance

  • IEC 61284

  • IEEE 1138

  • ISO 1461 (Hot-Dip Galvanization)

  • Utility and power grid technical specifications

Construction & Materials

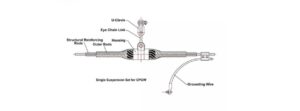

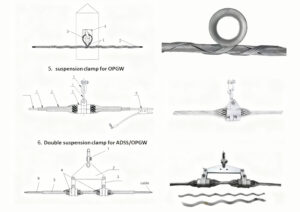

Main Components:

  1. Structural Reinforcing Rods

  2. Outer Helical Armor Rods

  3. Aluminum Housing

  4. Rubber / Elastomer Insert

  5. U-Shackle

  6. Eye Chain Link

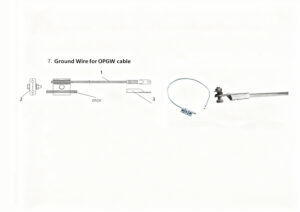

  7. Grounding Wire Clamp

  8. U-Clevis



Materials:

  • High-strength aluminum alloy

  • Galvanized steel fittings

  • UV-resistant elastomer/rubber inserts

Installation Guide

  1. Clean the OPGW cable surface at the suspension location

  2. Install structural reinforcing rods evenly around the cable

  3. Apply outer helical armor rods over reinforcing rods

  4. Position the rubber insert and the aluminum housing

  5. Connect suspension hardware to the tower or pole using a U-clevis and a shackle

  6. Tighten all fittings as per the specified torque

  7. No special tools required.



Technical Parameters – Single Suspension Set

Type Applicable Cable Diameter (mm) Length of Structural Reinforcing Rods (mm) Length of Outer Rods (mm) Reference Weight (kg) Color Code
OCL-0880 8.1 – 8.8 1630 1030 1.2 Green
OCL-0960 8.9 – 9.6 1630 1030 1.2 Brown
OCL-1010 9.7 – 10.1 1660 1060 1.2 Red
OCL-1060 10.2 – 10.6 1680 1060 1.3 Black
OCL-1110 10.7 – 11.1 1690 1070 1.3 Yellow
OCL-1160 11.2 – 11.6 1720 1090 1.4 Purple
OCL-1170 11.7 – 11.7 1830 1230 1.9 Blue
OCL-1200 11.8 – 12.0 1830 1230 1.9 Green
OCL-1270 12.1 – 12.7 1850 1230 1.9 Brown
OCL-1290 12.8 – 12.9 1950 1230 2.1 Red
OCL-1360 13.0 – 13.6 1950 1310 2.2 Black
OCL-1410 13.7 – 14.1 2000 1310 2.2 Yellow
OCL-1430 14.2 – 14.3 2000 1310 2.2 Purple
OCL-1450 14.4 – 14.5 2110 1430 2.6 Blue
OCL-1510 14.6 – 15.1 2110 1430 2.6 Green
OCL-1580 15.2 – 15.8 2170 1430 2.7 Brown
OCL-1600 15.9 – 16.0 2410 1610 3.1 Red
OCL-1690 16.1 – 16.9 2410 1610 3.1 Black
OCL-1730 17.0 – 17.3 2410 1610 3.2 Yellow
OCL-1800 17.4 – 18.0 2410 1610 3.3 Purple
OCL-1840 18.1 – 18.4 2410 1610 3.3 Blue
OCL-1880 18.5 – 18.8 2410 1610 4.7 Green
OCL-1890 18.9 – 18.9 2410 1610 4.7 Brown
OCL-1990 19.0 – 19.9 2410 1610 5.1 Red



Applications

  • Overhead transmission lines with OPGW

  • Straight-line towers and poles

  • Power utility communication networks

  • High-vibration or windy regions

  • Long-span and medium-tension lines

Product Advantages

  • Reduces maintenance costs

  • Extends OPGW service life

  • Improves system reliability

  • Easy installation and replacement

  • Proven performance under dynamic load conditions

FAQs

Q1: What type of tower is this suspension set used for?
Straight-line towers or poles with line deviation typically below 15°.

Q2: Does it damage the OPGW cable?
No. The helical armor rods and rubber inserts protect the cable sheath and fibers.

Q3: Is grounding included?
Yes, grounding wire clamps are part of the assembly.

Q4: Can it reduce vibration?
Yes. The design provides effective aeolian vibration damping.

Q5: Is customization available?
Yes, based on cable diameter, span length, and mechanical requirements.
