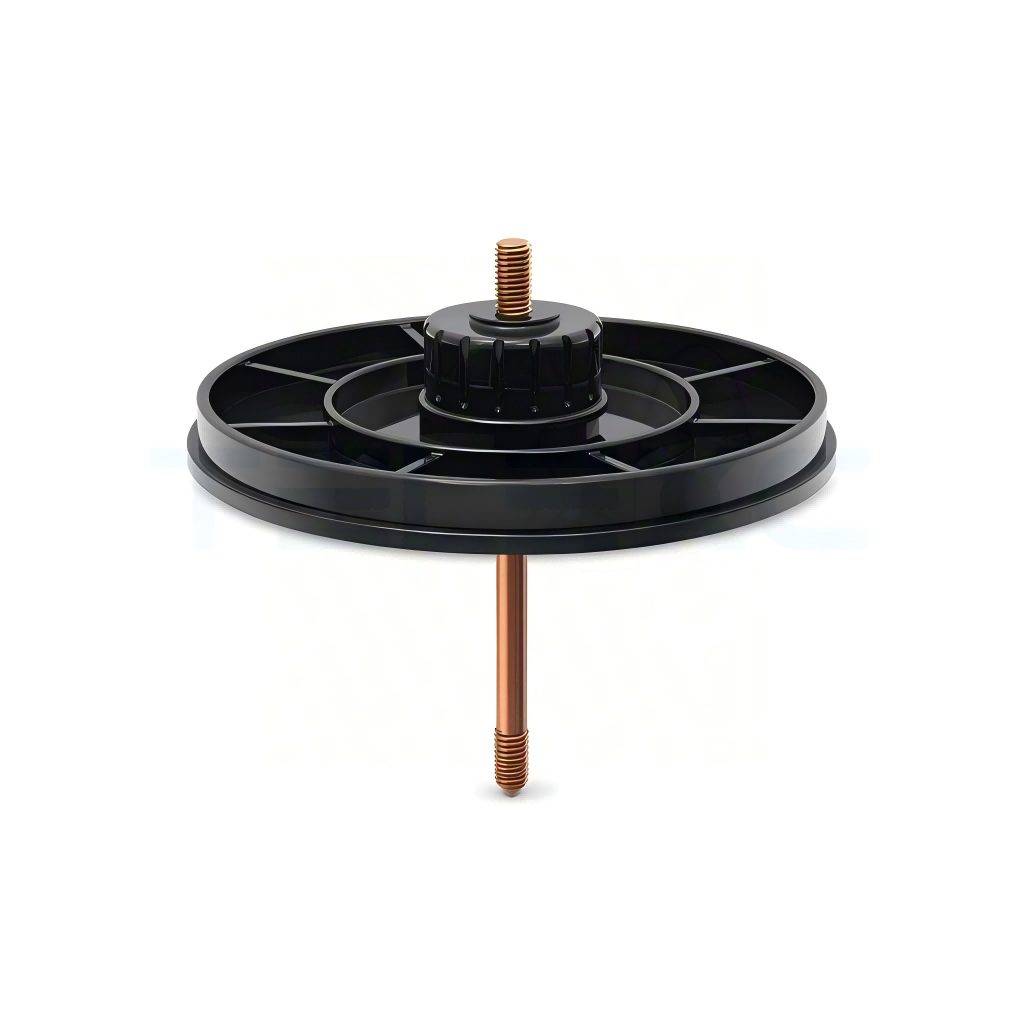

Earth Rod Seal is a high-performance waterproof sealing solution designed for earthing systems where internal grounding points are required. Engineered with high-density plastic, it prevents water ingress around earth electrodes while maintaining long-term durability and structural integrity. Its versatile design supports multiple rod diameters and ensures reliable sealing in concrete installations for lightning protection and grounding systems.
International Standard Compliance
- Designed in accordance with BS EN 62561-5:2011
- Tested under extended environmental conditions
- Manufactured under an ISO 9001:2015 quality system
- Suitable for global lightning protection and earthing standards
Construction & Materials
High-Density Polymer Material
Manufactured using robust plastic material for durability and waterproofing.
Precision Flange Design
Ensures tight sealing when embedded in concrete structures.
Corrosion-Resistant Structure
Non-metallic design prevents corrosion in aggressive soil conditions.
Flexible Diameter Support
Accommodates multiple rod sizes without additional components.
Long-Term Performance Stability
Maintains sealing efficiency throughout the system lifecycle.
Installation Guide
- Ensure flange surface is clean (free from dust, grease, or paint).
- Position the seal correctly before concrete pouring.
- Insert the earth rod centrally within the seal.
- Pour high-quality concrete and compact properly.
- Do not install the seal after slab casting; it must be embedded during construction.
Quality Control (ISO 9001 Based)
1. IQC – Incoming Quality Control
Raw materials are tested for strength, composition, and durability.
2. IPQC – In-Process Control
Production monitored to ensure dimensional accuracy and consistency.
3. First Article Inspection (FAI)
Initial product verified for design and performance compliance.
4. Mass Production Control
Batch inspections maintain uniform product quality.
5. OQC / FQC – Final Quality Control
Finished seals are inspected for performance, finishing, and compliance before dispatch.
Applications
Building Earthing Systems
Used in internal grounding points within concrete structures.
Lightning Protection Systems
Prevents water ingress in lightning earthing installations.
Substation Grounding
Ensures sealed and protected earth electrode installations.
Infrastructure Projects
Ideal for bridges, tunnels, and commercial developments.
Industrial Facilities
Provides durable sealing for factory grounding systems.
Product Advantages
Effective Waterproof Protection
Prevents water penetration, ensuring long-term grounding reliability.
Easy Installation Process
Simple integration during construction reduces labor complexity.
Long Service Life
Durable materials ensure extended operational performance.
Flexible Application Range
Compatible with various rod types and diameters.
Low Maintenance Requirement
Reduces the need for repairs and replacements over time.
FAQs
1. What is the purpose of an Earth Rod Seal?
It prevents water ingress around the earth rod in concrete installations.
2. Is it compatible with all rod types?
Yes, it supports copperbond, solid copper, and stainless steel rods.
3. Can additional rods be installed later?
Yes, the design allows future expansion without damaging the seal.
4. When should the seal be installed?
It must be installed before pouring concrete.
5. What material is used?
High-density plastic for durability and waterproofing.
6. Does it require maintenance?
No, it is designed for long-term maintenance-free operation.
7. Which standards does it comply with?
BS EN 62561-5:2011, and ISO 9001:2015.
8. Is it suitable for outdoor applications?
Yes, it performs well in harsh environmental conditions.
