The Fiber Cable Clamp is designed for secure routing and fastening of fiber optic and DC power cables in telecom base stations and 4G/5G network installations. Each clamp unit is engineered to hold one run of 4–7mm fiber optic cable together with one run of 9–14mm power cable, helping installers manage hybrid cable layouts neatly and safely.
Built for outdoor use, the clamp combines 304 stainless steel hardware, improved polypropylene hanger parts, and EPDM rubber inserts for dependable mechanical support, weather resistance, and long-term durability. The pre-fitted rubber inserts simplify field installation, reduce handling time, and help protect cable jackets from pressure damage during operation.
The TX-FCC 1247 series is suitable for towers, poles, and telecom infrastructure where stable cable retention, corrosion resistance, and easy maintenance are required.
International Standard Compliance
The TX-FCC 1247 Fiber Cable Clamp is produced in line with recognized industry quality and material control requirements for outdoor telecom accessories. Compliance references include:
- RoHS 2002/95/EC compliant
- Manufactured under ISO 9001 quality management practices
- Suitable for outdoor telecom installation environments requiring corrosion, UV, and vibration resistance
Construction & Materials
The TX-FCC 1247 is built with carefully selected materials for outdoor telecom performance:
- Metal Components: 304 stainless steel for threaded rod, nuts, washers, adapter, and screw
- Clamp Body: Improved polypropylene (PP) with enhanced rigidity, weather resistance, and thermal stability
- Insert Material: EPDM rubber with strong UV resistance, heat resistance, and weather durability
- Mounting Structure: M8 hardware system for stable and secure installation
This material combination helps ensure cable retention, reduced jacket wear, and dependable service life in exposed environments.
Product Codes
| Product Code | Description |
|---|---|
| TX-FCC 1247-1 | Fiber Cable Clamp for 4–7mm FO and 9–14mm Power Cable, Single Run |
| TX-FCC 1247-2 | Fiber Cable Clamp for 4–7mm FO and 9–14mm Power Cable, Double Run |

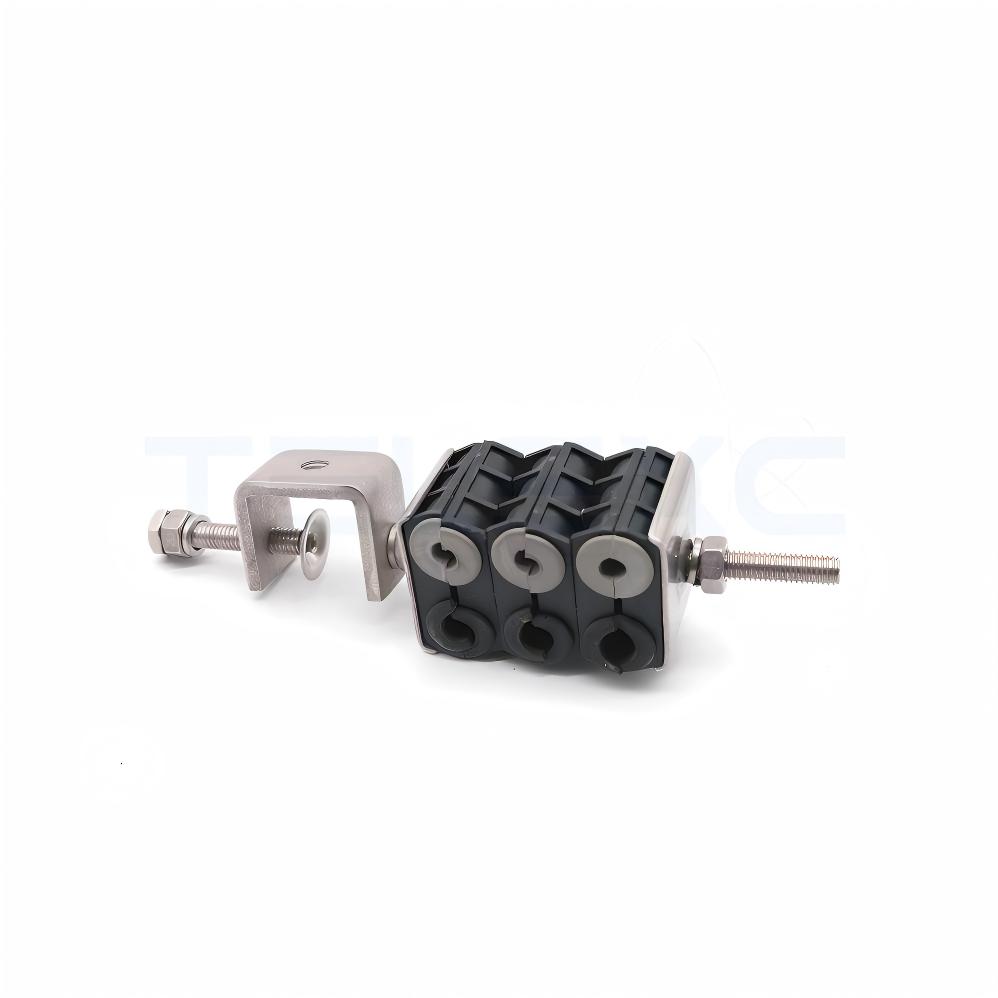

| TX-FCC 1247-3 | Fiber Cable Clamp for 4–7mm FO and 9–14mm Power Cable, Triple Run |
Installation Guide
- Confirm the cable diameters match the clamp range: 4–7mm fiber optic cable and 9–14mm power cable.
- Select the proper clamp configuration based on the required cable runs.
- Position the clamp at the mounting point on the tower, pole, bracket, or support structure.
- Open the hanger and place the fiber cable and power cable into their designated grooves.
- Ensure the pre-attached EPDM inserts align properly around the cable jackets.
- Fasten the clamp using the M8 threaded hardware and tighten evenly.
- Check cable alignment and confirm the clamp is secure without over-compression.
- Perform a final inspection to verify stable fixation and proper routing.
